How to Choose a Spiral Freezer Belt for IQF Systems?
Quick Answer
A spiral freezer belt is more than its width, length, and stainless steel grade. It must match the food product, drum diameter, turning radius, drive system, cleaning method, and operating conditions of the complete IQF line.
A belt may look correct on a drawing and still create problems after installation. This guide will help you understand the key details that affect tracking, edge wear, sprocket engagement, drive load, product marking, and cleanability. Sometimes, one overlooked detail is enough to affect the entire system.
Why Does the Belt Need to Be Selected as Part of the Freezer System?
A spiral freezer belt works under several conditions at the same time.
It carries food products, bends continuously around the drum, moves through a spiral path, engages with the drive system, allows cold air to pass through, and withstands repeated cleaning.
For this reason, one correct specification does not guarantee a correct belt.
The stainless steel grade may be suitable, but the edge structure may not fit the guide system. The belt width may be correct, but the turning radius may not match the drum. Even when the new belt follows an old drawing, existing problems caused by sprocket wear or poor alignment may continue.
Common selection mistake: asking for a quotation before confirming how the belt interacts with the freezer.
For food processing plants, a mismatch can interrupt production. For OEM freezer builders, it can become an after-sales issue. For distributors, it can weaken customer confidence.
What Should Be Confirmed Before Requesting a Price?
A useful technical review starts with the working conditions, not the quotation form.
Before asking for a price, confirm the following:
- What food product will be frozen?
- What is the product load per square meter?
- What is the drum diameter?
- What is the minimum inside turning radius?
- What are the belt pitch and rod pitch?
- How is the belt edge guided?
- What sprockets or drive components are used?
- What is the operating temperature?
- How is the belt cleaned?
- Is this a new OEM project or a replacement project?
How Does the Food Product Affect Belt Selection?
Small seafood, diced vegetables, and loose products require suitable openings and stable support. Heavy meat and poultry products place more load on the rods and belt structure. Bakery and prepared food products may require smoother contact to reduce marking or deformation.
| Product Condition | Belt Selection Concern |
|---|---|
| Small product pieces | Opening size and product support |
| Heavy product loading | Rod strength and structural stability |
| Wet or sticky food | Cleaning access and surface contact |
| Delicate product surface | Smooth transfer and reduced marking |
| Salt or seasoning exposure | Material and corrosion resistance |
The belt must support the food without blocking too much airflow.
A very closed belt structure may reduce air circulation. An opening that is too large may not support small products properly. The correct choice is usually a balance between airflow, support, belt weight, and cleanability.

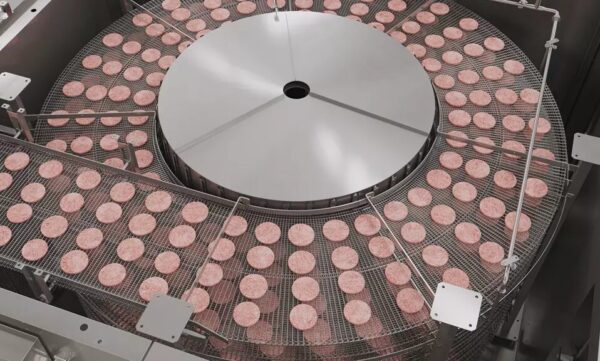

Why Are Drum Diameter and Turning Radius Important?
The belt bends continuously as it travels around the spiral freezer drum.
If the belt structure is too rigid for the required turning radius, internal stress may increase. The belt may become difficult to install, rub against the guide, or require more drive force than expected.
Early warning signs can include:
- Uneven tracking
- Edge contact
- Higher drive load
- Irregular belt tension
- Frequent adjustment
For a new IQF freezer, the drum diameter and turning radius should be confirmed during equipment design.
For a replacement project, use the original drawing, measured drum diameter, old belt sample, or clear photos of the running area. If the original drawing is unavailable, a physical belt section often provides more reliable information than an estimated dimension.
Production should not be confirmed while the drum diameter or turning radius is still uncertain.

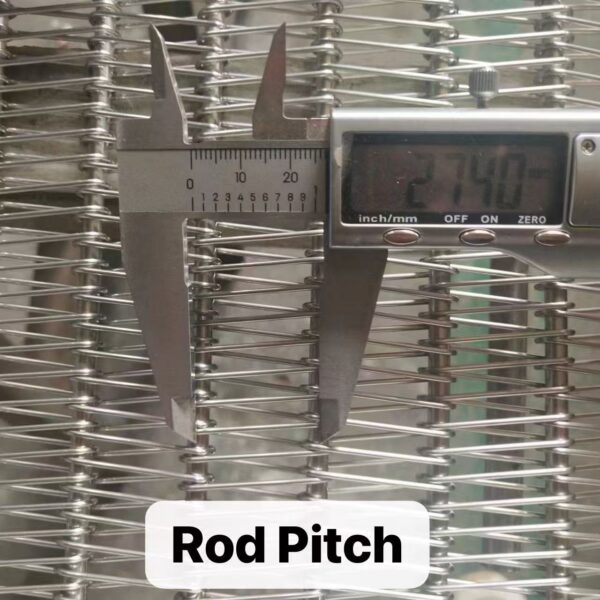

How Should Belt Pitch and Rod Pitch Be Reviewed?
Pitch affects more than product support.
It also influences belt flexibility, open area, belt weight, sprocket engagement, and cleaning access.
A smaller pitch can provide better support for small products, but it may increase belt weight and reduce airflow. A larger pitch can improve open area, but it may not support delicate or small products well enough.
The correct pitch depends on:
- Product size and loading pattern
- Required freezing time
- Airflow design
- Drum diameter
- Belt speed
- Drive engagement
- Cleaning requirements
Do not copy a pitch from another spiral freezer simply because the machines look similar. Two systems may have different products, loading densities, drive layouts, and freezing requirements.
For replacement projects, measure the existing belt pitch, rod pitch, wire diameter, and sprocket engagement position carefully. A small dimensional difference may become a serious problem at the drive point.

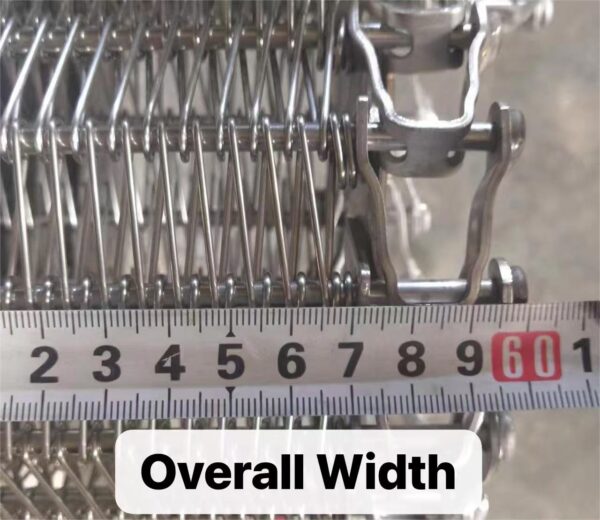

Is Total Belt Width the Same as Usable Width?
Not always.
Part of the total belt width may be occupied by edge structures, side links, guide contact areas, or drive engagement zones. A belt can fit inside the freezer while providing less usable product space than expected.
Before confirming the width, check:
- Total belt width
- Effective carrying width
- Edge structure width
- Side clearance
- Guide rail position
- Product transfer point
- Product loading density
For OEM freezer builders, these dimensions influence equipment capacity and product flow.
For replacement projects, measure both the outside width and the actual carrying area of the old belt. Recording only the outside width may leave out important working dimensions.

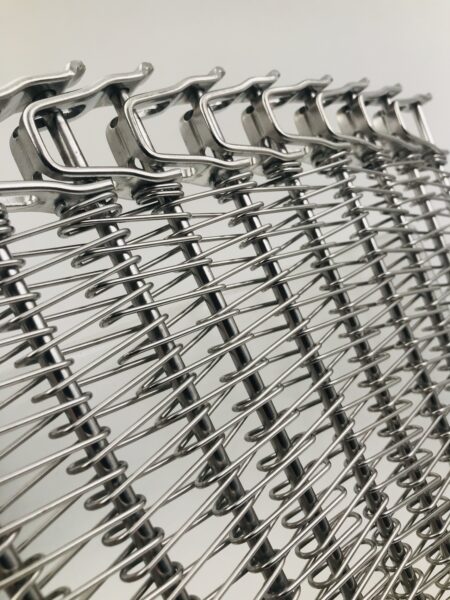

How Should the Edge Structure Be Checked?
The edge is a small part of the belt, but it has a large influence on tracking and service life.
A replacement belt may look similar to the original belt while using a slightly different edge construction. That difference can change guide contact, side clearance, welding position, and belt movement.
Use the old belt as evidence.
Look for:
- Uneven edge wear
- Rubbing marks
- Bent links
- Cracked welds
- Polished guide-contact areas
- Deformation near the drive section
If one side is more heavily worn than the other, the problem may not be limited to the belt. Guide alignment, installation, drive engagement, or tension may also need to be checked.
A proper replacement review should not only reproduce the old specification. It should also identify why the old belt wore in that way.
Why Must Sprockets Be Reviewed With the Belt?
The belt and drive components operate as one system.
If the sprocket pitch, tooth profile, or engagement position does not match the belt, abnormal wear can develop even when the belt itself is correctly manufactured.
The supplier should review:
| Drive Detail | What It Affects |
|---|---|
| Sprocket pitch | Belt engagement |
| Tooth profile | Smooth movement and wear |
| Drive position | Load distribution |
| Belt entry angle | Tracking and engagement |
| Existing sprocket wear | Replacement reliability |
For a replacement project, send sprocket photos together with the belt drawing or old belt photos.
If the sprockets are badly worn, replacing only the belt may not solve the operating problem.
Is Stainless Steel Grade Enough to Confirm the Material?
No. The material grade is only one part of the review.
The actual working environment must also be considered.
Seafood processing may involve salt, moisture, and frequent washing. Meat and poultry lines may use stronger cleaning routines. Prepared food applications may require food-contact documentation and easier cleaning.
Before confirming the material, review:
- Food-contact requirements
- Cleaning chemicals
- Salt or seasoning exposure
- Operating temperature
- Product moisture
- Corrosion risk
- Required material documentation
A material report supports traceability, but it cannot compensate for an incorrect turning radius, edge structure, or drive match.
The material must be suitable, and the complete belt structure must still fit the system.
How Does the Cleaning Process Affect the Belt?
Cleaning is part of the operating condition of an IQF system.
The belt should allow access to rods, openings, edges, and contact areas. A structure that traps residue may increase cleaning time and hygiene risk.
Confirm whether the production line uses:
- Water washing
- Foam cleaning
- Chemical cleaning
- High-pressure washing
- Manual cleaning
- Scheduled defrost and cleaning cycles
Aggressive cleaning chemicals may require additional attention to material selection and surface condition.
For food processing plants, cleanability affects more than compliance. It also influences labor time, production scheduling, and maintenance costs.
What Should Be Checked in a Replacement Project?
An old belt is more than a dimensional sample. It is a record of how the system has been operating.
Before ordering a replacement, inspect the old belt for:
- Edge wear
- Rod deformation
- Broken links
- Welding cracks
- Uneven tension marks
- Product contact patterns
- Sprocket wear
- Cleaning residue
- Corrosion
- Damage concentrated in one area
These signs may show whether the problem came from the belt structure, guide alignment, loading condition, cleaning method, or drive system.
A replacement review should answer two separate questions:
- What belt specification is required?
- Why did the previous belt fail or wear prematurely?
Copying the old dimensions without investigating the failure pattern may reproduce the same problem.
How Can a Buyer Evaluate Manufacturing Consistency?
A good sample does not always prove that a complete production batch will be consistent.
Spiral freezer belts operate under repeated bending, low temperature, continuous tension, and product loading. Variation in forming, welding, or assembly can create weak points that are not immediately visible.
A supplier should be able to explain how the following steps are controlled:

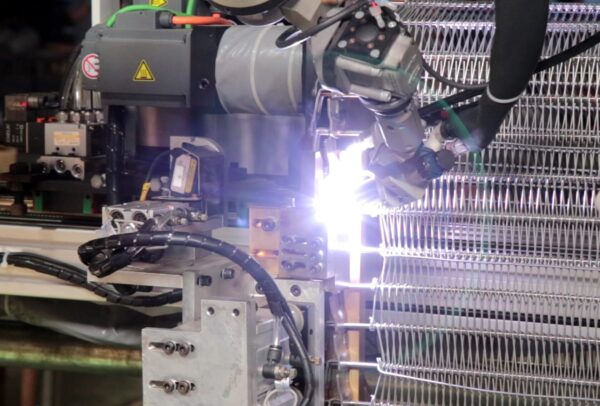

- Raw material preparation
- Wire forming
- Rod and edge assembly
- Welding consistency
- In-process inspection
- Final QA
- Material traceability
- Sample retention
- Packing inspection
For OEM builders and long-term replacement programs, production consistency is often more important than the appearance of the first sample.
The final customer judges the belt while it is operating inside the freezer.
What Information Should Be Included in an RFQ?
A complete RFQ reduces repeated communication and helps the supplier provide a more accurate review.
| Information | Why It Is Needed |
|---|---|
| Food product | Reviews support, airflow, and contact surface |
| Freezer type | Identifies the working system |
| Original drawing | Confirms dimensions and structure |
| Old belt photos | Shows wear and construction |
| Drum diameter | Confirms bending conditions |
| Belt and rod pitch | Confirms flexibility and drive fit |
| Belt width | Confirms installation and capacity |
| Edge details | Confirms tracking and guide contact |
| Sprocket information | Confirms drive engagement |
| Material requirement | Reviews corrosion and food-contact needs |
| Cleaning method | Reviews material and cleanability |
| Quantity and destination | Supports production and delivery planning |
For urgent replacement projects, clear photos can be used to begin the review before every document is available.
Useful photos include the full belt, edge structure, damaged area, sprockets, guide contact area, and machine layout.
How Do Belt Requirements Change by Application?
The same spiral system can run very different products. The checks above apply to every line, but the priorities shift with the application.
Bakery cooling and proofing spirals
Bread, buns, pastries and cakes leave the oven soft and warm. The belt must support them evenly so the base does not mark or deform, and the open area must let cooling air pass through the product layer without dead zones.
- Confirm the smallest and most delicate product, not only the main SKU.
- Check that the mesh opening and surface suit the product base and any trays or pans.
- Review how crumbs and residue are removed during cleaning.
Poultry and meat freezing
Raw poultry and meat bring higher product weight, moisture and frequent wash-down with chemicals. Load capacity, weld quality and corrosion resistance become the first checks.
- Share the product weight per square metre and the loading pattern.
- Confirm the cleaning chemicals and temperatures used in sanitation.
- Check edges and welds for points where residue can collect.
Seafood and IQF tunnel lines
Shrimp, fish fillets and other small IQF products need a surface that keeps pieces separate and stable while the air flow freezes them quickly. Salt and frequent wash-down make material verification more important.
For a product-by-product view, see which metal mesh belt suits quick freezing of shrimp and fish.
Compact spiral towers and tight layouts
A spiral tower moves product vertically in a small footprint, so the turning radius and drum size usually decide the belt type. Where the layout is very tight, a small radius spiral freezer belt or a self-stacking belt may be the better fit than a standard spiral freezer belt.
What Should a Spiral Freezer Belt Supplier Provide?
A suitable supplier should do more than manufacture according to a width and length.
The supplier should be able to support:
- Drawing review
- Old belt analysis
- System-fit confirmation
- Material verification
- Matched drive component review
- Production inspection
- Final QA
- Export packing and delivery coordination
YIYI Mesh Belt supports OEM equipment builders, professional distributors, and food processing plants through drawing-based communication, replacement review, robotic welding, in-house wire drawing, verified quality control, and export-ready supply coordination.
The purpose is to reduce mismatch before production and support stable operation after installation.
Conclusion
The best spiral freezer belt is not simply the belt with the lowest price or the highest material grade.
It is the belt that matches the food product, drum diameter, turning radius, pitch, edge structure, sprockets, cleaning method, and operating conditions of the IQF system.
Before placing an order, confirm the machine conditions and review the evidence from the old belt if it is a replacement project. A careful technical review takes less time than correcting an installation mismatch after production.
Drawings, old belt photos, and samples can be submitted to YIYI Mesh Belt for technical review and replacement support.
