Six things we build to your specification
Belt structure

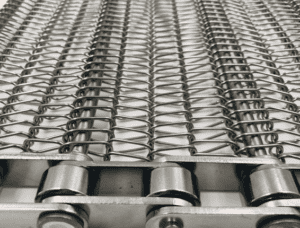

Spiral, self-stacking, side driven, eye link, flat wire, woven, trapezoidal and chain belts.
Dimensions
Width, length, pitch, wire and rod diameters, set by your drawing or your current belt.
Edge
Button, flat-hat, rod or washer welded; clinched; roller chain; single or double loop.
Accessories and drive
Sprockets, side guards, flights, reinforced plates and spare parts.
Six steps from drawing to shipment
Each step removes one risk: specification, production, batch and shipment.
You approve and sign the drawing. It becomes the technical basis of the order.
We confirm our reading of the drawing and the manufacturing structure.
Geometry, assembly, edge and interface are checked on a finished piece.
Production follows the approved first article, with in-process inspection.

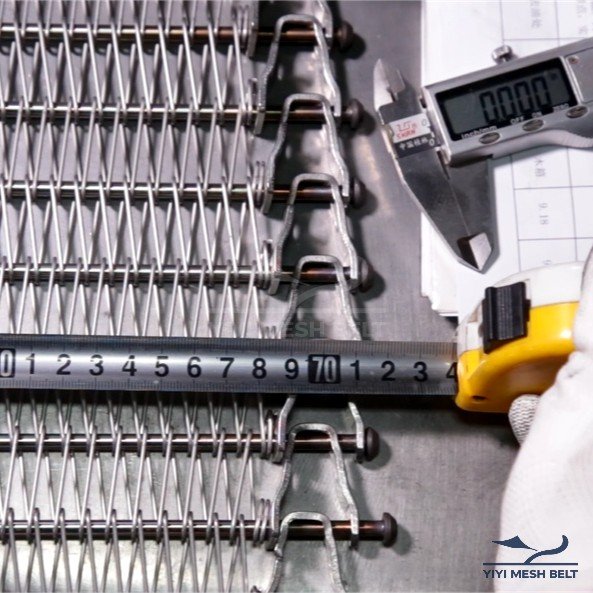

Pitch, width, length, flatness, welds and appearance checked before packing.
Export packing chosen for the belt, then shipped on your terms.
Custom belts for three kinds of buyers
Equipment manufacturers (OEMs)
Belts for new spiral freezers, ovens, coolers, washers and conveyors. We review your machine drawing, sprocket and drive interface, so the belt fits the first time and repeat orders match.
Distributors and belt specialists
A manufacturing partner for the belt types your customers ask for. We review each enquiry with you and keep the drawing and order records, so repeat orders can be rebuilt the same way.
Plant and maintenance teams
Replacement belts for existing lines. A worn belt is not the original design, so we use the physical belt, any drawings and your equipment data to confirm the dimensions before production.
Replacing a worn belt? Worn dimensions are not the original design.
Belts stretch and wear in service. Copying the worn dimensions can produce a belt that does not run on your drive. For a formal replacement, we combine the physical old belt, any drawings and equipment information to remeasure, review the structure and confirm the final manufacturing dimensions.
Photos and basic dimensions are enough for a first identification and an indicative quotation. The final dimensions are confirmed before production.
What to send for a fast, accurate quote
Not sure about every value? Send what you have. Our engineers fill the gaps during review.
- 01Application and process (freezing, baking, washing…)
- 02New equipment, replacement or spare
- 03Current belt type, if any
- 04Drawing, or the old belt itself
- 05Width and length
- 06Material
- 07Pitch, wire and rod dimensions
- 08Edge structure
- 09Drive and sprocket details
- 10Quantity and required timing
- 11Any documentation or testing requirement
Questions about custom belts
Can you make a metal conveyor belt to my drawing?
Yes. Custom belts are built to the drawing you approve and sign. A trial production and a complete first article are confirmed before mass production.
What is the minimum order quantity?
For mesh belts the MOQ is usually around 10 m. It depends on the belt type and project, so tell us what you need.
Can you copy my existing belt?
Usually, after review. Send the physical belt if possible, plus any drawings and equipment details. Worn dimensions are not the original design, so we confirm dimensions before production.
How long does a custom belt take?
Lead time depends on belt type, specification, quantity and the current schedule. We confirm it with the quotation for your order.
Still have a question? Ask our engineers.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
