Four material families for metal conveyor belts
Your engineer confirms the grade against your process before we quote.
SUS304 stainless steel
The most common choice for food processing belts. Used across spiral, stacking, open-structure, woven and chain belts.
SUS316 stainless steel
Chosen when the belt meets salt, brine or stronger cleaning chemicals. Available for every metal belt type we make.
SUS316L stainless steel
Low-carbon 316, available for flat wire / honeycomb belts where the project calls for it.
Mild / carbon steel
For dry, non-corrosive conveying where cost matters. Available for selected belt types, chain and sprocket parts.
Which materials are available for which belt
| Belt type | Available materials |
|---|---|
| Spiral Freezer Belt | SUS304 / SUS316 |
| Spiral Freezer Belt (Small Turning Radius) | SUS304 / SUS316 |
| Self-Stacking Belt | SUS304 / SUS316 |
| Side Driven Belt | SUS304 / SUS316 |
| Eye Link Belt | Mild steel / SUS304 / SUS316 |
| Flat Wire / Honeycomb Belt | SUS304 / SUS316 / SUS316L / Mild steel |
| Trapezoidal Mesh Belt | SUS304 / SUS316 |
| Balanced Weave Belt | SUS304 / SUS316 / Mild steel |
| Compound Weave Belt | SUS304 / SUS316 / Mild steel |

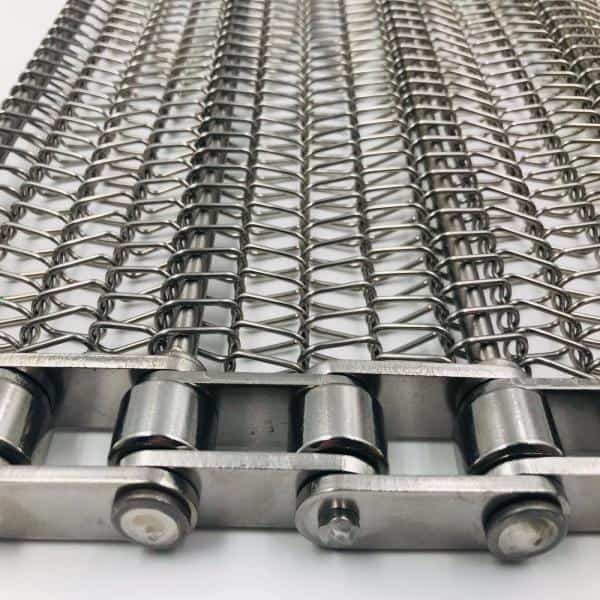

| Chain Driven Belt | SUS304 / SUS316 / Carbon steel |

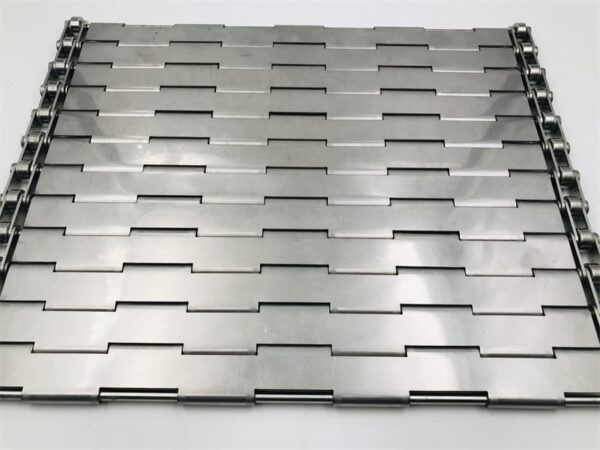

| Chain Plate / Plate Link Belt | SUS304 / SUS316 / Mild steel |
| Sprockets & Components | SUS304 / SUS316 / Carbon steel / UHMW-PE / Nylon / POM |
Choosing a grade from the buyer’s side
Food contact and wash-down
Usually SUS304. Consider SUS316 if the line uses salt, brine or chlorinated cleaning agents.
Freezing and cooling
Stainless steel is standard for spiral freezer and self-stacking belts: SUS304 or SUS316.
Dry, non-corrosive conveying
Mild steel can lower cost on selected belt types where corrosion is not a concern.
Not sure?
Tell us the product, temperature range and cleaning method. Our engineers suggest a grade and confirm it with you.
How we control material before the first bend
Each batch: steel mill material documentation, material confirmation, spectral and hardness testing.
Testing scope: we can also perform tensile, dimensional and coordinate-measuring checks. Which tests and documents come with an order depends on the product and your requirements — tell us before production.
Questions about belt materials
What is the difference between SUS304 and SUS316 for conveyor belts?
SUS316 contains molybdenum and is chosen where the belt meets salt, brine or stronger cleaning chemicals. SUS304 is the common choice for general food processing. We confirm the grade against your process.
Do you provide material certificates?
Each incoming batch comes with steel mill material documentation, and material documentation is available per order. Tell us what you need before production.
Do you make carbon steel conveyor belts?
Yes, for selected belt types such as eye link, flat wire, woven and chain plate belts, plus carbon steel chains and sprockets.
Which material documents come with an order?
Material documentation is prepared per order. If your market requires a specific standard or test, tell us before production and we confirm what we can provide.
Still have a question? Ask our engineers.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
