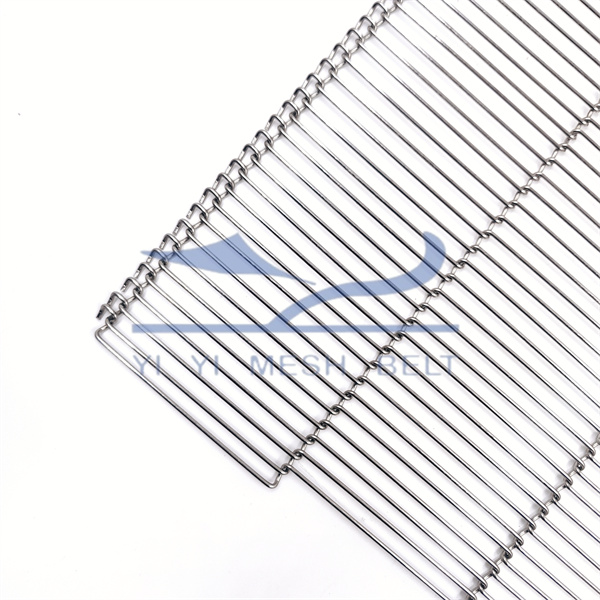

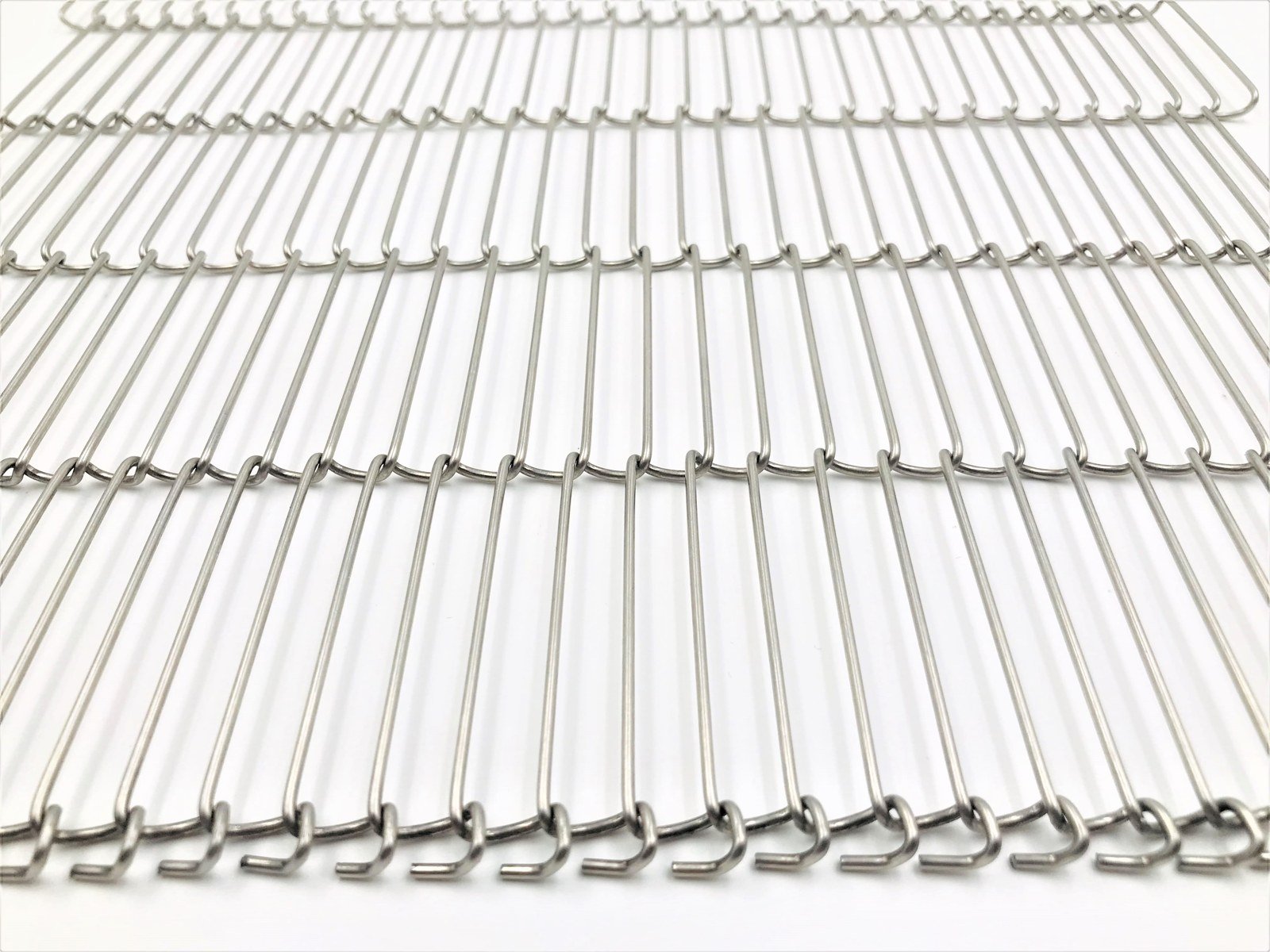

A structured wire conveyor belt selected by pitch, wire diameter, space count, width and edge. Because we run 15 automatic production machines for this belt, pitch and space count stay consistent from the first metre to the repeat order.
Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.
| Parameter | Metric (mm) | Inch (in) |
|---|---|---|
| Material | SUS304 / SUS316 | — |
| Pitch | 4–23.8 mm / custom | 0.157–0.937 in |
| Wire diameter | 1–2.8 mm | 0.039–0.110 in |
| Number of spaces | 3 or more | — |
| Belt width | 76–2352 mm / custom | 2.992–92.60 in |
| Edge | Single loop edge (SLE) / Double loop edge (DLE) | — |
| Pressed / not pressed | Per project | — |
| Sprocket | Required or not required, per drive | — |
Every option is confirmed on the approved drawing before production.

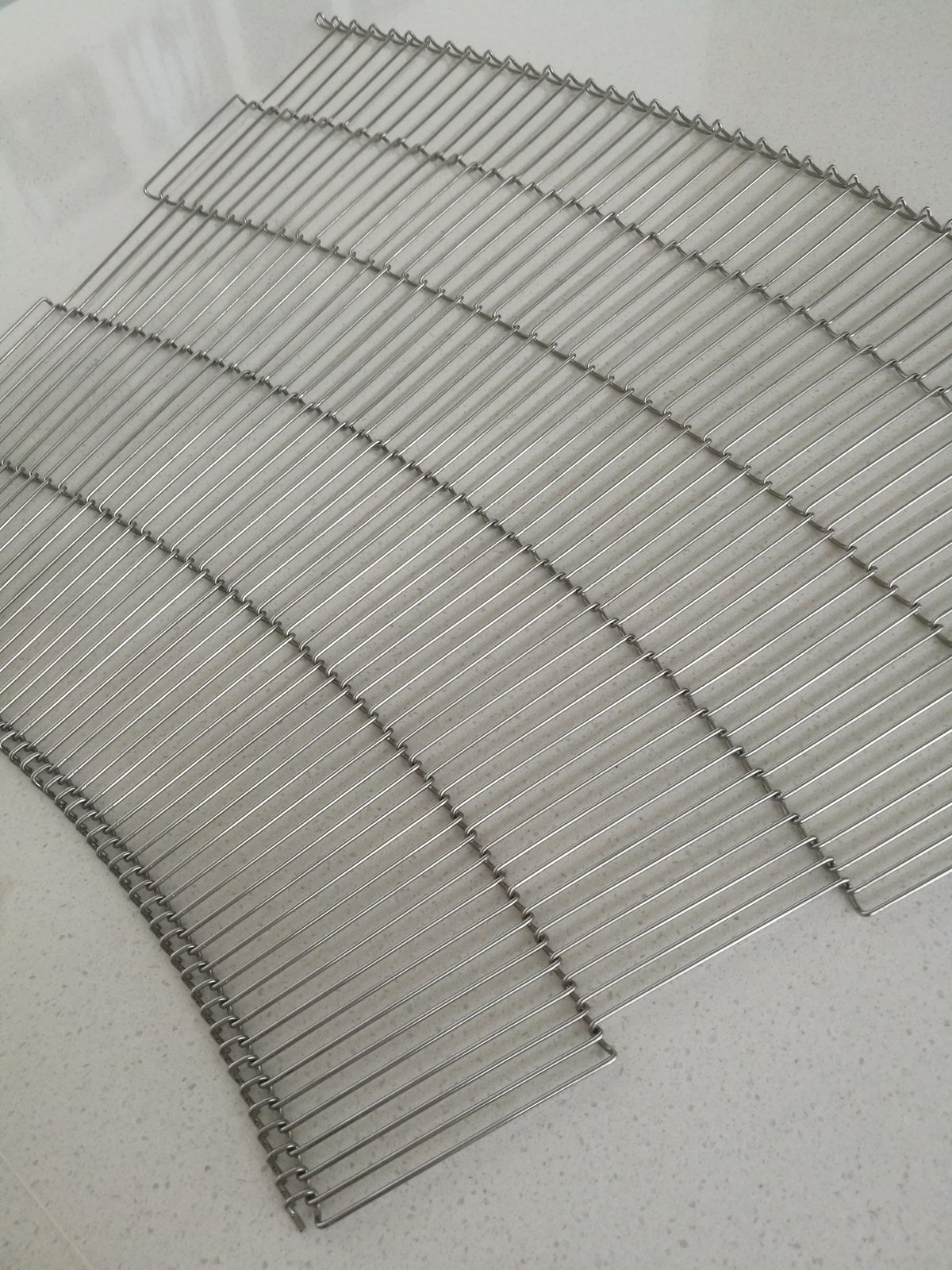

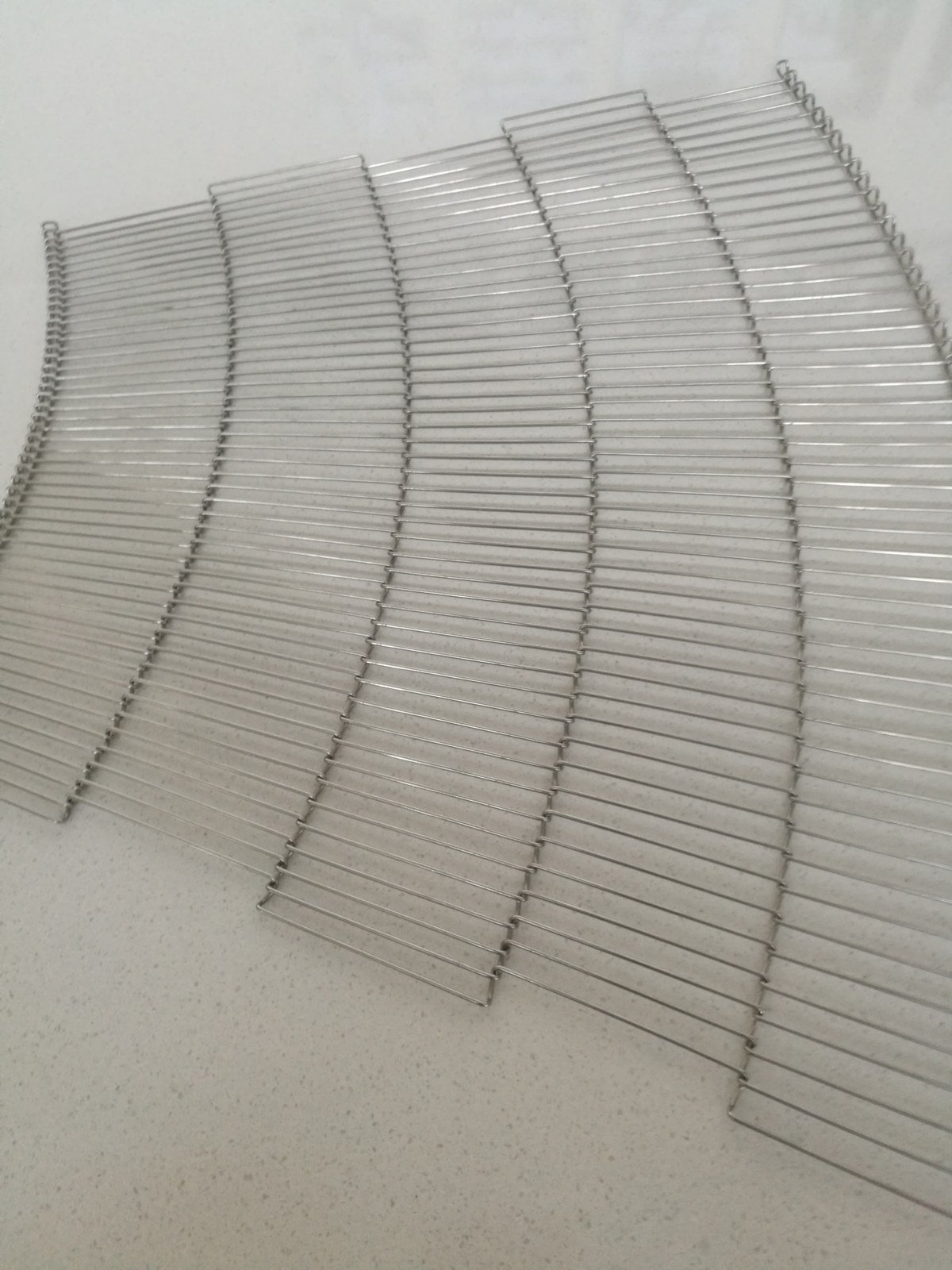

For curved conveyor sections. Turn direction and radius are confirmed on your approved drawing before production.

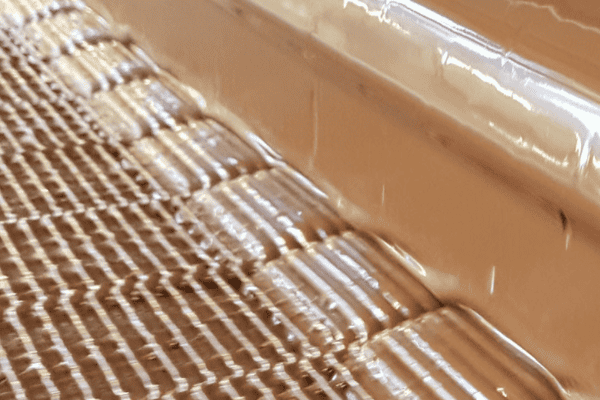

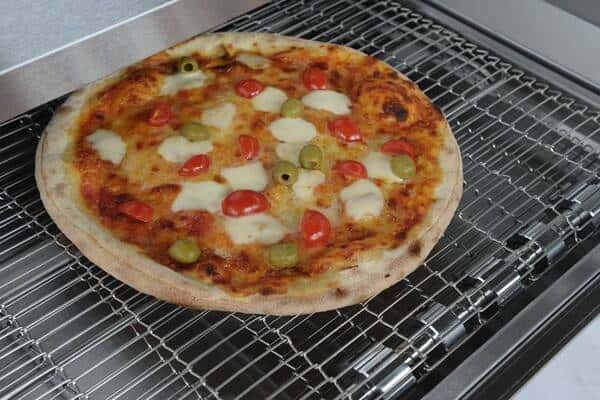

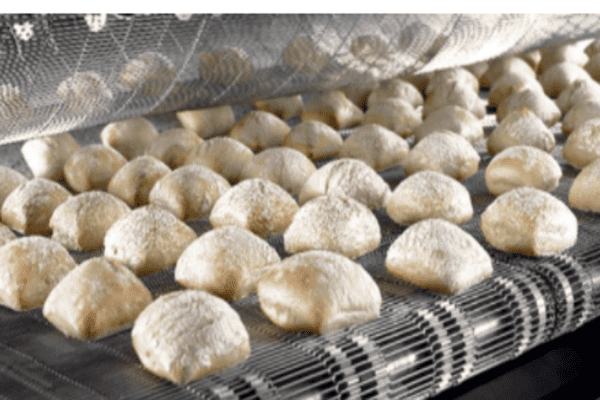

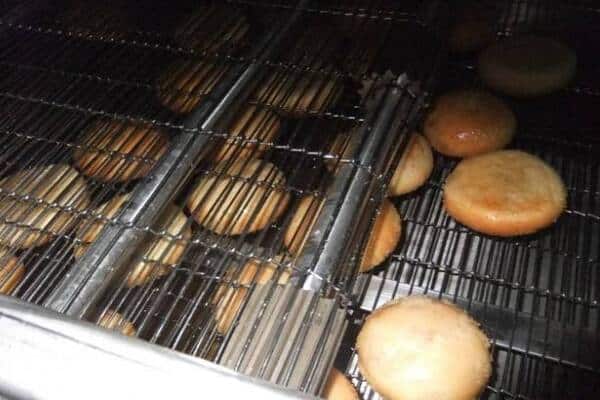

Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →

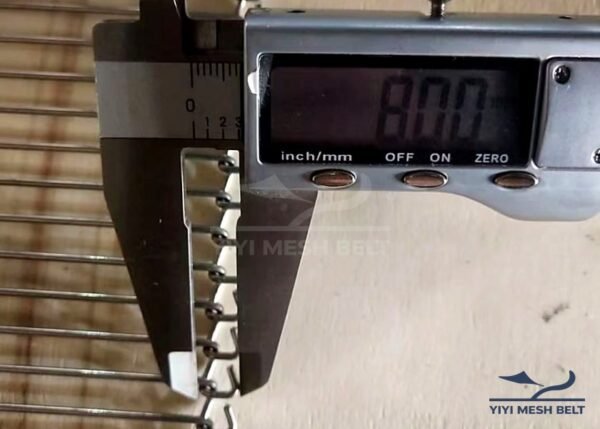

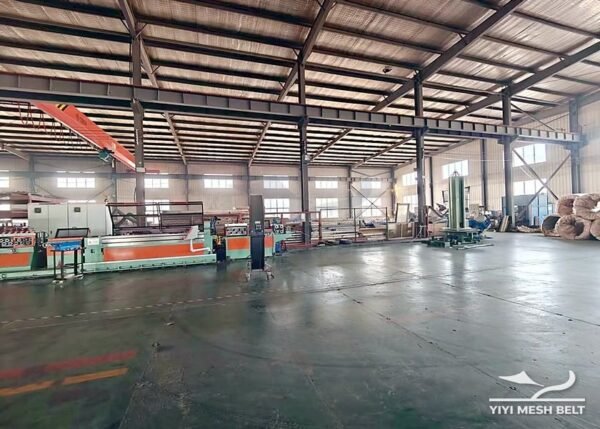

Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.

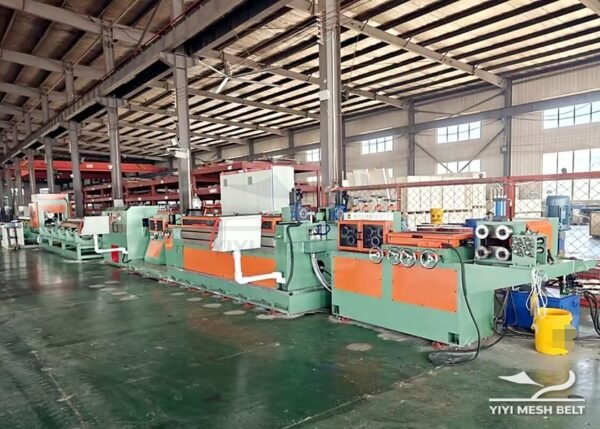

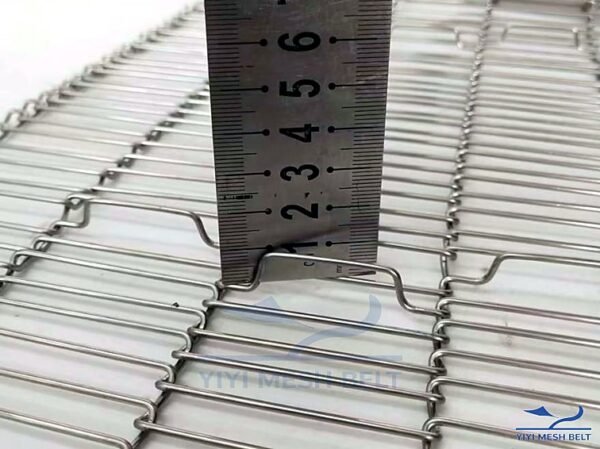

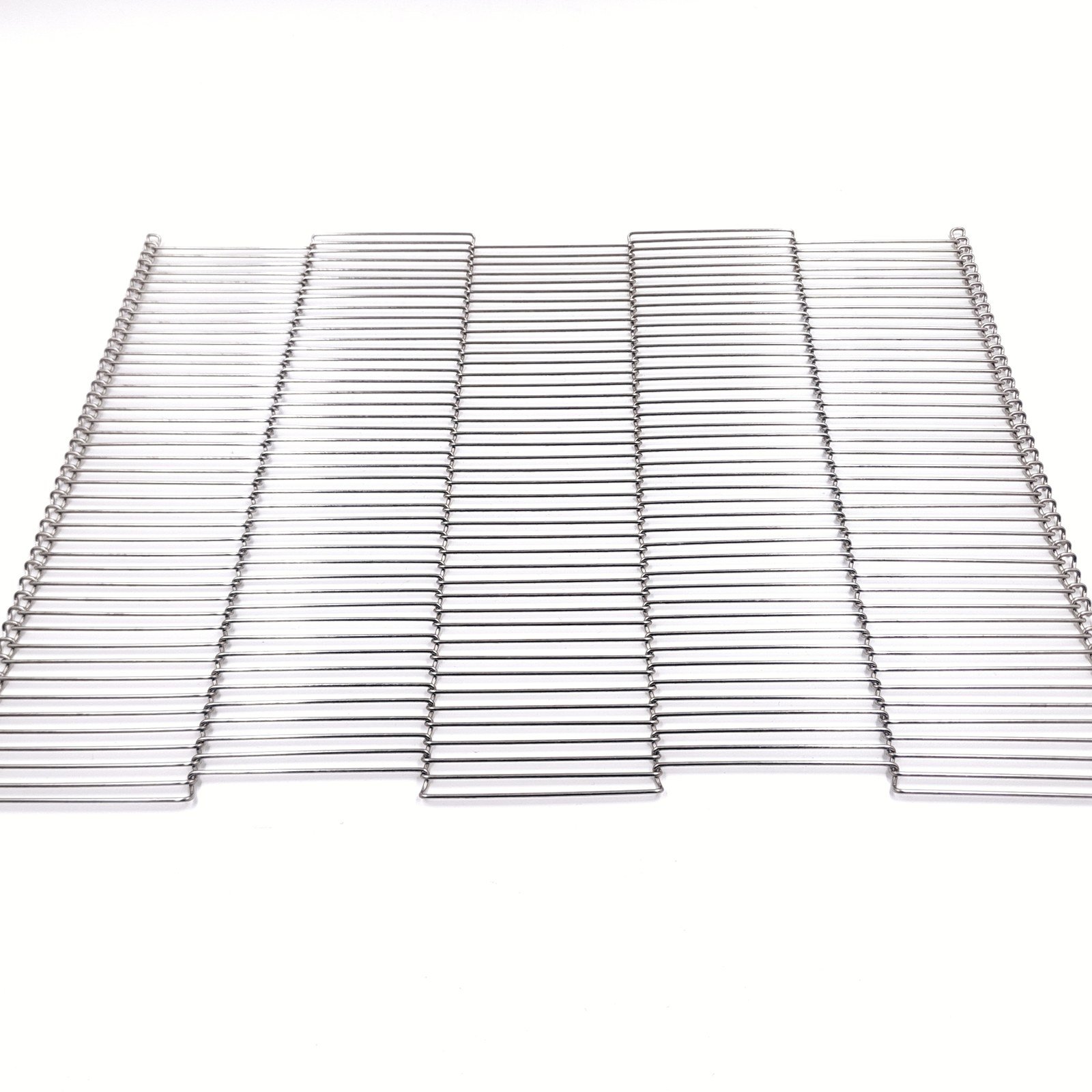

Pitch is set on automatic production machines and checked at final inspection.

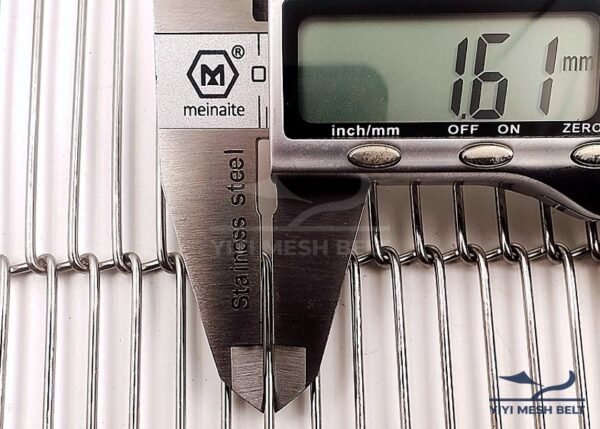

Space count and wire diameter are confirmed on drawing and checked before packing.

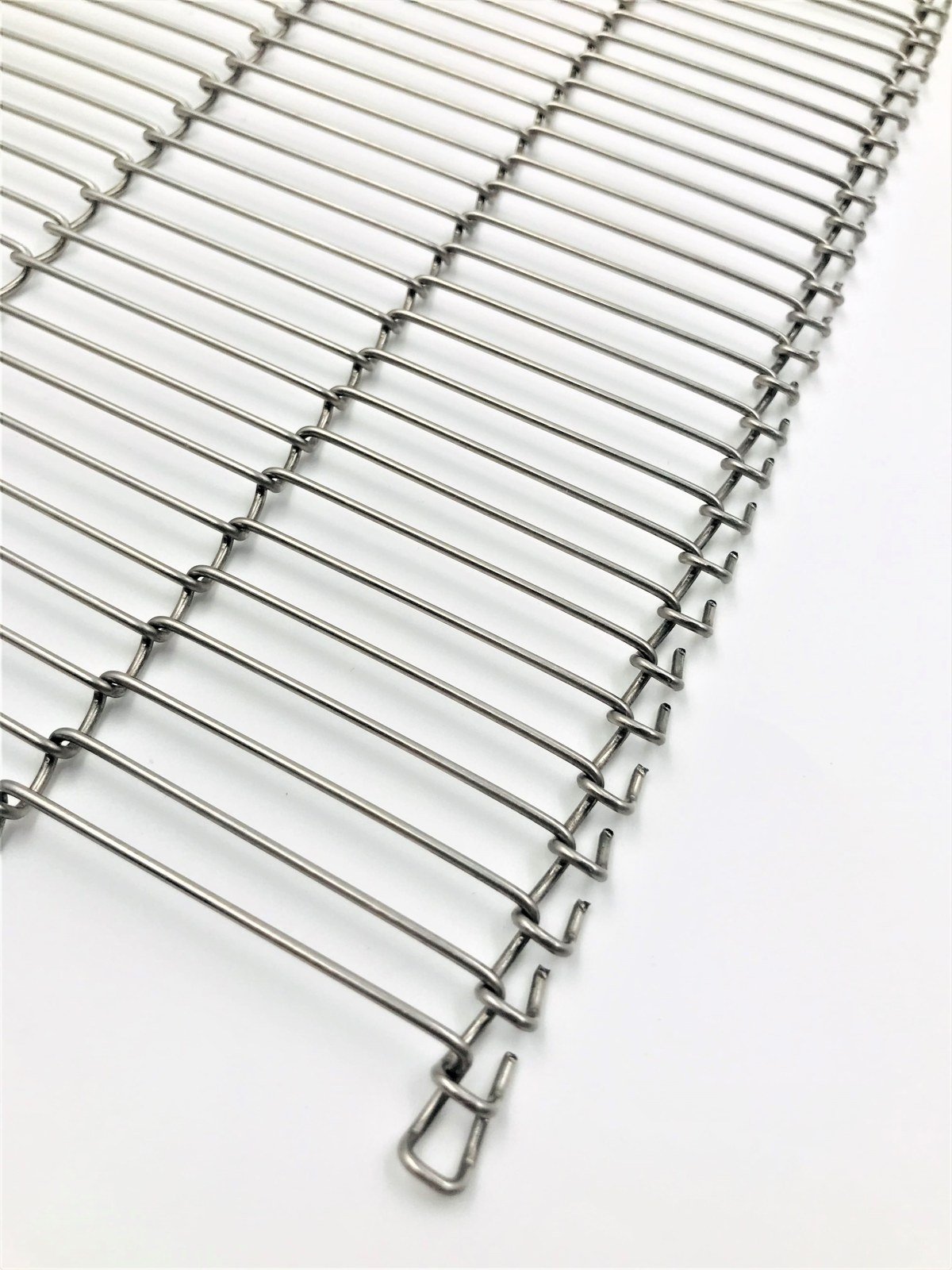

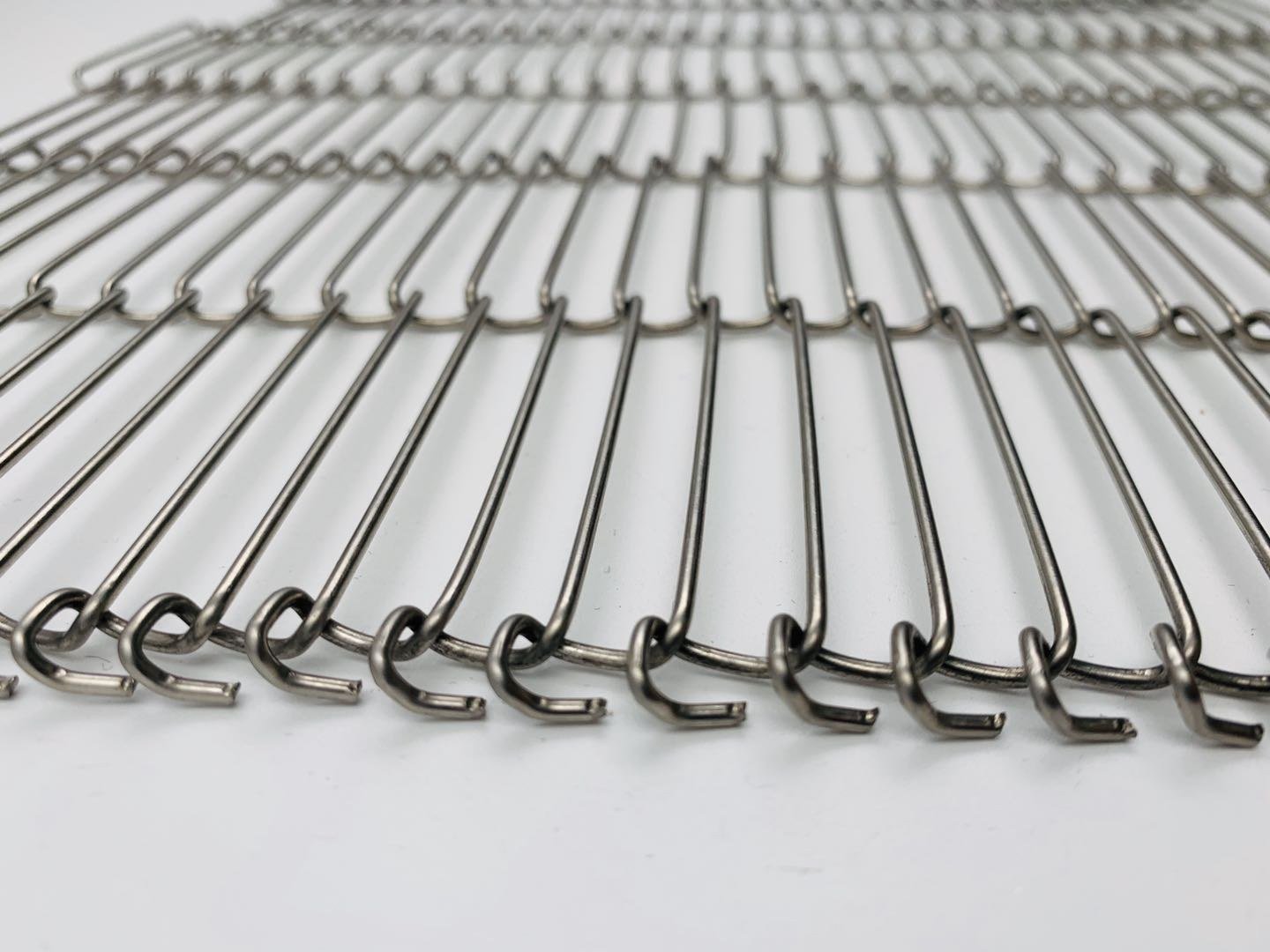

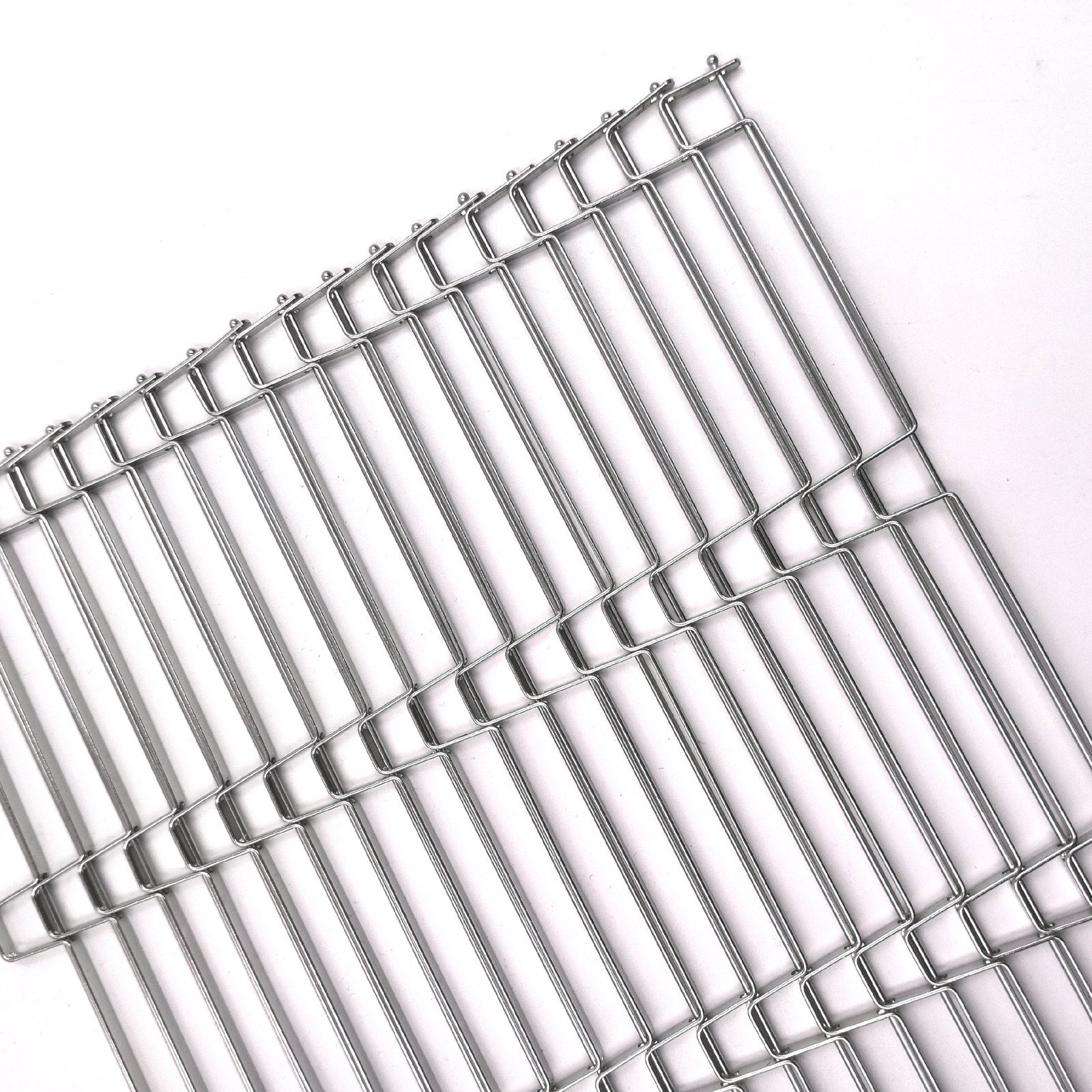

Single or double loop edge is chosen on drawing; flatness is part of the final check.

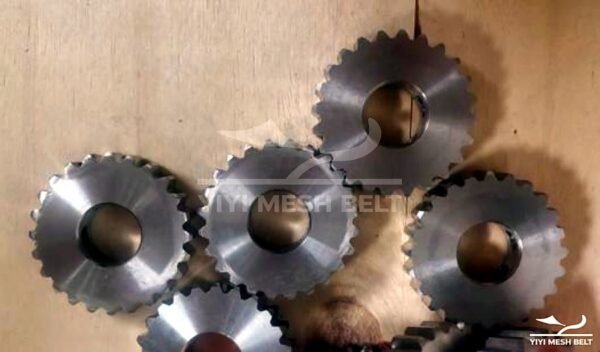

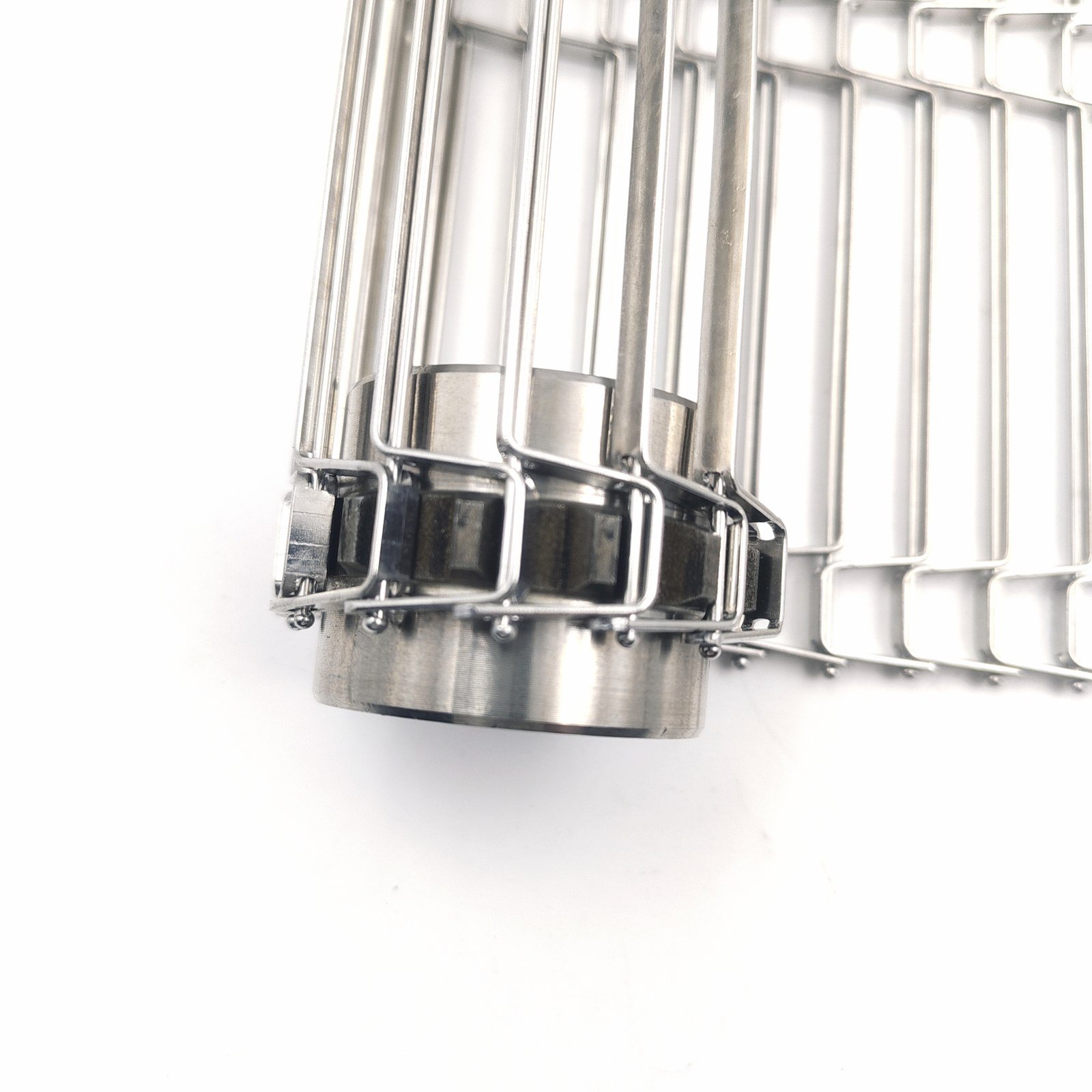

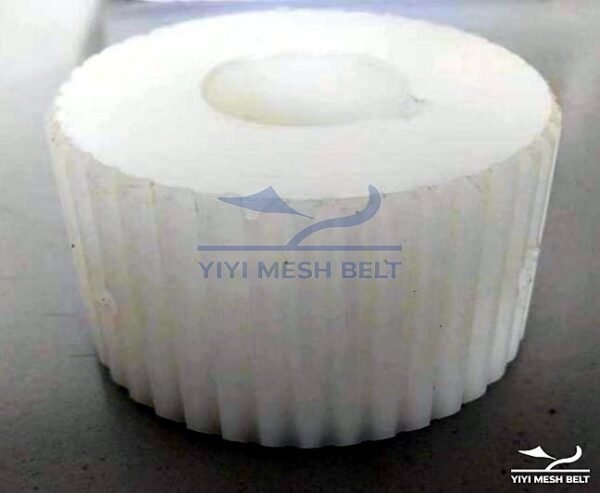

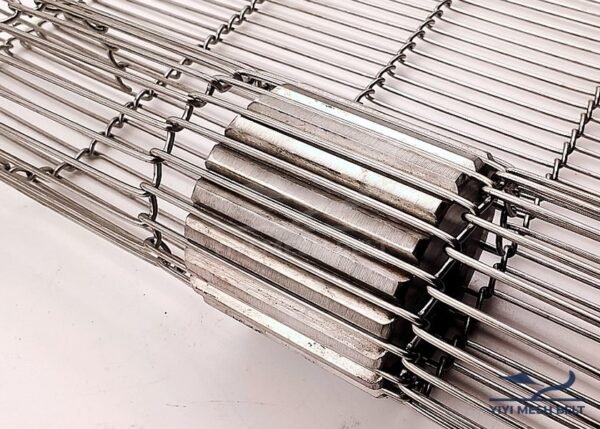

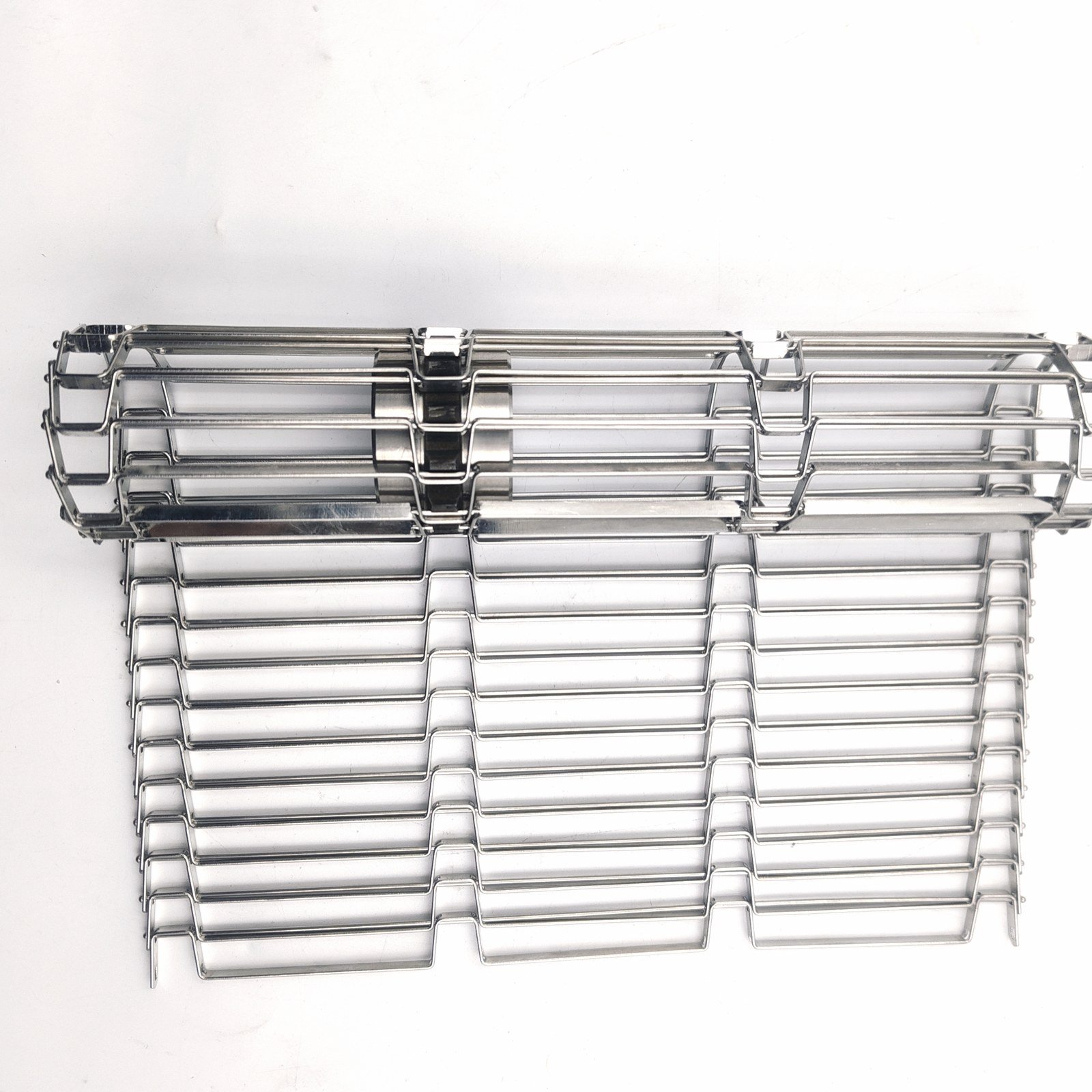

We ask whether your drive uses sprockets and review the drive relationship before production.

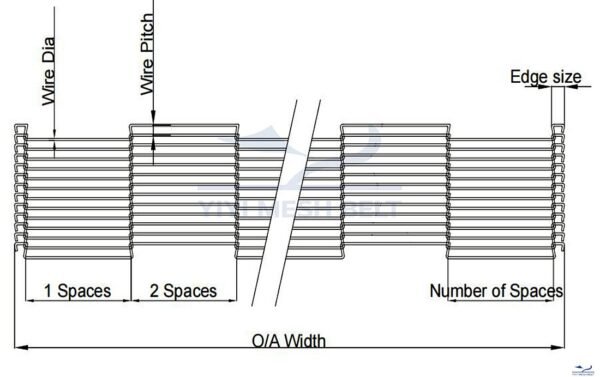

A structured wire conveyor belt (乙型网) defined by its pitch, wire diameter, number of spaces, width and edge.
Pitch from 4 to 23.8 mm and wire diameter from 1 to 2.8 mm, or to your drawing.
From 76 to 2352 mm, or to your drawing.

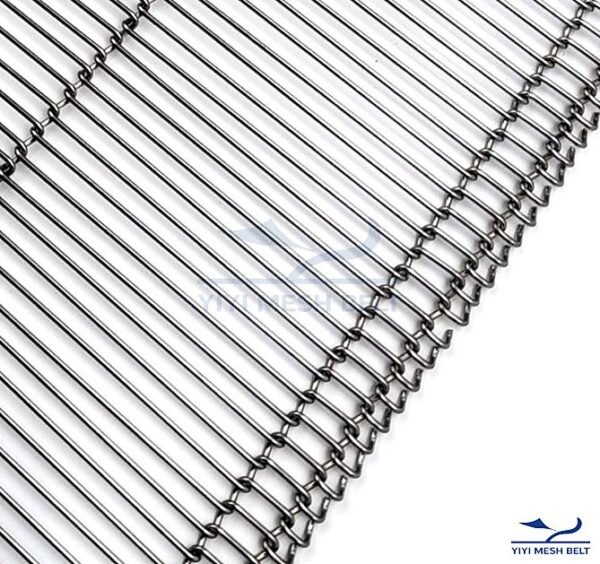

Single loop edge (SLE) and double loop edge (DLE).
It depends on your conveyor. Tell us your drive type and we confirm whether sprockets are required.
The belt is produced on our 15 automatic production machines and built from the same approved drawing and order records each time.
Yes. We build turning versions for left-hand and right-hand curves. Turn direction and radius are confirmed on your approved drawing before production.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
