A general conveying belt from the balanced weave family, made to your drawing or sample. It uses the same spiral and crimp-wire construction, specification ranges and inspection as our balanced weave belt.
Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.
| Parameter | Metric (mm) | Inch (in) |
|---|---|---|
| Material | SUS304 / SUS316 / Mild steel | — |
| Spiral pitch | 2.8–40 mm | 0.110–1.575 in |
| Spiral wire | 1–3.2 mm | 0.039–0.126 in |
| Crimp wire pitch | 5–50.8 mm | 0.197–2.000 in |
| Crimp wire | 1.2–3.2 mm | 0.047–0.126 in |
| Belt width | 200–5000 mm / custom | 7.874–196.85 in |
| Edge | Welded / Clinched | — |
Every option is confirmed on the approved drawing before production.

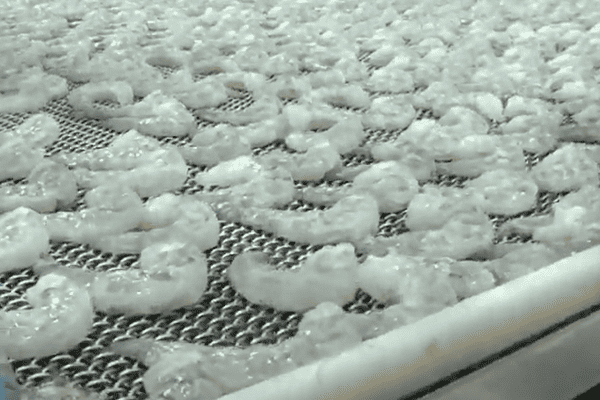

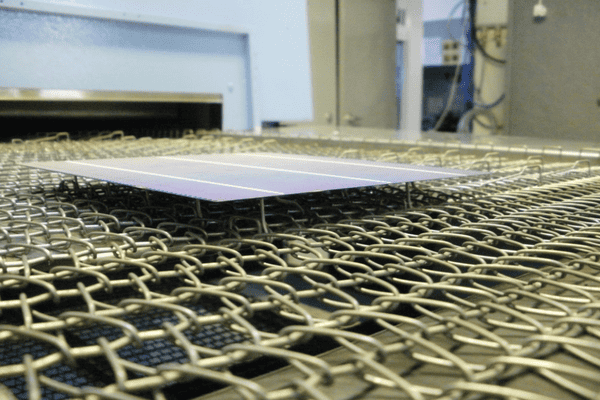

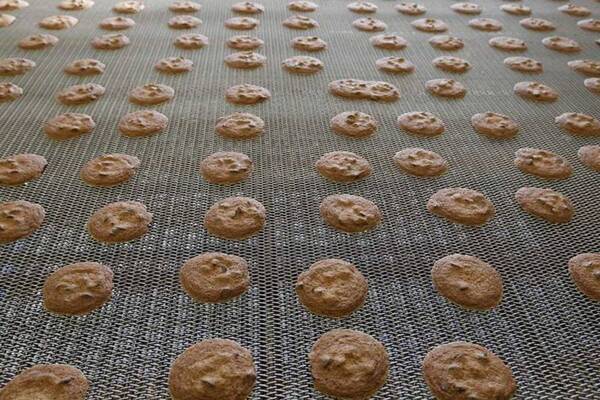

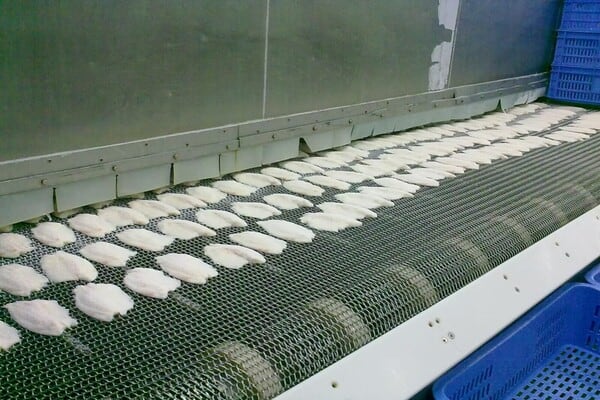

Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →

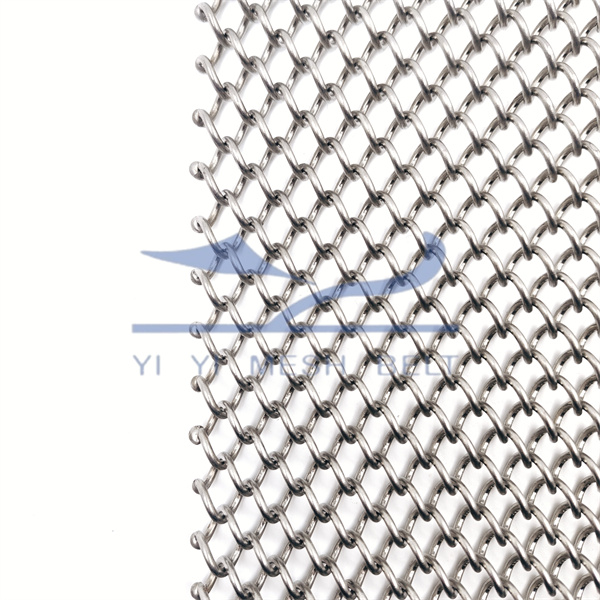

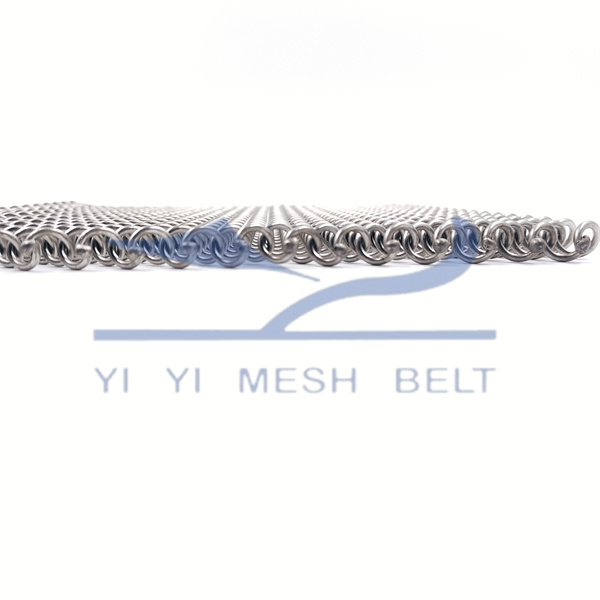

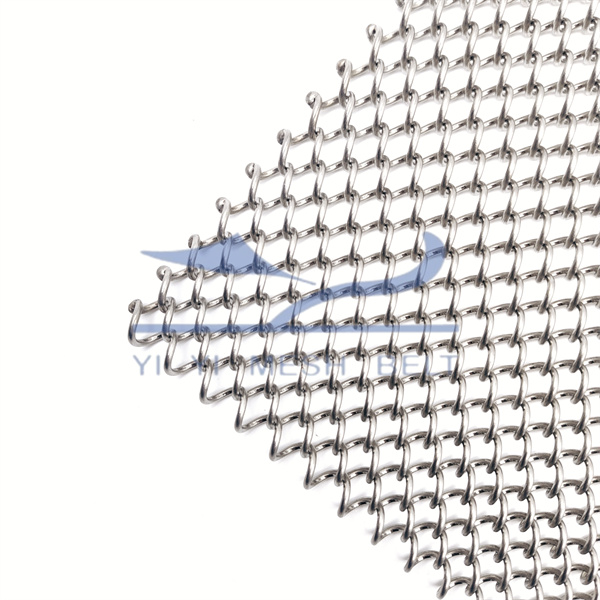

Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.
Spiral pitch, spiral wire and crimp wire are chosen with you and confirmed on drawing.
Flatness and mesh structure are checked at final inspection.
Welded or clinched edges are confirmed on drawing and checked before packing.
Wire dimensions are measured during production; we draw our own stainless wire.
A woven wire belt from the balanced weave family for general conveying, built from spirals and crimp wires to your drawing or sample.
Spiral pitch from 2.8 to 40 mm, spiral wire from 1 to 3.2 mm, crimp wire pitch from 5 to 50.8 mm.
From 200 to 5000 mm, or to your drawing.
Welded or clinched edges.
Both belong to the same woven family. The conventional weave belt is a general conveying variant; we confirm the right structure on your drawing or sample.
Yes. Third-party inspection is supported on request, and customer factory visits are welcome.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
