An open metal conveyor belt made of eye-shaped links joined by cross rods. Because link wire, reinforcement and edge decide how the belt carries load, we build each one to your drawing — with flights, plates or grooves where your line needs them.
Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.

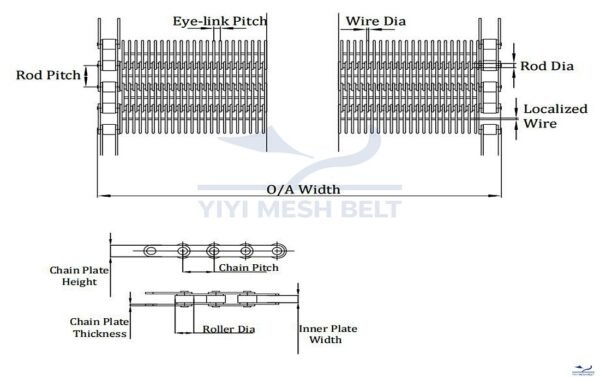

| Parameter | Metric (mm) | Inch (in) |
|---|---|---|

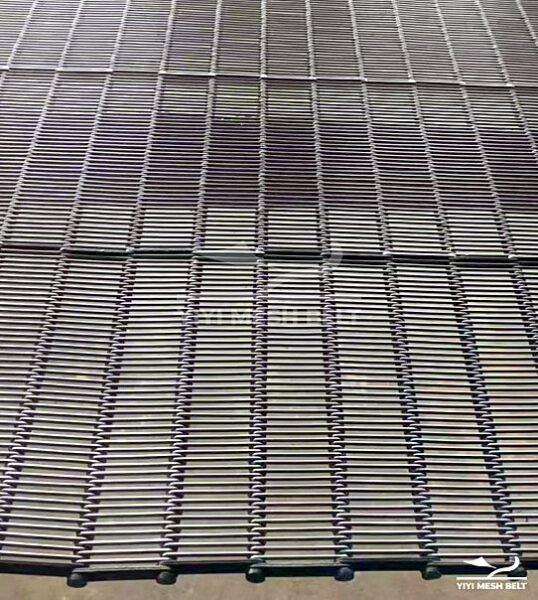

| Material | Mild steel / SUS304 / SUS316 | — |

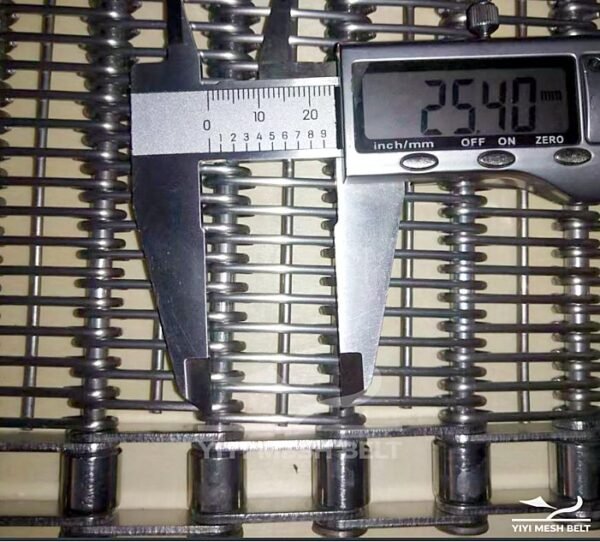

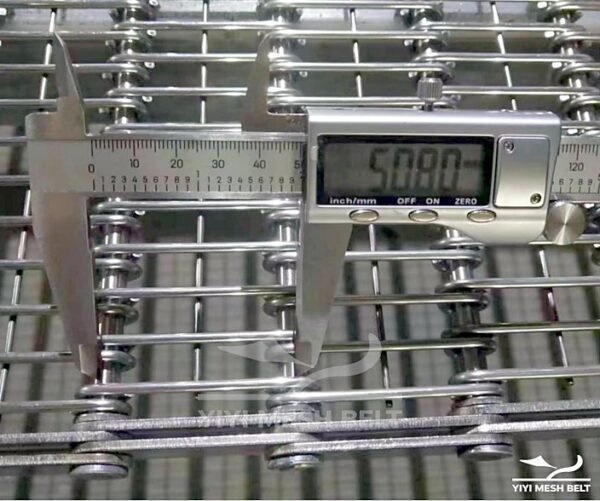

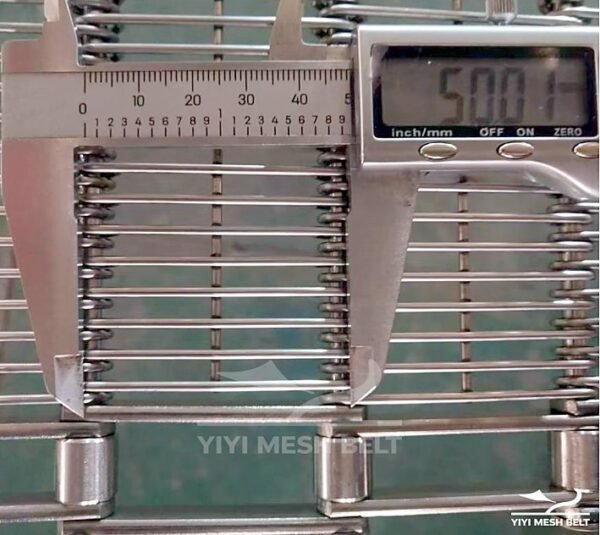

| Rod pitch | 25.4 / 50 / 50.8 / 76.2 mm / custom | 1.000 / 1.969 / 2.000 / 3.000 in |

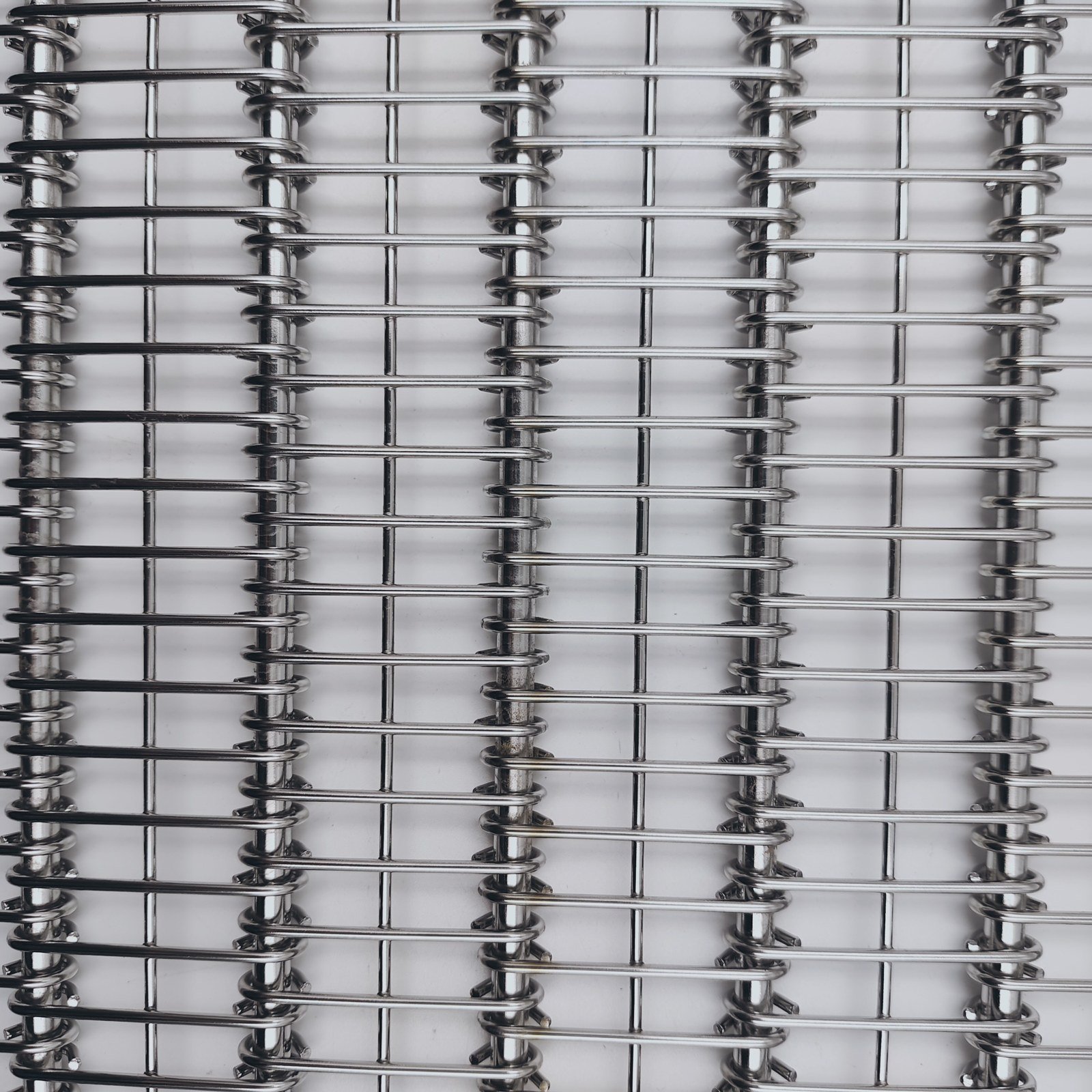

| Eye / link wire | 1.6 / 2 / 2.5 mm | 0.063 / 0.079 / 0.098 in |
| Reinforcement wire | 2 / 2.5 mm, single or double | 0.079 / 0.098 in |
| Cross rod | 5 / 6 / 8 mm / custom | 0.197 / 0.236 / 0.315 in |
| Belt width | 300–3000 mm / custom | 11.81–118.11 in |
| Edge | Roller chain / Reinforced plate | — |
| Surface | Pickling, per project | — |
Every option is confirmed on the approved drawing before production.

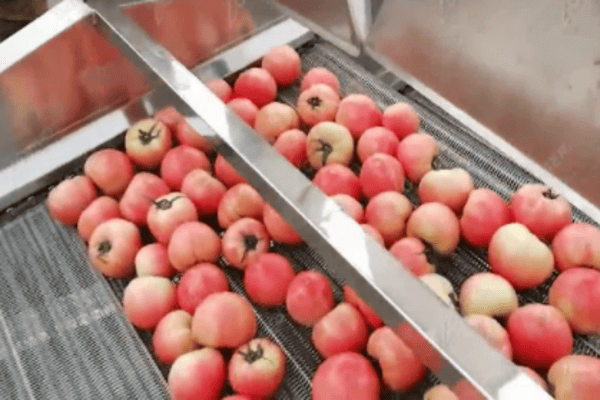

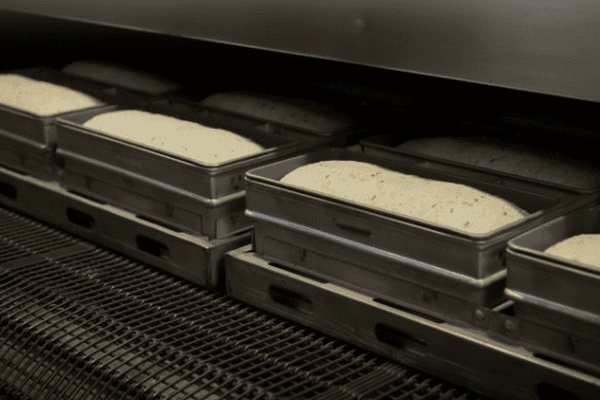

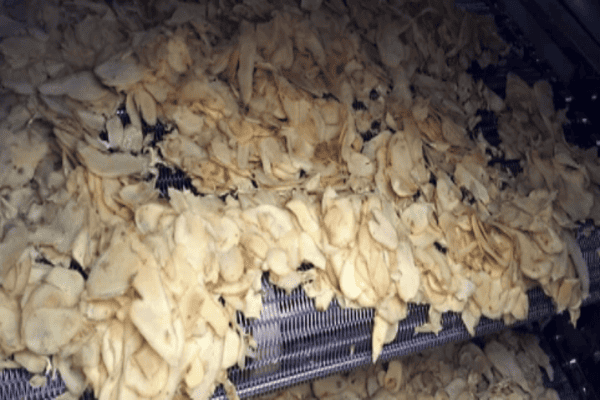

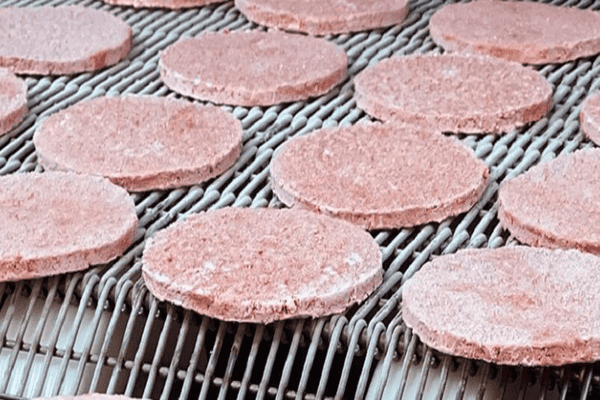

Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →

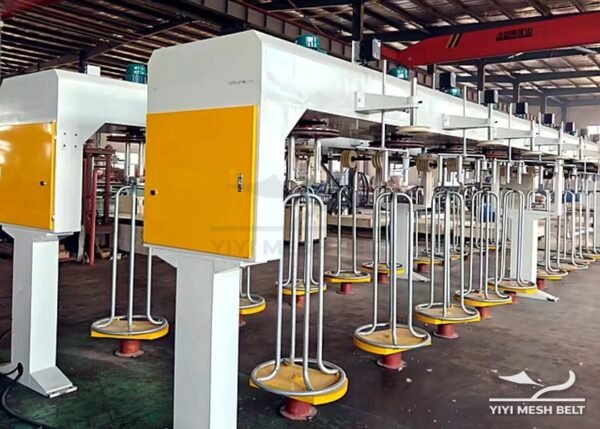

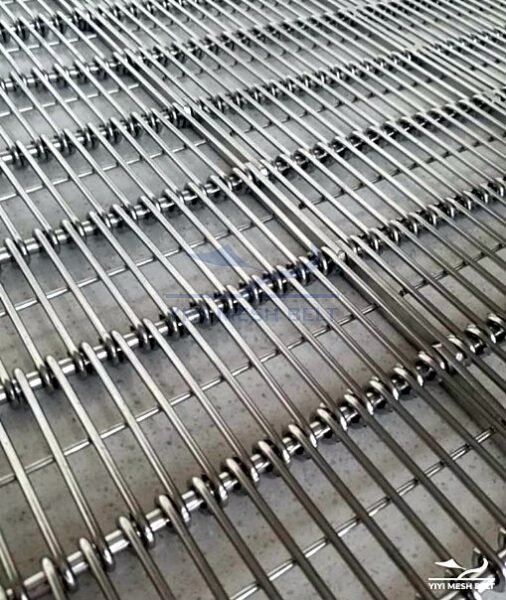

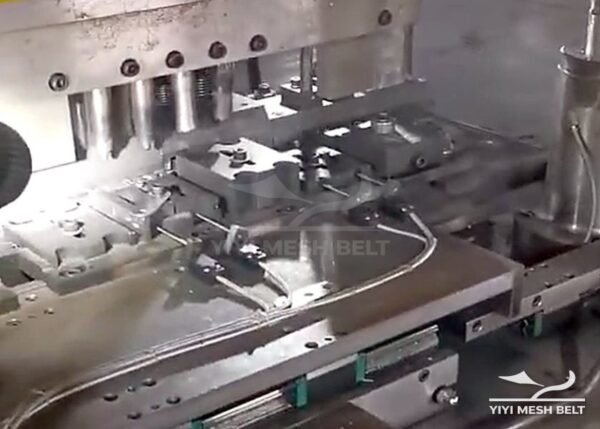

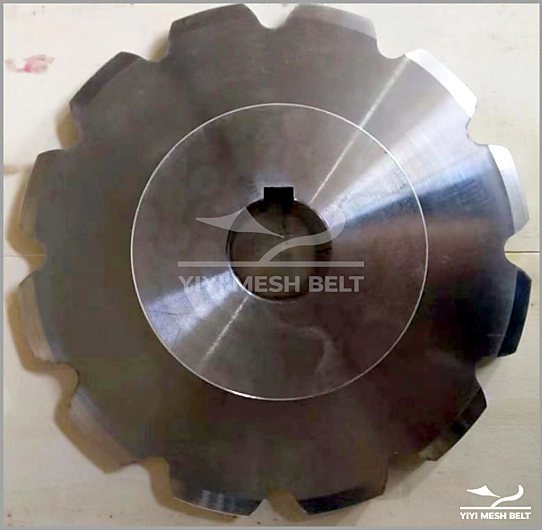

Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.

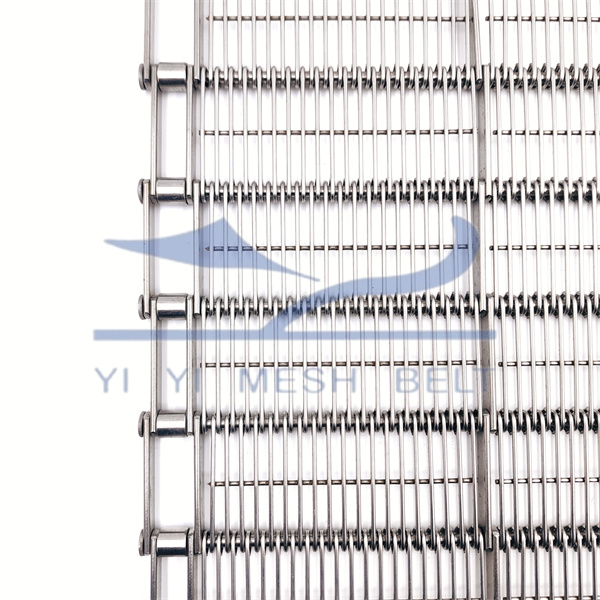

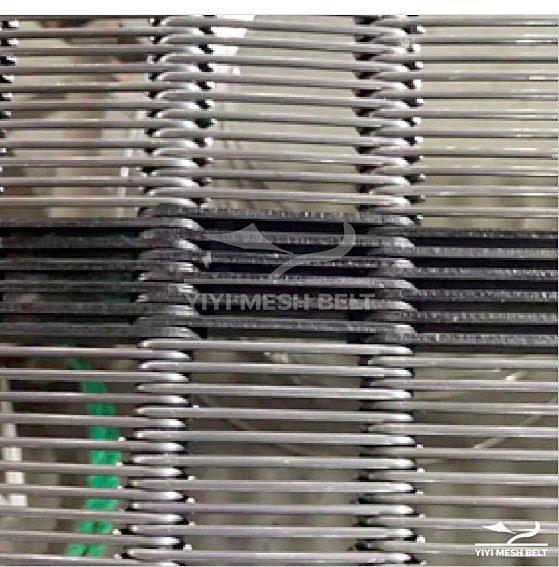

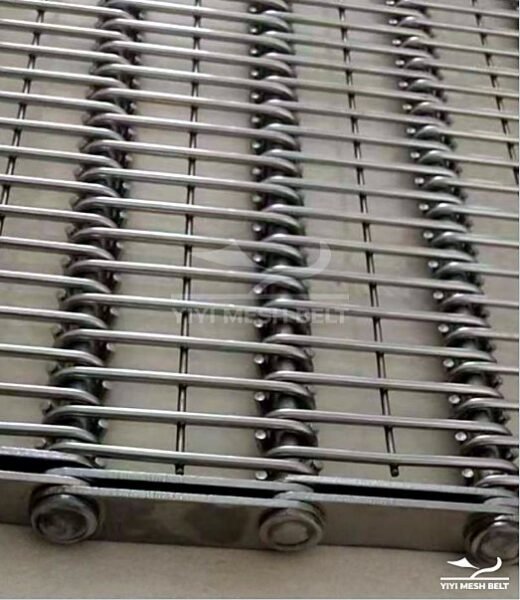

Reinforcement wire (single or double) and cross rod size are chosen on your drawing.

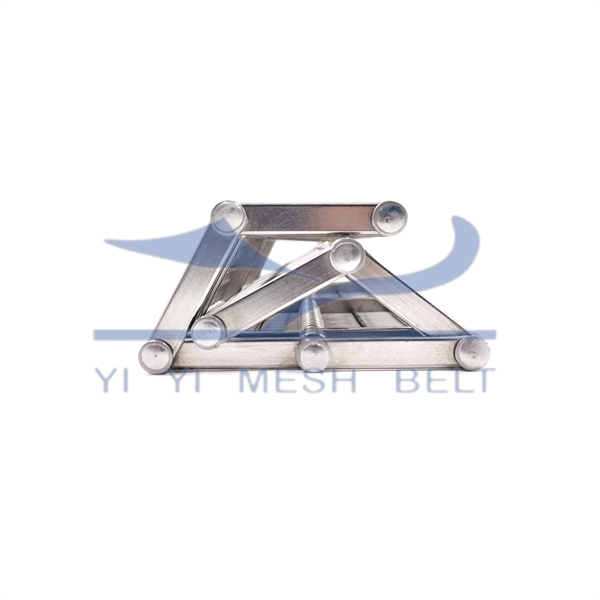

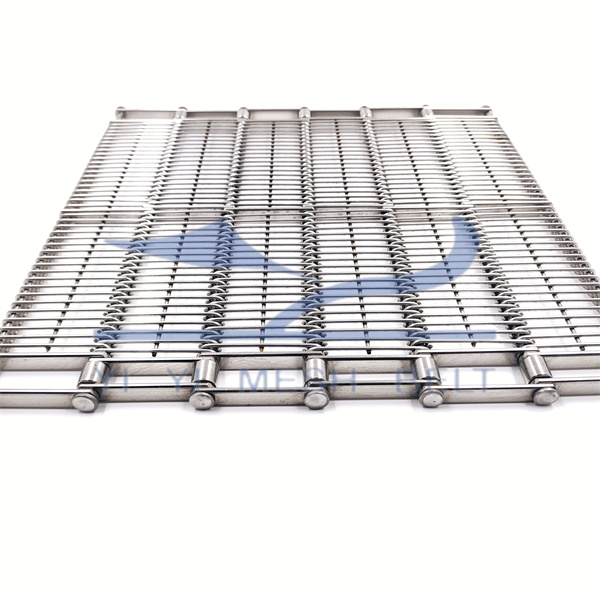

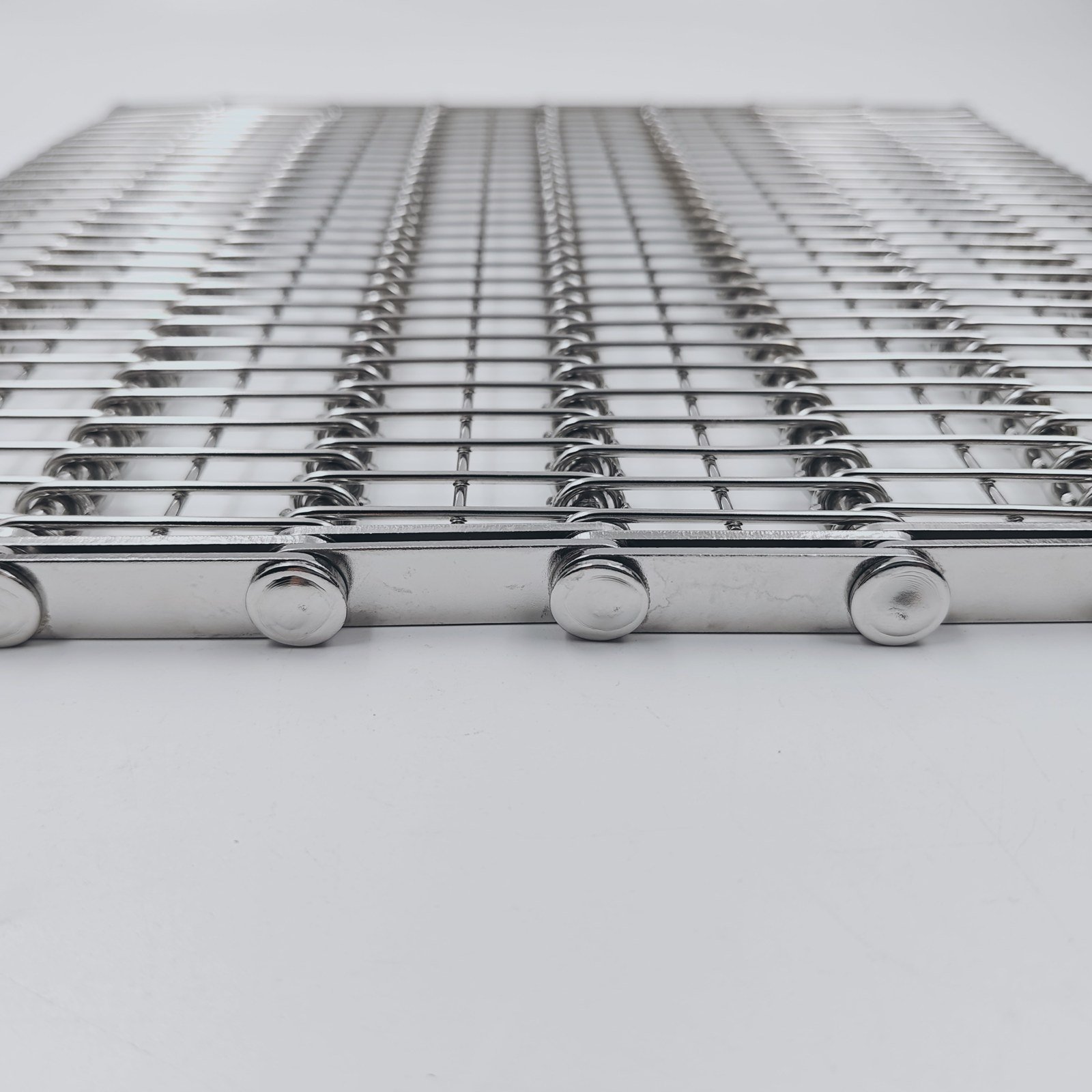

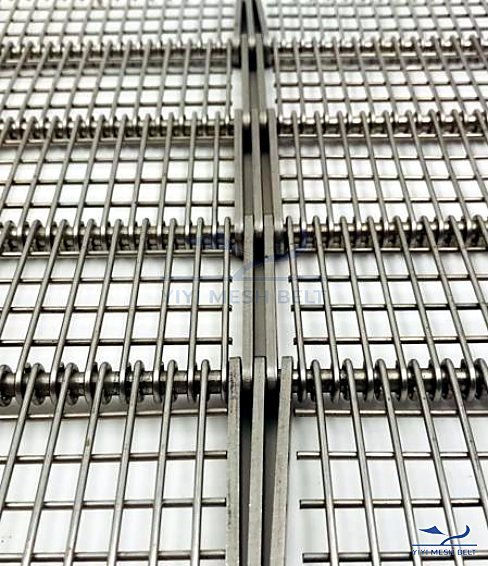

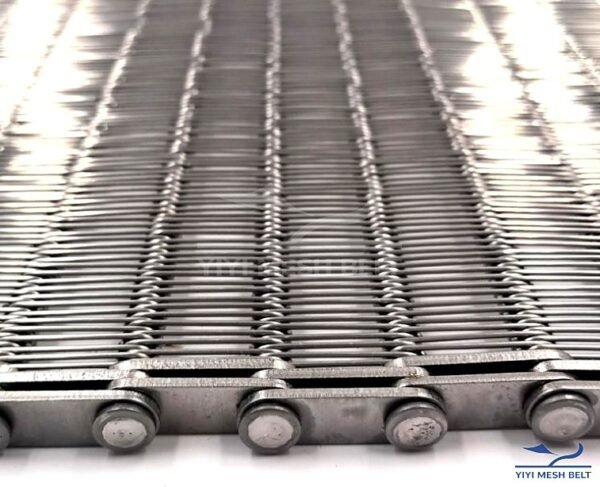

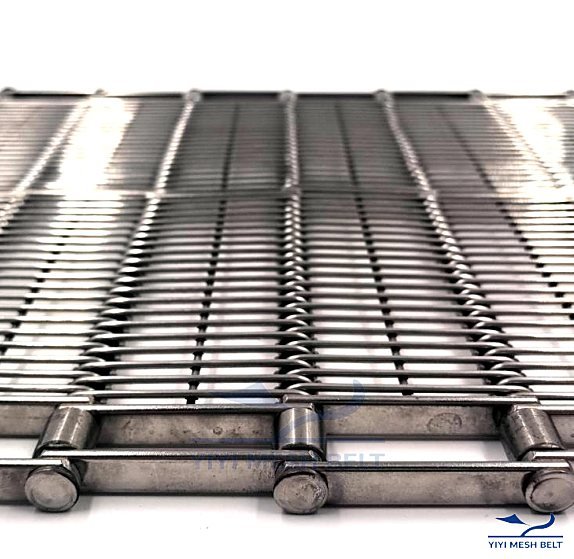

Roller-chain or reinforced-plate edges are confirmed on drawing and checked at final inspection.

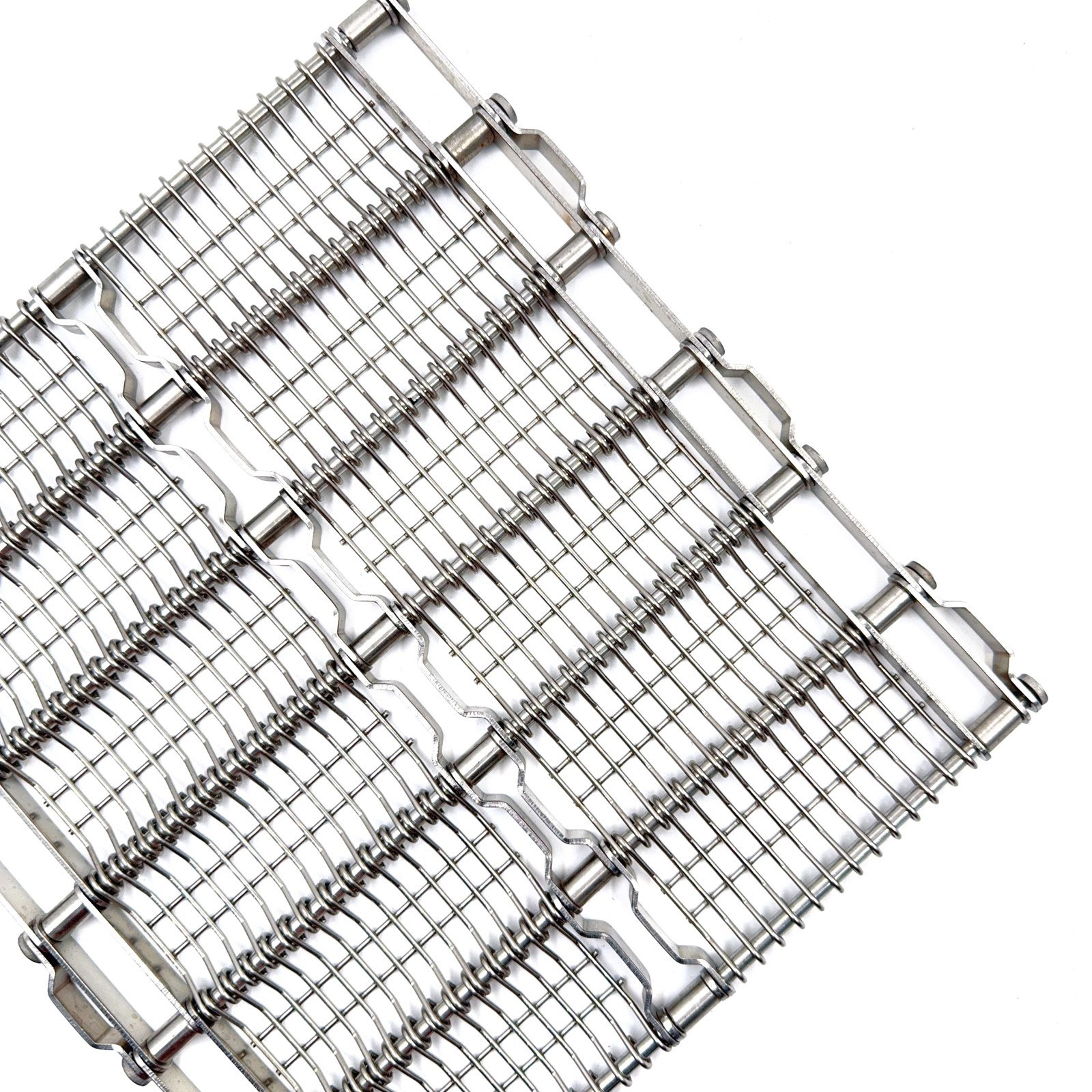

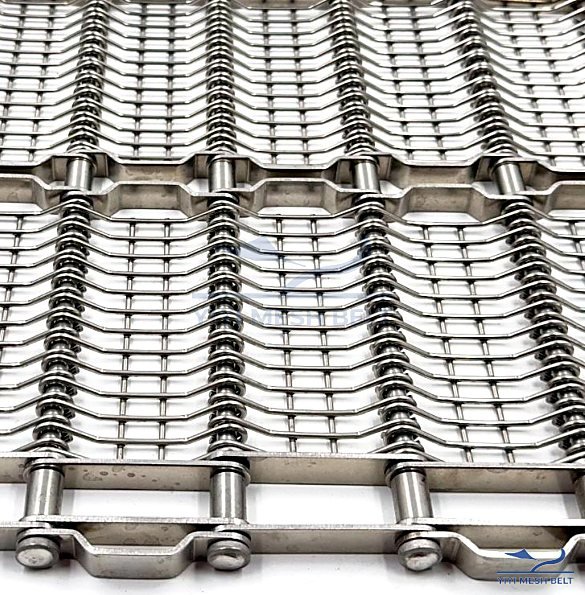

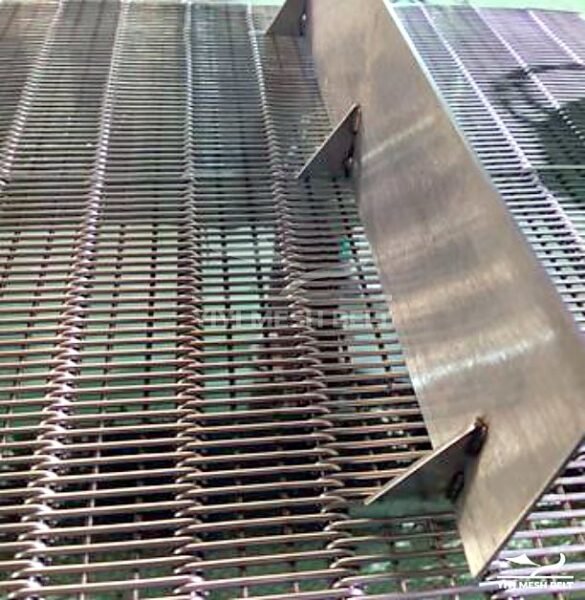

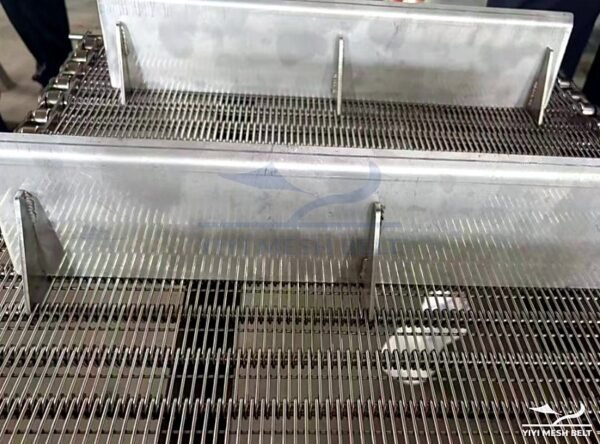

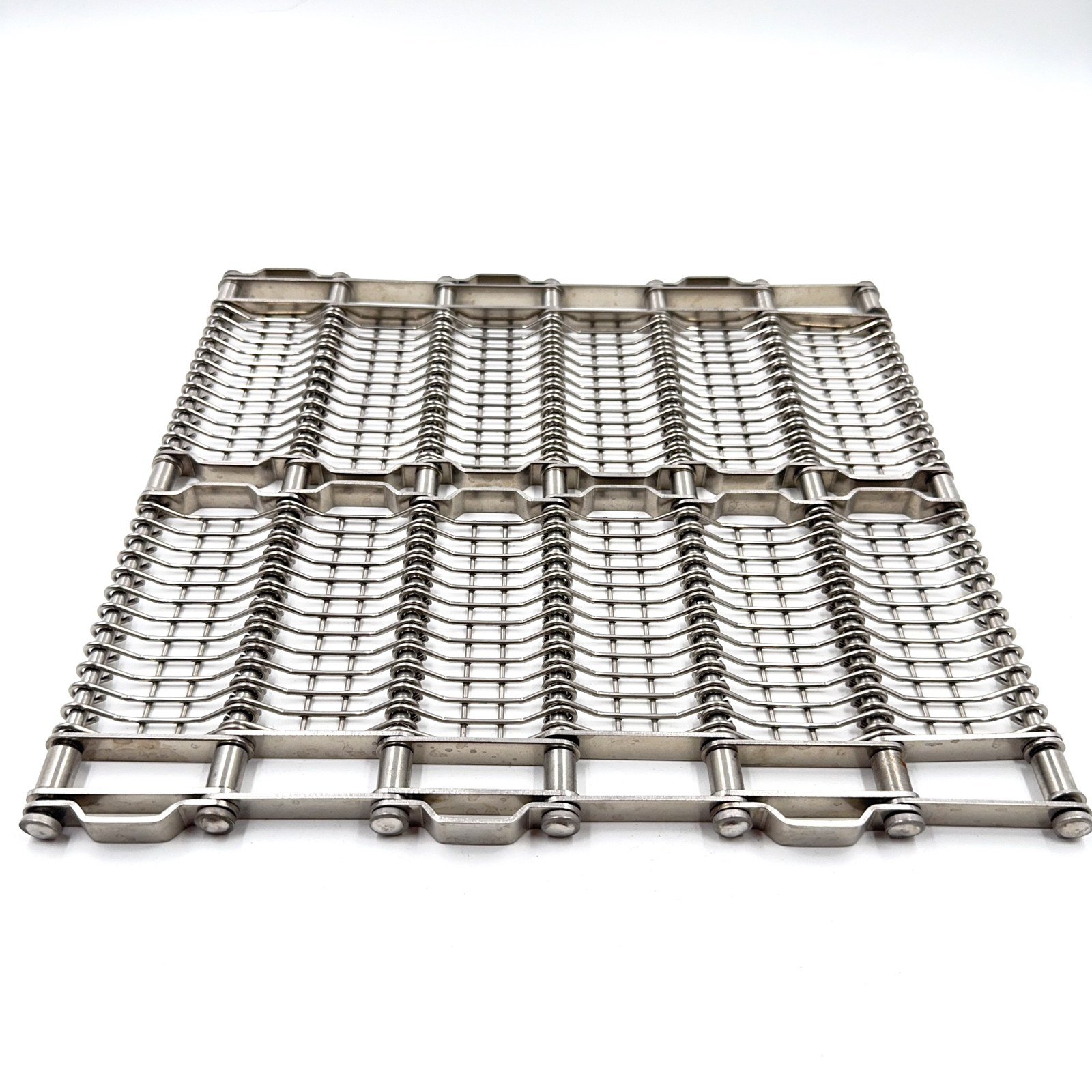

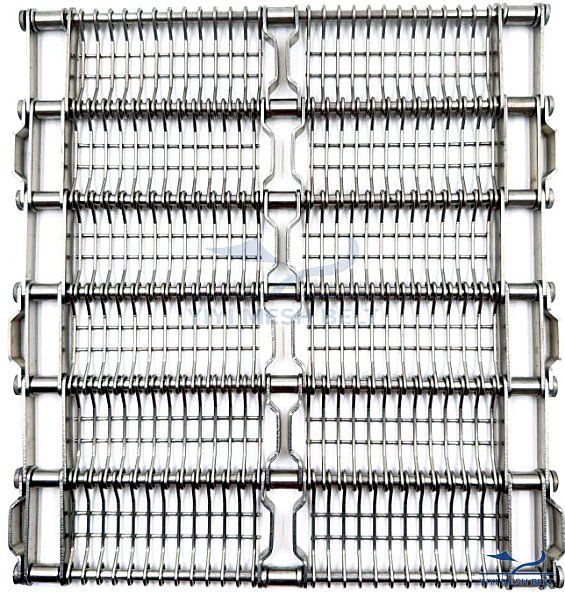

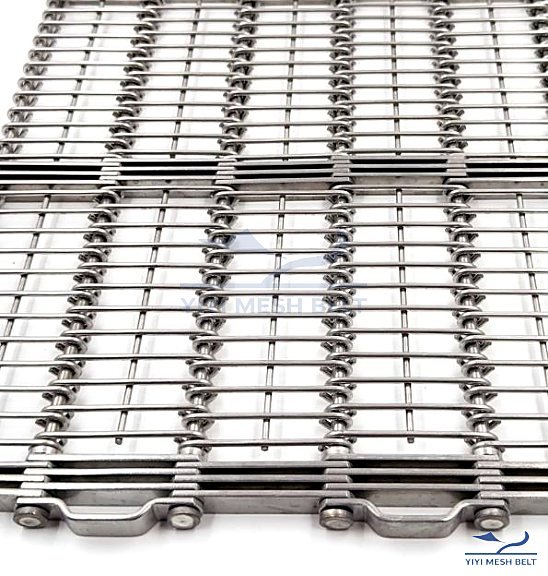

Flights, reinforced plates and grooves are added to the drawing before production.
Wire, rod and edge dimensions are recorded for each order.

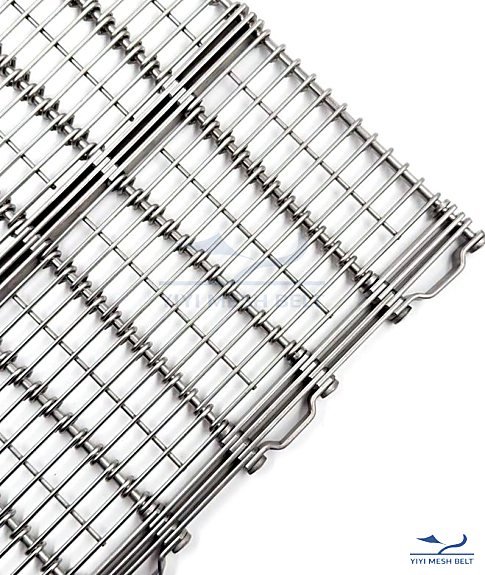

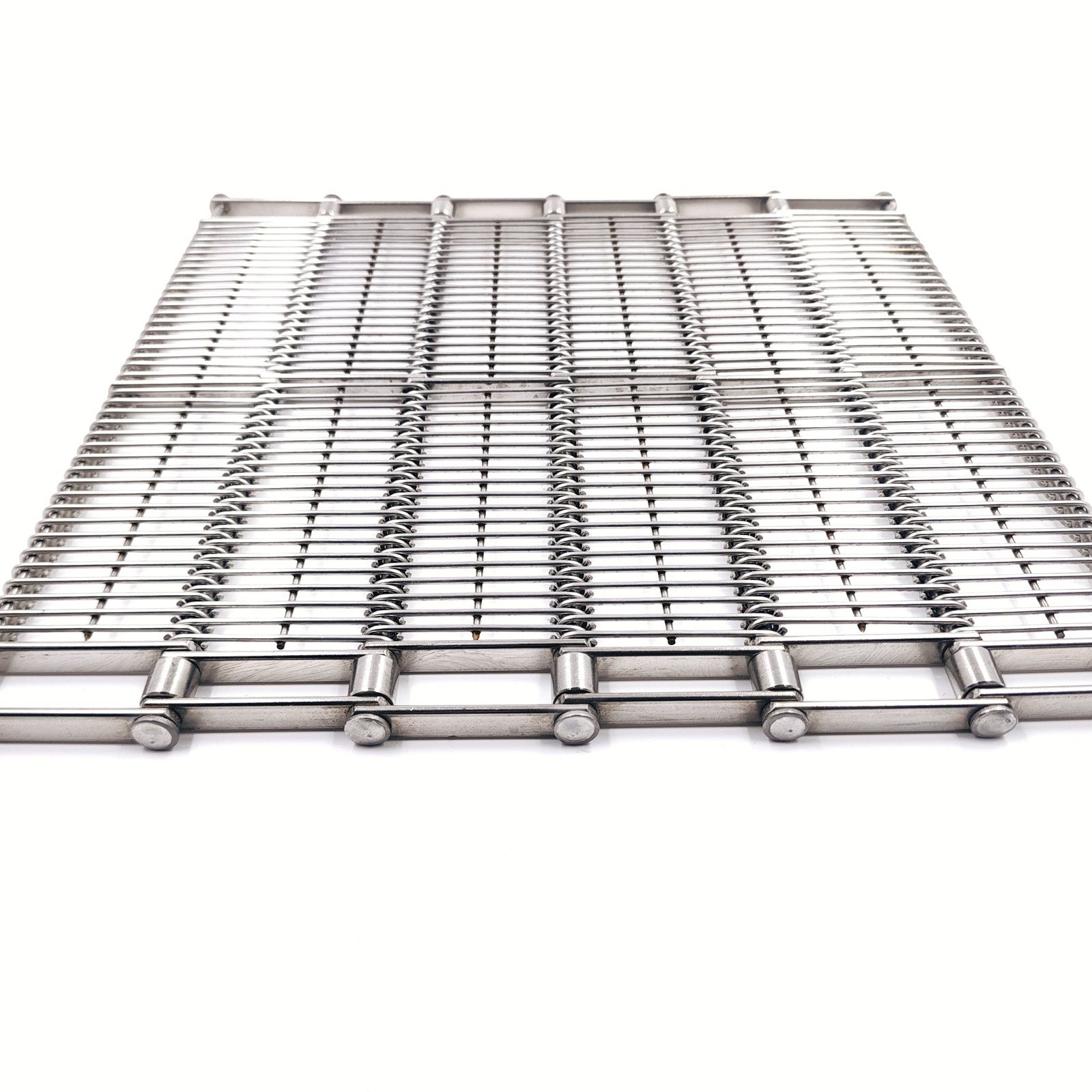

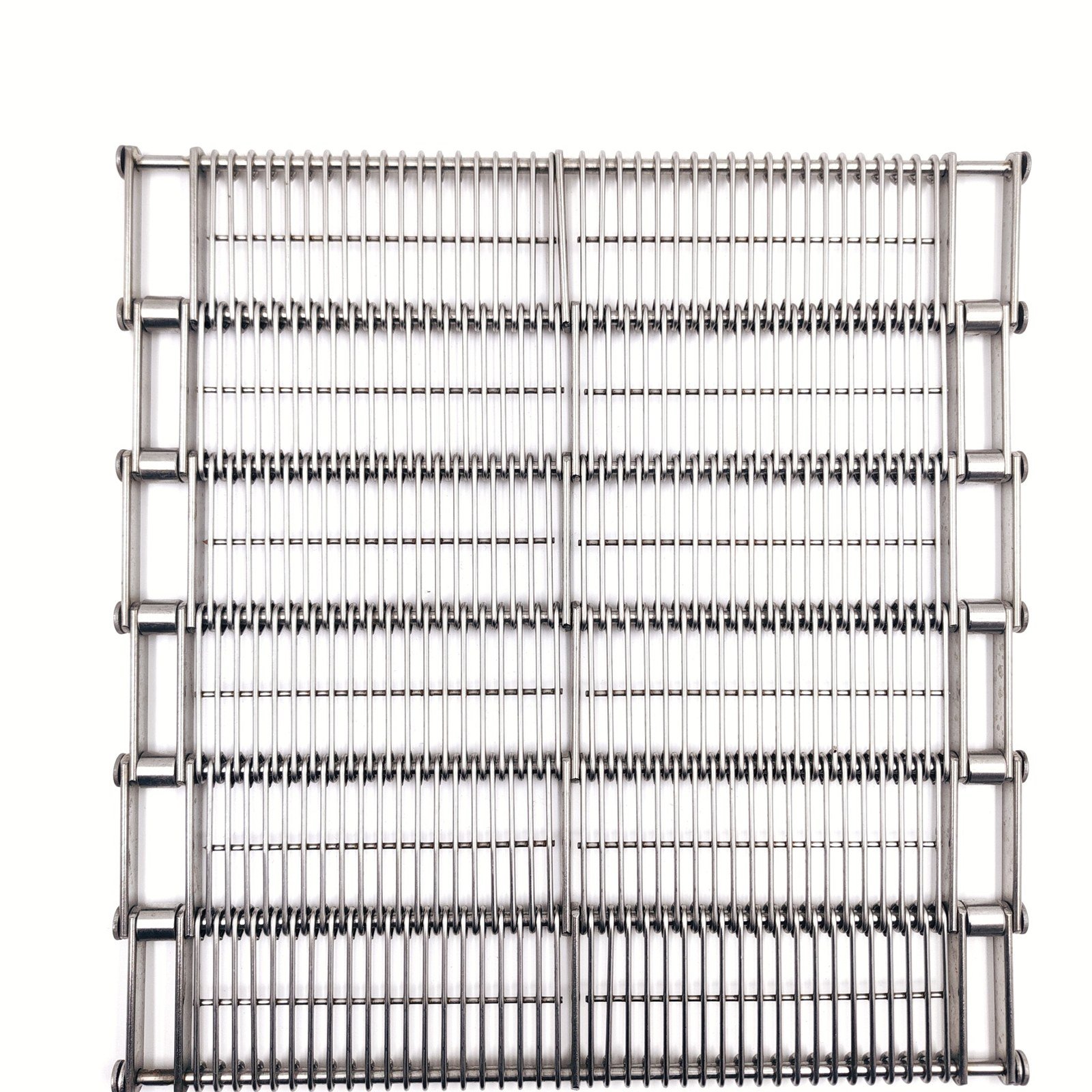

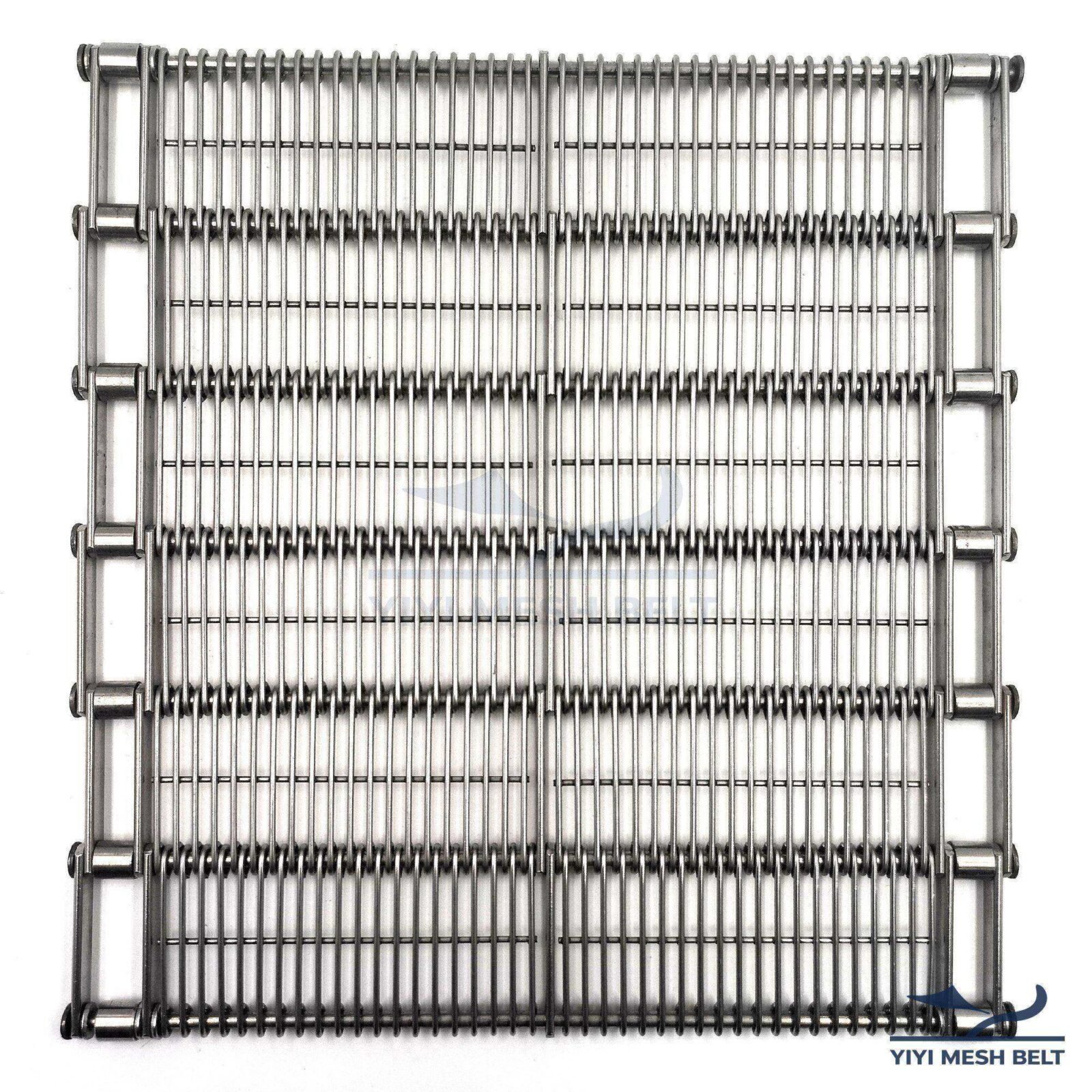

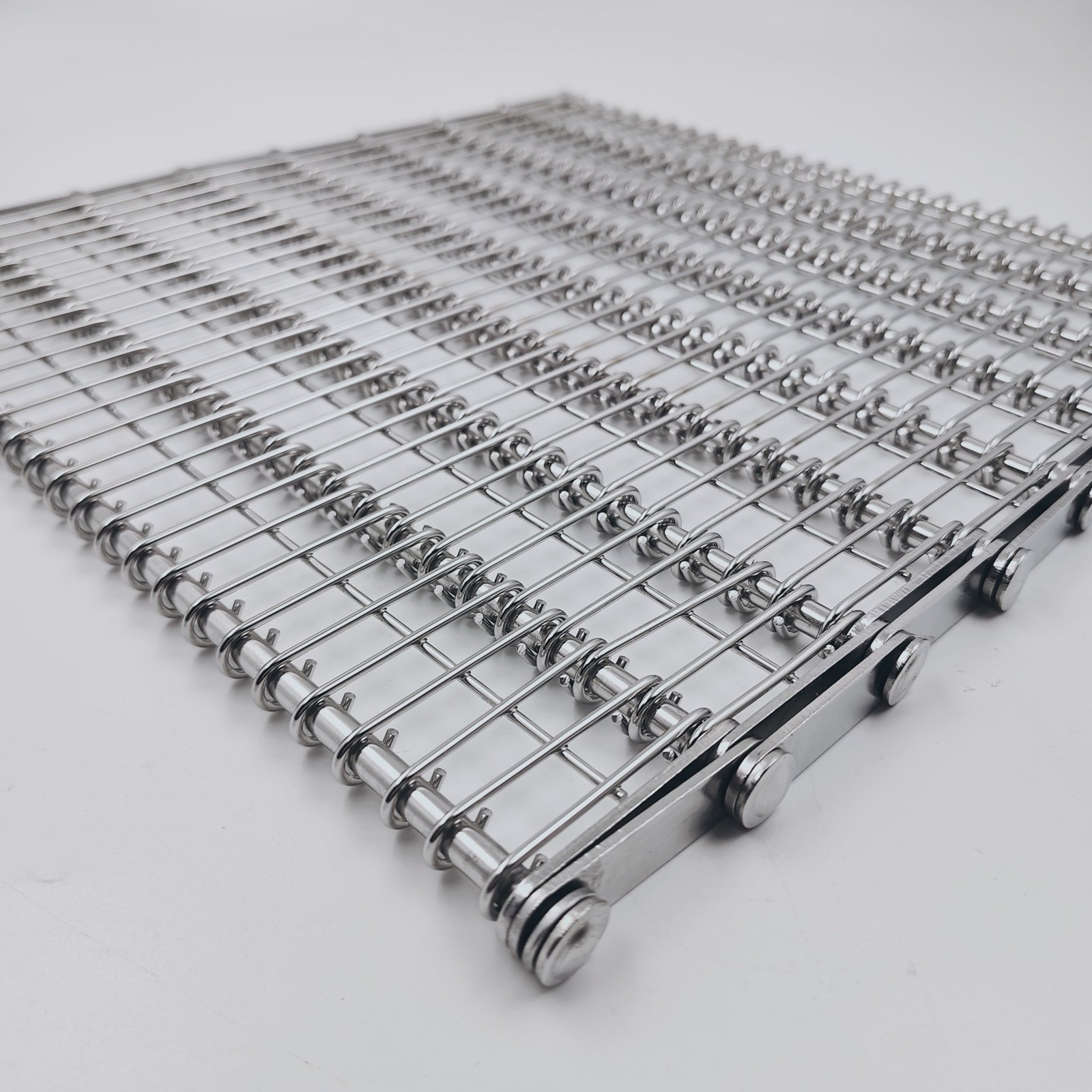

An open conveyor belt built from eye-shaped wire links connected by cross rods, with optional reinforcement wire and chain or plate edges.

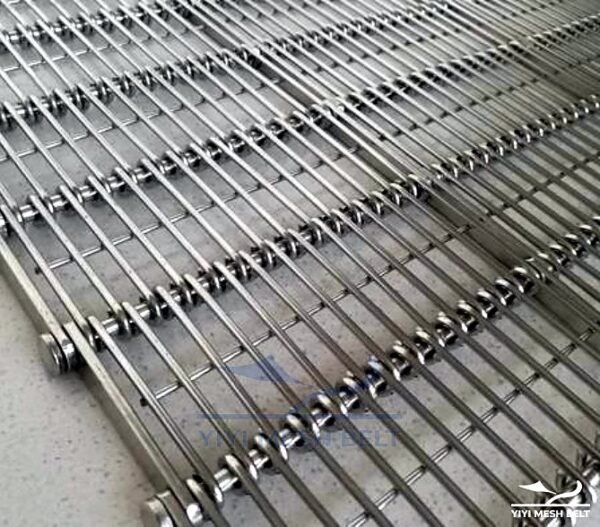

Widths from 300 to 3000 mm, with rod pitches of 25.4, 50, 50.8 or 76.2 mm, or to your drawing.
Yes. Single or double reinforcement wire of 2 or 2.5 mm, chosen for your load and confirmed on drawing.

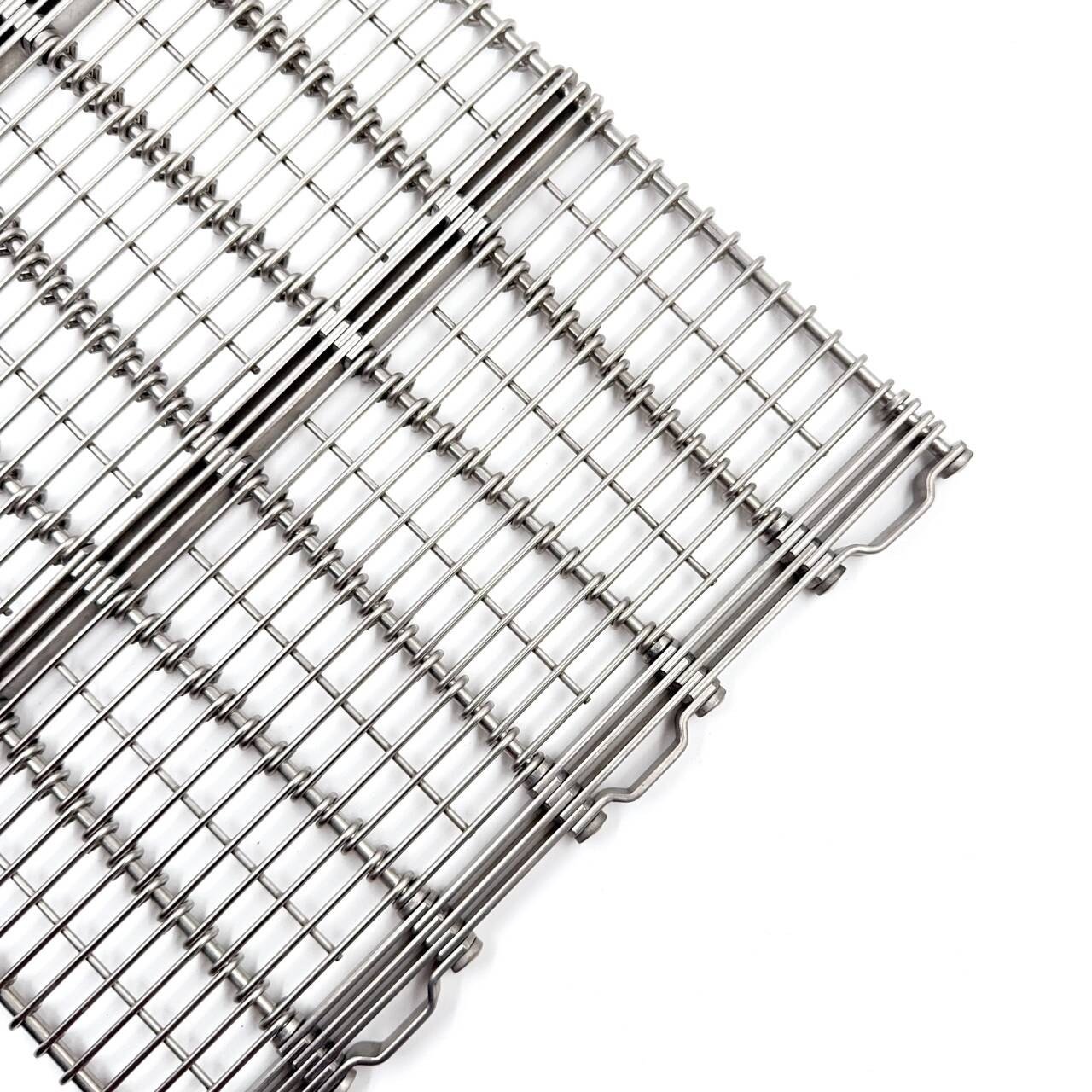

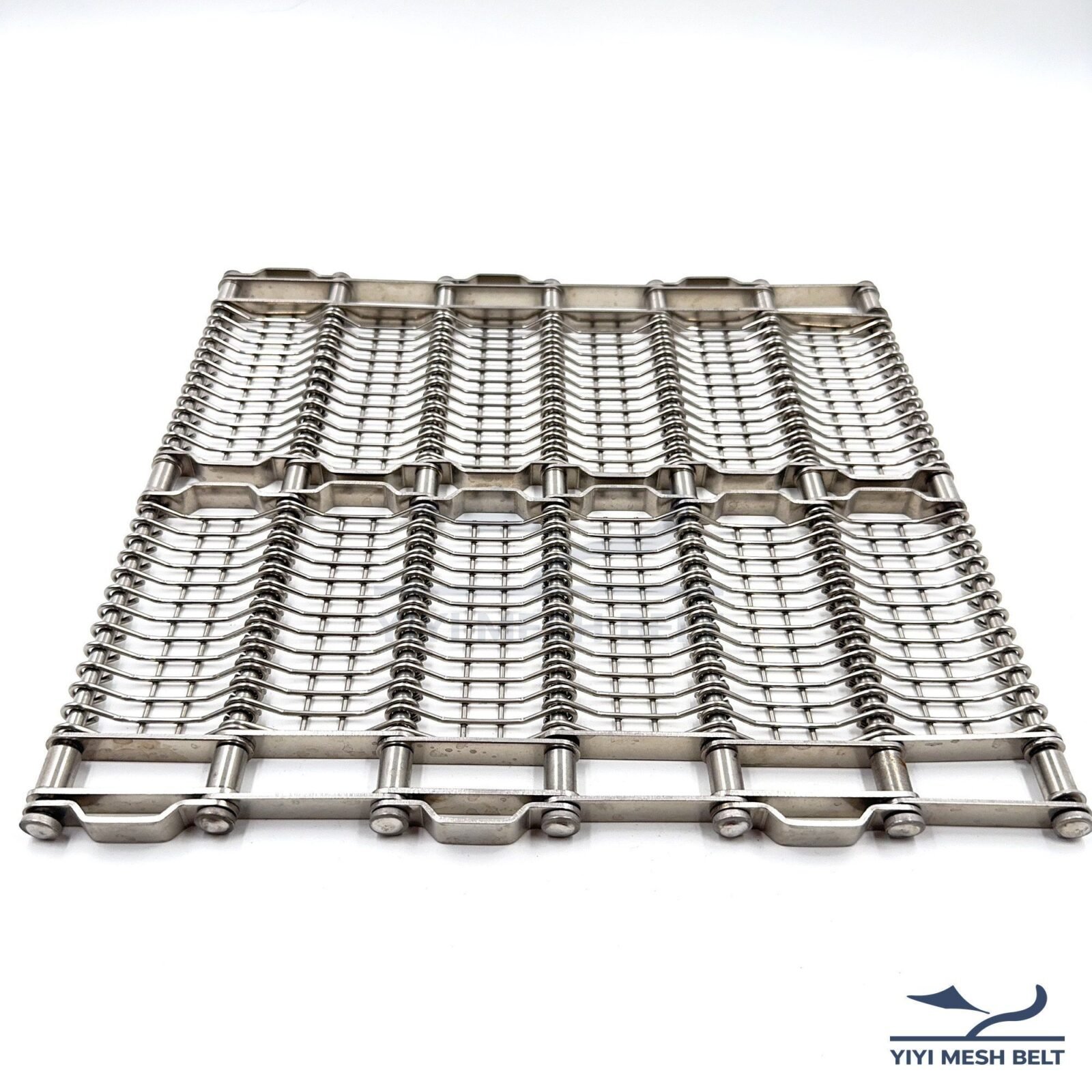

Roller chain edges or reinforced plate edges.
Yes. Flights, reinforced plates and grooves are added to the drawing and built in.
Yes. Third-party inspection is supported on request, and customer factory visits are welcome.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
