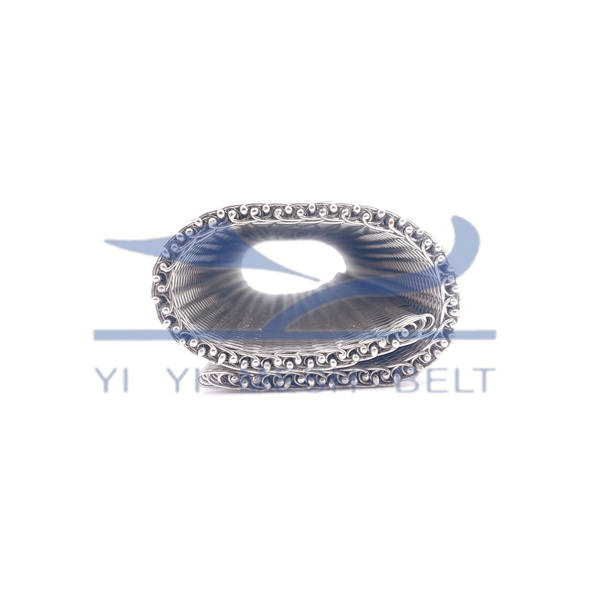

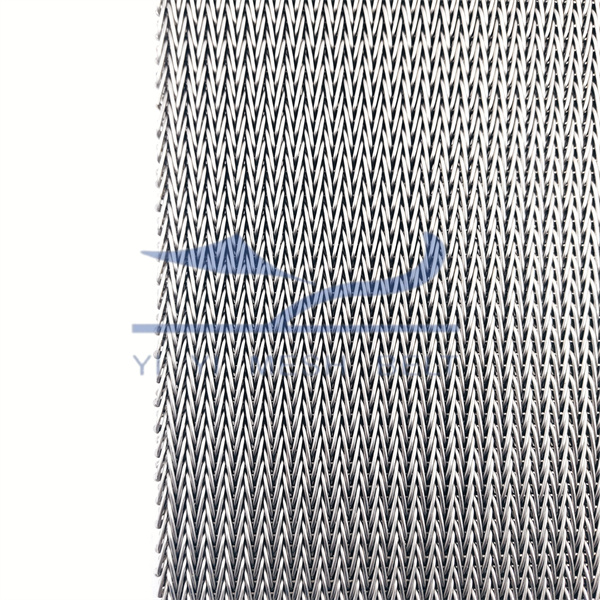

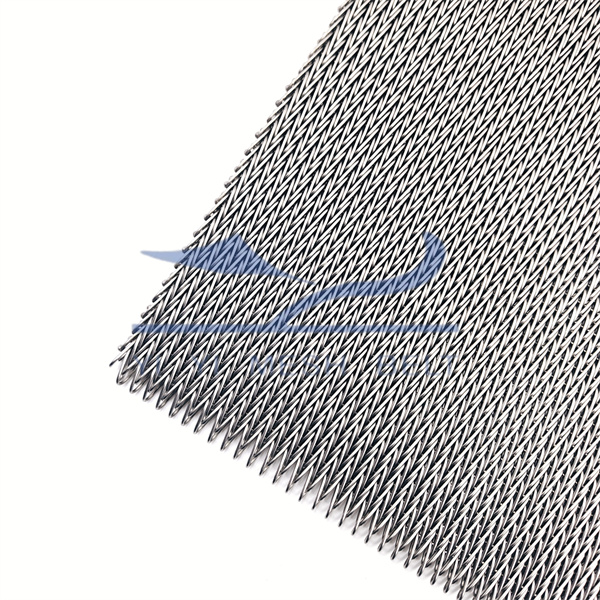

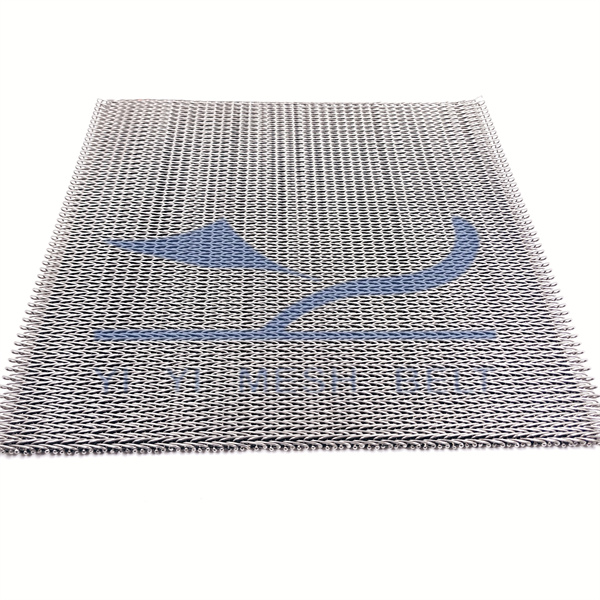

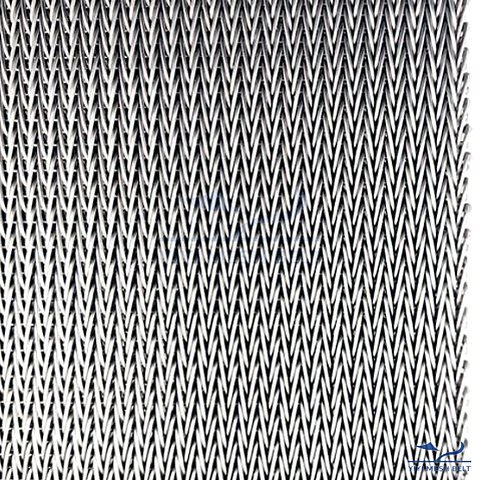

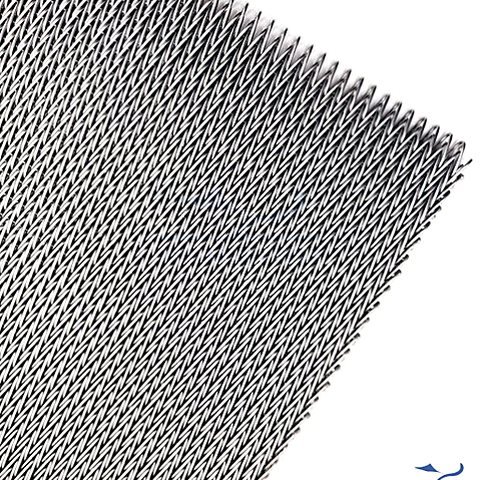

A compound weave belt, also called a compound balanced or close-mesh belt, is a densely woven balanced belt that gives close support to small or delicate products. Because mesh density depends on spiral pitch, wire and rod pitch together, we confirm all three on your drawing or existing belt.
Compound Weave Belt documents
Documents from our Document Library: the dimensions and options to compare with your current belt, and how the belt is made and inspected at our factory in Ningjin, Shandong.
Mesh density depends on spiral pitch, wire and rod pitch together, so we confirm all three on your drawing or existing belt.
Watch how a compound weave belt is made and inspected at our Ningjin factory.
| Material | SUS304, SUS316 or mild steel |
| Surface | Dense woven surface for close product support |
| Open area | Mesh density depends on spiral pitch, wire and rod pitch together, confirmed on your drawing or existing belt |
| Drive | Reviewed per project |
| Edge options | Welded |
| Specifications | Spiral pitch 6–20 mm; spiral wire 1.2–3 mm; rod pitch 6–20 mm; width 200–3000 mm |
| Applications | Industrial: small products, can washing, glass annealing lines |
Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.
| Parameter | Metric (mm) | Inch (in) |
|---|---|---|
| Material | SUS304 / SUS316 / Mild steel | — |
| Spiral pitch | 6–20 mm | 0.236–0.787 in |
| Spiral wire | 1.2–3 mm | 0.047–0.118 in |
| Rod pitch | 6–20 mm | 0.236–0.787 in |
| Belt width | 200–3000 mm / custom | 7.874–118.11 in |
| Edge | Welded | — |
| Item | Option |
|---|---|
| Edge | Welded |

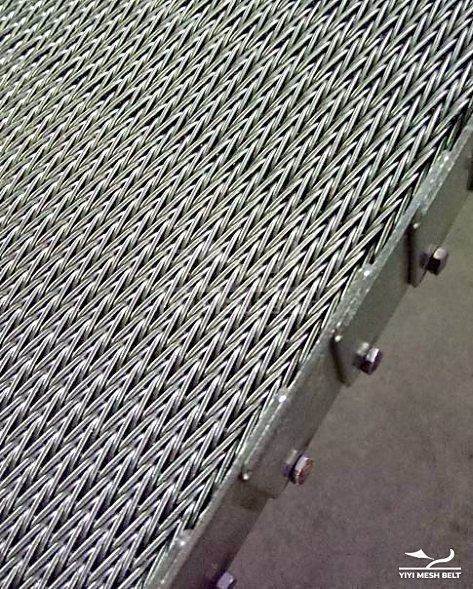

| Accessories | Side guard, per project |
| Drive | Reviewed per project |
Every option is confirmed on the approved drawing before production.

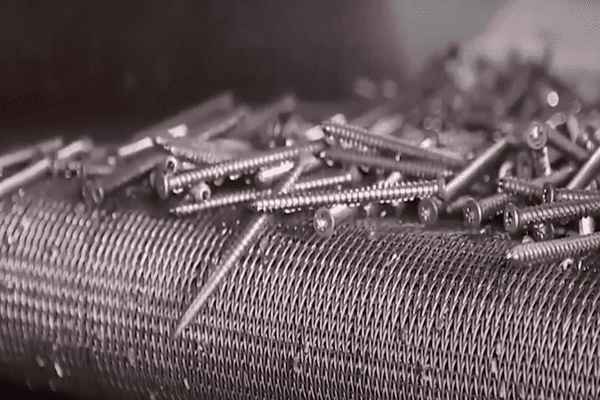

Industrial: small products, can washing, glass annealing lines. Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →
Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.
The questions we hear most, answered from how we actually build and check this belt.

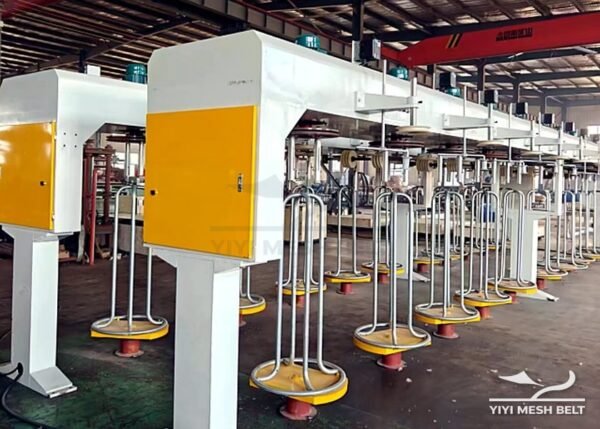

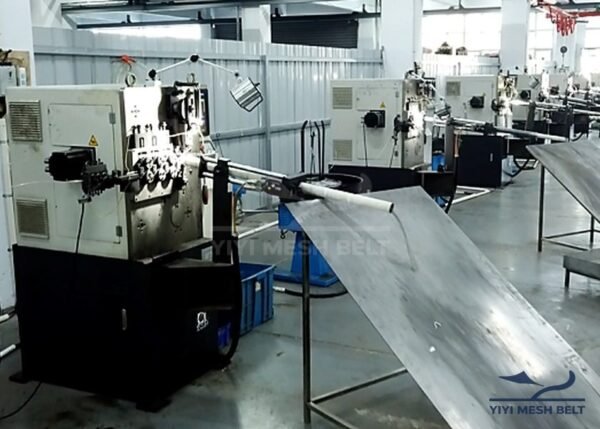

Yes. Spiral wire is drawn in our own workshop in Ningjin, Shandong, and spirals are formed and checked on the forming machine before the belt is woven.
Spiral pitch and rod pitch are selected for your product size at the drawing stage, so the mesh is not left too open for what it carries.
Yes. Send the old belt or a sample. We measure it, draw it and send the drawing for your approval before production.

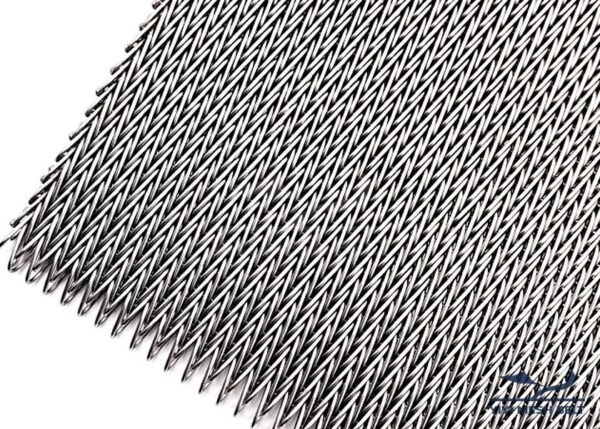

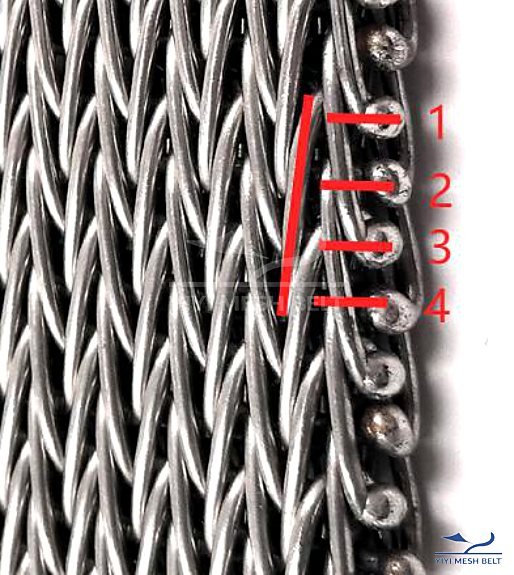

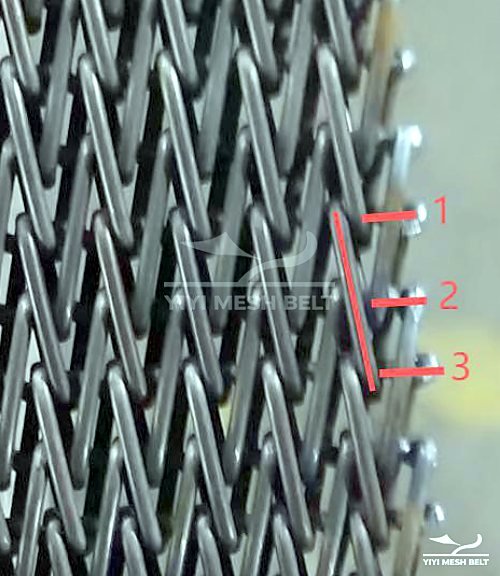

Several spirals nest on each cross rod, so the arrangement is confirmed on the drawing or sample, and spirals are woven onto the rods to that approved arrangement. Spiral and rod pitch are measured on a trial section before full production.
Every edge weld is checked by eye and by hand before packing. Side guards or bent-up sides are built to the project drawing.
Flatness and surface are checked on the inspection table, and width is measured with a tape at several points before shipment.

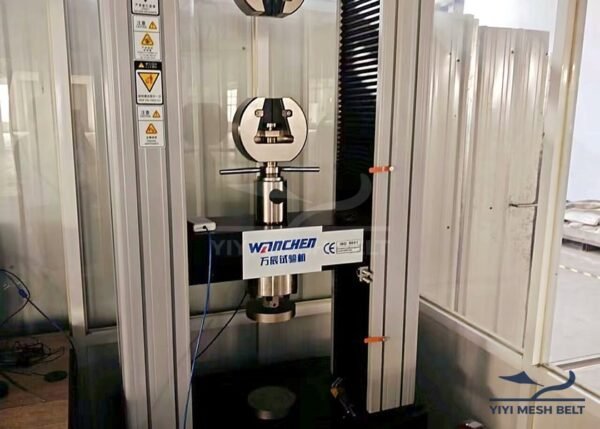

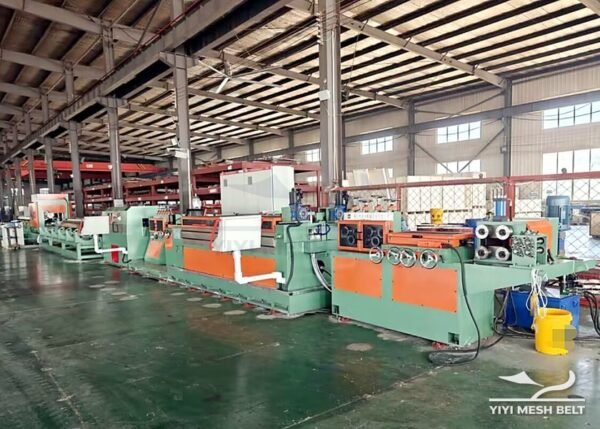

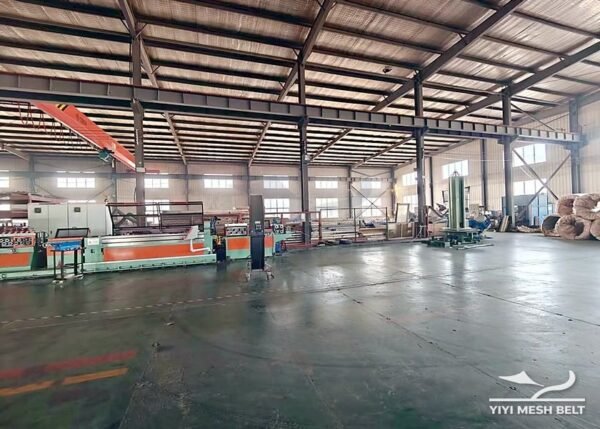

We draw wire and round bar in-house, and each incoming batch is checked for composition and hardness. Buyers often ask for a mill test report (MTR) or mill test certificate (MTC). Tell us which documents your order needs and we confirm them in the quotation.

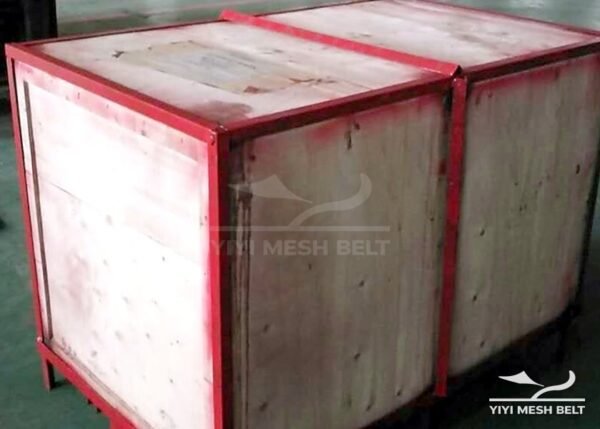

Clean and dry, in waterproof film and plywood or fumigated wooden cases, with an English shipping list, for sea, air or rail.
It does not go to packing. It is recorded, reworked or remade, and inspected again. A 100% final inspection is not a zero-defect or lifetime guarantee, but you see measured photos and the inspection report of your own belt before shipment.
Lead time is confirmed per order in the quotation. Progress updates are agreed for each order, covering material and tooling status.

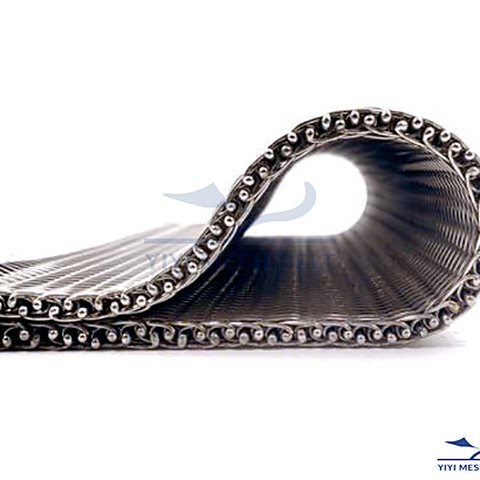

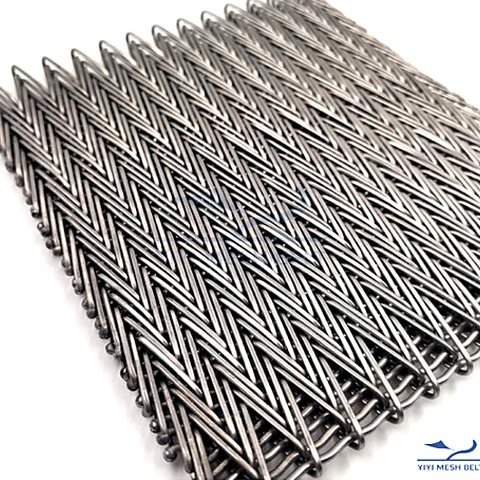

A dense woven wire conveyor belt made of closely spaced spirals and rods, used where the product needs a close-knit conveying surface.
Spiral pitch and rod pitch from 6 to 20 mm, with spiral wire from 1.2 to 3 mm.
From 200 to 3000 mm, or to your drawing.
Welded edges.
We can build from your existing belt or a sample after reviewing it, and confirm the specification on a drawing before production.
Yes. Third-party inspection is supported on request, and customer factory visits are welcome.
Buyers often ask for a mill test report (MTR) or mill test certificate (MTC). Each incoming batch of wire and rod is checked against steel-mill material documentation, with spectral and hardness testing. Tell us which documents your order needs and we confirm them in the quotation. Read more about material documentation.
