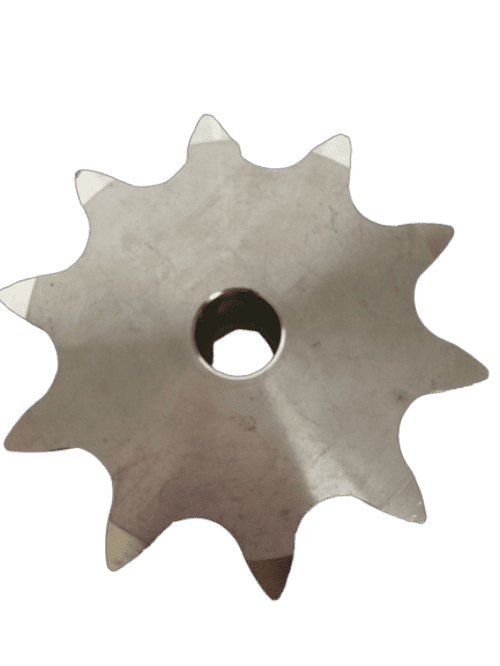

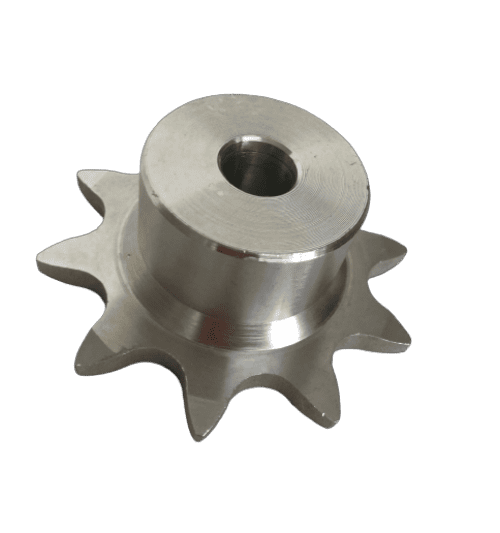

Stainless steel and polymer drive sprockets matched to your belt pitch. Tooth count, bore, keyway and mounting dimensions are confirmed on your drawing.
Drive sprockets documents
Each belt specification in our Document Library includes the matching sprocket options. Open the page directly:


Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.
| Parameter | Metric (mm) | Inch (in) |
|---|---|---|
| Stainless steel | SUS304 / SUS316 | — |
| Carbon steel | Mild steel (chain belt sprockets) | — |
| Polymer | Nylon / UHMWPE / POM | — |
| Tooth count | Matched to belt pitch, per drawing | — |
| Bore and keyway | To drawing, mm / in | To drawing, in |
| Mounting | To drawing | — |
Every option is confirmed on the approved drawing before production.








Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review.

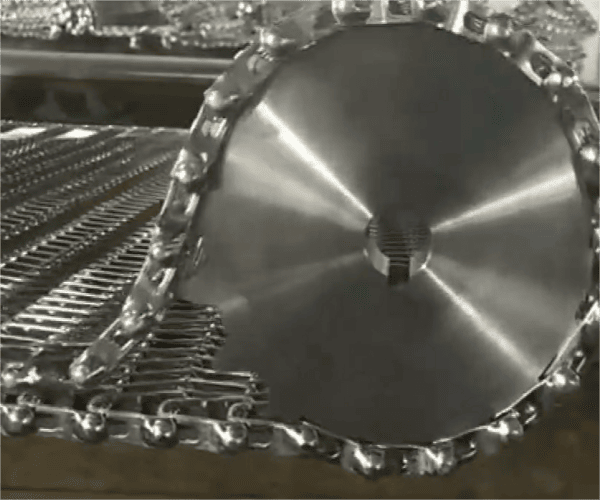

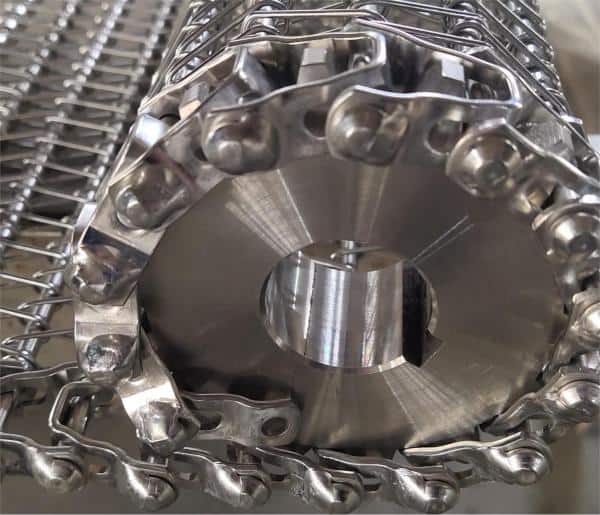

Drive sprockets matched to the belt.
Belt pitch and tooth count are confirmed together on your drawing before machining.
Bore, keyway and mounting dimensions are taken from your drawing in mm or inch.
Send the drawing, a photo with dimensions or the current sprocket, and we review it before quoting.
We supply the belt and its matching sprocket together, so the drive is reviewed as one system.
SUS304 and SUS316 stainless steel, mild steel for chain belt sprockets, and Nylon, UHMWPE or POM polymer sprockets.
Belt type and pitch, tooth count, bore, keyway and mounting dimensions, in mm or inch. A drawing is the most reliable basis.
Yes. We match the sprocket to the belt pitch and supply both together.
Yes, after review. Send the drawing or the current sprocket and we confirm the dimensions before quoting.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
