Spiral Freezer Belt (Small Turning Radius) by YIYI Mesh Belt

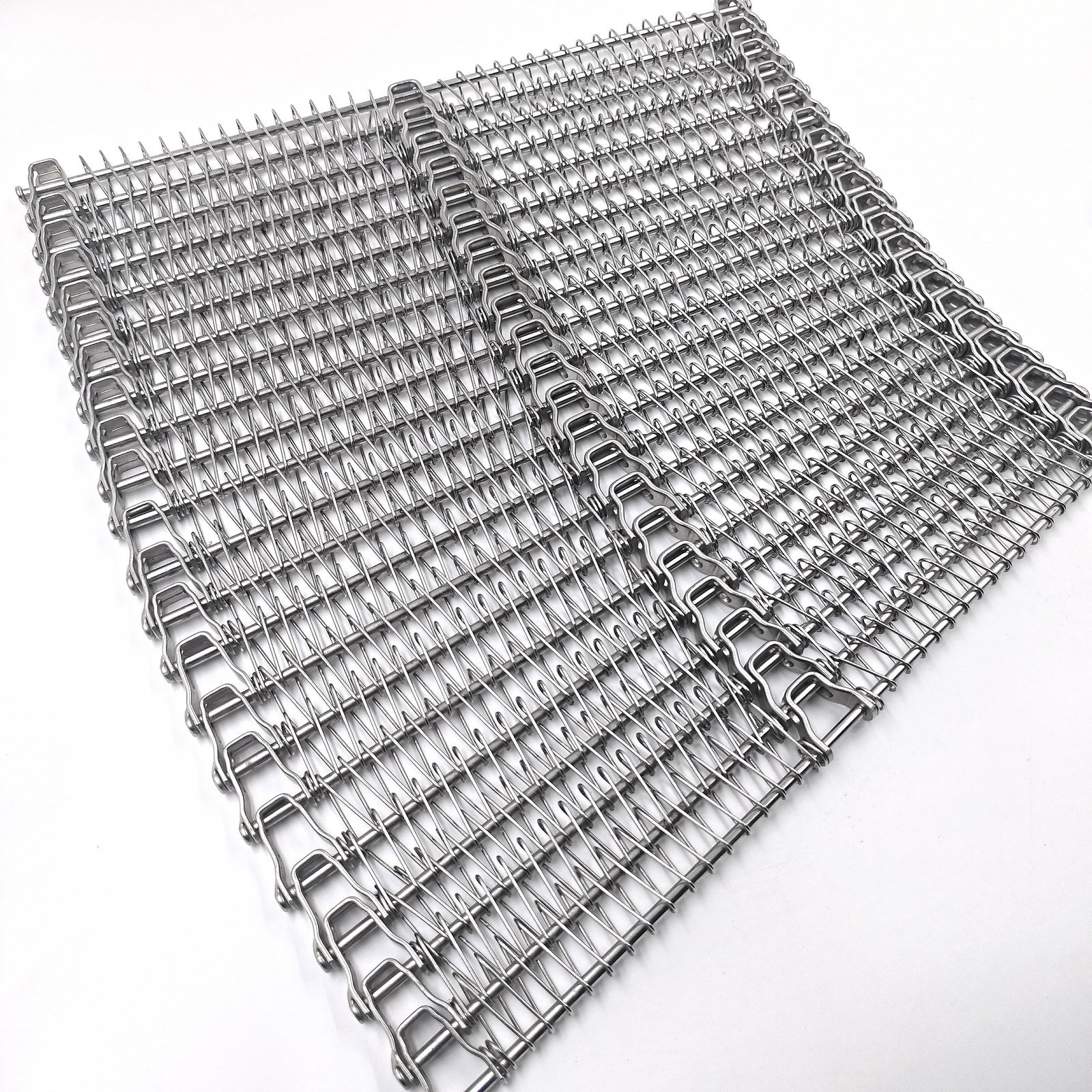

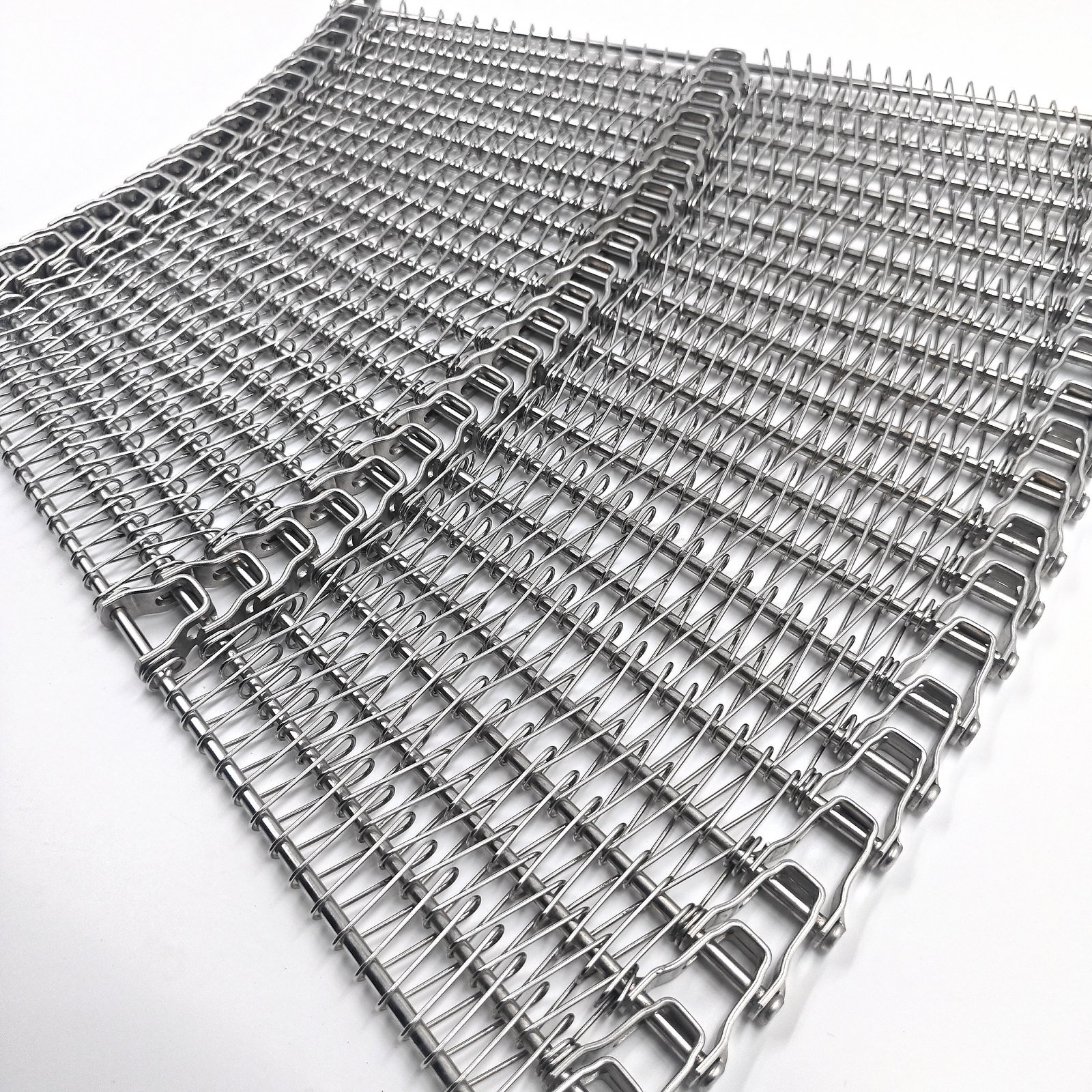

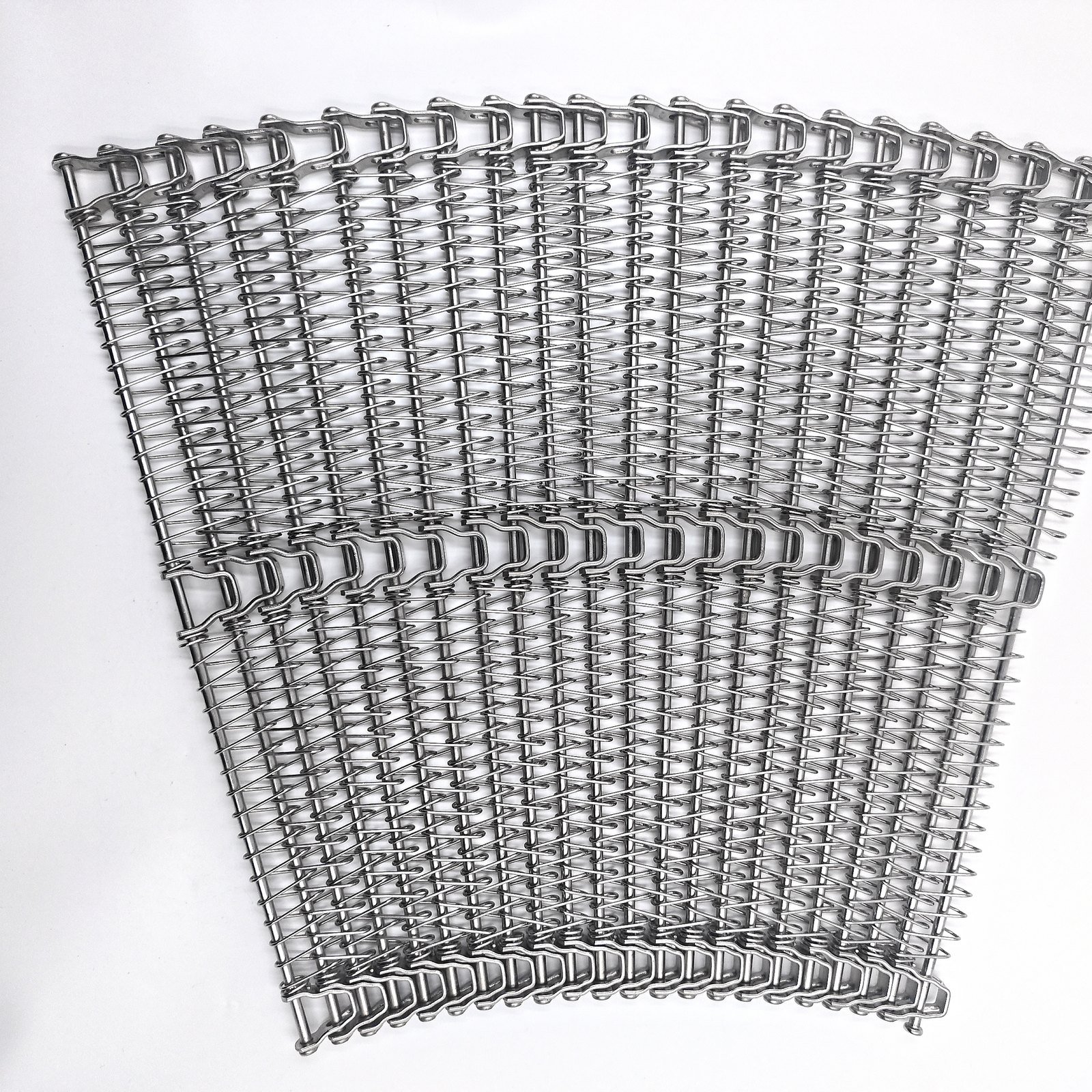

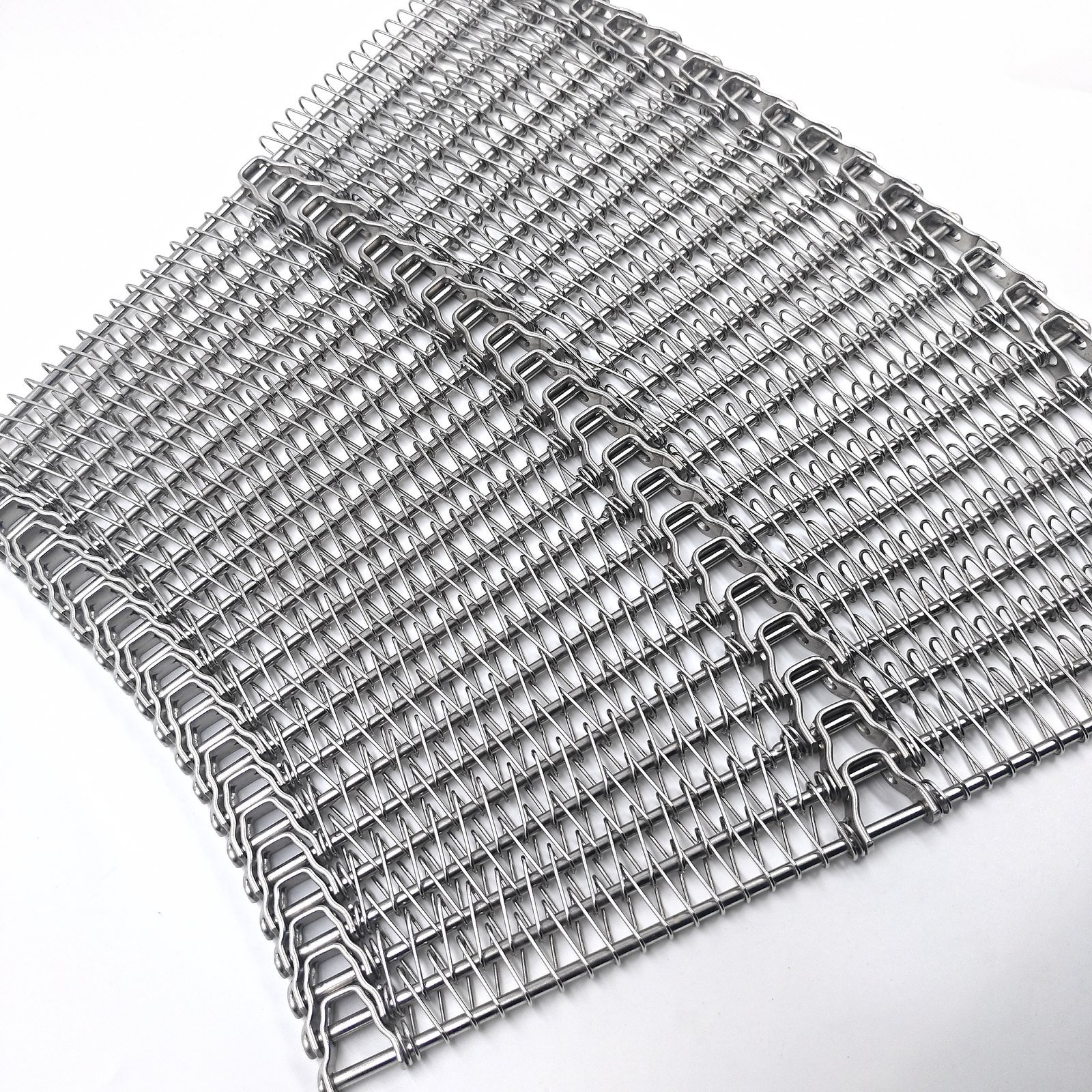

Spiral Freezer Belt (Small Turning Radius) in a tight turnSpiral Freezer Belt (Small Turning Radius) side links and spiral overlaySpiral Freezer Belt (Small Turning Radius) cross rods and edgeSpiral Freezer Belt (Small Turning Radius) full belt section
05 · SPIRAL & STACKING

Spiral Freezer Belt (Small Turning Radius)

A small radius spiral freezer belt is a spiral freezer belt built for a 1.1 turn ratio, so compact spiral systems can run a tighter turn. Because the inner and outer pitch combination decides how the belt turns, we confirm it on your drawing before production.

ISO 9001:2015Made to Sample or DrawingSUS304 / SUS316In-House Wire DrawingRobotic welding
Quote This Belt Download Spec (PDF)

QUICK FACTS

  • Manufacturer: YIYI Mesh Belt (Ningjin Yiyi Mesh Belt Co., Ltd.), Ningjin, Shandong, China · est. 2008, manufacturing experience since 1998 · ISO 9001:2015 quality management system
  • Material: SUS304 / SUS316
  • Width: 300–1200 mm (11.81–47.24 in)
  • Built to: your approved drawing, first article confirmed before production

Small Radius Spiral Freezer Belt documents

Read the full specification before you send your drawing

Documents from our Document Library: the dimensions and options to compare with your current belt, and how the belt is made and inspected at our factory in Ningjin, Shandong.

YIYI Mesh Belt Small Radius Spiral Freezer Belt Technical Specification
Small Radius Spiral Freezer Belt Technical Specification15 pages · read online page by page or download the PDF
  • Turn ratio 1.1, width 300–1200 mm
  • Two rod pitch configurations
  • Edge, surface and sprocket options
YIYI Mesh Belt Spiral Freezer Belt Production and Quality Control
Spiral Freezer Belt Production and Quality Control22 pages · read online page by page or download the PDF
  • In-house wire drawing and round-bar drawing
  • Robotic edge welding and first-article inspection
  • Drum geometry check where required, 100% final inspection
Turn ratio
1.1
Width
300–1200mm
Pitch
19.05×27.4 / 27.4×38.1
Final inspection
100%
every belt, before packing
·
DEFINITION

What Is a Small Radius Spiral Freezer Belt?

It is a variant of our Spiral Freezer Belt, not a separate product family. The inner and outer pitch combination decides how it turns, so we confirm it on your approved drawing.

YIYI MESH BELT Small Radius Spiral Freezer Belt production and quality control video

Watch how a small radius spiral freezer belt is made and inspected at our Ningjin factory.

Send Your Drawing

·
AT A GLANCE

Small Radius Spiral Freezer Belt Properties

MaterialSUS304 or SUS316
SurfaceSpiral wire and cross rods form the carrying surface
Open areaSet by spiral pitch and pitch combination on the approved drawing
DriveSprockets matched to the confirmed pitch; bore, keyway and teeth on the drawing
Edge optionsButton, flat-hat or rod welded
SpecificationsTurn ratio 1.1; pitch combination 19.05 × 27.4 or 27.4 × 38.1 mm; spiral pitch 5–23 mm; rod 5 mm; spiral wire 1.2–1.8 mm; width 300–1200 mm
ApplicationsFood: freezing, cooling lines. Industrial: turning conveyor sections, confirmed per project
02
SPECIFICATIONS

Small Radius Spiral Freezer Belt Specifications (mm / inch)

Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.

ParameterMetric (mm)Inch (in)
MaterialSUS304 / SUS316—
Turn ratio1.1—
Pitch combination (inner × outer)19.05 × 27.4 mm / 27.4 × 38.1 mm0.750 × 1.079 in
Spiral pitch5–23 mm0.197–0.906 in
Rod diameter5 mm0.197 in
Spiral wire1.2 / 1.4 / 1.5 / 1.6 / 1.7 / 1.8 mm0.047 / 0.055 / 0.059 / 0.063 / 0.067 / 0.071 in
Belt width300–1200 mm / custom11.81–47.24 in
Belt lengthProject-specific—
EdgeButton welded / Flat-hat welded / Rod welded—
SurfacePickling / Electrolytic polishing—

WHAT TO SEND FOR A QUOTE

Width and length · material · pitch combination · spiral wire · edge · surface · drum or tower information · sprocket type · drawing, or the current belt or a sample
03
CONFIGURATION

Small Radius Spiral Freezer Belt Configurations We Build

Every option is confirmed on the approved drawing before production.

  • Pitch combination: 19.05 × 27.4 mm or 27.4 × 38.1 mm
  • Edges: button welded (compact retained rod end), flat-hat welded (low-profile finished end), rod welded (direct welded retention)
  • Surface: pickling or electrolytic polishing
  • Sprockets: stainless steel SUS304 / SUS316, or polymer (nylon, UHMWPE, POM); bore, keyway and teeth confirmed on drawing

Pitch measured on a real belt

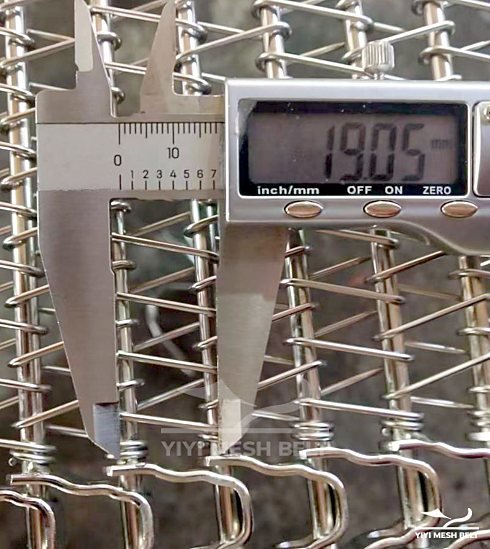

Spiral Freezer Belt (Small Turning Radius) pitch Inner pitch 19.05 mm / 0.750 in measured
INNER PITCH19.05 mm0.750 in

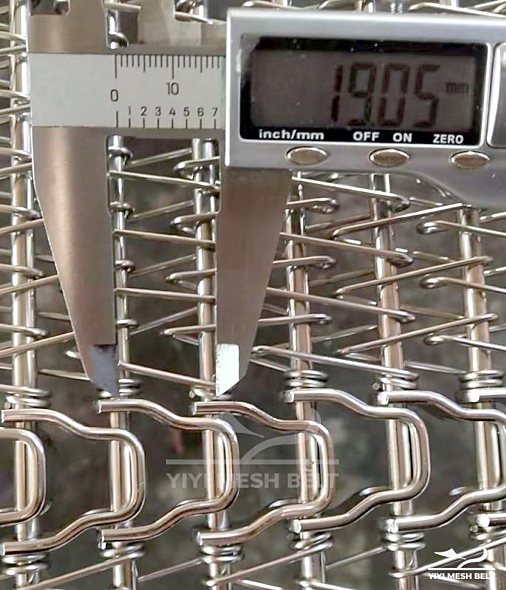

Spiral Freezer Belt (Small Turning Radius) pitch Middle pitch 19.05 mm / 0.750 in measured
MIDDLE PITCH19.05 mm0.750 in

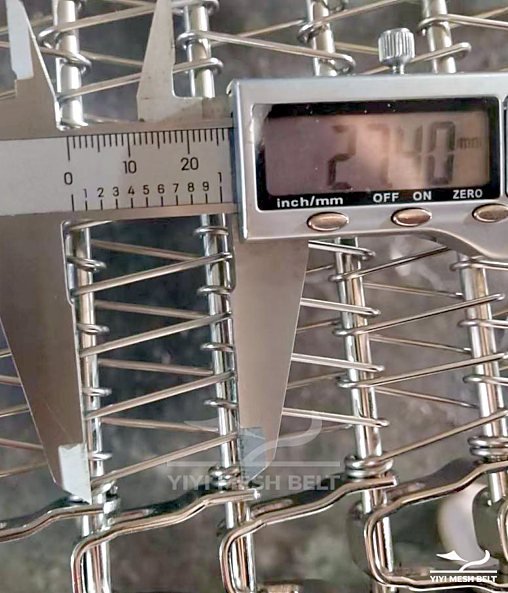

Spiral Freezer Belt (Small Turning Radius) pitch Outer pitch 27.4 mm / 1.079 in measured
OUTER PITCH27.4 mm1.079 in

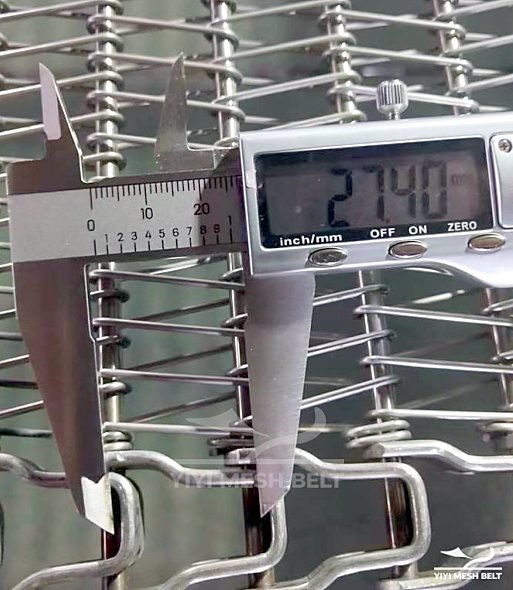

Spiral Freezer Belt (Small Turning Radius) pitch Inner pitch 27.4 mm / 1.079 in measured
INNER PITCH27.4 mm1.079 in

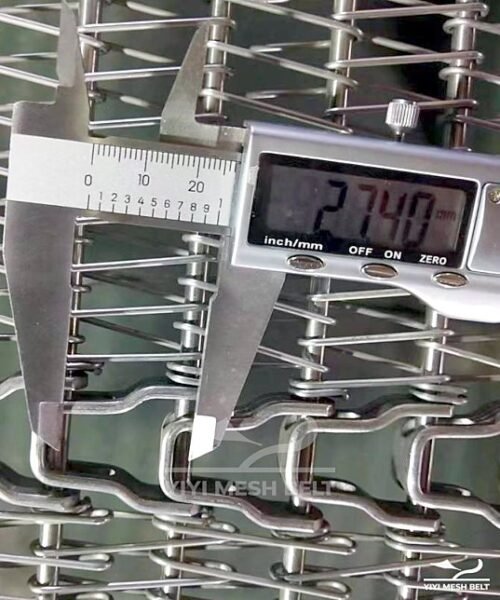

Spiral Freezer Belt (Small Turning Radius) pitch Middle pitch 27.4 mm / 1.079 in measured
MIDDLE PITCH27.4 mm1.079 in

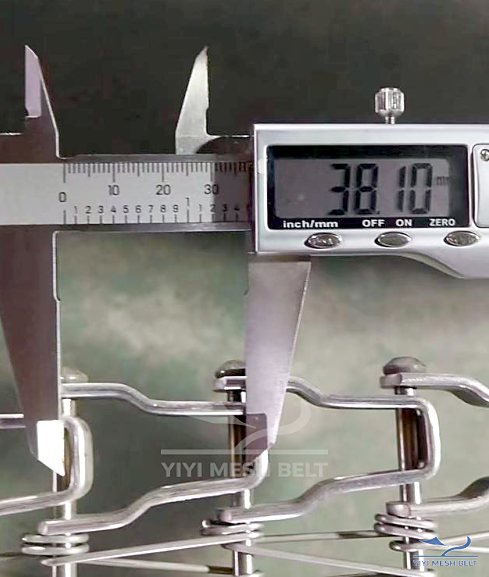

Spiral Freezer Belt (Small Turning Radius) pitch Outer pitch 38.1 mm / 1.500 in measured
OUTER PITCH38.1 mm1.500 in

Edge finish

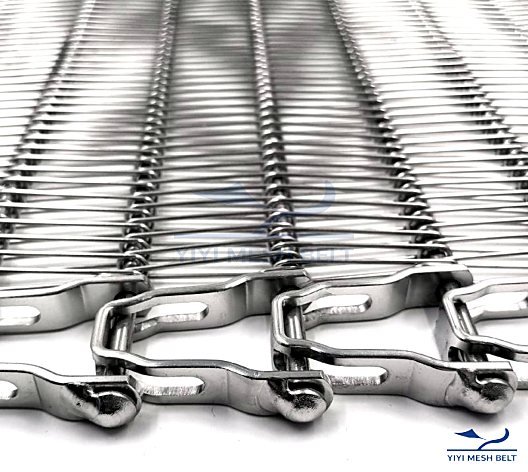

Spiral Freezer Belt (Small Turning Radius) Button Welded
Button Welded

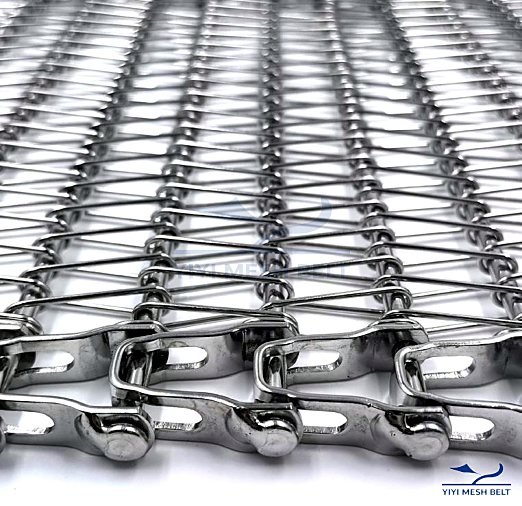

Spiral Freezer Belt (Small Turning Radius) Flat-Hat Welded
Flat-Hat Welded

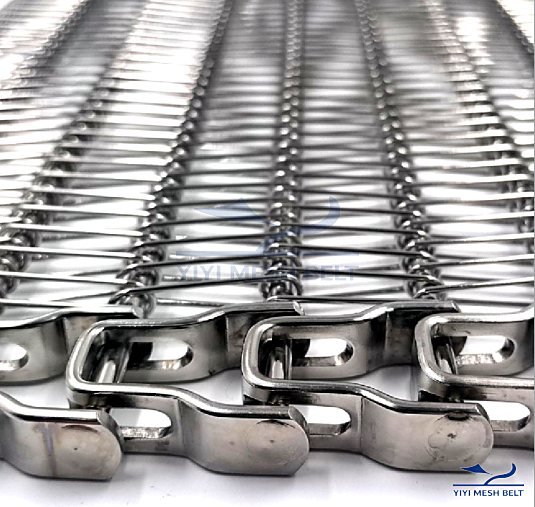

Spiral Freezer Belt (Small Turning Radius) Rod Welded
Rod Welded

Surface finish

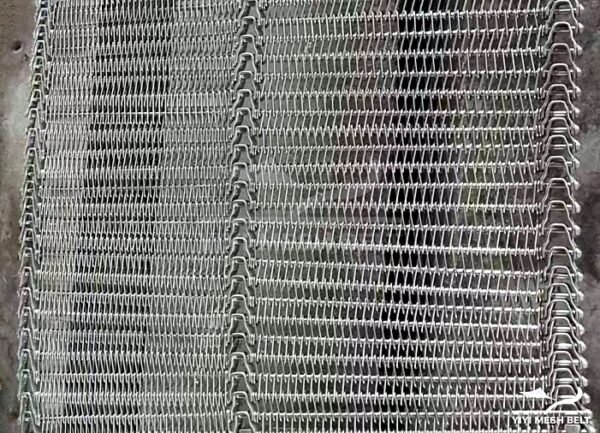

Spiral Freezer Belt (Small Turning Radius) Pickling
Pickling

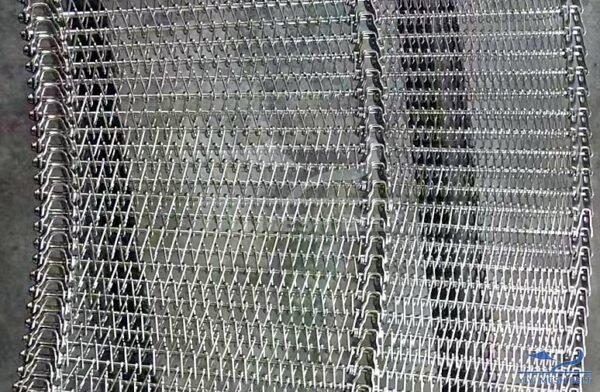

Spiral Freezer Belt (Small Turning Radius) Electrolytic Polishing
Electrolytic Polishing

Accessories & construction options

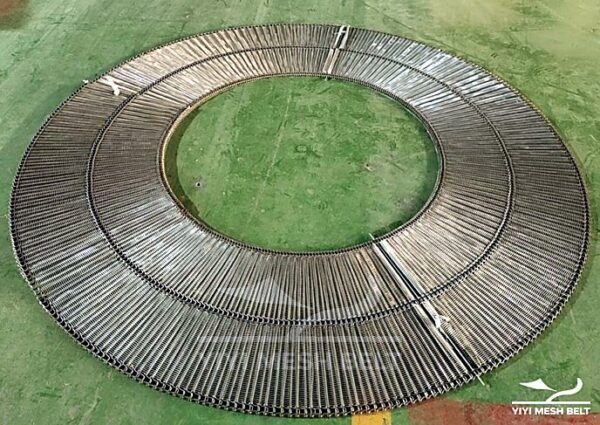

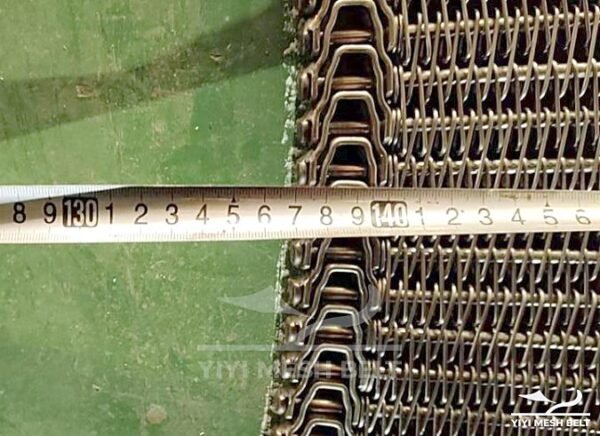

Spiral Freezer Belt (Small Turning Radius) Turn ratio 1.1
Turn ratio 1.1
Spiral Freezer Belt (Small Turning Radius) Turn ratio 1.1
Turn ratio 1.1

Matching drive sprockets

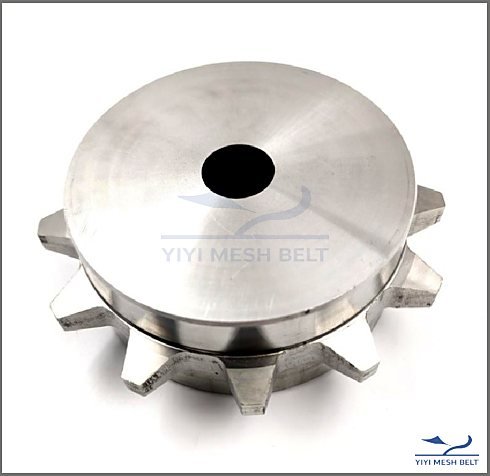

Spiral Freezer Belt (Small Turning Radius) Machined Profile
Machined Profile

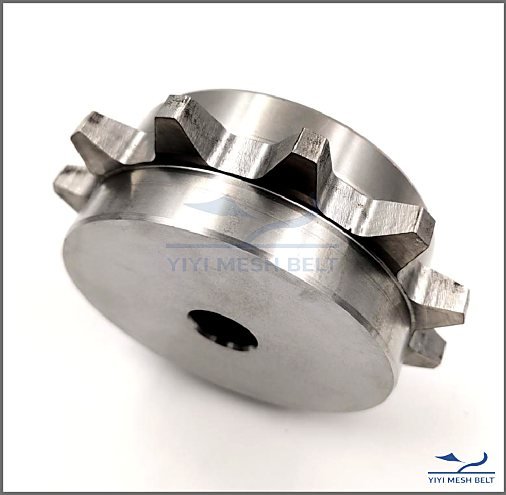

Spiral Freezer Belt (Small Turning Radius) Bore / Keyway To Confirm
Bore / Keyway To Confirm

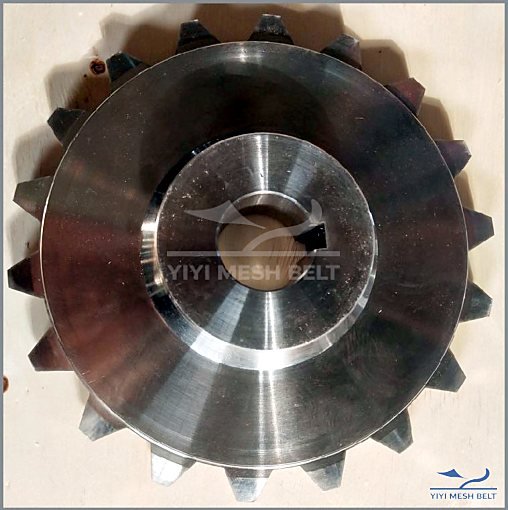

Spiral Freezer Belt (Small Turning Radius) Teeth To Confirm
Teeth To Confirm

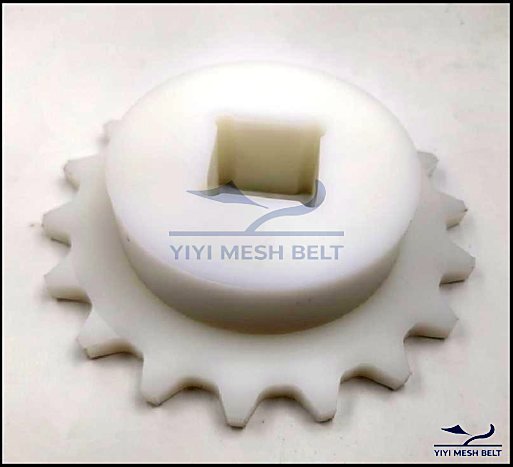

Spiral Freezer Belt (Small Turning Radius) Nylon
Nylon
04
APPLICATIONS

Small Radius Spiral Freezer Belt Applications by Industry: Food and Industrial

Food: freezing, cooling lines. Industrial: turning conveyor sections, confirmed per project. Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →

01

Freezing

Freezing lines, with the belt configured to the freezer design.

02

Cooling

Product cooling after baking or cooking.

05
HOW WE MAKE AND CHECK IT

From wire coil to export crate

Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.

Stainless Steel Wire Drawing Equipment – Spiral Freezer Belt (Small Turning Radius)
Stainless Steel Wire Drawing EquipmentWe draw our own stainless wire
Raw Material Inspection Equipment – Spiral Freezer Belt (Small Turning Radius)
Raw Material Inspection EquipmentSpectral and hardness testing of incoming material
Spiral Wire Forming – Spiral Freezer Belt (Small Turning Radius)
Spiral Wire FormingSpirals formed on automatic machines
Spiral Wire Trial Inspection – Spiral Freezer Belt (Small Turning Radius)
Spiral Wire Trial InspectionSpiral wire checked before production
Trial Production Sample Inspection – Spiral Freezer Belt (Small Turning Radius)
Trial Production Sample InspectionFirst article confirmed before mass production
Finished Product Inspection – Spiral Freezer Belt (Small Turning Radius)
Finished Product InspectionFinished belt measured against drawing
Edge Finish Inspection – Spiral Freezer Belt (Small Turning Radius)
Edge Finish InspectionEdge finish checked
Wooden Crate Packing – Spiral Freezer Belt (Small Turning Radius)
Wooden Crate PackingPacked in export wooden crates
Don’t take our word for it — inspect it. Third-party inspection and factory audits are supported on request, and customer factory visits are welcome.
Plan a Visit
06
BUYER QUESTIONS

What Buyers Ask Before Ordering a Small Radius Spiral Freezer Belt

The questions we hear most, answered from how we actually build and check this belt.

01

Is this belt really made in your own factory?

Yes. Wire and round bar are drawn in our own workshop in Ningjin, Shandong, and rods are welded to the links by robot.

02

Will it run on my tight turn?

This belt is built for a 1.1 turn ratio. The inner and outer pitch combination decides how it turns, so 19.05 × 27.4 mm or 27.4 × 38.1 mm is confirmed on your approved drawing, with a drum geometry check where required.

03

Will the pitch be what the drawing says?

Pitch is checked with calipers against the drawing and recorded, during production and at final inspection.

04

Will it engage my sprockets?

Stainless or polymer sprockets are matched to the confirmed pitch, and bore, keyway and teeth are confirmed on the drawing. Sprockets are made by specialist partners to our specification, and we check the finished parts.

05

Will the mesh stay flat after freezing?

In a freezer the wire is cold and carries a layer of ice. Hard wire resists deformation in that service, while soft wire deforms and loses its flatness, so we specify hard wire for spiral freezer belts used in freezers.

06

Will my next order match this one?

Repeat orders are built from the same approved drawing and order records.

07

How do I know the material is what you say it is?

We draw wire and round bar in-house, and each incoming batch is checked for composition and hardness. Buyers often ask for a mill test report (MTR) or mill test certificate (MTC). Tell us which documents your order needs and we confirm them in the quotation.

08

How will the belt be packed?

Clean and dry, in waterproof film and plywood or fumigated wooden cases, with an English shipping list, for sea, air or rail.

09

What happens if a belt does not meet the drawing?

It does not go to packing. It is recorded, reworked or remade, and inspected again. A 100% final inspection is not a zero-defect or lifetime guarantee, but you see measured photos and the inspection report of your own belt before shipment.

10

How long will it take?

Lead time is confirmed per order in the quotation. Progress updates are agreed for each order, covering material and tooling status.

Send Your Drawing

07
FAQ

Small Radius Spiral Freezer Belt FAQ

Q01

What is a small radius spiral freezer belt?

It is a spiral freezer belt built for a turn ratio of 1.1, so it turns on a tighter radius than standard spiral belts (1.10–2.5). It suits compact spiral systems where floor space is limited.

Q02

Which pitch combinations do you produce?

We produce two inner × outer pitch combinations: 19.05 × 27.4 mm and 27.4 × 38.1 mm, with 5 mm rods.

Q03

What belt widths are available?

Small radius belts are made from 300 to 1200 mm wide, or to your drawing. Reference builds include 660 mm and 1067 mm widths.

Q04

Which edge and surface options are available?

Button welded, flat-hat welded and rod welded edges, with pickling or electrolytic polishing.

Q05

Do you supply matching sprockets?

Yes. Stainless steel sprockets in SUS304 or SUS316, or polymer sprockets in nylon, UHMWPE or POM. Bore, keyway and teeth are confirmed on drawing.

Q06

How do you check the pitch before shipment?

Pitch is measured with calipers during production and again at 100% final inspection, against your approved drawing. Third-party inspection is supported on request.

Q07

What material documents come with the belt?

Buyers often ask for a mill test report (MTR) or mill test certificate (MTC). Each incoming batch of wire and rod is checked against steel-mill material documentation, with spectral and hardness testing. Tell us which documents your order needs and we confirm them in the quotation. Read more about material documentation.

?
