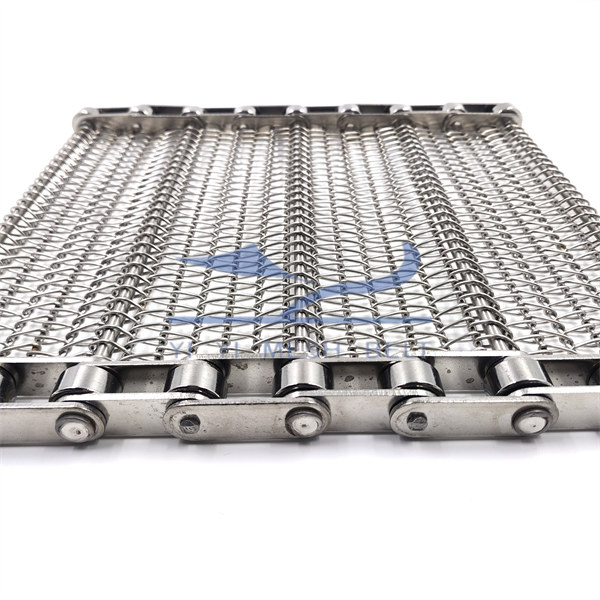

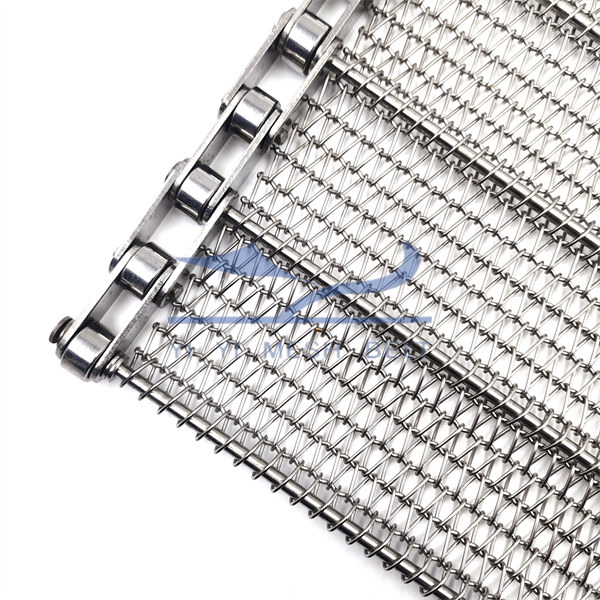

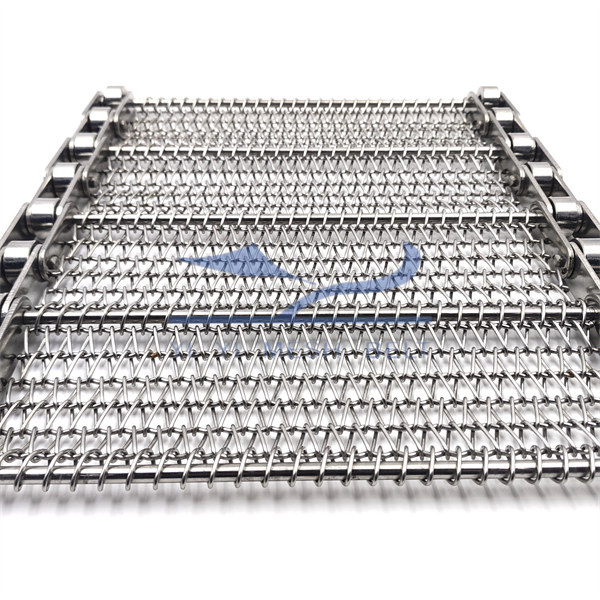

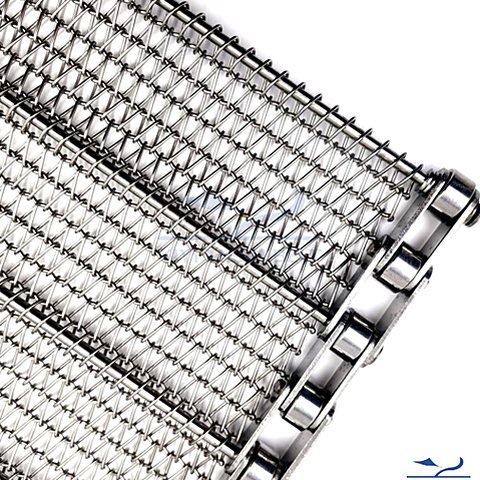

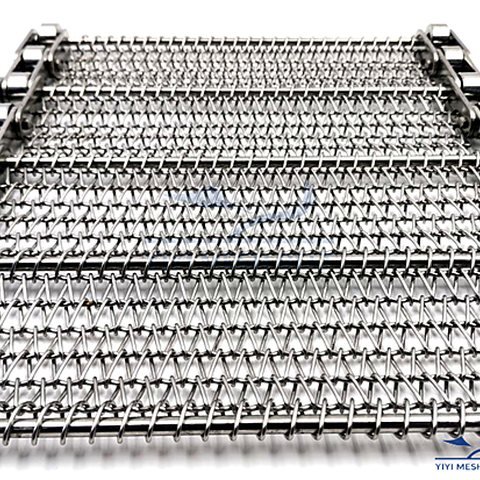

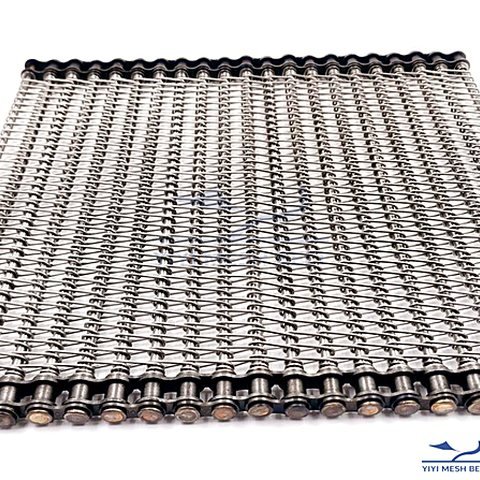

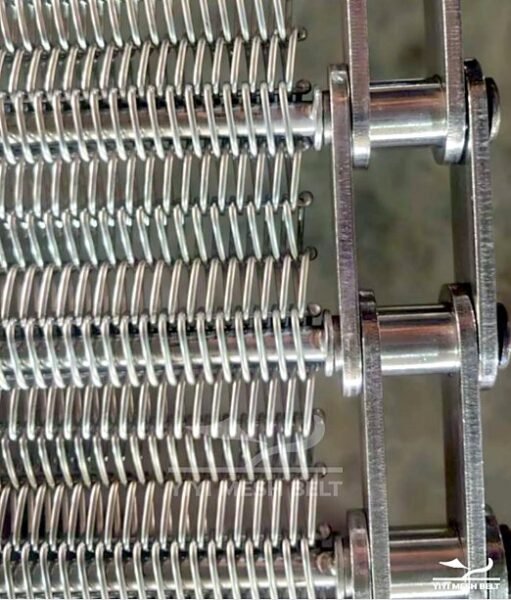

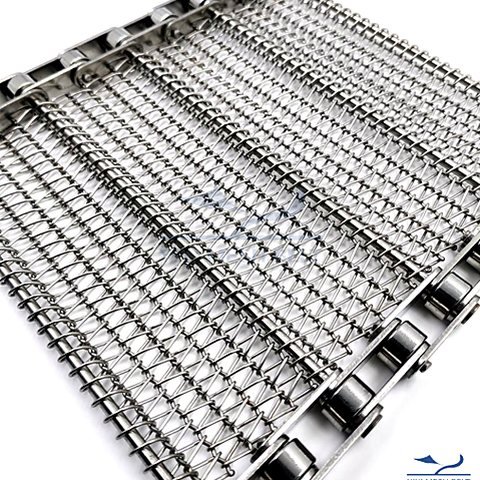

A chain driven belt, also called a chain edge belt or chain link conveyor belt, is a wire mesh belt carried and driven by roller chains on both edges, used for heat treatment, parts washing, frying and heavy industrial conveying. This page covers metal conveyor belts, not the belt-drive versus chain-drive choice in power transmission. Because the belt, the chain and the sprocket have to work as one system, we review all three together — a chain model alone is never enough to build from.
Chain Driven Belt documents
Documents from our Document Library: the dimensions and options to compare with your current belt, and how the belt is made and inspected at our factory in Ningjin, Shandong.

| Material | SUS304, SUS316 or carbon steel, chosen for your process conditions |
| Surface | Spiral wire mesh on cross rods |
| Openings | Spiral pitch 3–20 mm and mesh rod pitch 4–20 mm set the openings, confirmed on the drawing |
| Drive | Sprockets engage roller chains on both edges. Chain pitch 12.7–63.5 mm; references #40, #50 and C2042 to C2102 |

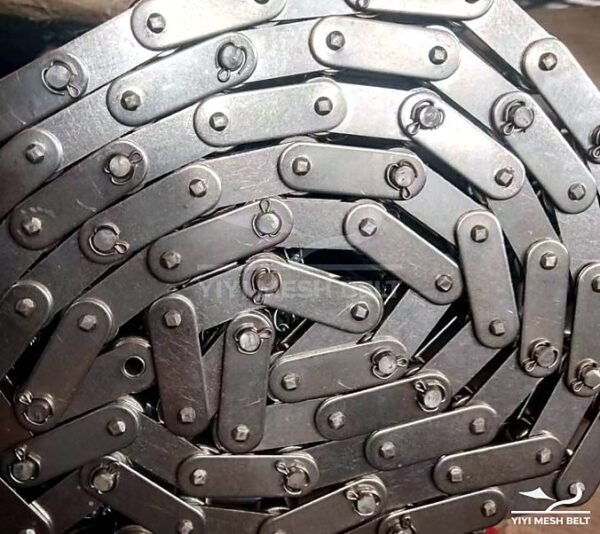

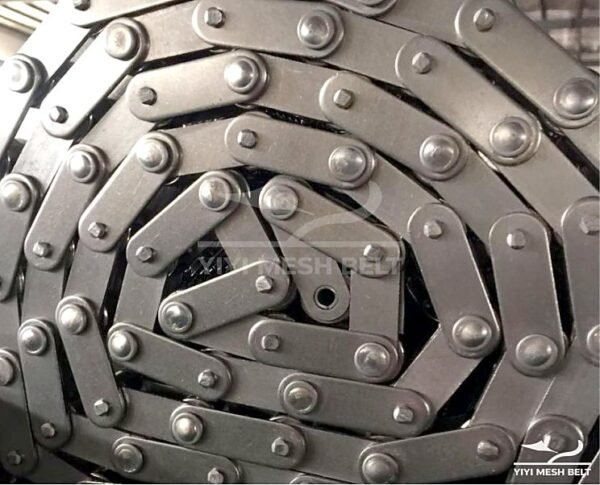

| Edge options | Rod ends washer welded or cotter pinned |

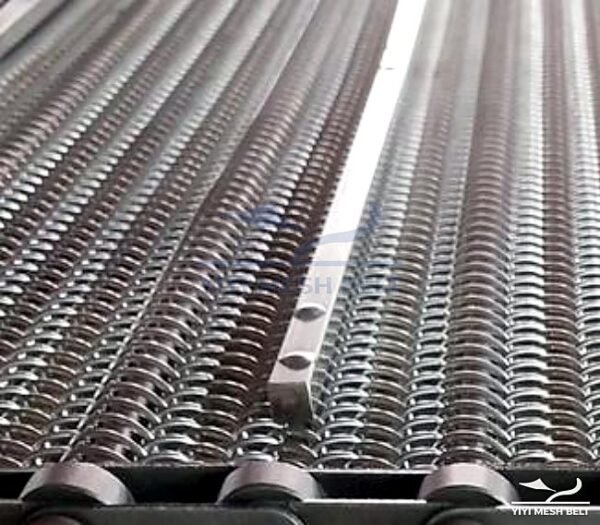

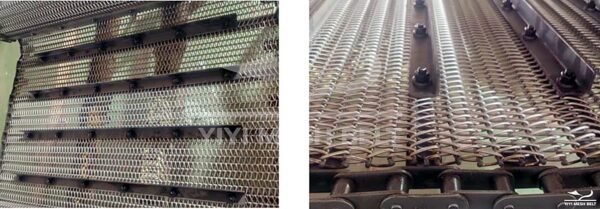

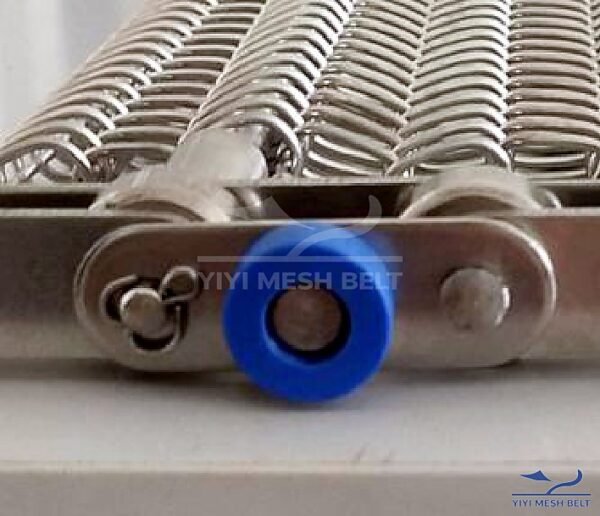

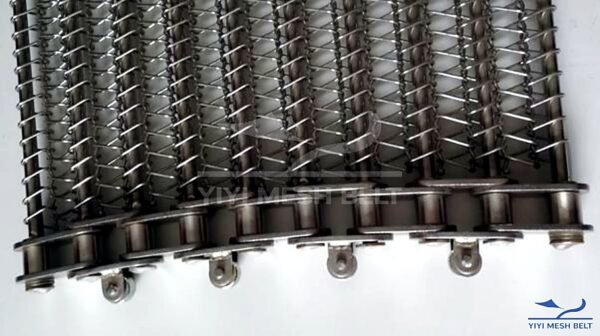

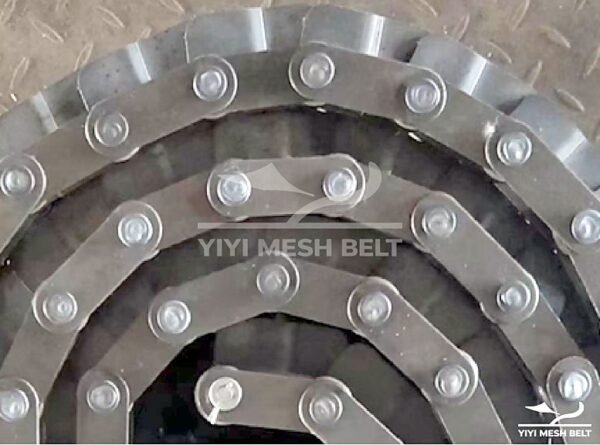

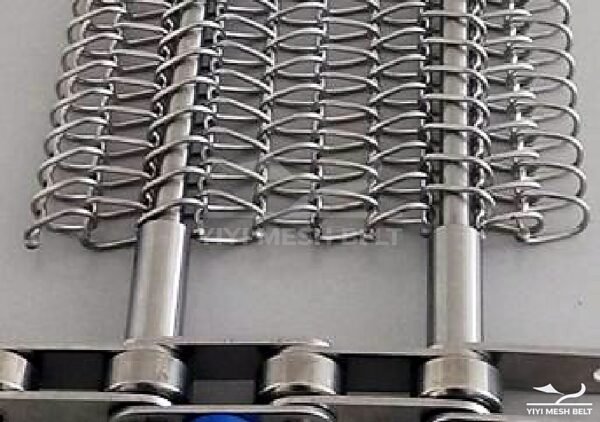

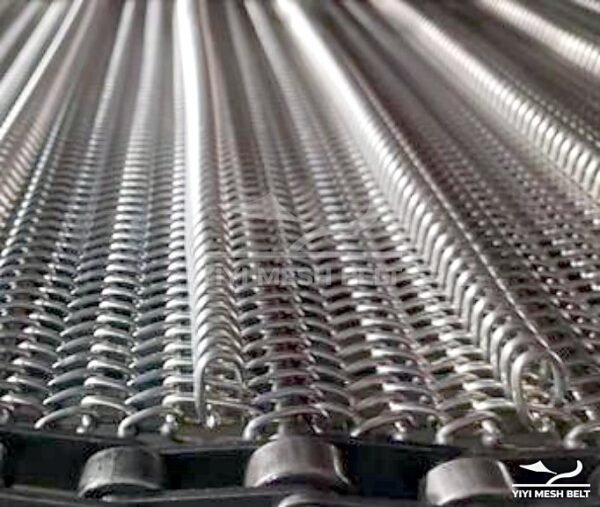

| Accessories | Side guide, tube, side roller, square bar, flights or side plate, to the drawing |
| Width | 300–5000 mm (11.81–196.85 in) |
| Applications | Food: frying, blanching. Industrial: heat treatment, parts washing, drying, heavy-duty conveying |

Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.

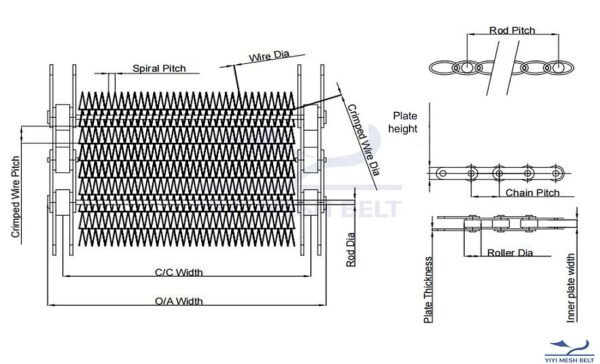

| Parameter | Metric (mm) | Inch (in) |
|---|---|---|

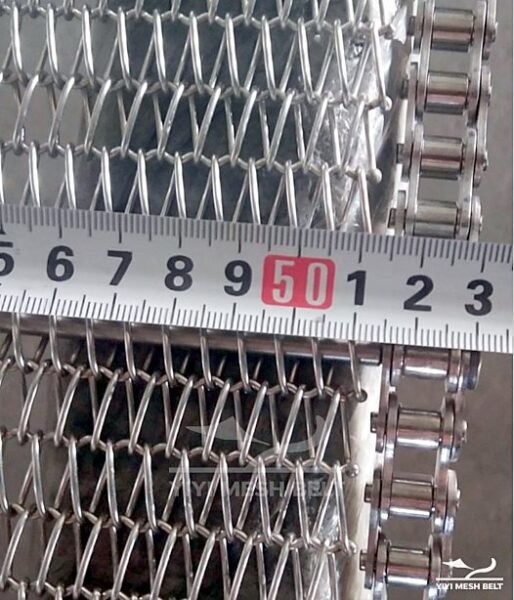

| Material | SUS304 / SUS316 / Carbon steel | — |
| Belt (spiral) pitch | 3–20 mm | 0.118–0.787 in |
| Rod pitch | 4–20 mm | 0.157–0.787 in |
| Wire | 1–3 mm | 0.039–0.118 in |

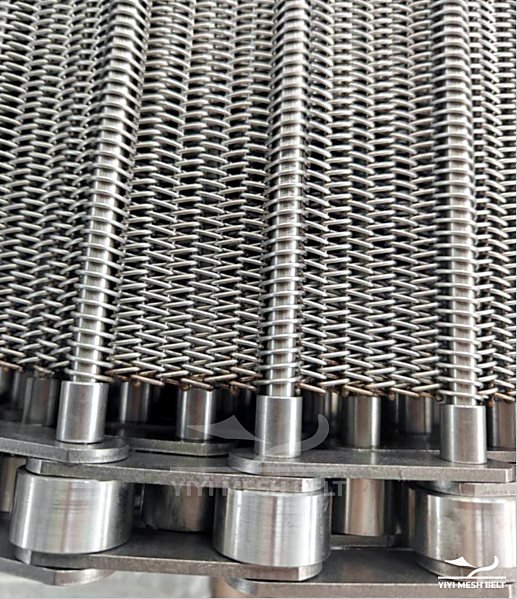

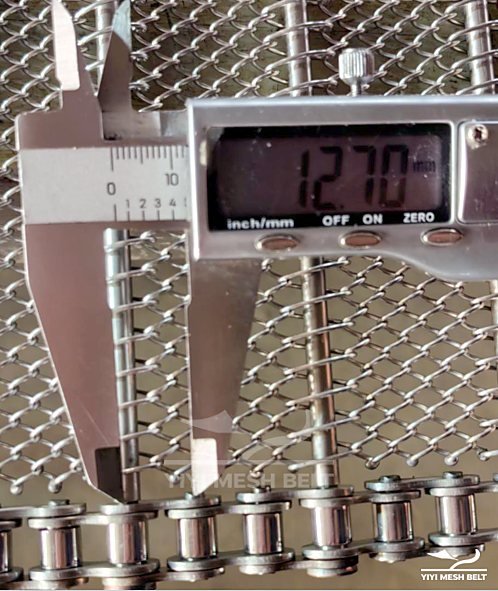

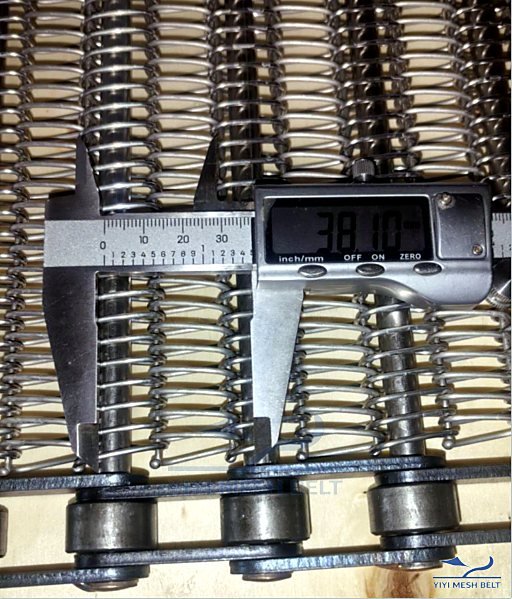

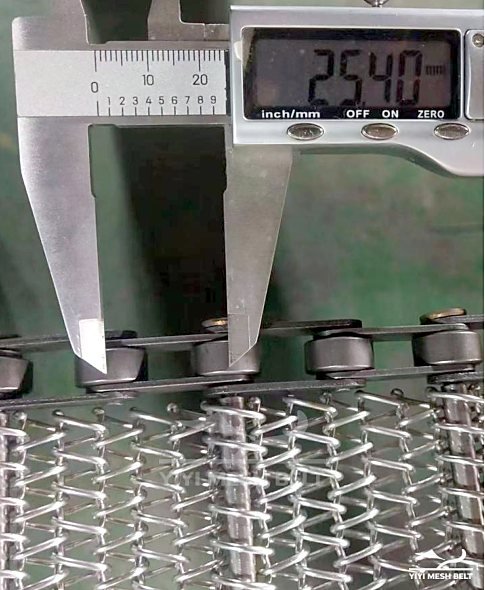

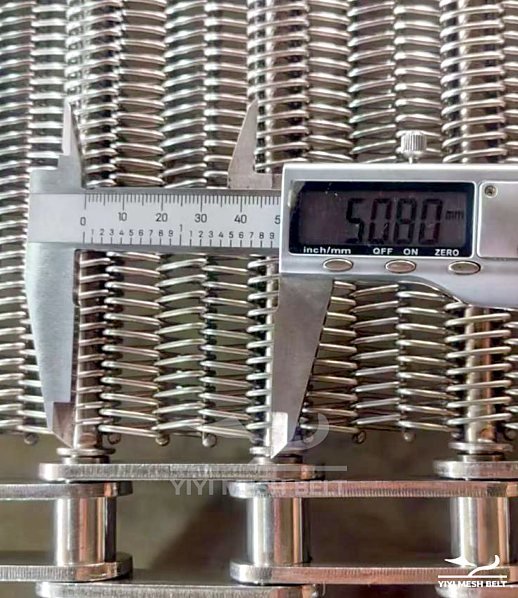

| Chain pitch | 12.7 / 15.875 / 25.4 / 31.75 / 38.1 / 50.8 / 63.5 mm | 0.500 / 0.625 / 1.000 / 1.250 / 1.500 / 2.000 / 2.500 in |
| Chain models | #40 / #50 / C2042 / C2052 / C2062 / C2082 / C2102 | — |
| Belt width | 300–5000 mm / custom | 11.81–196.85 in |

Every option is confirmed on the approved drawing before production.

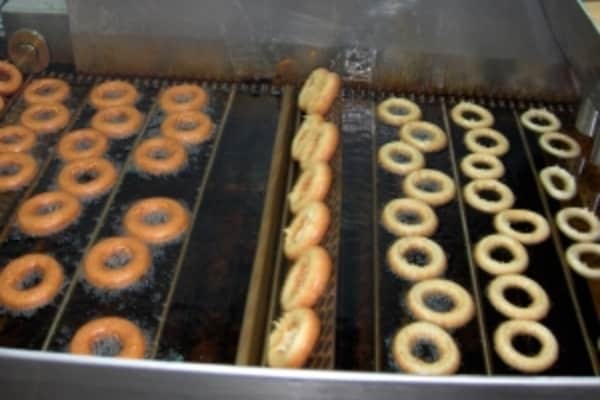

Food: frying and blanching lines. Industrial: heat treatment, parts washing, washing and drying, and heavy-duty conveying. Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →
Heat treatment lines, with material confirmed for the temperature.
Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.








Real orders, with customer details withheld.
Frying equipment manufacturer, East Asia. The customer sent drawings and we quoted, then drew the belts, and the customer signed the drawings back. A trial section was measured and photographed for approval before mass production. Spare rods, washers, spiral wires and chain pins were supplied with the belts.
| Chain centre distance | 350 / 500 / 650 mm |
| Chain | C2042, 25.4 mm pitch, roller Ø 15.88 mm |
| Cross rod | Ø 6 mm at 50.8 mm spacing |
| Spiral wire | 1.0 mm, 3 mm spiral pitch |
| Edge | Rod ends washer welded |

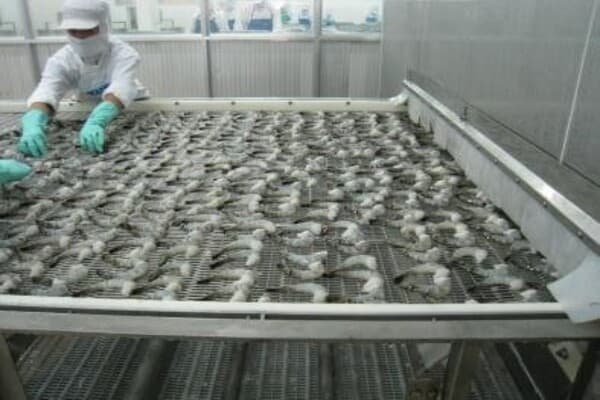

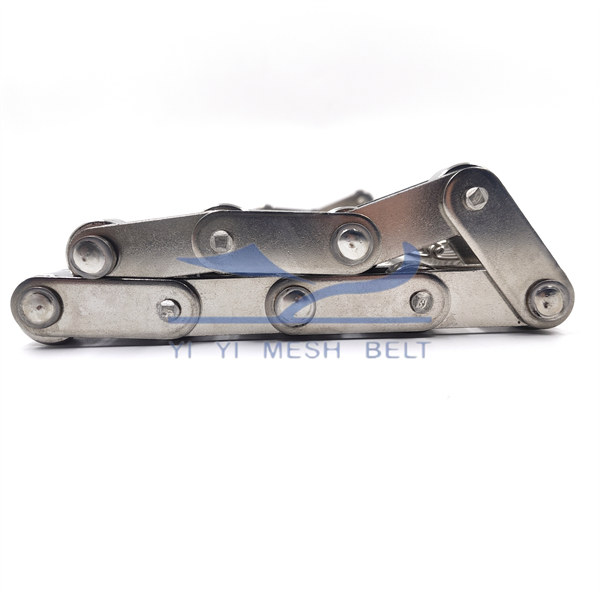

Seafood processing plant, Northern Europe. The end user sent the chain specification for a quotation. We drew the chain and the customer signed the drawing back. The chain was sourced to that drawing: a trial was confirmed before mass production, and every dimension was checked, photographed and sent to the customer before shipment.
| Chain pitch | 100 mm |
| Roller | Ø 22 mm, free-turning |
| Plates | 6.5 × 35 mm, 140 mm long |
| Pin | Ø 14 mm, riveted |
| Material | SUS304 |



The questions we hear most, answered from how we actually build and check this belt.

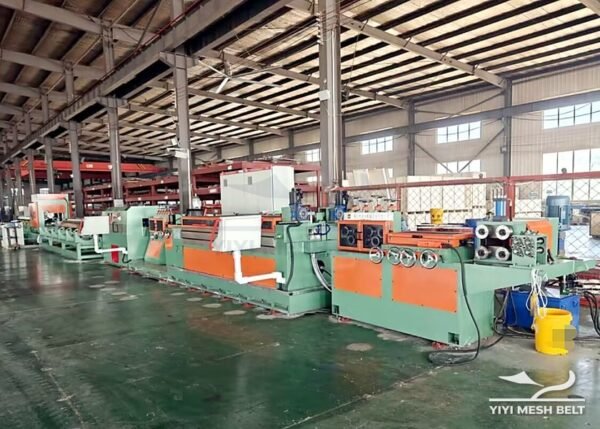

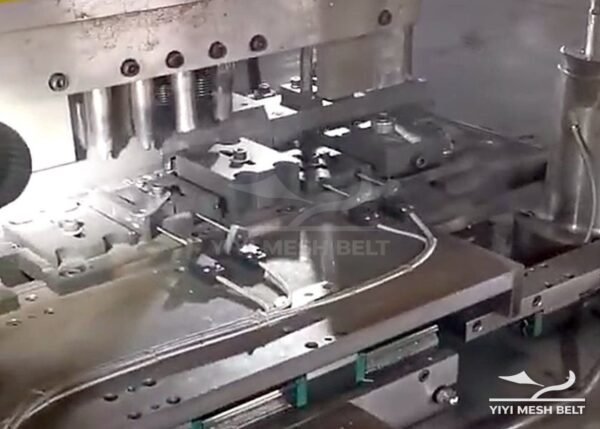

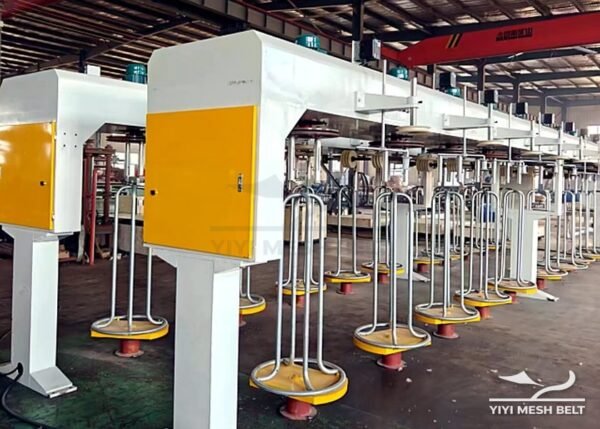

Wire and round bar are drawn in our own workshop in Ningjin, Shandong, and the belt is built there. Selected stainless chains of about 25.4–50.8 mm pitch can be made in-house depending on specification. Carbon-steel and special chains are sourced to specification and checked before shipment.

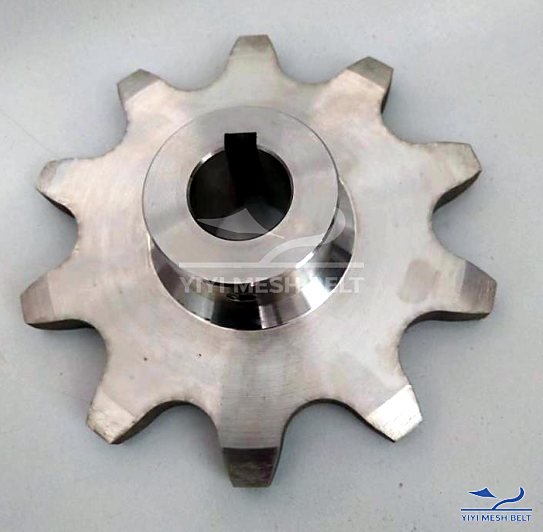

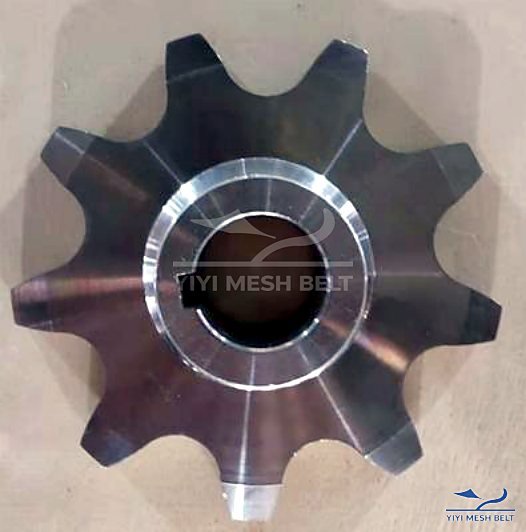

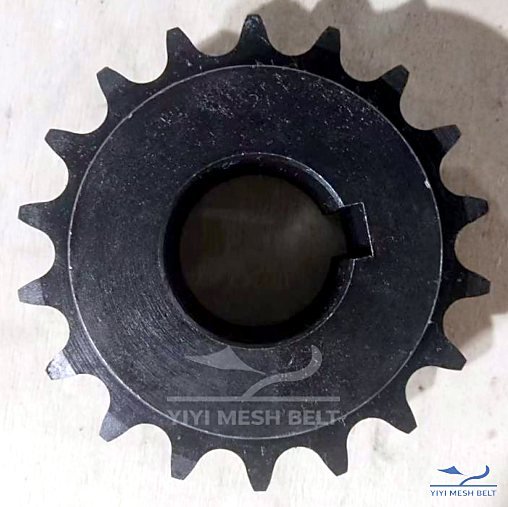

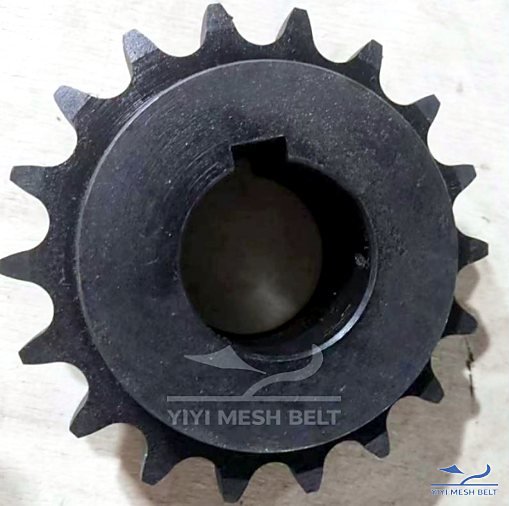

A chain model alone does not fix the pitch, rollers or sprocket. Chain standard, pitch and sprocket profile are confirmed together on the drawing before quoting. Sprockets are made by specialist partners to our specification, and we check the finished parts.

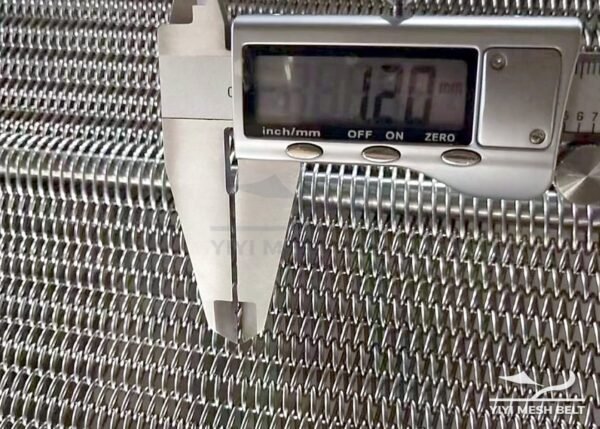

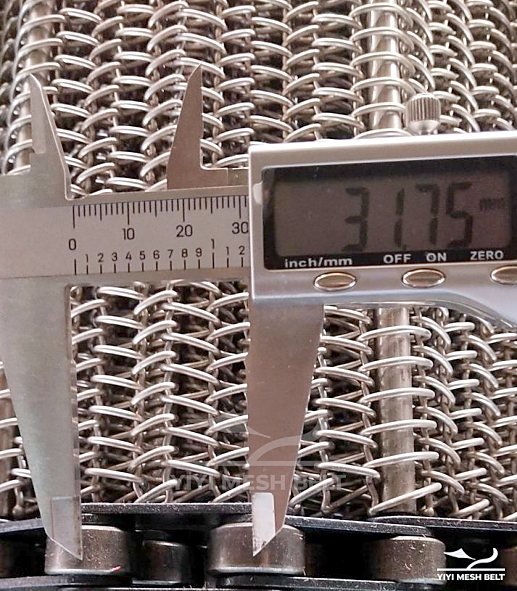

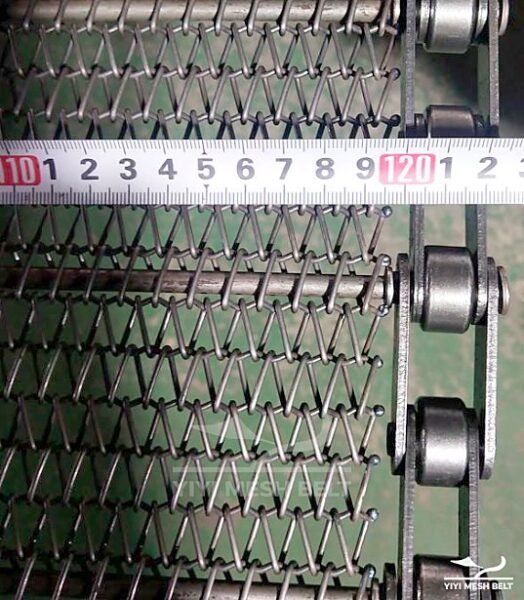

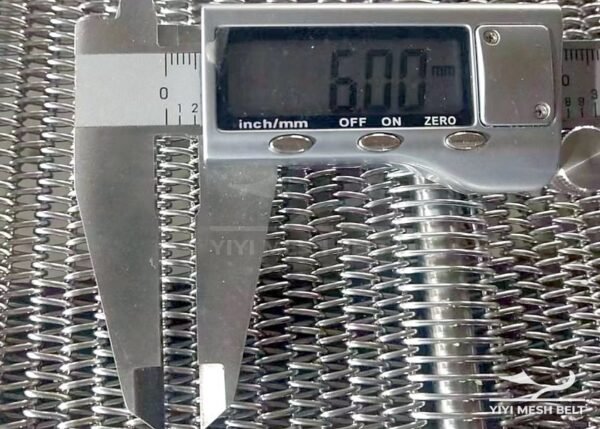

Mesh pitch and chain pitch are two different numbers. We measure and specify them separately, then measure a trial section against your approved drawing before full production.

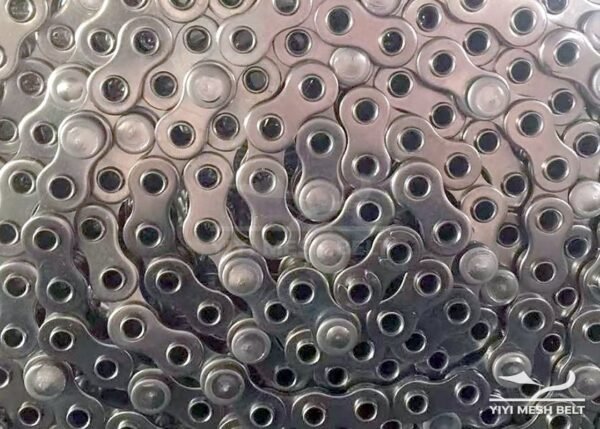

Edge welds are checked by eye along the belt, and burnt sections are not shipped. Every belt is also checked for lap welds, where a weld bridges onto a part that should move.
Edge rods can bend during assembly or welding, so mesh edges are checked straight along the belt before packing.
The chain reference is chosen for the load on the drawing, and the chain is checked for damage before shipment.

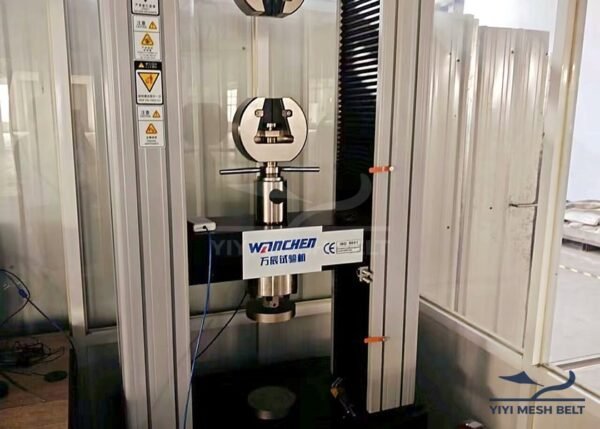

We draw wire and round bar in-house, and each incoming batch is checked for composition and hardness. Buyers often ask for a mill test report (MTR) or mill test certificate (MTC). Tell us which documents your order needs and we confirm them in the quotation.

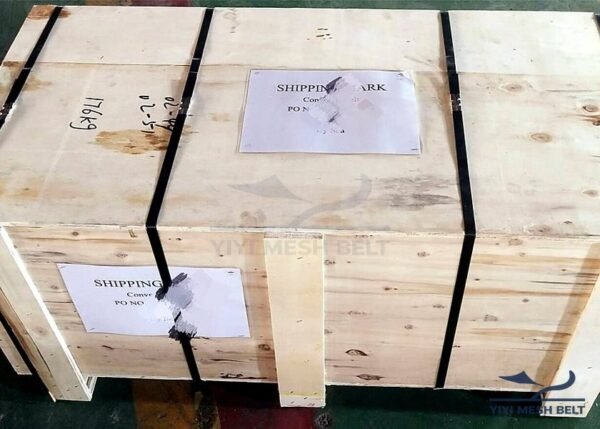

Clean and dry, in waterproof film and plywood or fumigated wooden cases, with an English shipping list, for sea, air or rail.
It does not go to packing. It is recorded, reworked or remade, and inspected again. A 100% final inspection is not a zero-defect or lifetime guarantee, but you see measured photos and the inspection report of your own belt before shipment.
Lead time is confirmed per order in the quotation. Progress updates are agreed for each order, covering material and tooling status.
A wire mesh belt fitted with side chains, so a chain-and-sprocket drive carries and drives the belt.
Chain pitches of 12.7, 15.875, 25.4, 31.75, 38.1, 50.8 and 63.5 mm, including #40, #50 and C2042–C2102 models.
From 300 to 5000 mm, or to your drawing.
Yes. Chains and sprockets are supplied with the belt and reviewed as one system.
No. We also need the chain pitch, sprocket information, equipment and a drawing, because the model alone doesn't fix pitch, material or sprocket.
Yes. Third-party inspection is supported on request, and customer factory visits are welcome.
Buyers often ask for a mill test report (MTR) or mill test certificate (MTC). Each incoming batch of wire and rod is checked against steel-mill material documentation, with spectral and hardness testing. Tell us which documents your order needs and we confirm them in the quotation. Read more about material documentation.
It carries product through a process line while roller chains on both edges take the drive from the sprockets. The chain moves the belt, and the mesh carries the product.
Buyers also call it a chain edge belt, a chain-edged wire mesh belt, a chain link conveyor belt or a chain driven belt conveyor.
Neither suits every line. Sprockets engage a chain-driven belt positively through its chains, while a friction-driven belt relies on contact with a drive roll. We build to the drive your equipment uses, confirmed on the drawing.
A conveyor whose belt is moved by chains running on sprockets at both edges, with wire mesh or plates between the chains. The conveyor belt chain, the sprocket and the belt are confirmed together.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
