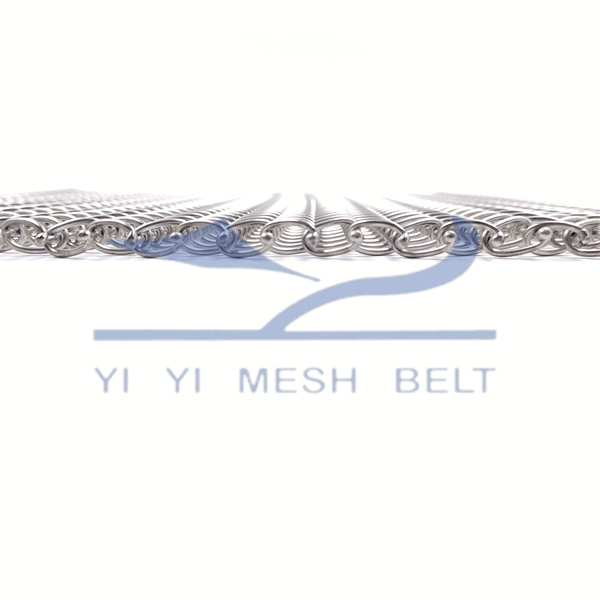

A woven metal conveyor belt built from alternating left- and right-hand spirals joined by crimp wires, so the belt tracks straight. Because spiral pitch, wire size and crimp wire decide how fine the surface is, we choose them with you for your product.
Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.
| Parameter | Metric (mm) | Inch (in) |
|---|---|---|

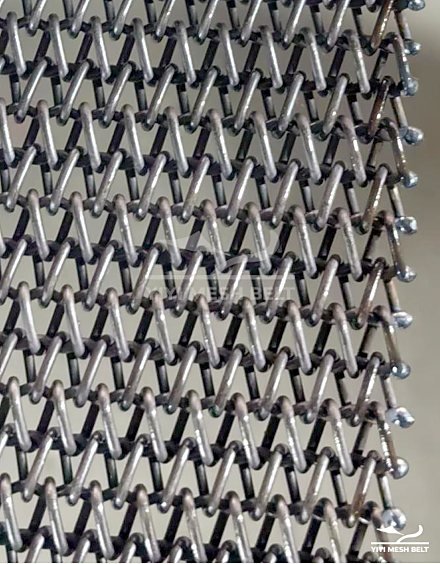

| Material | SUS304 / SUS316 / Mild steel | — |
| Spiral pitch | 2.8–40 mm | 0.110–1.575 in |
| Spiral wire | 1–3.2 mm | 0.039–0.126 in |
| Crimp wire pitch | 5–50.8 mm | 0.197–2.000 in |
| Crimp wire | 1.2–3.2 mm | 0.047–0.126 in |
| Belt width | 200–5000 mm / custom | 7.874–196.85 in |
| Edge | Welded / Clinched | — |
Every option is confirmed on the approved drawing before production.

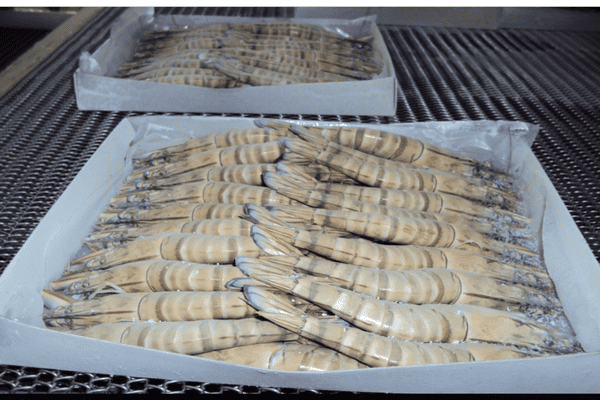

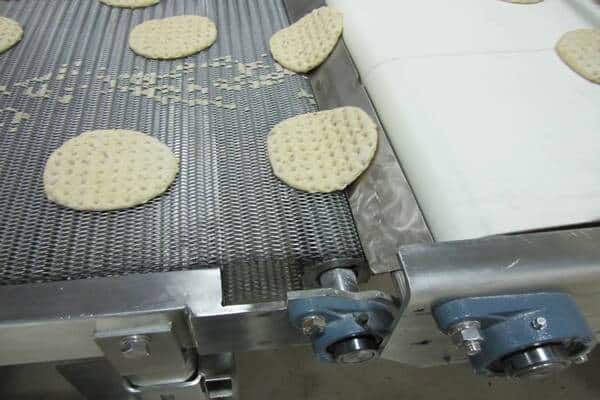

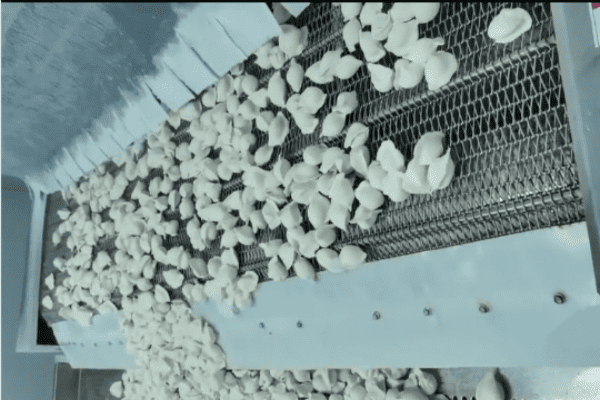

Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →
Heat treatment lines, with material confirmed for the temperature.

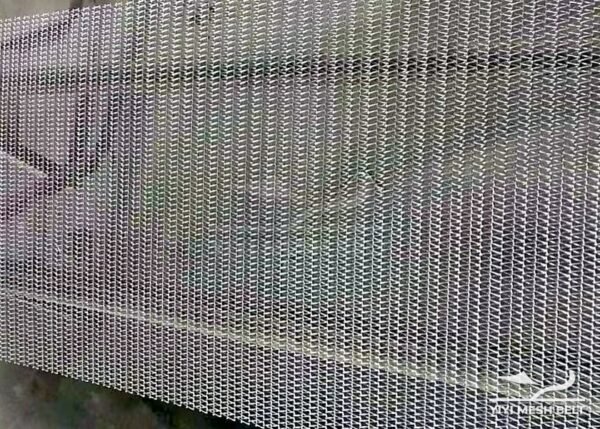

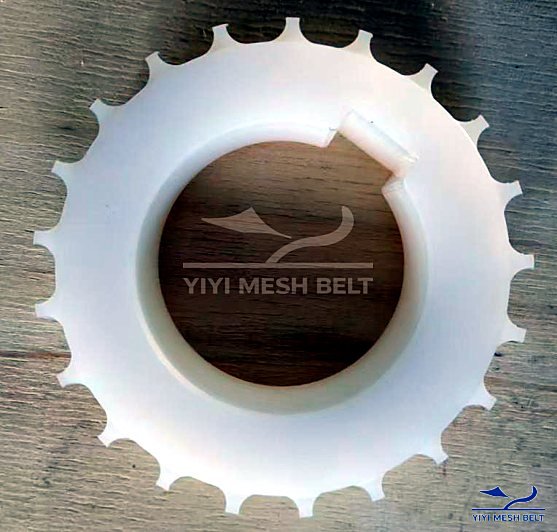

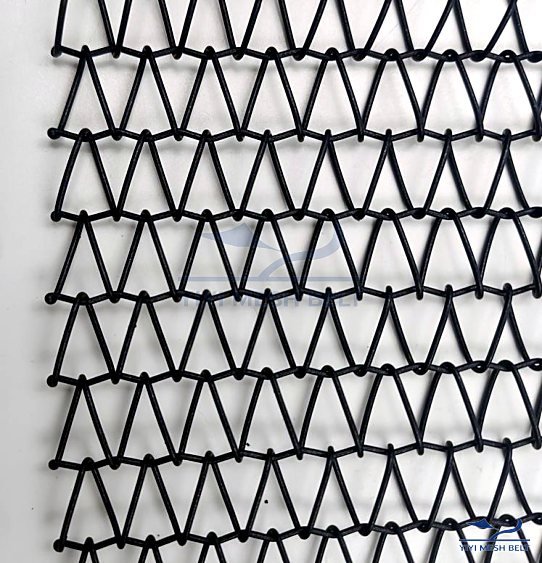

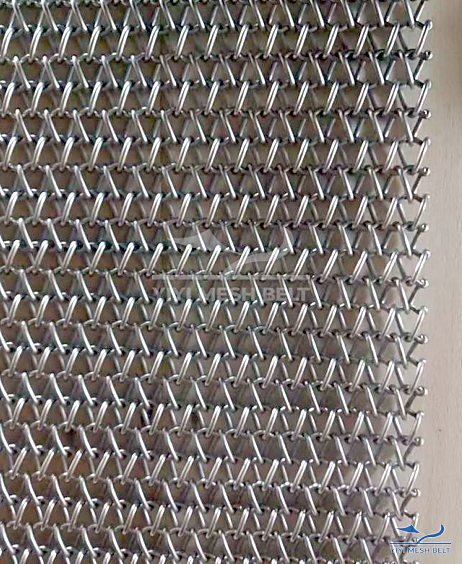

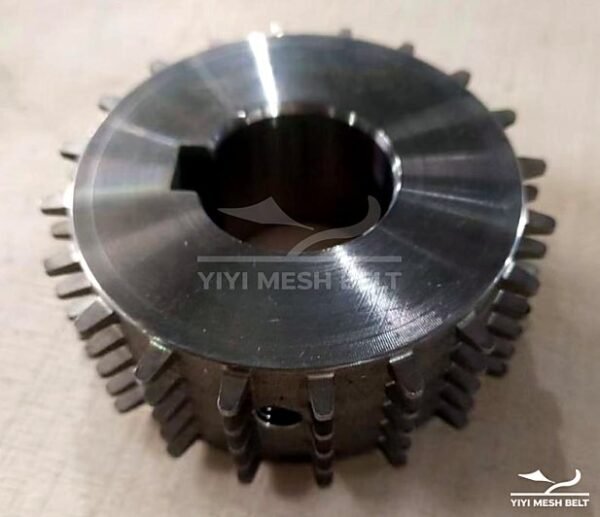

Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.

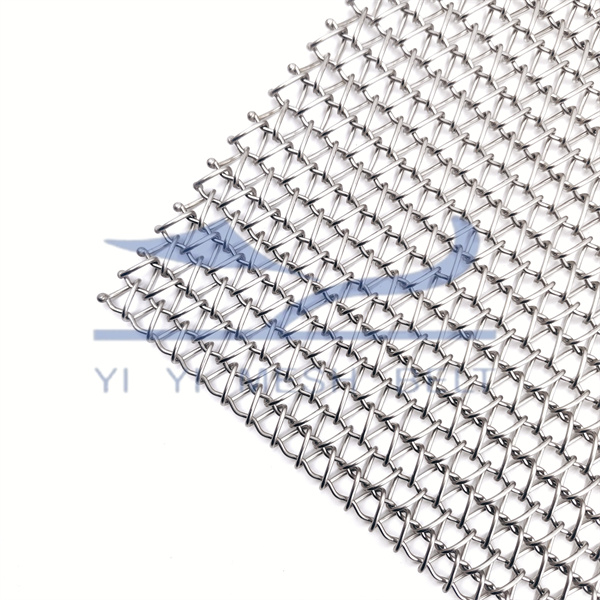

Spiral pitch, spiral wire and crimp wire are chosen with you and confirmed on drawing.

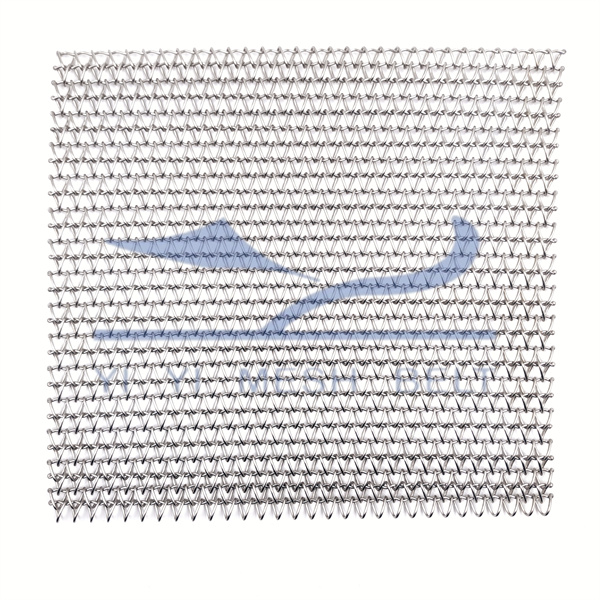

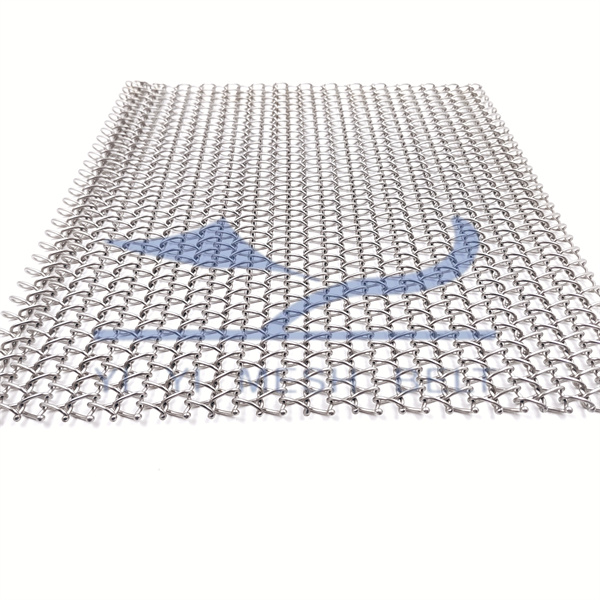

Flatness and mesh structure are checked at final inspection.

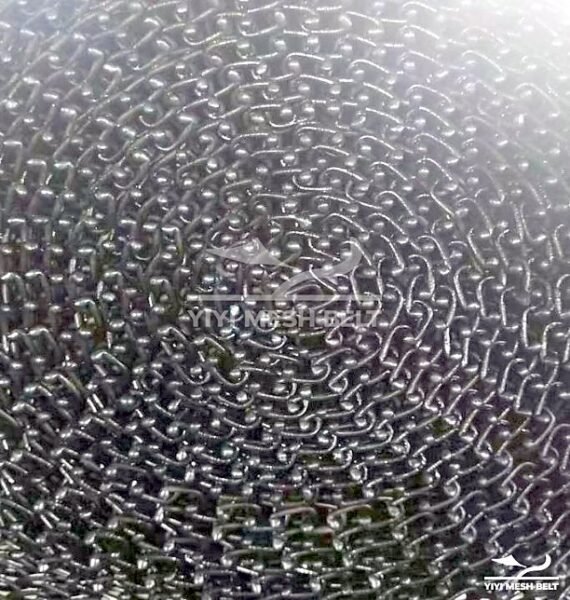

Welded or clinched edges are confirmed on drawing and checked before packing.

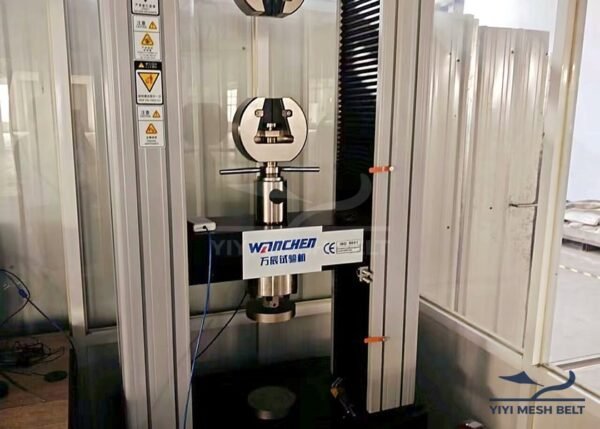

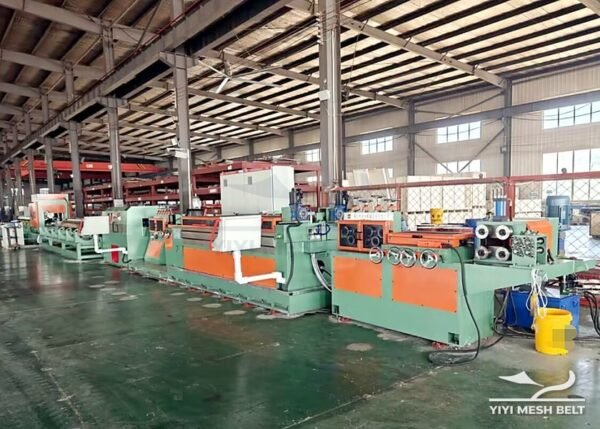

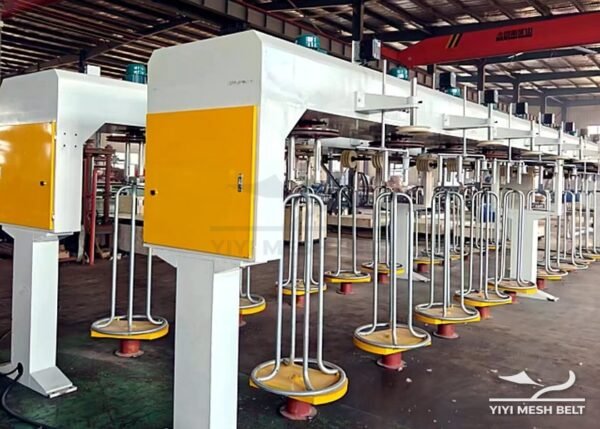

Wire dimensions are measured during production; we draw our own stainless wire.

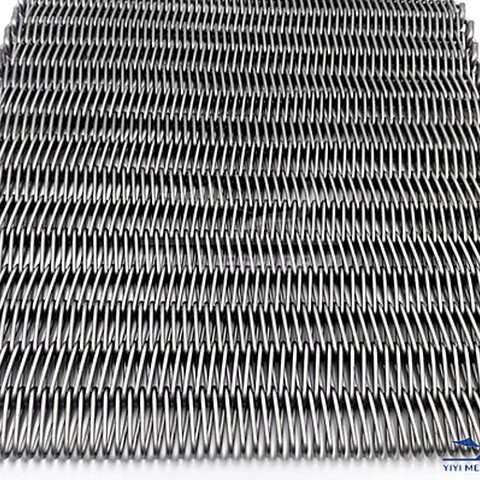

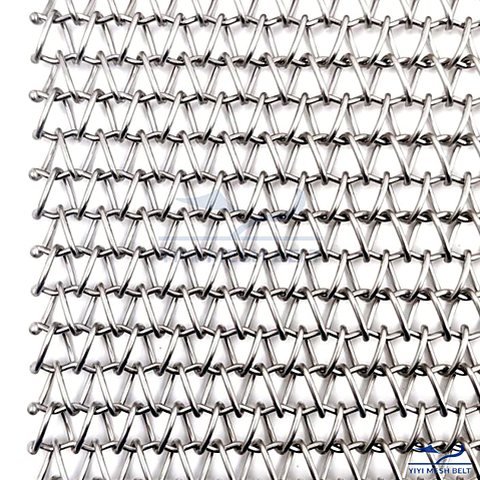

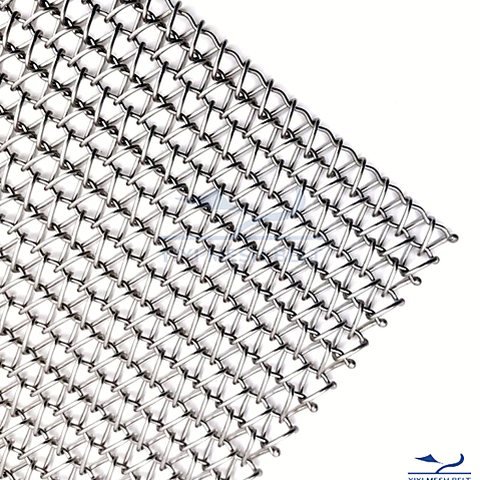

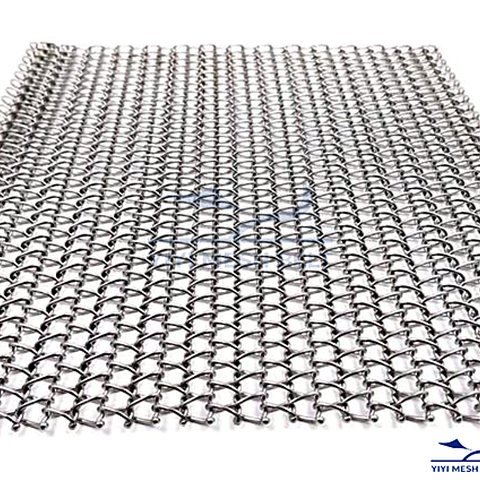

A woven wire conveyor belt made of alternating left- and right-hand spirals linked by crimp wires. The alternating spirals help the belt track straight.
Spiral pitch from 2.8 to 40 mm, spiral wire from 1 to 3.2 mm, crimp wire pitch from 5 to 50.8 mm.
From 200 to 5000 mm, or to your drawing.

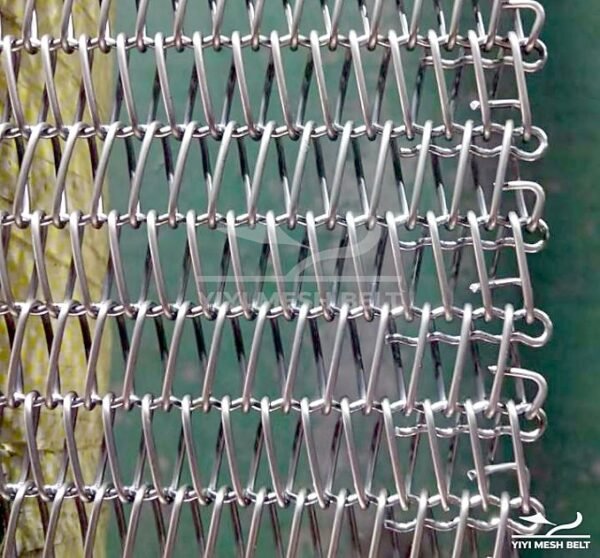

Welded or clinched edges.
