A conveyor system of steel plates carried on rods and chains. Because plate pitch and chain pitch are two different numbers, we confirm both — with the sprocket — on your drawing before production.
Reference ranges in mm and inch, not free combinations. The approved drawing sets the final values.
| Parameter | Metric (mm) | Inch (in) |
|---|---|---|
| Material | SUS304 / SUS316 / Mild steel | — |

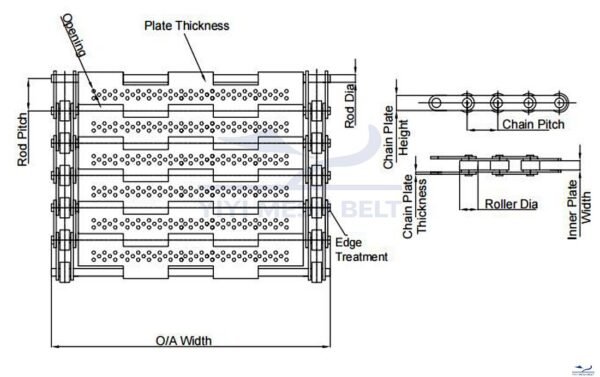

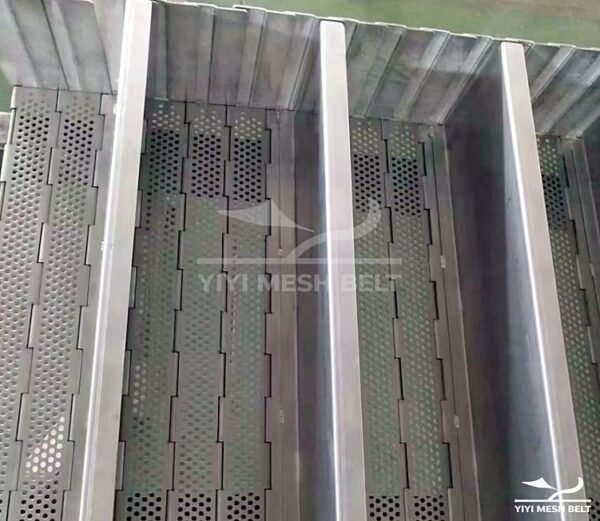

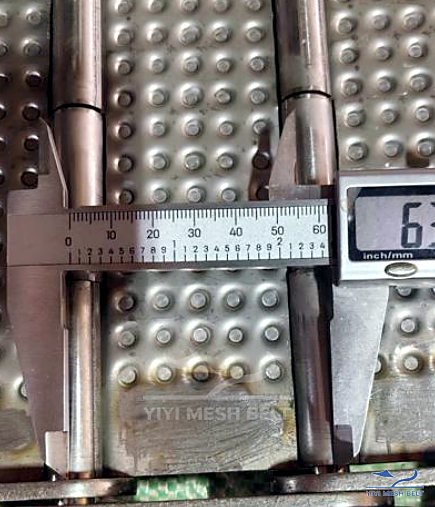

| Plate pitch | 25.4 / 31.75 / 38.1 / 50.8 / 63.5 mm | 1.000 / 1.250 / 1.500 / 2.000 / 2.500 in |
| Plate thickness | 1–2.5 mm | 0.039–0.098 in |
| Rod | 5 / 6 / 8 / 10 mm | 0.197 / 0.236 / 0.315 / 0.394 in |
| Chain pitch | 25.4 / 31.75 / 38.1 / 50.8 / 76.2 mm | 1.000 / 1.250 / 1.500 / 2.000 / 3.000 in |

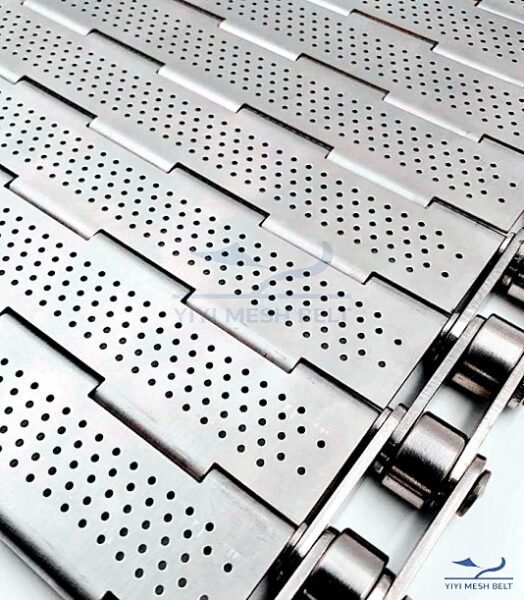

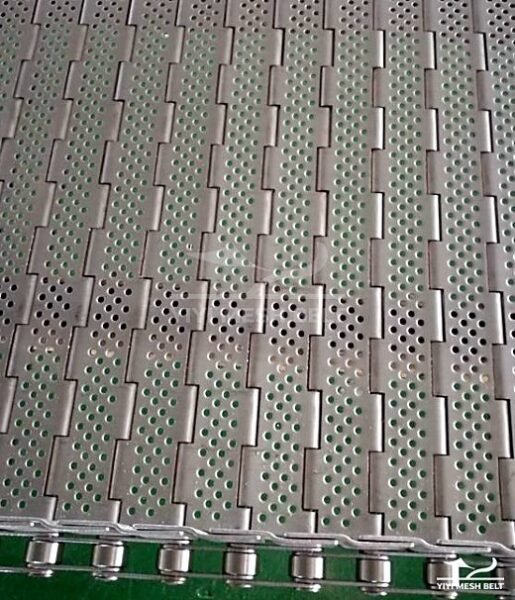

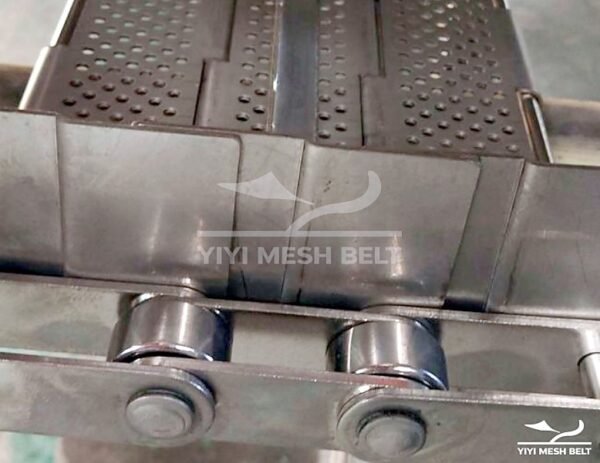

| Perforation | Solid or perforated | — |
| Belt width | 300–4000 mm / custom | 11.81–157.48 in |

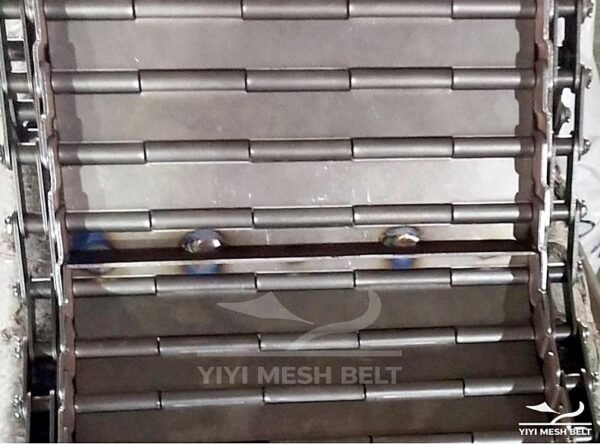

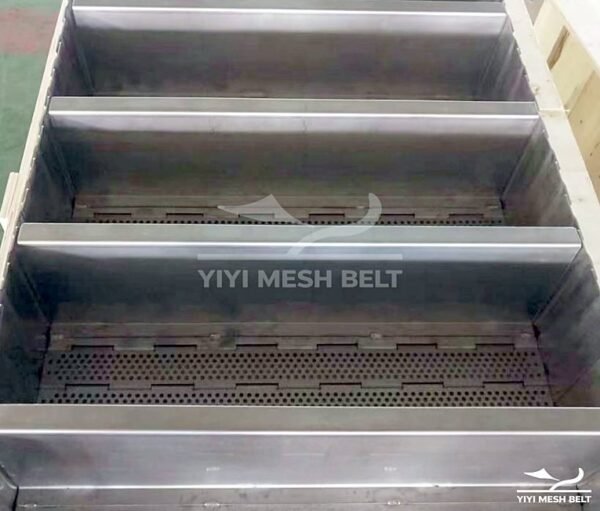

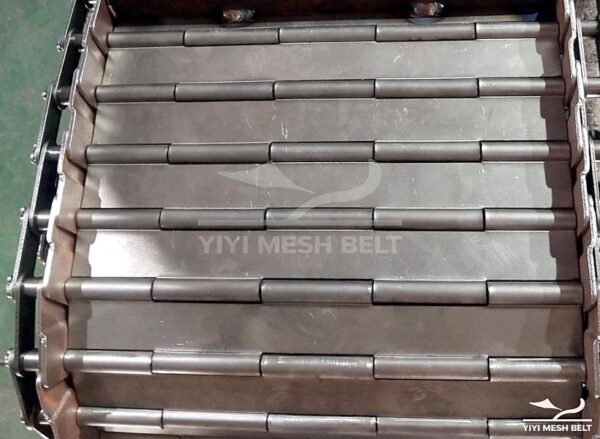

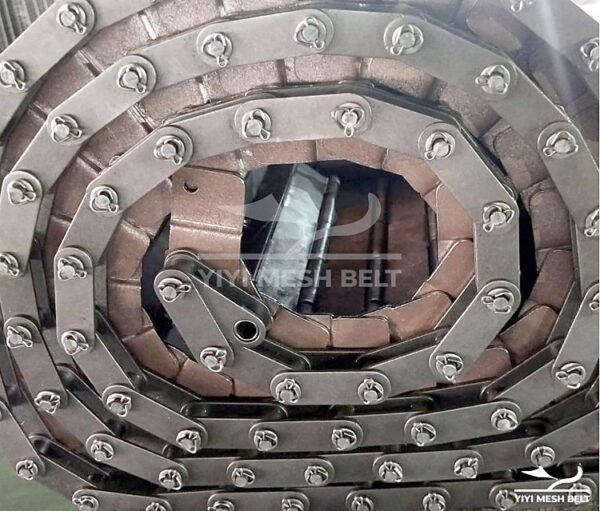

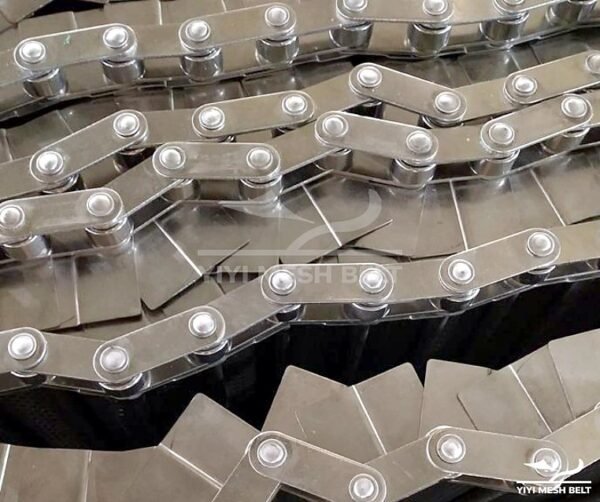

| Retention | Washer welded / Cotter pin | — |
Every option is confirmed on the approved drawing before production.

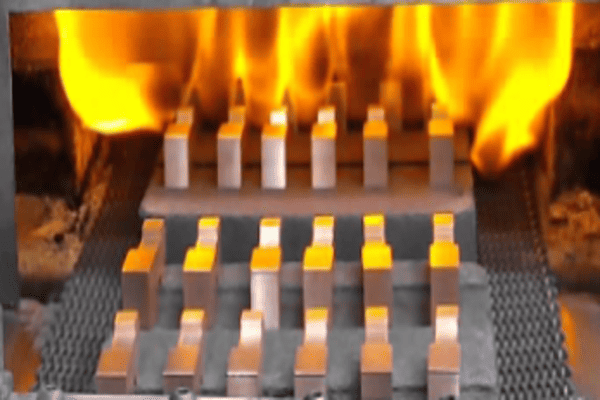

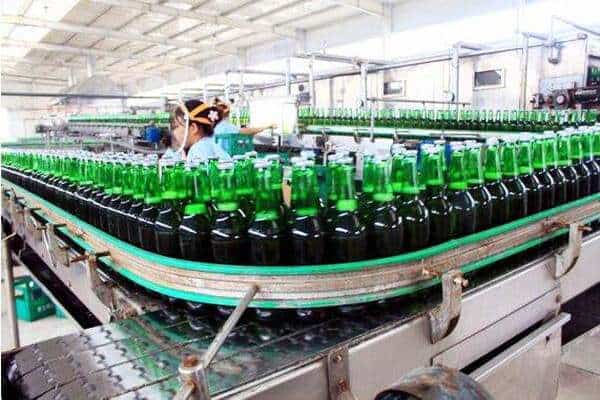

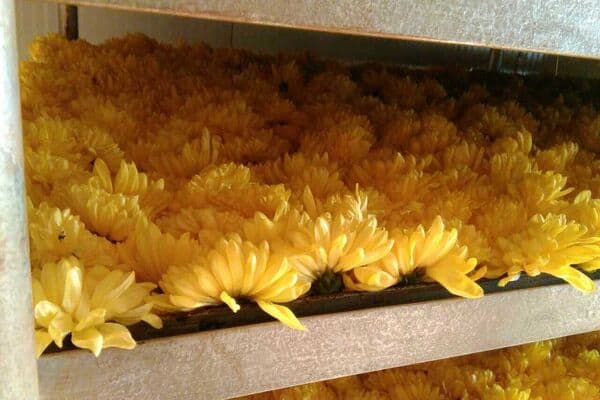

Suitability depends on belt specification, temperature and equipment design. We confirm it during specification review. See all 15 applications →

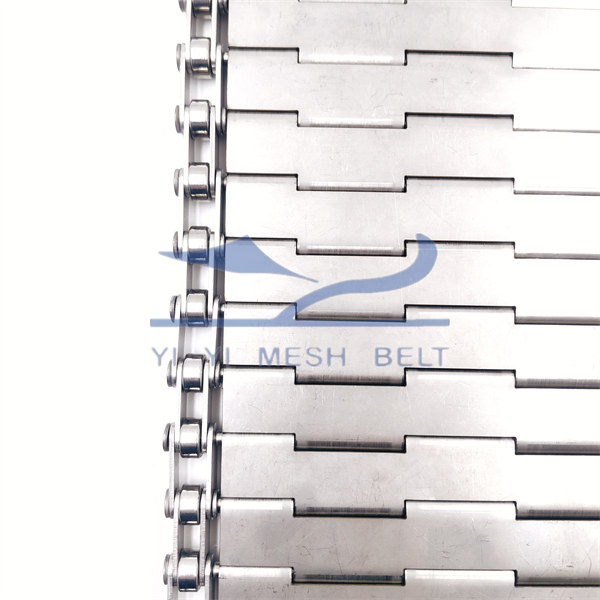

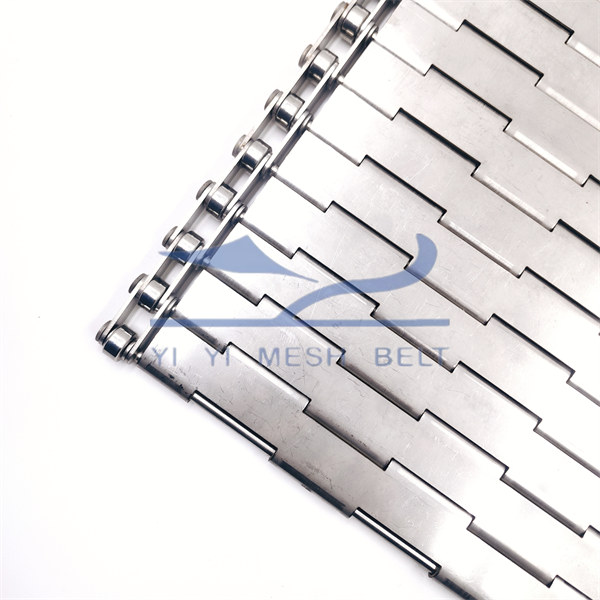

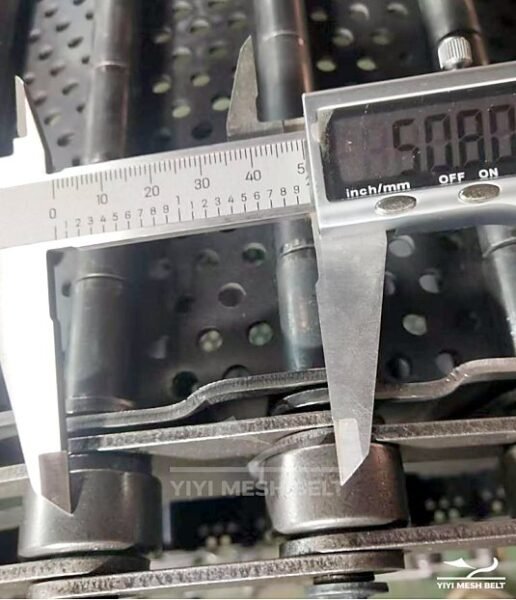

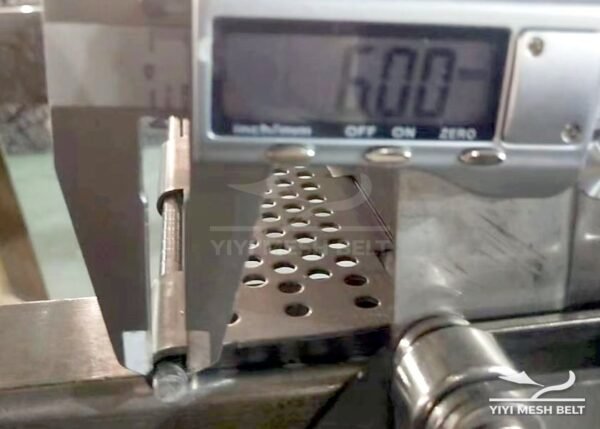

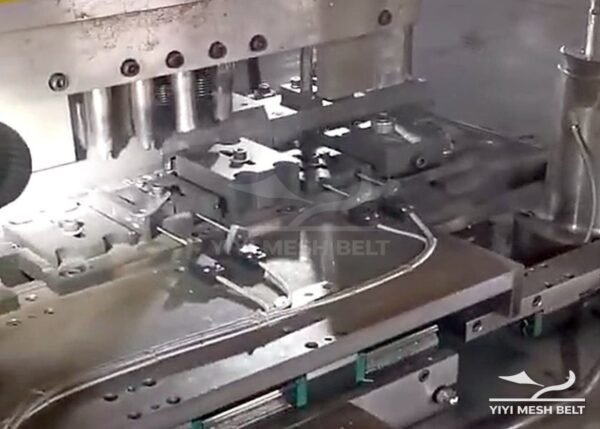

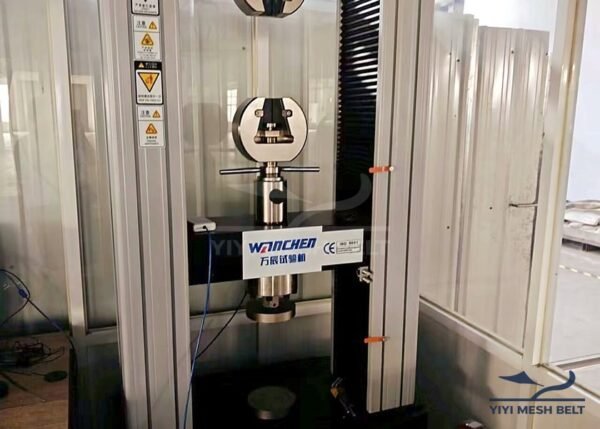

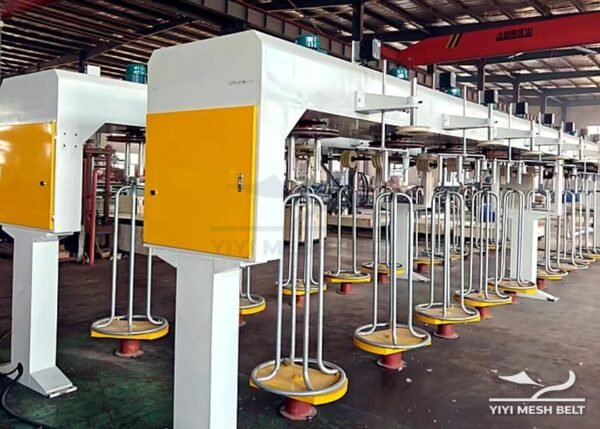

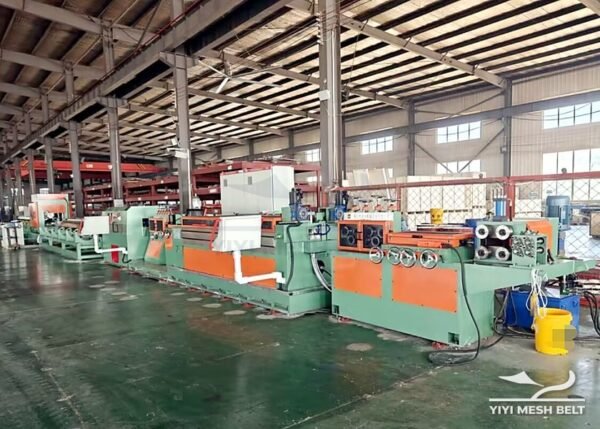

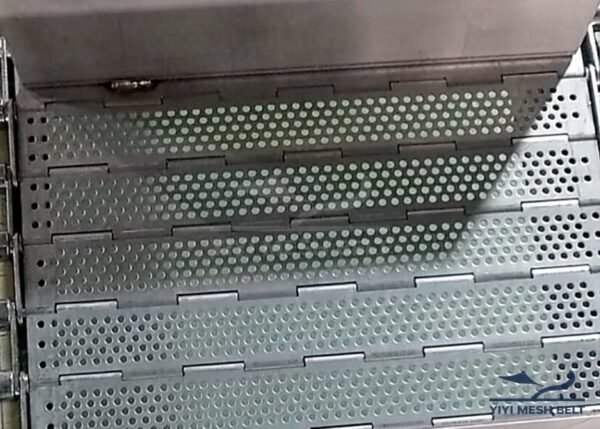

Real photos from our Ningjin factory. Every formal belt passes final inspection against your drawing before packing.
Both are confirmed separately on your drawing before production.

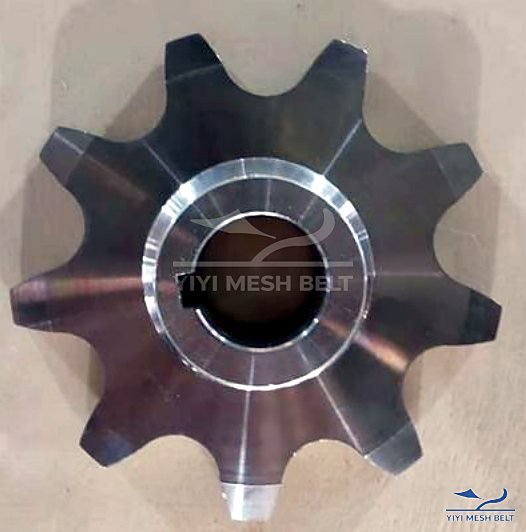

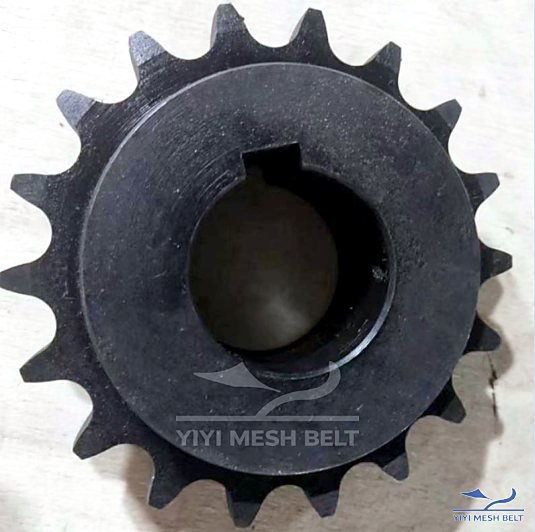

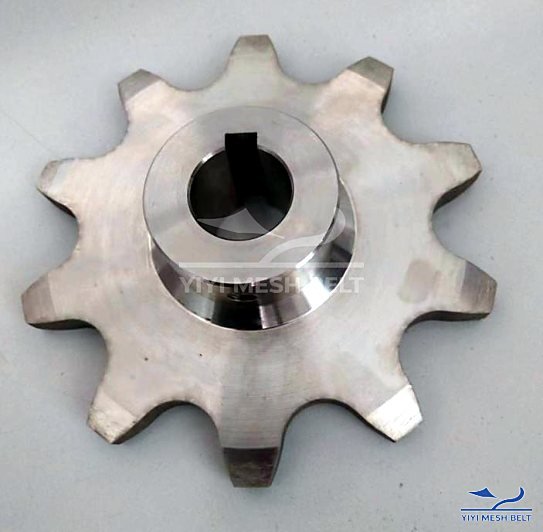

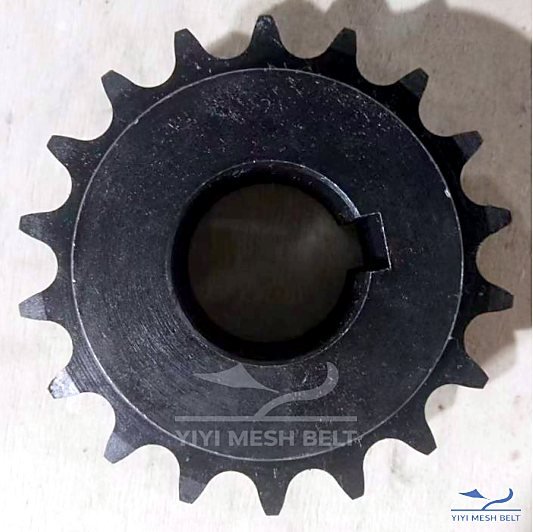

Chain and sprocket matching are part of the engineering check and the final assembly check.

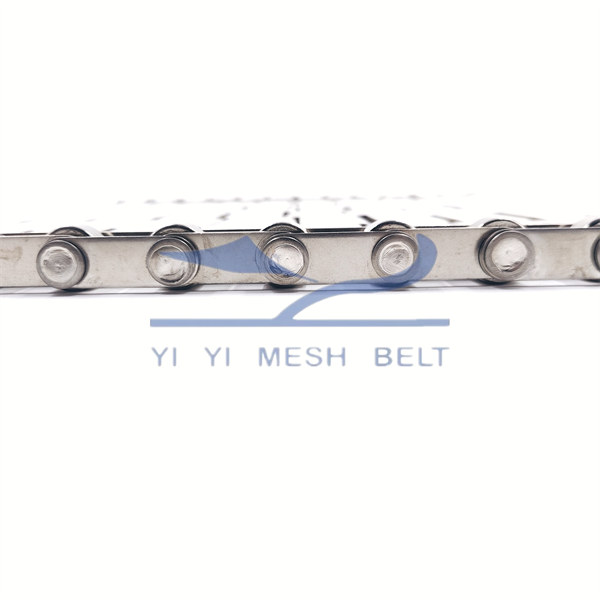

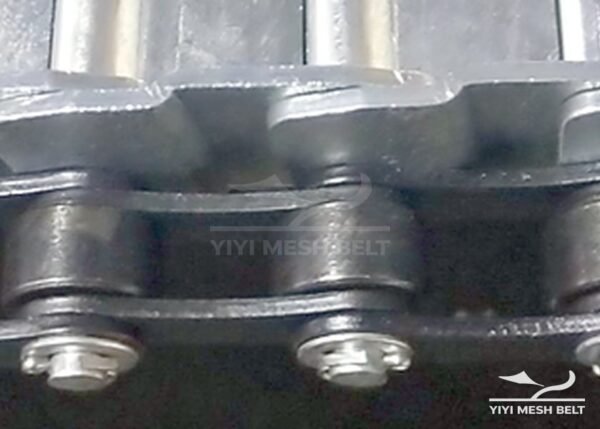

Connection quality and welding are inspection points before packing.

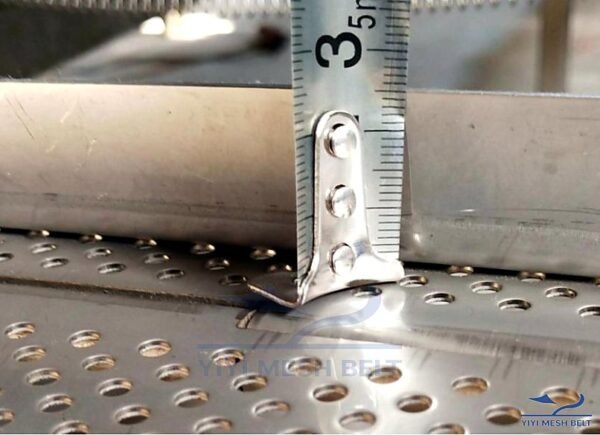

Hole diameter, shape, spacing and pattern are set per project on the drawing.

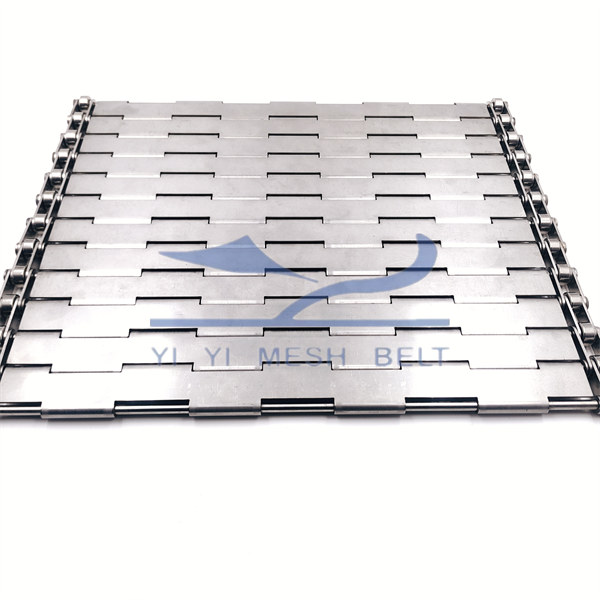

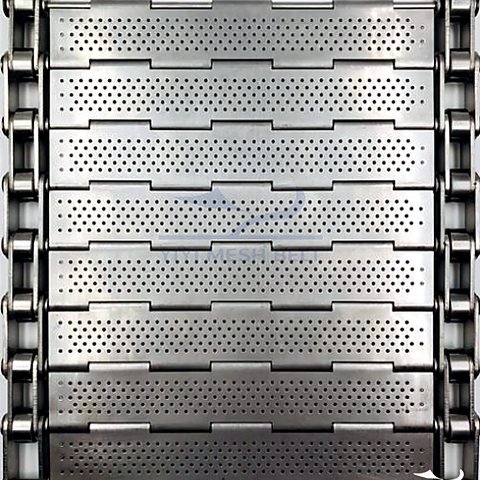

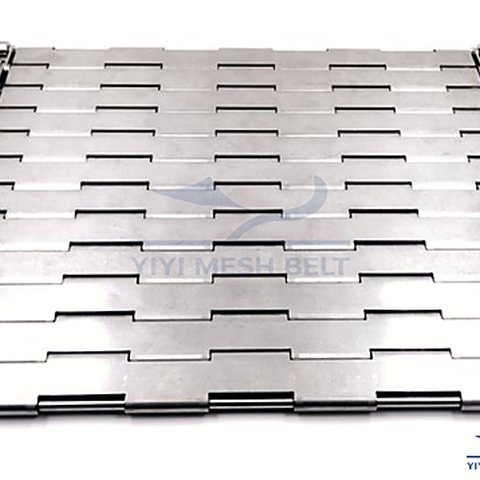

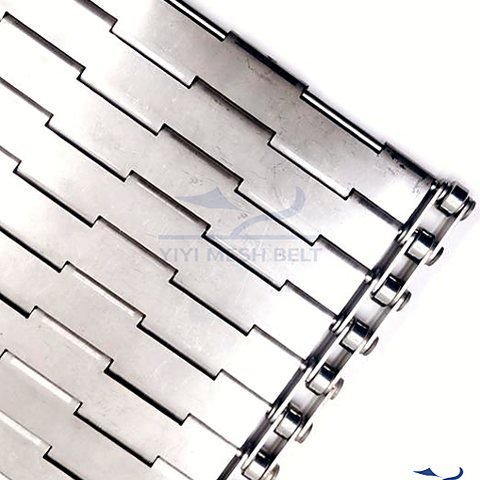

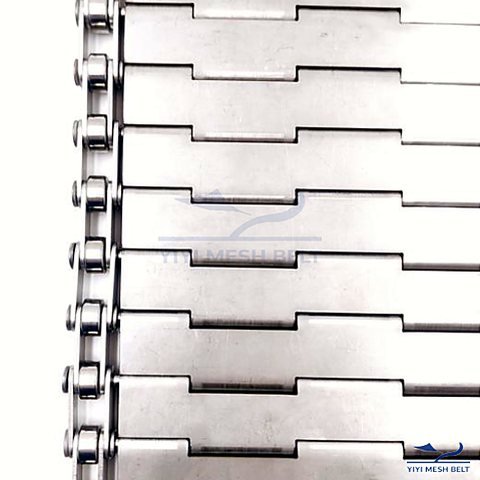

A conveyor belt made of steel plates mounted on rods and carried by side chains, also called a plate link belt.

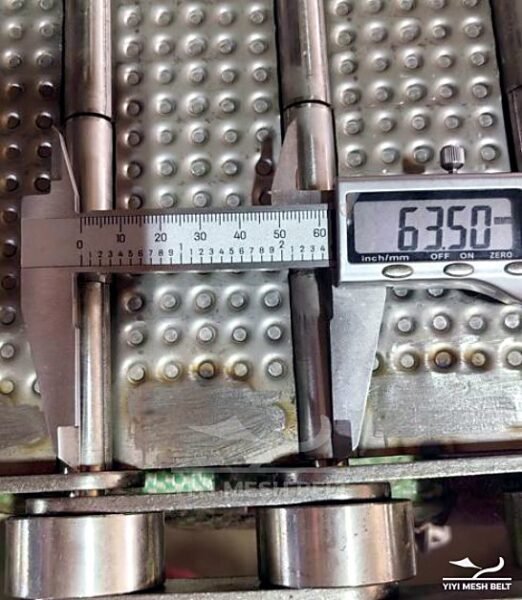

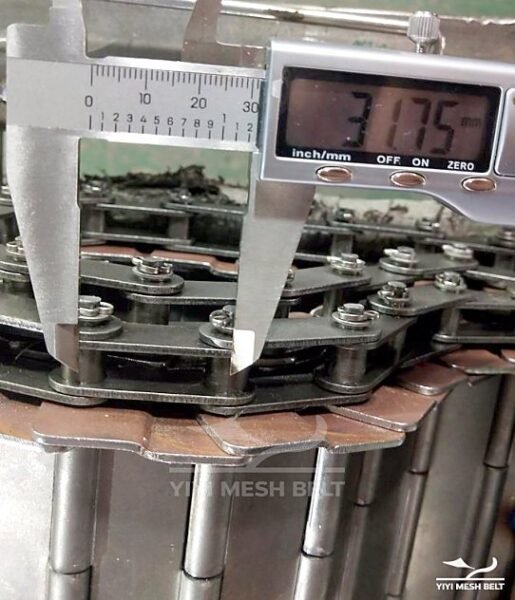

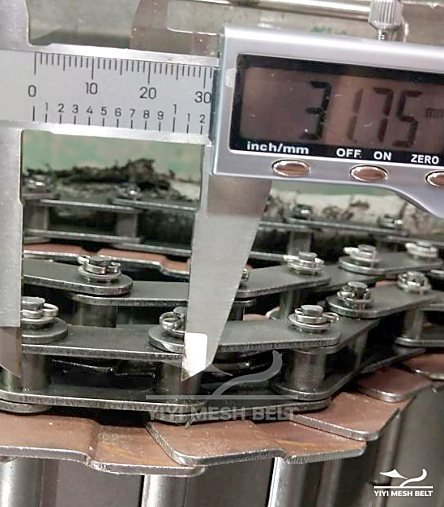

No. Plate pitch (25.4–63.5 mm) and chain pitch (25.4–76.2 mm) are separate values, and both are confirmed on the drawing.

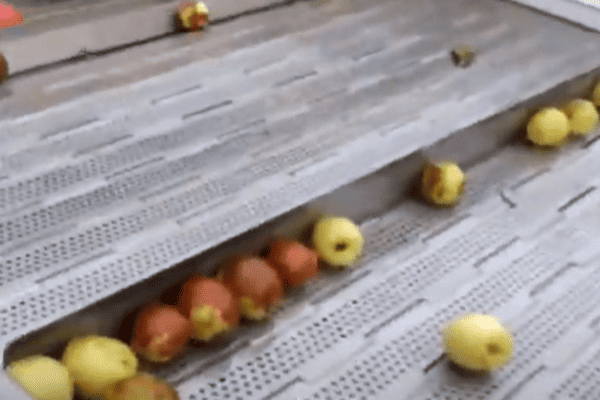

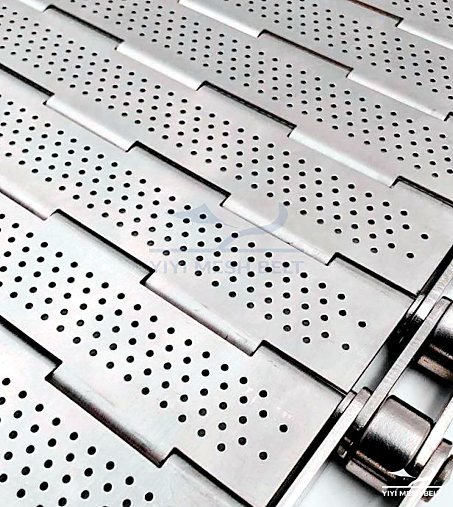

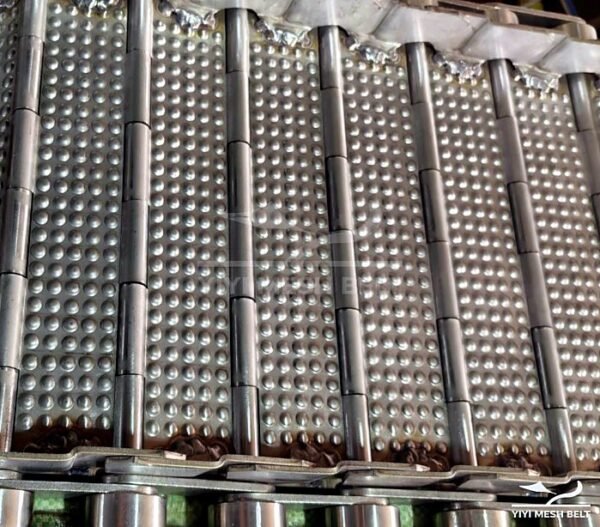

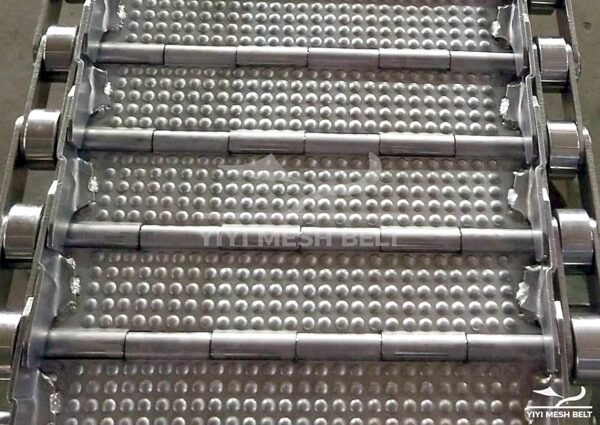

Yes. Plates can be solid or perforated; hole diameter, shape, spacing and pattern are set per project.
From 300 to 4000 mm, or to your drawing.
With welded washers or cotter pins.
Yes. Third-party inspection is supported on request, and customer factory visits are welcome.
Send your drawing, a photo or a worn sample. An engineer reviews it before we quote.
