"Fully inspected" can mean anything. Here is exactly what we check on every formal belt before it is packed, and what that check does not mean.
Every formal YIYI belt receives a 100% final inspection before packing: pitch and spiral pitch, drive matching where applicable, flatness, cleanliness, welding quality, smooth and rounded weld points, width, length, structural dimensions, appearance and packing condition. It checks the belt against the approved drawing; it is not a promise that a belt can never fail.
We are YIYI Mesh Belt, a metal conveyor belt manufacturer in Ningjin, Dezhou City, Shandong Province, China. Our manufacturing experience dates back to 1998, and we work on a 27,000 m² site with about 280 units of production and supporting equipment, including 9 welding robots. I am Sunny Ye. When a buyer asks "do you inspect before shipment?", a yes is not enough. This article lists what our final inspection covers, the tools we use, and where its limits are.
At a Glance
| Scope | Every formal YIYI metal conveyor belt, before packing and shipment |
|---|---|
| Items | Pitch, drive matching where applicable, flatness, cleanliness, welding, weld finish, width, length, structural dimensions, appearance, packing |
| Tools | Calipers, rulers and measuring equipment; CMM, spectrometer and hardness tester in material and dimensional checks |
| Reference | The customer-approved drawing |
| Does not mean | A promise that a belt can never fail, a fixed service life, or a third-party test on every order |
Which Items Are Checked on Every Belt?
Each formal belt is checked for pitch and spiral pitch, drive matching where applicable, flatness, cleanliness, welding quality, smooth and rounded weld points, width, length, structural dimensions, appearance and packing condition. Every item is checked against the approved drawing for that order, not against a generic standard.
| Item | Why it matters |
|---|---|
| Pitch and spiral pitch | Drive engagement, product support, tracking |
| Drive matching (where applicable) | Sprocket or chain engagement |
| Flatness | Running straight, stable product |
| Cleanliness | No loose particles or residue at delivery |
| Welding quality | Strength at rod ends and edges |
| Weld points smooth and rounded | No burrs to wear drum bars, rails or guides |
| Width and length | Fit in the machine and take-up |
| Structural dimensions | Edges, plates, links as drawn |
| Appearance | Visible damage or defects |
| Packing condition | Protection in transport |
Not every item applies to every belt family. Drive matching, for example, applies where a belt runs on sprockets or chains; stack plate dimensions apply to self-stacking belts. The approved drawing lists the items that matter for your belt, and those are the ones checked and recorded.
If an item is outside the drawing, the belt does not go into the crate. It is corrected and inspected again, and the correction is recorded with the order.
Sunny's view: Ask any supplier for their final inspection list in writing. A specific list tells you more than "strict QC".
How Are the Measurements Taken?
Dimensional items are measured with calipers, rulers and gauges against the drawing, pitch over several pitches rather than one, width at several points along the belt. Welds and edges are checked visually and by touch for finish. For geometry that needs more precision, a coordinate measuring machine is available in our quality area.
- Pitch: over several pitches, to catch accumulated error.
- Width: at several points along each section.
- Flatness: belt laid on a flat surface, checked for lifting and twist.
- Welds: visual check and touch for burrs and sharp points.
- Cleanliness: no loose particles, spatter or residue.
Long belts are inspected section by section, and sections are marked so they are joined in the right order and direction on site. That marking is part of the final check, because a reversed section can undo an otherwise correct belt.
Our inspection equipment includes calipers, a spectrometer, a hardness tester and a coordinate measuring machine (CMM). Spectral and hardness testing are part of incoming material checks; the CMM is used where dimensional precision requires it. Having a tool does not mean every order includes every test.
Sunny's view: Ask for inspection photos with the caliper reading visible. Numbers you can see are worth more than a stamp on a form.
Where Does Final Inspection Sit in the Production Chain?
Final inspection is the last of several checks. Material is checked on arrival, wire and bar dimensions after drawing, formed parts in trial runs, a trial section and complete first article before mass production, and parts during production. Final inspection confirms the finished belt; it cannot replace the earlier steps.
- Incoming material: Material Documentation, spectral and hardness testing
- Wire and round bar: diameter checks after drawing
- Forming: trial run of spiral wire, links or plates
- Trial section and complete first article, confirmed by the customer
- In-process QC during mass production
- 100% final inspection before packing
- Packing and shipment
Each step has its own records, so when a question comes up after delivery we can look back through the chain rather than rely on the final check alone.
Drum or geometry verification is added for spiral, self-stacking and side driven belts where the project requires it. Read what geometry verification checks.
Sunny's view: Problems found at final inspection are expensive. That is why most of our checks happen earlier.
What Does 100% Final Inspection Not Mean?
A 100% final inspection means every formal belt is checked against its drawing before packing. It is not a promise that a belt can never fail, not a service-life promise, not a running test in your machine, and not a third-party inspection on every order. Installation, loading and cleaning also matter.
| It means | It does not mean |
|---|---|
| Every formal belt is checked before packing | That a belt can never fail |
| Checks are against the approved drawing | The drawing is right for every machine |
| Results are recorded | A third-party report for every order |
| Weld finish and cleanliness are checked | A fixed service life |
These limits are the same for every supplier, whether they say so or not. We prefer to state them clearly, so buyers and distributors can plan installation checks and maintenance with realistic expectations.
If your customer requires a third-party inspection or a specific document, tell us at the inquiry stage. We confirm what can be provided for that order.
Sunny's view: I prefer to tell buyers exactly what our inspection covers. Overpromising is the fastest way to lose a distributor.
What Records Can You Ask For?
You can ask for inspection photos and measurements of key items such as pitch, width and edge, photos of welds and packing, and the material documentation for the order. Records are linked to the order through our traceability chain, from raw material to finished product. Specific formats are agreed at the inquiry stage.
- Photos of measurements with readings visible
- Photos of weld finish and edges
- Packing photos before the crate is closed
- Material Documentation for the order
- Approved drawing and first article records
Traceability runs: raw material → material verification → drawing and processing → wire and bar dimensions → manufacturing → inspection records → finished product. That lets us answer questions about a belt after delivery.
For distributors, these records are also useful with your own customers: they show what was checked on the belt you are reselling, without exposing anything confidential about the end user.
Read how we manufacture stainless steel conveyor belts.
Sunny's view: Agree the records you want before production. Asking after the crate is closed is too late for some photos.
What Should You Check When the Belt Arrives?
Check the crate and belt for transport damage, compare the label with the order, measure pitch over ten pitches and width at a few points, run a gloved hand along the edges for burrs, and photograph anything unusual before installation. Report issues with photos and the order number.
Incoming check
- Crate condition and labels
- Belt sections: count, length, markings for direction and product side
- Pitch over ten pitches; width at three points
- Edges and welds: gloved hand, visual check
- Photos of anything unusual, with the order number
Keep the packing until the incoming check is done. If damage is found, the packing helps show whether it happened in transport or before packing.
If something is found, we review it with your photos and our production and inspection records, find the cause and agree on a solution case by case.
For spiral belts, read how to check weld finish on delivery.
Sunny's view: Fifteen minutes of checking on arrival is worth far more than an hour of explaining after installation.
When This Is Not the Right Approach
Final inspection cannot fix a wrong specification. If the drawing does not match the machine, the belt can pass every check and still not fit. That is why drawing approval, trial production and, where needed, geometry verification come first.
And it does not replace your own incoming check and correct installation.
From Our Engineering Experience
When buyers ask how we inspect, we send the list in this article and offer photos with measurements for their order. Most prefer that to a general statement.

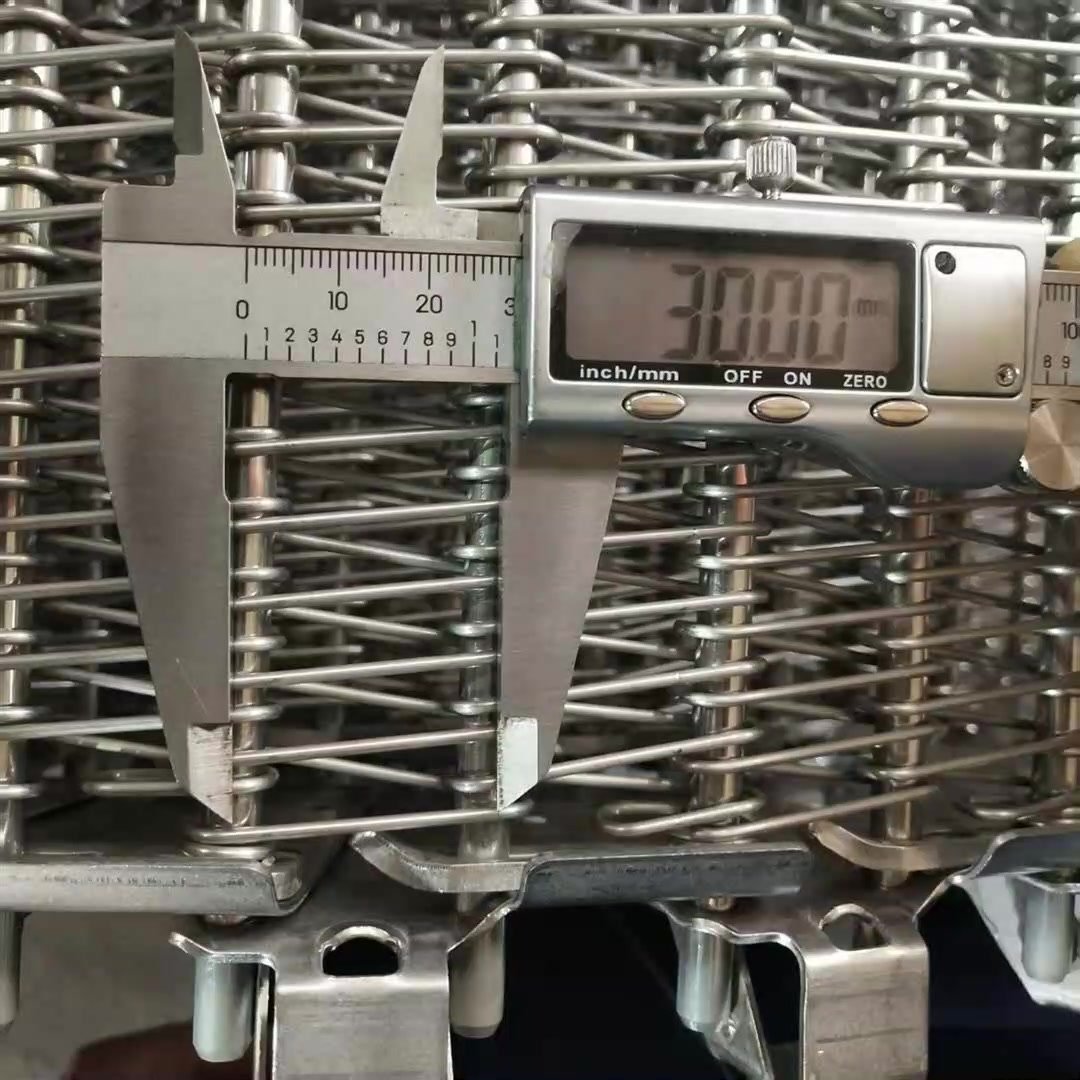

The photos here are from our own inspection area: caliper readings on spiral, self-stacking and other belts before packing.
FAQ
Is every YIYI belt inspected before shipment?
Yes. Every formal belt receives a 100% final inspection before packing.
What does the final inspection check?
Pitch, drive matching where applicable, flatness, cleanliness, welding, weld finish, width, length, structural dimensions, appearance and packing.
Does 100% inspection mean a belt cannot fail?
No. It means every belt is checked against its drawing; it is not a promise that a belt cannot fail or will last a set time.
Can I get inspection photos?
Yes. Agree the records you need at the inquiry stage, such as measurement and packing photos.
Do you provide third-party inspection?
Not on every order. Tell us at the inquiry stage if your customer requires it, and we confirm what can be provided.
Conclusion
A 100% final inspection checks every belt against its drawing before packing. Ask for the item list and photos, and check the belt on arrival.
