Why Does a Spiral Freezer Belt Flip or Ride Up on the Drum?

A spiral belt that lifts, flips or climbs the drum stops production and damages itself. The cause is rarely where the damage shows.

A spiral freezer belt flips or rides up when its inner edge cannot collapse freely, when tension or drum drive is out of balance, or when rails and loading push it out of line. The belt itself is at fault when its turn ratio, direction or edge design does not match the freezer.

We are YIYI Mesh Belt, a metal conveyor belt manufacturer in Ningjin, Shandong, China, manufacturing since 1998 on a 27,000 m² site with 280 units of equipment, including 9 welding robots. I am Sunny Ye. Plants often contact us after a belt has started to lift in the turn. This article lists the causes we review with them, in the order we check them, and shows when a new belt helps and when it will not.

At a Glance

Product	Spiral Freezer Belt in SUS304 or SUS316
Symptom	Belt lifts off the rails, flips at the edge, climbs or rides up on the drum
Main causes	Stiff inner edge, turn ratio or direction mismatch, tension and drum drive, rails, uneven loading
Buyer type	Plant maintenance teams, spiral freezer OEMs, professional distributors
What to send	Video of the problem turn, inner and outer edge photos, drum and rail photos, belt age and history

What Does Flipping or Riding Up Look Like?

Riding up means the inner edge of the belt climbs on the drum cage bars instead of sitting on its rail. Flipping means the edge lifts and tips the belt surface. Both usually start in one zone of the spiral, often near the infeed, the discharge or a section of worn rail.

Operators describe the same problem in different words: lifting, climbing, flipping, riding up, jumping. Before looking for a cause, record what the belt actually does:

• Where: which tier, and how far from the infeed or discharge;
• Which edge: the inner edge on the drum, or the outer edge;
• When: at start-up, under full load, after defrost, or all the time;
• How often: once per revolution, randomly, or continuously.

A short phone video of the problem turn, taken from two angles, is worth more than a long description. A pattern that repeats once per belt revolution points to one damaged section. A problem that appears after defrost or washdown points to ice, product build-up or cleaning residue.

Sunny's view: I ask for a video before anything else. In thirty seconds of video, our engineers can often tell whether the problem sits in the belt or in the freezer.

Can the Wrong Turn Ratio or Direction Cause It?

Yes. If the turn is tighter than the belt was built for, or the belt is built for the opposite direction, the inner edge runs out of collapse and the belt climbs the drum. This is a design mismatch, and it usually shows from the first day the belt runs.

A design mismatch has a typical signature: the problem appears immediately after a new belt is installed, in every turn, and does not improve with adjustment.

Check three things against the freezer:

1. Turn ratio. Inside radius divided by belt width. If the belt was built for a gentler turn, it cannot collapse enough. See what turn ratio is and how to measure it.
2. Direction. The collapsing edge must be the one against the drum. See how to confirm direction.
3. Width. A belt wider than the original changes the turn ratio on the same drum.

If the belt is a replacement, compare it with a sample of the original. Differences in link shape, slot length or rod pitch on the inner edge explain most of these cases.

Sunny's view: If a brand-new belt rides up on day one, I look at the design first. If a belt that ran well for years starts to ride up, I look at the freezer and the belt condition first.

Why Does a Stiff Inner Edge Lift the Belt?

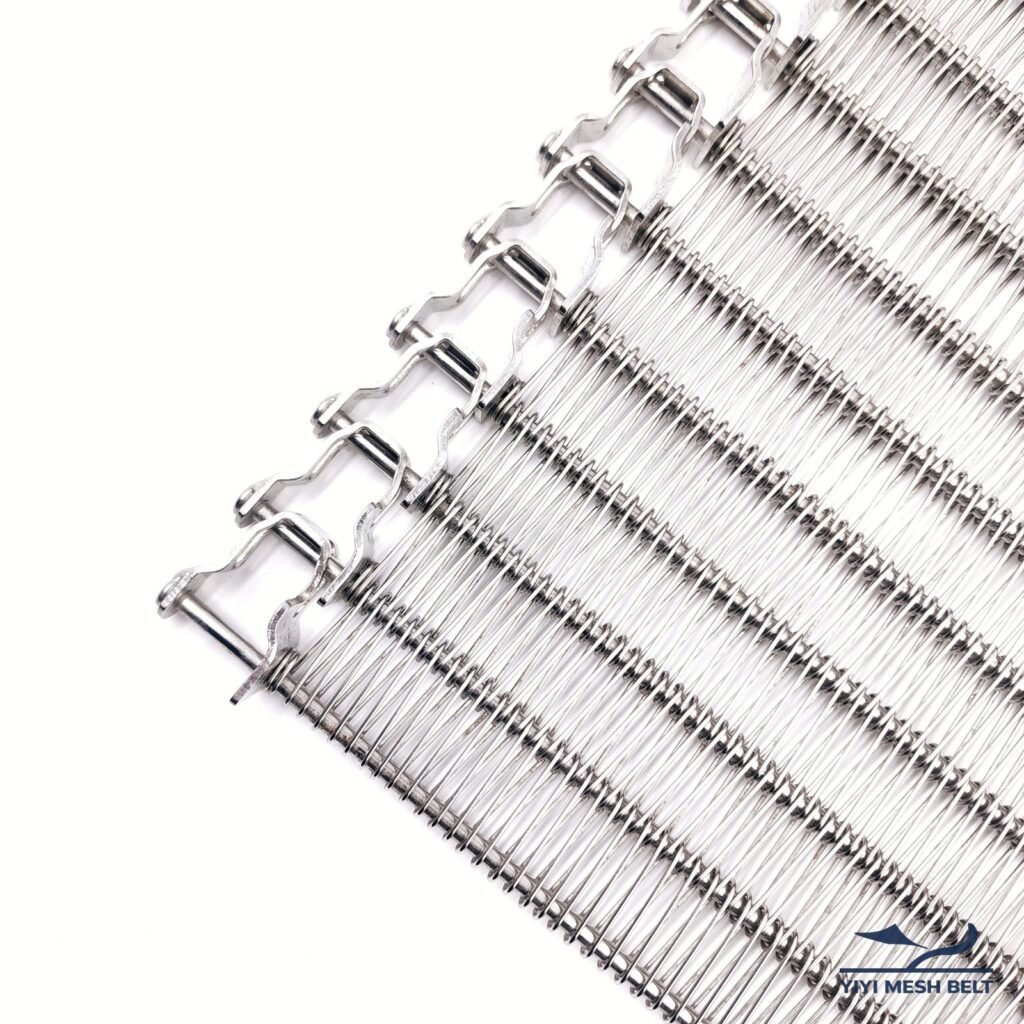

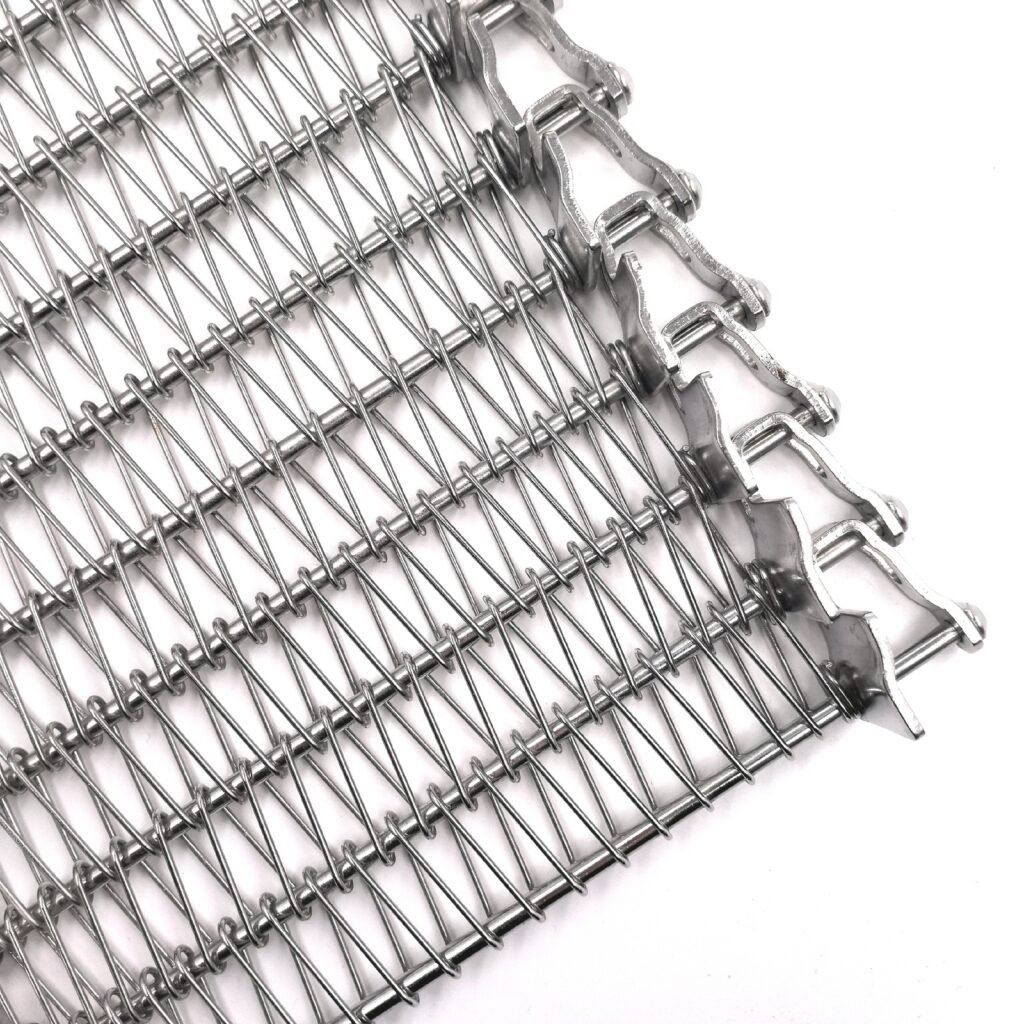

The inner edge must slide together freely in every turn. Bent rods, damaged links, ice, frozen product or cleaning residue in the link slots make it stiff. A stiff inner edge cannot fold, so the belt pushes against the drum and climbs, even when the design is correct.

This is the most common cause on belts that used to run well. Walk the belt slowly in jog mode and look at the inner edge in the turn:

• Do all links fold together evenly, or do some stay open?
• Are rods bent near the inner edge?
• Are there links that are twisted, cracked or missing welds?
• Is there ice, product or residue packed in the slots?

Mark every stiff point with a paint pen. One or two damaged sections can be repaired or replaced. Many stiff points along the belt suggest wear, a cleaning issue or a tension problem that has bent rods over time.

Defrost and cleaning routines matter here. If lifting appears after defrost, check that the edge is clean and dry before full production restarts.

Sunny's view: Plants are sometimes surprised that a cleaning change caused belt lifting. Residue in the link slots is enough to stop the inner edge from collapsing.

How Do Tension and Drum Drive Affect It?

In a drum-driven spiral, the drum pushes the belt by friction while a drive and take-up control tension. If the drum drives too hard or too little against the belt, or take-up tension is wrong, the inner edge is pulled tight or pushed loose and the belt can climb or lift.

Spiral freezer drives are set up by the freezer manufacturer, and the settings depend on the freezer design. The general pattern is still useful for diagnosis:

Condition	What the belt tends to do
Drum drives the belt too hard	Inner edge is pushed ahead and can climb the cage bars
Drum drives the belt too little	Belt is dragged around, tension rises at the outer edge, rods bow
Take-up tension too high	Inner edge is pulled tight against the drum
Take-up tension too low	Belt runs slack and can lift or fold in the turn

Do not change drive settings by trial and error. Use the freezer manufacturer's manual or service team. When a new belt goes onto an existing freezer, ask whether the drive should be checked for that belt.

Sunny's view: We make the belt, not the freezer, so I always say this clearly: drive and tension settings belong to the freezer maker. Our job is to make sure the belt matches the freezer.

Could the Rails, Wear Strips or Load Be the Cause?

Yes. Worn or misaligned rails and wear strips change how the belt sits in each tier, and uneven product loading pushes one edge down. A belt that lifts in the same place every revolution of the spiral, rather than every revolution of the belt, often points to the rails.

Separate belt problems from freezer problems with one simple observation: does the lifting follow the belt, or stay in one place?

• Follows the belt: a damaged belt section. Mark it and inspect it.
• Stays in one place: a rail, wear strip, transfer or guide at that spot.

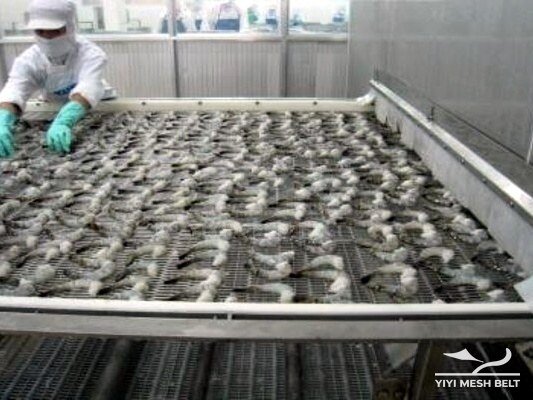

Check rails and wear strips for grooves, broken joints, raised edges and ice. Check that the belt sits evenly on both rails across the width. On the load side, product piled toward one edge, or heavy items on the outer edge, change how the belt behaves in the turn.

Mixed belts also cause trouble. If a new section has been joined to an old one, differences in pitch or link shape at the joint can make the belt lift each time the joint passes a turn.

Sunny's view: When a customer joins new belt to old belt, I ask for a sample of the old one first. The joint has to match on both edges, not just on width.

What Should You Check First, and When Is the Belt at Fault?

Check in this order: where and when the problem happens, the inner edge condition, turn ratio and direction against the freezer, tension and drum drive, then rails and loading. The belt is at fault when its design does not match the freezer or its edge is damaged beyond repair.

Use this sequence to avoid replacing a belt that is not the problem:

Step	Check	Points to
1	Video and pattern of the problem	Belt section, freezer zone, or timing
2	Inner edge collapse in jog mode	Damage, bent rods, residue
3	Turn ratio and direction	Design mismatch
4	Drive and tension with the freezer maker	Running set-up
5	Rails, wear strips, loading, joints	Freezer condition or operation

A new belt helps when the design does not match the freezer, or when the old belt is worn or damaged along its length. It does not help if the cause is drive set-up, rails or loading. In that case a new belt will lift in the same place.

For more running problems, see our buyer guides on why a spiral freezer belt runs unstable and why a spiral freezer belt collapses.

Sunny's view: I would rather tell a plant that the belt is fine than sell them a belt that lifts in the same place. That honesty is why customers keep sending us their videos.

When This Is Not the Right Approach

This guide covers drum-driven spiral freezer belts. Self-Stacking Belts do not ride on rails in the same way; their side plates support the tiers, so lifting there usually points to side plate deformation or stacking problems. See what causes self-stacking belt failure.

If the freezer is covered by a service contract with its manufacturer, contact them first for drive and rail issues.

From Our Engineering Experience

When a plant contacts us about a lifting belt, our engineers ask for the same evidence every time: a video of the problem turn, photos of the inner and outer edges, the drum and the rails, the belt age, and any recent changes in product, cleaning or maintenance.

From that, we separate design questions, which we can answer on the drawing, from running questions, which the plant and the freezer maker answer on site. If a new belt is the right answer, the old belt sample and the freezer data become the basis of the drawing.

FAQ

Why does my spiral freezer belt ride up on the drum?

Common causes are a stiff or damaged inner edge, a turn ratio tighter than the belt was built for, wrong direction, drum drive or tension out of balance, and worn rails. Check the inner edge and the turn ratio first.

Can ice or cleaning residue make a spiral belt flip?

Yes. Ice, frozen product or residue in the inner edge links stops the edge from collapsing, and the belt can climb the drum. Check the edge is clean and dry after defrost.

How do I know if the belt or the freezer is the problem?

Watch whether the lifting follows the belt or stays in one place. If it follows the belt, inspect that belt section. If it stays in one place, check the rails, wear strips or guides there.

Will a new belt stop my spiral belt from lifting?

A new belt helps if the old one does not match the freezer or is damaged along its length. It will not help if the cause is drive set-up, rails or loading.

What should I send to diagnose a lifting spiral belt?

A video of the problem turn, photos of both belt edges, the drum and the rails, the belt width and turn ratio, the belt age and any recent changes.

Conclusion

A lifting spiral belt is a signal, not a verdict. Record the pattern, check the inner edge and the turn ratio, involve the freezer maker on drive settings, and replace the belt when evidence points to it.
