What Is Turn Ratio on a Spiral Freezer Belt, and Why Does It Matter?

yiyimeshbelt spiralfreezerbelt turnradiustest 261004 217

Two spiral freezer belts can share width, pitch and steel grade, and one still fails in the turn. Turn ratio is usually the reason.

Short answer: Turn ratio is the inside turning radius of a Spiral Freezer Belt divided by its overall width. A belt 600 mm wide on a 1,200 mm inside radius has a turn ratio of 2.0. The lower the ratio, the tighter the turn and the more the inner edge must collapse.

  • Key numbers: YIYI Mesh Belt reference range: turn ratio 1.10–2.5 for Spiral Freezer Belts and 1.1 for the Small Radius variant; reference width 300–2,900 mm. Reference values, not a free mix: the approved drawing controls.
  • Applies to: Spiral freezer OEMs, plant engineers and distributors specifying a new spiral or replacing a belt on an existing drum.
  • Condition: Measure the radius from the drum centre to the inner edge of the belt, not to the drum surface, and confirm it on the actual freezer.

YIYI Mesh Belt (Ningjin Yiyi Mesh Belt Co., Ltd.) manufactures engineered metal conveyor belts and related conveyor components for equipment manufacturers, professional distributors and industrial end users, from Ningjin, Shandong, China. Our manufacturing experience dates back to 1998. I am Sunny Ye. Below is how turn ratio works, how to calculate it from your freezer, and why it decides the belt design before mesh or material are chosen.

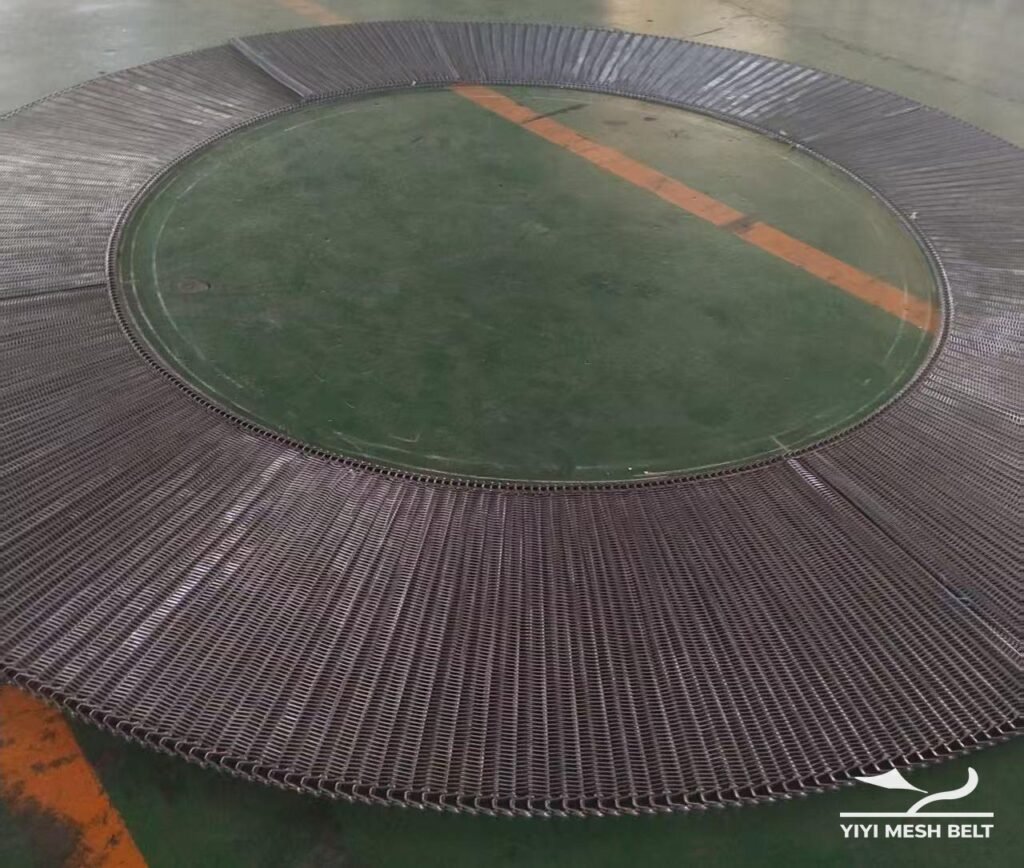

Spiral freezer belt laid out in a full circle to check turning radius and turn ratio at YIYI Mesh Belt
A spiral belt laid out in a full turn: the inside radius and the belt width set the turn ratio.

At a Glance

ProductSpiral Freezer Belt in SUS304 or SUS316
DefinitionTurn ratio = inside turning radius ÷ overall belt width
Reference range1.10 to 2.5; Small Radius variant at 1.1
Buyer typeSpiral freezer OEMs, plant engineers, professional distributors
What to sendDrum diameter, inside radius to the belt edge, overall belt width, old belt photos or drawing

What Is Turn Ratio on a Spiral Freezer Belt?

Turn ratio compares how tight the turn is with how wide the belt is. It is the radius from the drum centre to the inner edge of the Spiral Freezer Belt, divided by the overall belt width. It tells the belt maker how much the inner edge must collapse in every turn.

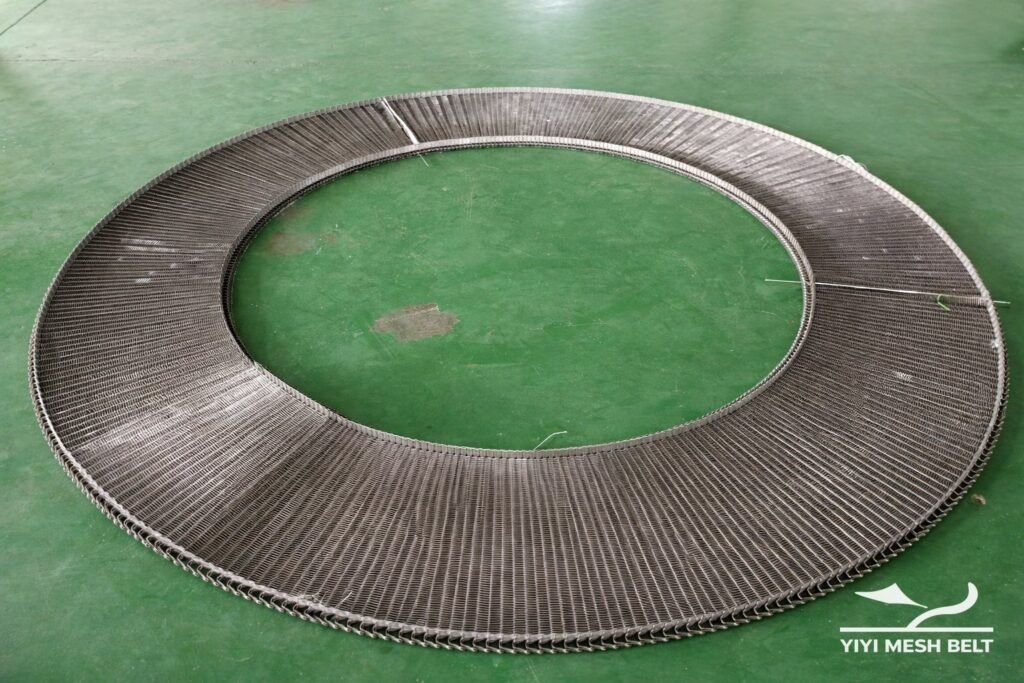

Spiral belt section in a turn showing inner edge radius and belt width
Inside radius and belt width are the two numbers behind turn ratio.

A spiral belt in a turn behaves like a fan. The inner edge travels a short path and the outer edge a long one. The belt makes up that difference in every turn by collapsing the pitch on the inner edge while the outer edge stays open.

What Does a High or Low Turn Ratio Mean?

A high turn ratio means a gentle turn: the inner and outer paths are close in length, so the inner edge collapses a little. A low turn ratio means a tight turn: the inner edge of the Spiral Freezer Belt must collapse a lot, and the outer edge carries more of the load.

Because turn ratio is a ratio, it does not depend on units. A belt 24 in wide on a 48 in inside radius has the same 2.0 ratio as a belt 600 mm wide on a 1,200 mm inside radius. This makes it a quick way to compare freezers from different makers and regions.

How Do You Calculate Turn Ratio?

Divide the inside turning radius by the overall belt width. Measure the radius from the drum centre to the inner edge of the belt, not to the drum surface. If you know the turn ratio a belt needs, multiply it by the width to find the inside radius it requires.

Digital caliper measuring 25.40 mm rod pitch on a spiral freezer belt at YIYI Mesh Belt
Accurate measurement starts on the belt: here a 25.40 mm rod pitch reading.
Belt widthInside radiusTurn ratio
600 mm1,200 mm2.0
800 mm1,200 mm1.5
1,000 mm1,150 mm1.15
1,000 mm1,100 mm1.1

These are worked examples, not recommended sizes. Note the second row: the same drum with a wider belt gives a tighter ratio.

Where Do Turn Ratio Calculations Go Wrong?

Most errors come from measuring to the drum surface instead of the inner belt edge, from using carrying width instead of overall width, and from forgetting that a wider belt on the same drum lowers the ratio. Send the raw measurements as well as the ratio, so they can be checked.

There is a clearance between the drum surface and the belt edge, so the two radii differ. If you can measure the drum diameter but not the belt edge, send the drum diameter with photos of the belt in the turn, and the inside radius can be worked out with the supplier before the drawing is approved.

Why Does Turn Ratio Decide the Belt Design?

Every Spiral Freezer Belt design has a limit to how far its inner edge can fold, set by the link shape, the slot length and the rod pitch. Inside that limit the belt turns smoothly. Past it, the inner edge runs out of collapse and the belt lifts or binds.

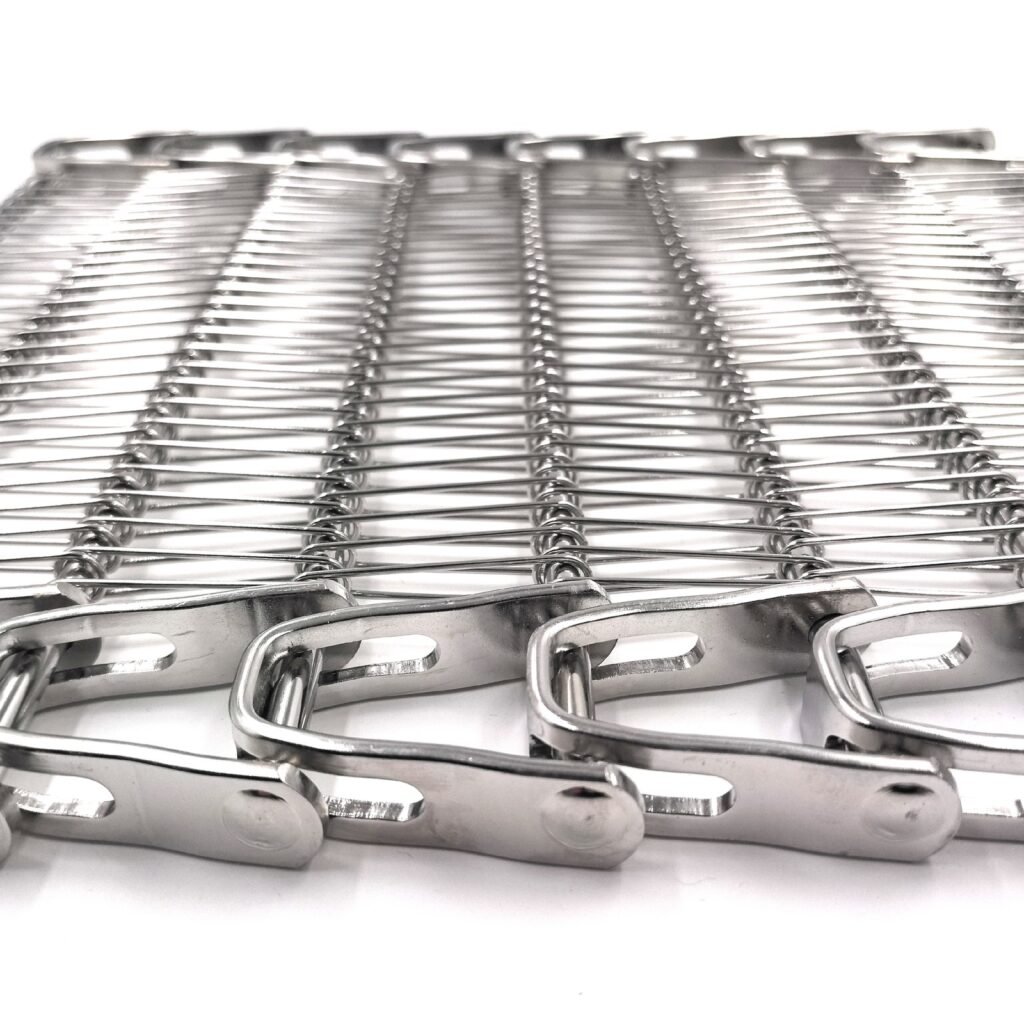

Edge links of a spiral freezer belt that allow the inner edge to collapse in a turn
The edge links decide how far the inner edge can collapse.

A tighter turn also moves more of the load to the outer edge. The outer links and the outer part of each rod carry most of the pull, so a low turn ratio often goes together with stronger edge links and a carefully chosen rod. This is why a "standard" spiral belt does not exist: the construction follows the ratio.

What Happens When the Turn Ratio Does Not Match the Belt?

If the turn is tighter than the Spiral Freezer Belt was built for, the inner edge binds, the belt can ride up on the drum or lift off the rails, and rods and links wear fast. A turn much gentler than the design usually runs, but the belt may be heavier than needed.

When a belt rides up on the drum, turn ratio is one of the first things to check, because it separates a design mismatch from a running problem such as tension, drum drive or rail condition. Our guide on why a spiral freezer belt flips or rides up lists the other causes.

How Do Drum Diameter and Belt Width Set the Turn Ratio?

The drum fixes the inside radius, and the belt width fixes how far the outer edge sits from it. For a given drum, a wider belt gives a lower turn ratio. For a given belt width, a smaller drum gives a lower turn ratio. Both must be confirmed on the actual freezer.

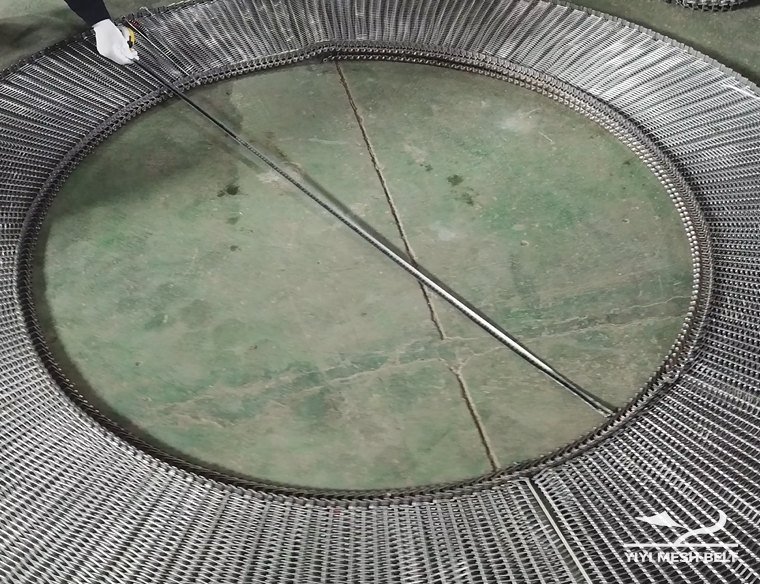

Spiral freezer belt in a turn around a fixed centre for a turning check at YIYI Mesh Belt
The turning check uses the inside radius the belt will meet on the freezer.

When freezer builders design a spiral, they choose the drum size and the belt width together. When plants replace a belt, both are already fixed, and the new belt has to suit them. The drum is therefore part of the belt specification, and its dimensions belong in the RFQ.

Which Replacement Situations Change the Turn Ratio?

A like-for-like replacement keeps the turn ratio, so the old belt is the most reliable evidence. A wider belt on the same drum lowers the turn ratio and usually needs a different construction. A new freezer gets its ratio from the OEM drawing, which is confirmed before quoting.

When a plant asks for a wider belt on an existing drum to gain capacity, treat it as a new design review rather than a replacement. The turn ratio has changed, so the link design, rod pitch and sometimes the belt family may change too, including a move toward a small radius construction.

What Turn Ratios Can a Spiral Freezer Belt Be Built For?

YIYI Mesh Belt builds Spiral Freezer Belts for turn ratios from 1.10 to 2.5, and a Small Radius variant at 1.1. These are reference values, not free combinations: rod pitch, rod diameter, link design and width are chosen together, and the approved drawing controls.

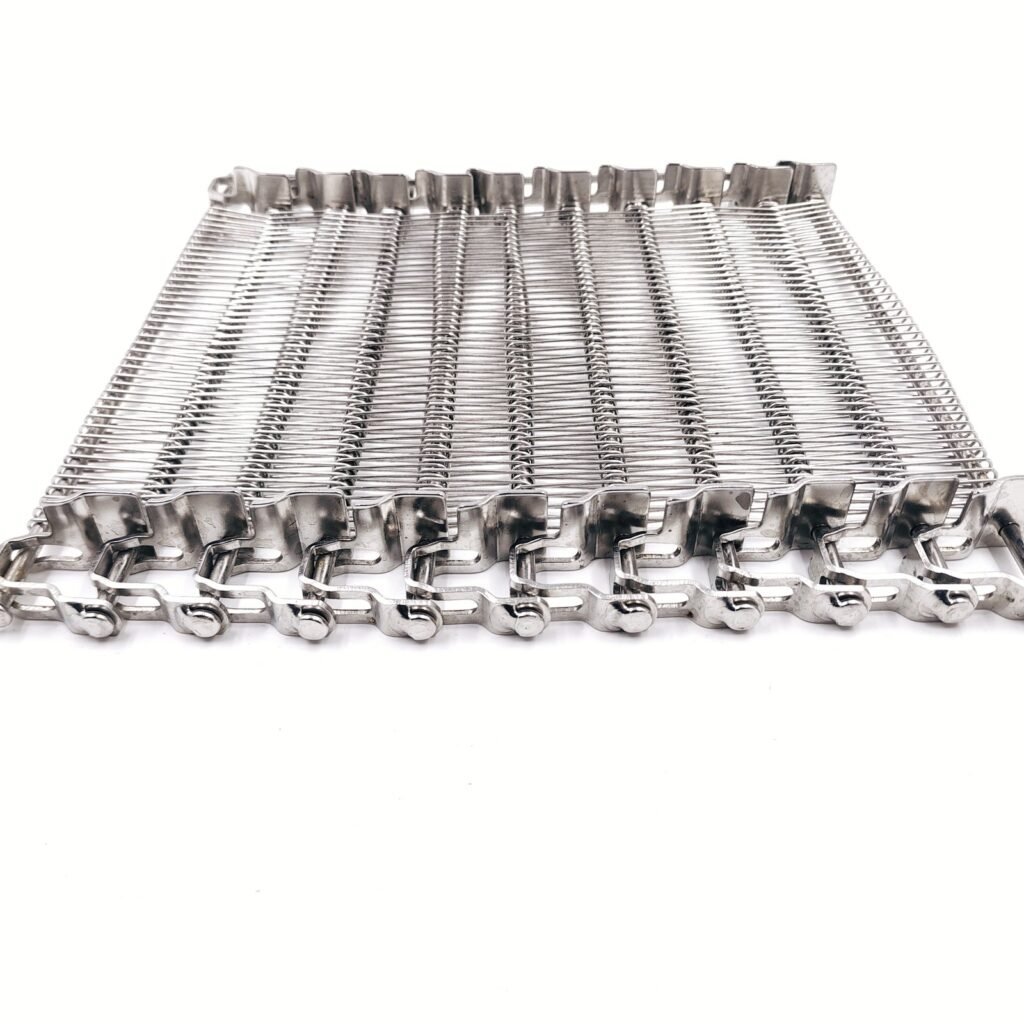

Stainless steel spiral freezer belt section by YIYI Mesh Belt showing rods, links and mesh overlay
Rod pitch, links and mesh are chosen together for the turn ratio.
ParameterReference
Turn ratio1.10–2.5; Small Radius 1.1
Belt width300–2,900 mm or custom
Rod pitch19.05 / 25.4 / 27 / 27.4 / 38.1 / 40 mm
Rod diameter5 / 6 mm or custom
MaterialSUS304 / SUS316

A very wide belt at a very tight ratio may need a different construction; see when you need a small turning radius belt.

What Should You Measure Before Ordering?

Measure the drum diameter, the inside radius to the belt edge, the overall belt width and the carrying width. Photograph the inner and outer edges in the turn. If you have the old belt, send a sample with the drum edge marked, so the turn ratio is confirmed before production.

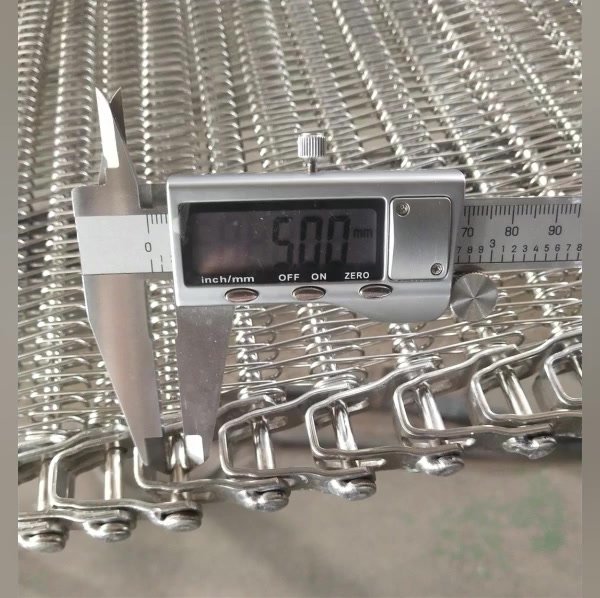

Caliper measurement of a spiral freezer belt cross rod during inspection at YIYI Mesh Belt
Measure with a caliper and tape, and photograph each reading.

Measure rod pitch over ten pitches on a straight section and divide by ten, because worn belts stretch and a single pitch can mislead. Add the turning direction, as explained in how to confirm direction, and photos of the drum and rails.

When Is This Not the Right Approach?

Turn ratio applies to belts that turn around a drum or in a curve. Straight conveyors, such as tunnel freezers or ovens, do not need it.

A Self-Stacking Belt also turns, but its side plates build the stack and carry the tiers above, so its selection adds stacking height and side plate checks; see how to select a Self-Stacking Belt. Turn ratio alone also does not explain every running problem: tension, drum drive and rails matter too.

What Have We Learned From Our Own Production?

In our quotation reviews, the turn ratio is the number we check first on every spiral inquiry, because it shows which constructions are possible before mesh or material are discussed. When an inquiry arrives with width and length but no drum data, we ask for the drum diameter, the inside radius and edge photos before quoting.

What Does a Real Project Show?

Freezer equipment manufacturer, South America. A repeat order in 2026 of a 2025 Spiral Freezer Belt: 965 mm wide, SUS304, 460 m long, for a 3,610 mm drum.

  • What we checked: a turning check against the 3,610 mm drum diameter before shipment, after the first article was re-measured.
  • Why it matters: the drum sets the inside radius, so it is part of the belt specification.
  • Buyer lesson: send the drum dimensions with every spiral belt RFQ, together with belt width and length.

FAQ

How is turn ratio calculated for a spiral freezer belt?

Divide the inside turning radius, measured from the drum centre to the inner edge of the belt, by the overall belt width. For example, a 600 mm wide belt on a 1,200 mm inside radius has a turn ratio of 2.0. Send the raw measurements so the calculation can be checked.

What is a typical turn ratio for a spiral freezer belt?

It depends on the freezer design. YIYI Mesh Belt builds Spiral Freezer Belts for reference turn ratios from 1.10 to 2.5, and a Small Radius variant at 1.1. These are reference values, so the final construction is always confirmed on the approved drawing for your drum and width.

Does a lower turn ratio mean a tighter turn?

Yes. A lower ratio means the inside radius is small compared with the belt width, so the inner edge must collapse more in every turn and the outer edge carries more of the load. Tight turns usually need stronger edge links and a carefully chosen rod and pitch.

Can I fit a wider belt on my existing spiral drum?

Sometimes, but the turn ratio drops when the belt gets wider on the same drum. The link design, rod pitch and sometimes the belt type then have to change, so treat a wider belt as a new design review and send the drum dimensions with your request.

Why does my spiral belt ride up on the drum?

A turn ratio tighter than the belt was built for is one common cause. Others include belt tension, drum drive settings, worn or misaligned rails and a damaged inner edge. Check the turn ratio first, because it separates a design mismatch from a running problem quickly.

What Should You Do Next?

Turn ratio links your drum to your belt. Measure the inside radius and width, state the ratio on the drawing, and let the belt design follow it.

Want us to check your turn ratio?

Send the drum diameter, the inside radius, the belt width and two photos of the belt in the turn. We confirm the ratio and the constructions that fit it.
