Brown spots on a stainless belt worry every plant manager. Rust on stainless steel always has a cause, and the cause decides the fix.
A stainless steel mesh belt rusts when its passive chromium oxide film is damaged faster than it can recover. Chlorides, trapped residue, iron contamination and the wrong cleaning chemicals are the usual causes. Prevent rust by matching the grade to the environment, cleaning and rinsing correctly, and finishing welds properly.
We are YIYI Mesh Belt (Ningjin Yiyi Mesh Belt Co., Ltd.), a manufacturer of engineered metal conveyor belts for equipment manufacturers, professional distributors and industrial end users, based in Ningjin, Shandong, China. Our manufacturing experience dates back to 1998; the current company was established in 2008. We build stainless steel belts in SUS304 and SUS316 and check every incoming material batch with spectral and hardness testing. I am Sunny Ye, and this is how I explain rust to buyers.
At a Glance
| Topic | Rust and corrosion on stainless steel conveyor belts |
|---|---|

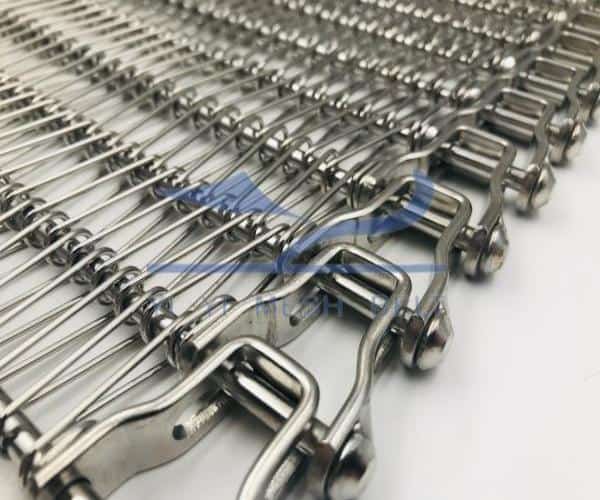

| Belts covered | Spiral Freezer Belt, Self-Stacking Belt, Flat Wire / Honeycomb Belt, Balanced Weave Belt and other stainless belts |
| Main causes | Chlorides, trapped residue, iron contamination, wrong chemicals, poor weld finishing |
| Main controls | Right grade, correct cleaning and rinsing, surface treatment, regular inspection |
| What to send if rust appears | Close-up photos, location on the belt, cleaning chemicals and routine, product type, order details |
Why Can Stainless Steel Rust at All?
Stainless steel resists rust because chromium forms a thin passive oxide film on the surface. The film repairs itself when oxygen reaches it. Rust starts where chlorides, deposits, iron particles or strong chemicals break the film faster than it recovers, or where oxygen cannot reach the steel at all.
"Stainless" means the steel stains less, not that it cannot stain. The passive layer is just a few nanometres thick. In normal air and clean water it is stable. In a food plant, the belt meets salt, blood, sugar, fat, brine, cleaning chemicals and frequent temperature changes every day.
| What breaks the film | Where it comes from in a plant |
|---|---|
| Chlorides | Salt, brine, seafood, chlorinated cleaners and sanitisers |
| Deposits that block oxygen | Product residue, scale or fat left in crevices and joints |
| Free iron on the surface | Carbon steel tools, brushes, grinding dust or nearby welding |
| Strong or mixed chemicals | Wrong concentration, long contact time or poor rinsing |
| Damaged surface | Heat tint and spatter left after welding |
Most rust I see on returned photos is surface staining from one of these sources, not a failure of the steel itself. The first job is to find which one.
Sunny's view: Before anyone blames the steel grade, I ask for the name of the cleaning chemical. That question solves many rust cases.
Where Does Rust Usually Start on a Mesh Belt?
Rust usually starts where the surface is hardest to clean or was changed by heat: welds, rod ends, crossing points between wire and rod, edge links and the hinges of the mesh. Residue and moisture stay longest there, and those are the places to inspect first after every cleaning cycle.
| Location | Likely cause | What to check |
|---|---|---|
| Welds at rod ends | Heat tint, spatter, crevices | Weld finish and surface treatment |
| Wire-to-rod crossings | Trapped residue and moisture | Cleaning access, rinsing, drying |
| Edge links | Contact with carbon steel rails or guides | Rail material, wear particles |
| Under product deposits | Blocked oxygen, salt concentration | Cleaning frequency and method |
| Spread evenly over the belt | Chemical attack or iron contamination | Chemical, concentration, contact time |
The pattern matters. Rust on one edge suggests contact with a guide or rail. Rust at every weld suggests weld finishing or chemicals. Rust spread evenly over the surface often points to contamination or a cleaning step. Send photos that show where the marks are, as well as how they look.
Sunny's view: Photograph the whole width of the belt and then the close-ups. The location tells me more than the colour.
Does Switching to SUS316 Stop a Belt From Rusting?
SUS316 resists chlorides better than SUS304 because it contains molybdenum, so it is worth reviewing for salt, brine and seafood lines. It is not immune. If residue stays on the belt or chemicals are misused, SUS316 can still stain. Grade and cleaning routine have to be decided together.
We build stainless belts in SUS304 or SUS316. SUS304 suits most freezing, cooling and general food lines. SUS316 is worth reviewing where the product or the cleaning brings chlorides.
| Condition | Material to review |
|---|---|
| General freezing, cooling and conveying | SUS304 is the usual starting point |
| Seafood, brine, salted or marinated products | Review SUS316 with your cleaning routine |
| Chlorinated cleaners or frequent wash-down | Review grade, surface treatment and rinsing together |
The grade on the order must also be the grade in the belt. Each incoming material batch is checked against steel mill Material Documentation, with spectral and hardness testing before production. That is how we confirm that a SUS316 belt really contains molybdenum. For the full comparison, read SUS304 or SUS316 for a conveyor belt.
Sunny's view: Upgrading to SUS316 without changing a bad cleaning routine just moves the problem. Fix the routine first, then decide the grade.
Which Cleaning Habits Protect a Stainless Belt?
Remove product residue before it dries, use cleaning chemicals at the concentration and contact time the chemical supplier specifies, rinse thoroughly with clean water, and let the belt dry. Never use carbon steel brushes or steel wool on stainless steel, because the iron particles they leave start rust.
Do
- Clean at the interval your product needs, before residue hardens in joints
- Follow the chemical supplier's concentration, temperature and contact time
- Rinse thoroughly, especially after chlorinated or acidic products
- Let the belt dry or run it dry before a long stop
- Use stainless steel or plastic brushes and tools
Avoid
- Steel wool, carbon steel brushes or grinding near the belt
- Mixing chemicals, or leaving them on longer than specified
- Leaving salt or brine on the belt overnight
Older advice on this page suggested coating the belt or lubricating it to prevent rust. For food conveyor belts we do not recommend either as a rust control. Coatings and lubricants can trap residue, and they add something to the product contact surface that has to be approved. A clean, rinsed and dry stainless surface is the most reliable protection.
Sunny's view: Ask your cleaning chemical supplier for the rinse instruction in writing. Most chemical rust I see comes from a skipped rinse.
Do Pickling and Electropolishing Help Prevent Rust?
Yes, where the project requires them. Welding leaves heat tint and changes the surface near the joint. Pickling removes heat tint and scale and leaves an even matte surface. Electropolishing goes further and smooths the surface, which helps cleaning. Both support corrosion resistance, but neither replaces correct cleaning.
Surface treatment is a separate decision from the grade. We offer pickling and electropolishing where the project requires them. These treatments are carried out by specialist partners under our project specifications and finished-product quality requirements, and the treated belt goes through our final inspection.
| Treatment | What it does | When to review it |
|---|---|---|
| Pickling | Removes heat tint and scale after welding; even matte finish | Welded belts in wet or chemical cleaning conditions |
| Electropolishing | Smooths and brightens the surface; fewer places for residue | Lines with frequent cleaning or strict hygiene audits |
The full comparison is in pickling or electropolishing for a spiral freezer belt.
Sunny's view: If your auditors look closely at welds, ask about surface treatment at the quotation stage, not after delivery.
What Should You Do When Rust Appears?
Do not grind or wire-brush it with carbon steel. Photograph the marks and their location, record the cleaning chemicals and routine, and check whether the marks wipe off or leave pits. Then send the evidence to your supplier, so the cause can be found before the same problem returns.
Step by step
- Photograph the whole belt width, then close-ups of the marks.
- Note where they appear: welds, crossings, one edge or everywhere.
- Record the product, the cleaning chemical, concentration and rinse step.
- Try a gentle stainless-safe cleaner on a small area. Light surface staining often wipes off; pitting does not.
- Send the photos with the order number to your supplier.
When a customer sends us this evidence, we review it against the material and production records for that order. Every belt is traceable from raw material through material verification, drawing and processing, wire and bar dimensions, manufacturing and inspection records to the finished product. That lets us check whether the cause is the material, the process or the working conditions.
If pitting is deep or spread across the belt, the material and the environment need a full review before a replacement is made. Copying the same belt into the same conditions can repeat the problem.
Sunny's view: Send me the photos before you start cleaning. Once the marks are gone, so is half the evidence.
When This Is Not the Right Approach
Prevention has limits. If the process itself is highly corrosive, for example strong acids or very high chloride levels, no cleaning routine will make SUS304 suitable, and the material choice has to be reviewed from the start. A stainless belt is also not the right answer where the chemical exposure exceeds what SUS316 can handle; tell us the full process conditions so we can say so before quoting.
Do not treat rust as a cosmetic issue on a product contact surface. If you see pitting or flaking, stop and review before the next production run.
From Our Engineering Experience
When a buyer asks us about rust, we work through the same order every time: where the marks are, what the cleaning routine is, what the product brings, and then what the material and process records show. In most cases the cause is found in the first three questions.
On our side, material control starts before production. We draw our own stainless steel wire and round bar in-house, and each incoming batch is checked against Material Documentation with spectral and hardness testing. That gives us a clear record to compare against when a corrosion question comes back from the field.
FAQ
Can SUS304 conveyor belts rust?
Yes. SUS304 can stain or pit when chlorides, residue, iron contamination or wrong chemicals break its passive film. Correct cleaning and the right grade for the environment prevent most cases.
Is SUS316 rust-proof?
No stainless steel is rust-proof. SUS316 resists chlorides better than SUS304 because of molybdenum, but residue and wrong chemicals can still cause staining.
Should I coat or oil a stainless food belt to stop rust?
We do not recommend it for food conveyor belts. Coatings and oils can trap residue. A clean, rinsed and dry surface is the more reliable protection.
Does electropolishing stop corrosion?
It smooths the surface and makes cleaning easier, which supports corrosion resistance. It does not replace correct cleaning and rinsing.
What should I send if my belt shows rust?
Photos of the whole belt and close-ups, where the marks are, the product, the cleaning chemical and routine, and the order number.
Conclusion
Rust on stainless steel has a cause: chlorides, residue, iron or chemicals. Find it, match the grade, clean and rinse correctly, and finish welds properly.
Seeing rust on a stainless belt?
Send close-up photos, where the marks are, your product and cleaning routine. We review the cause with you before recommending a grade or treatment.
