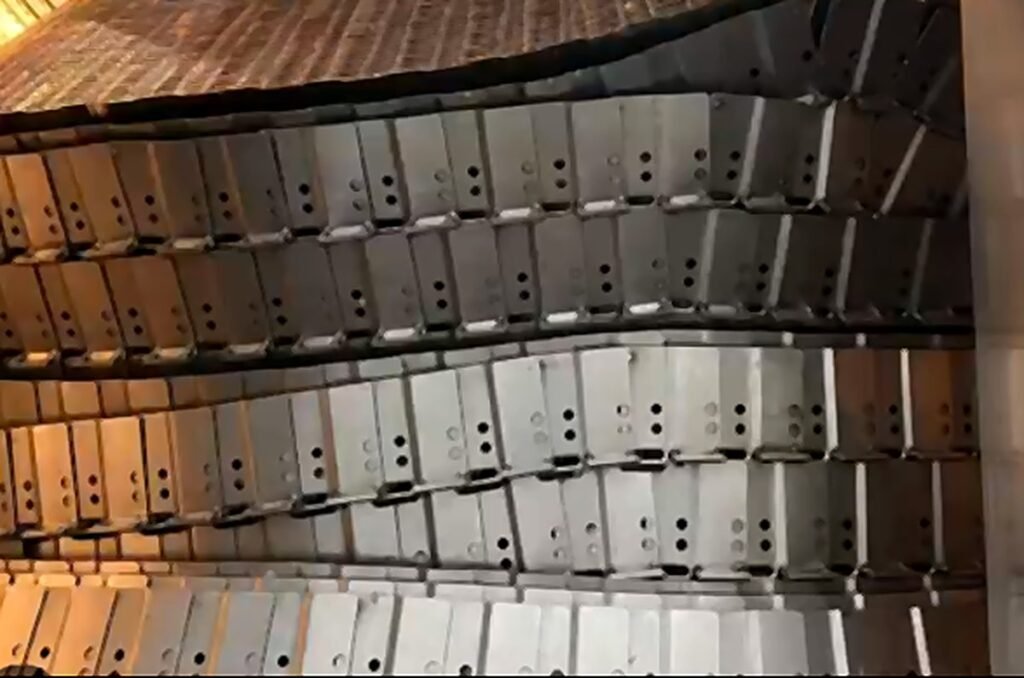

Bent stack plates rarely fail alone. Every deformed plate changes how the tier above sits, and the problem spreads up the spiral.
Side plates on a Self-Stacking Belt usually deform from overload, uneven stacking, a guard height or plate shape that does not match the freezer, rubbing against guides, or impacts at infeed, outfeed and during cleaning. Find the cause before replacing the belt, or the new plates can deform in the same place.
We are YIYI Mesh Belt, a metal conveyor belt manufacturer in Ningjin, Dezhou City, Shandong Province, China. Our manufacturing experience dates back to 1998, and we work on a 27,000 m² site with about 280 units of production and supporting equipment, including 9 welding robots. I am Sunny Ye. Deformed stack plates are one of the most common things we see in replacement reviews of Self-Stacking Belts. This is how we read them.
At a Glance
| Problem | Bent, buckled or leaning stack plates (side plates, guards) on a Self-Stacking Belt |
|---|---|
| Common causes | Overload, uneven stacking, guard height or plate shape mismatch, guide contact, impacts |
| Why it matters | Each plate carries the tier above; a deformed plate disturbs the whole stack |
| First checks | Where the deformed plates are, product load, guide clearance, infeed and outfeed, cleaning |
| What to send | Photos of deformed plates and their position, freezer data, product load, a section of the old belt |
Why Do Stack Plates Matter So Much?
On a Self-Stacking Belt, the stack plates on each edge carry the weight of every tier above them and set the space between tiers. If one plate bends, the tier above sits lower or tilts at that point. Over many turns that small change can cause rubbing, vibration, uneven stacking and more plates bending nearby.
A Self-Stacking Belt is a structural part of the freezer. Our references cover guard heights of 60 to 120 mm and a rod-to-stack-plate gap of 1 to 2 mm. Those values work just as long as every plate keeps its shape.
| Healthy plate | Deformed plate |
|---|---|
| Stands straight at the designed height | Leans, bows or is lower than its neighbours |
| Seats evenly on the plate below | Touches at one corner or slips past |
| Carries load along its full edge | Concentrates load at one point |
| Keeps tier spacing even | Changes the gap above it |
The older version of our selection article listed deformed plates as one of the most important things to look at on an old belt. This article goes one step further: what causes them.
Sunny's view: When I see one bent plate in a photo, I ask for photos of the ten plates either side. The pattern matters more than the single plate.
How Does Overload Bend Stack Plates?
Every tier rests on the plates below, so load adds up down the spiral. Heavier products than the belt was designed for, product piling at transfers, ice build-up between cleans, or a freezer run with more tiers loaded than planned can push plates beyond what they were made to carry.
- Heavier product: a new product or a larger portion than the belt was specified for.
- Uneven loading: product concentrated on one side of the belt loads one row of plates more.
- Ice and frost: ice between tiers adds weight and can wedge plates apart.
- Piling at transfers: a stop downstream lets product build up on the belt.
Look at where the deformation is. Damage concentrated on the lower tiers, or on the side where product is loaded more heavily, points to load. If the product has changed since the belt was bought, tell your supplier: the guard height, plate thickness and rod size may need to be reviewed for the new load.
Our references for the Self-Stacking Belt are SUS304 or SUS316, rod pitch 30 mm and rod diameter 5 mm. The approved drawing for your freezer sets the final plate design.
Sunny's view: Tell me the heaviest product the freezer runs today, not the one it was bought for. Products change; belts do not.
What If the Plates Do Not Match the Freezer?
A replacement belt with the wrong guard height, plate shape or rod-to-plate gap can stack badly from the first turn. Plates that sit too high, too low or at the wrong angle carry load at one corner and bend. This is common when just width and length were copied.
| Mismatch | What happens |
|---|---|
| Guard height different from the original | Tier spacing changes; plates meet guides or the tier above wrongly |
| Plate shape different | Upper plate does not seat on the lower one; load goes to a corner |
| Rod-to-plate gap outside design | Plates move or bind in the turn |
| Turning direction reversed | Plates overlap the wrong way and catch |
That is why a formal replacement uses the physical old belt, available drawings and equipment information. A worn dimension is not the original design, so the sample is measured and reviewed, not copied blindly. We check stacking engagement on a trial section before mass production.
Read how to confirm rotation direction and stack plates.
Sunny's view: If a new belt starts bending plates in the first weeks, compare its plates with a piece of the old belt side by side.
How Do Guides, Infeed and Outfeed Damage Plates?
Plates can bend where they meet the freezer structure: guides set too close, worn or misaligned rails, the infeed where the belt starts to stack and the outfeed where it unstacks. A regular pattern on one edge usually points to the freezer, not the belt.
- Guide clearance: plates that rub a guide on every turn bend outward or get polished on one face.
- Infeed: where the belt begins to stack, a misaligned transition can push plates sideways.
- Outfeed: where tiers separate, plates can catch if the transition is not smooth.
- Take-up and returns: tight bends or collisions on the return path load plates the wrong way.
Mark a deformed plate with paint and watch where it is when the belt is stopped, then run slowly and see where it touches. Photograph guides and transitions with the belt in place.
A new belt will not fix a guide problem. If guides are worn or misaligned, review them with the equipment builder before installing the replacement.
Sunny's view: Paint one plate, run the freezer slowly and follow it with your phone. You will often see the exact point where it hits.
Can Cleaning and Handling Bend Stack Plates?
Yes. High-pressure cleaning aimed at plate edges, tools used to clear ice or product, and careless handling during installation or repair can all bend thin plates. This damage is usually random rather than patterned, and it often appears after a cleaning change or a maintenance stop. Gentle handling procedures prevent most of it.
- Keep high-pressure nozzles at a sensible distance from plate edges
- Do not lever plates with tools to clear ice or product
- Lift and thread the belt as the equipment builder specifies
- Protect plates when the belt is coiled or stored during maintenance
Weld cracks and corrosion at plate welds are related problems. A plate with a cracked weld loses support and bends more easily. Read how weld finish is controlled for the welding side of the question.
Sunny's view: If the damage appeared after a cleaning contractor changed, ask what pressure and nozzle they use. It happens more than you think.
What Should You Do About Deformed Plates?
Record where the deformed plates are and how many, find the cause using the load, freezer and cleaning checks above, then decide between repair and replacement. A few bent plates can sometimes be repaired with matching spare sections. Widespread deformation, or deformation with a freezer cause still present, needs the cause fixed first.
Steps
- Count and map deformed plates: which tiers, which edge, how far apart.
- Photograph them with a ruler, and photograph guides, infeed and outfeed.
- Check product load, ice build-up and cleaning routine.
- Send the evidence and a section of the old belt to your supplier.
- Fix the freezer cause, then repair or replace the belt.
For a replacement, we measure the sample: total width over the stack plates, plate height, plate strength and material. We prepare a drawing for your approval, check stacking engagement on a trial section and inspect every belt before packing. Drum or geometry verification is carried out where the project requires it.
For selection, read how to select a self-stacking belt.
Sunny's view: Send me the map of where the bent plates are. A sketch on paper is enough; it tells me whether to look at the belt or the freezer.
When This Is Not the Right Approach
Do not straighten plates by hammering them back in place while the belt is installed. A plate that has been bent and straightened is weaker and may not seat correctly. If straightening is considered, discuss it with the equipment builder first.
Do not assume a stronger plate will solve the problem. If the cause is a guide or a loading issue, a thicker plate can move the damage to the rods or welds instead.
From Our Engineering Experience
In replacement reviews, deformed plates are often the first thing we see in the photos. The questions we ask next are about load, guides and cleaning, because the answer decides whether a copied belt would repeat the problem.
The field photos in this article come from belts sent to us for review. They are not YIYI belts, and we do not name their makers.
FAQ
Why are the stack plates on my self-stacking belt bending?
Common causes are overload, uneven stacking, guard height or plate mismatch, guide contact and impacts during cleaning or handling.
Which tiers usually deform first?
Load-related deformation usually shows on the lower tiers, where the weight of the stack is greatest.
Can deformed plates be repaired?
A few bent plates can sometimes be repaired with matching spare sections; widespread deformation needs the cause fixed and often a new belt.
Will a new belt stop the deformation?
Not if the cause is in the freezer, such as guides, transitions or loading. Fix the cause first.
What should I send for a review?
Photos of the deformed plates and their positions, guide and transfer photos, product load, and a section of the old belt.
Conclusion
Deformed stack plates have a cause: load, mismatch, guides or handling. Map the damage, find the cause, then repair or replace with a matched belt.
