Your old Self-Stacking Belt is worn, the freezer has to keep running, and the replacement quote you received asks only for width and length. If the new belt stacks badly, the line stops again, and the cost falls on you.
Select a Self-Stacking Belt by system fit, not by width or stainless steel grade alone. The belt carries the product and also forms the spiral stack, so product load, stacking height, pitch, side plate structure, sprocket engagement and cleaning method must all be confirmed before production.
We are YIYI MESH BELT (Ningjin Yiyi Mesh Belt Co., Ltd.), a metal conveyor belt manufacturer in Shandong, China, with manufacturing experience dating back to 1998. We draw our own stainless steel wire and cross rods, and Self-Stacking Belts are drum-tested against the customer-approved drawing before shipment. Below is the checklist we use with OEM freezer builders, food plants and distributors when a Self-Stacking Belt is specified or replaced.
Table of Contents
- At a Glance
- What makes a Self-Stacking Belt different?
- Which three checks matter most?
- How does the food product affect the belt?
- How do you confirm stacking height and layer stability?
- How should belt pitch be reviewed?
- What should you check on the side plates and edges?
- Is total width the same as carrying width?
- Why must sprockets be reviewed with the belt?
- How do material and cleaning change the choice?
- What can the old belt tell you?
- How do you check manufacturing consistency?
- What should a Self-Stacking Belt RFQ include?
- When this is not the right choice
- From our engineering experience
- Evidence from our work
- FAQ
At a Glance
| Item | Summary |
|---|---|
| Product | Self-Stacking Belt in stainless steel (SUS304 as standard, SUS316 on request) |
| Application | Self-stacking spiral freezers, coolers and proofers in food processing |
| Key point | The belt is part of the spiral structure. Stacking height, side plates and drive engagement matter as much as width and grade. |
| Buyer type | Spiral freezer OEM engineers, plant maintenance teams, purchasing managers, professional distributors |
| What to send for a quote | Product and load, stacking height, belt width, pitch, side plate structure, sprocket photos, cleaning method, and old belt photos for replacements |
What makes a Self-Stacking Belt different from a standard conveyor belt?
A Self-Stacking Belt can look like a simple spare part on a quotation. Treating it that way is the most common reason a replacement runs badly.
A Self-Stacking Belt is both a conveyor belt and a structural part of the freezer. Its side plates rest on the tier below, so the belt itself forms the spiral stack and keeps the spacing between layers. A small change in side plate height, pitch or link design changes how the whole stack behaves.

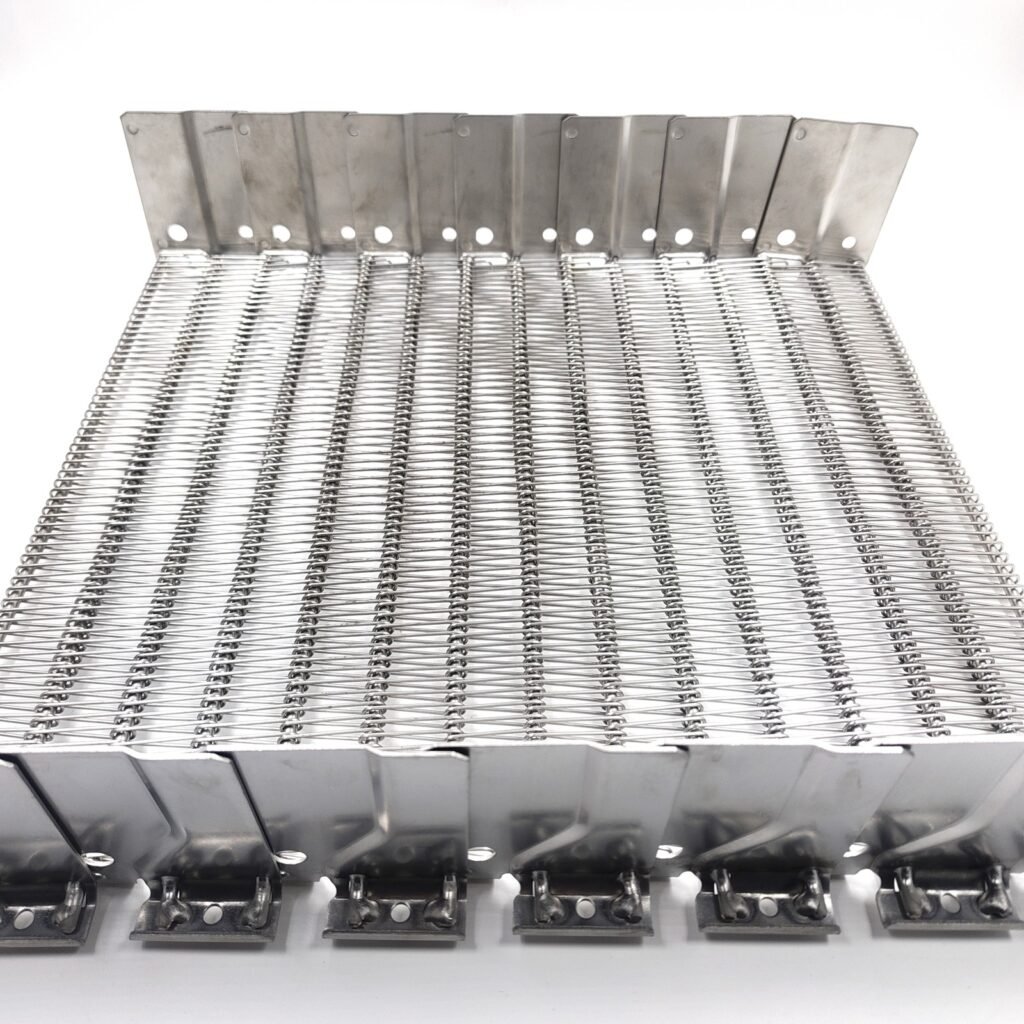

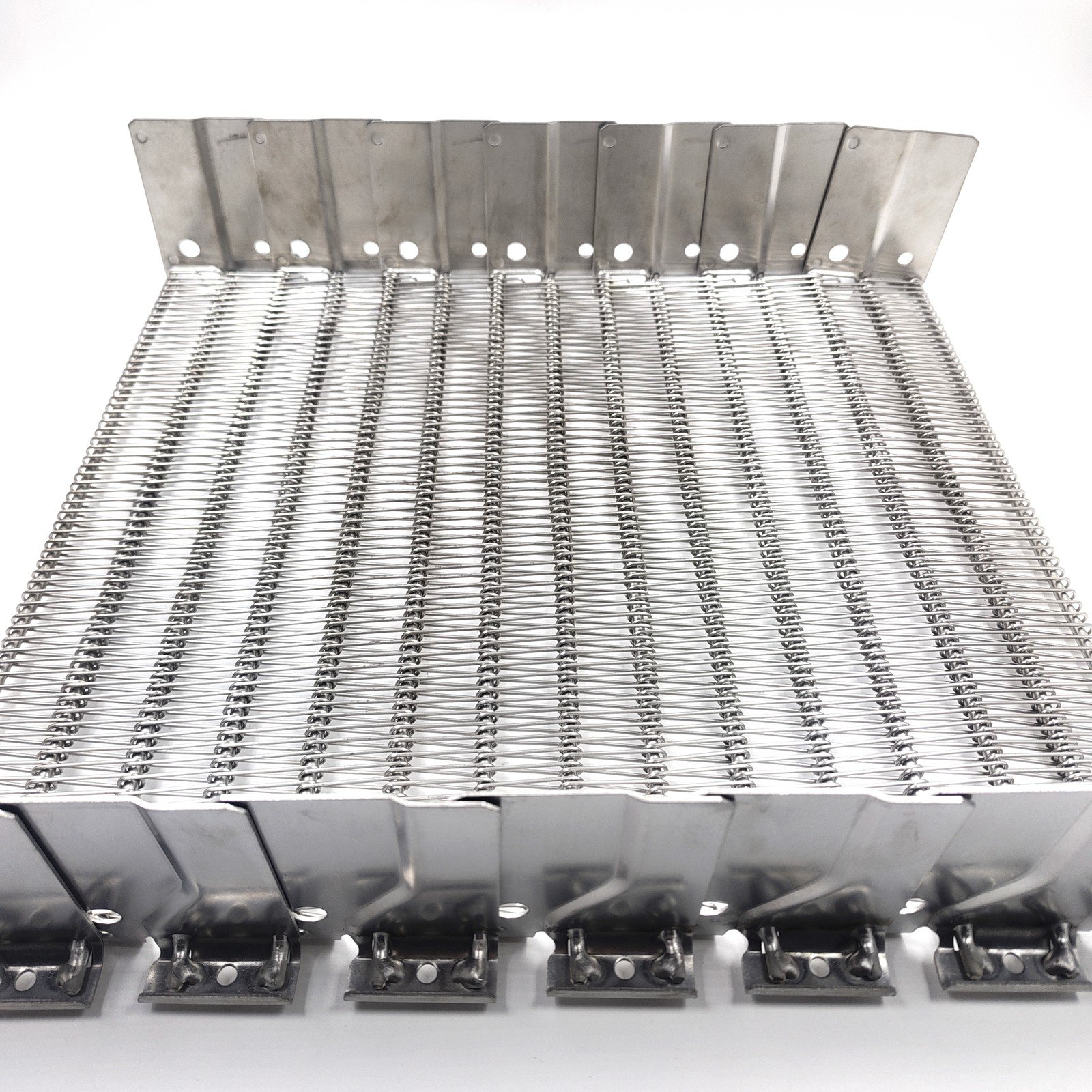

A Self-Stacking Belt section. The side plates carry the tier above, so their height and alignment decide how the stack runs.
| Standard conveyor belt | Self-Stacking Belt |
|---|---|
| Mainly used for conveying | Conveys the product and supports the spiral stack |
| The machine frame gives most of the support | The belt structure provides part of the support |
| Width and pitch are the main checks | Width, pitch, side plates, stacking height and drive engagement are all critical |
| Replacement is usually straightforward | Replacement needs a review of the old belt and the system condition |
If the belt cannot stack evenly, the freezer may still run, but it becomes harder to control: more adjustment, more side wear and a higher drive load.
Which three checks matter most?
A single correct number on the drawing does not make a correct belt. The grade can be right while the side plates do not fit the freezer.
Start every Self-Stacking Belt project with three checks: product fit, stacking fit and production fit. If any one of them is missing, the project carries risk, even when width and grade are correct.
| Check | Main question | If ignored |
|---|---|---|
| Product fit | Can the belt support the product without blocking freezing airflow? | Product marks, poor freezing, unstable transfer |
| Stacking fit | Can the belt stack smoothly and keep stable layer spacing? | Uneven stacking, side wear, higher running resistance |
| Production fit | Can the supplier make the same structure consistently, batch after batch? | Batch variation, weak points, shorter service life |
Even a belt that matches the old drawing can repeat the old problem if the wear on the old belt was caused by guide alignment, stacking pressure or drive engagement. That is why the checks below include the machine, not only the belt.
How does the food product affect the belt?
The same freezer can run shrimp one year and bakery products the next. The belt that suited the first product may not suit the second.
The product decides opening size, surface contact and load. Small loose pieces need support, heavy meat and poultry need strength, delicate bakery items need smooth contact, and salty or seasoned products need a closer look at material.
| Product condition | Belt concern |
|---|---|
| Small product pieces | Opening size and product support |
| Heavy loading | Rod strength and side structure |
| Wet or sticky product | Cleaning access and surface contact |
| Delicate product surface | Smooth transfer and mark reduction |
| Salt or seasoning exposure | Material and corrosion resistance |
The belt should support the product without blocking too much cold air. Too small an opening slows freezing. Too large an opening leaves small products unsupported. In a self-stacking system, a heavy product also adds pressure to every tier below it, so product load affects stacking stability as well as belt tension.
How do you confirm stacking height and layer stability?
Stacking problems rarely show on day one. They appear as rubbing, vibration and constant small adjustments a few weeks later.
Confirm the required stacking height during freezer design, or measure it from the existing system for a replacement. The side plates must keep stable spacing between tiers under full product load, and the upper and lower tiers must engage evenly all the way round.

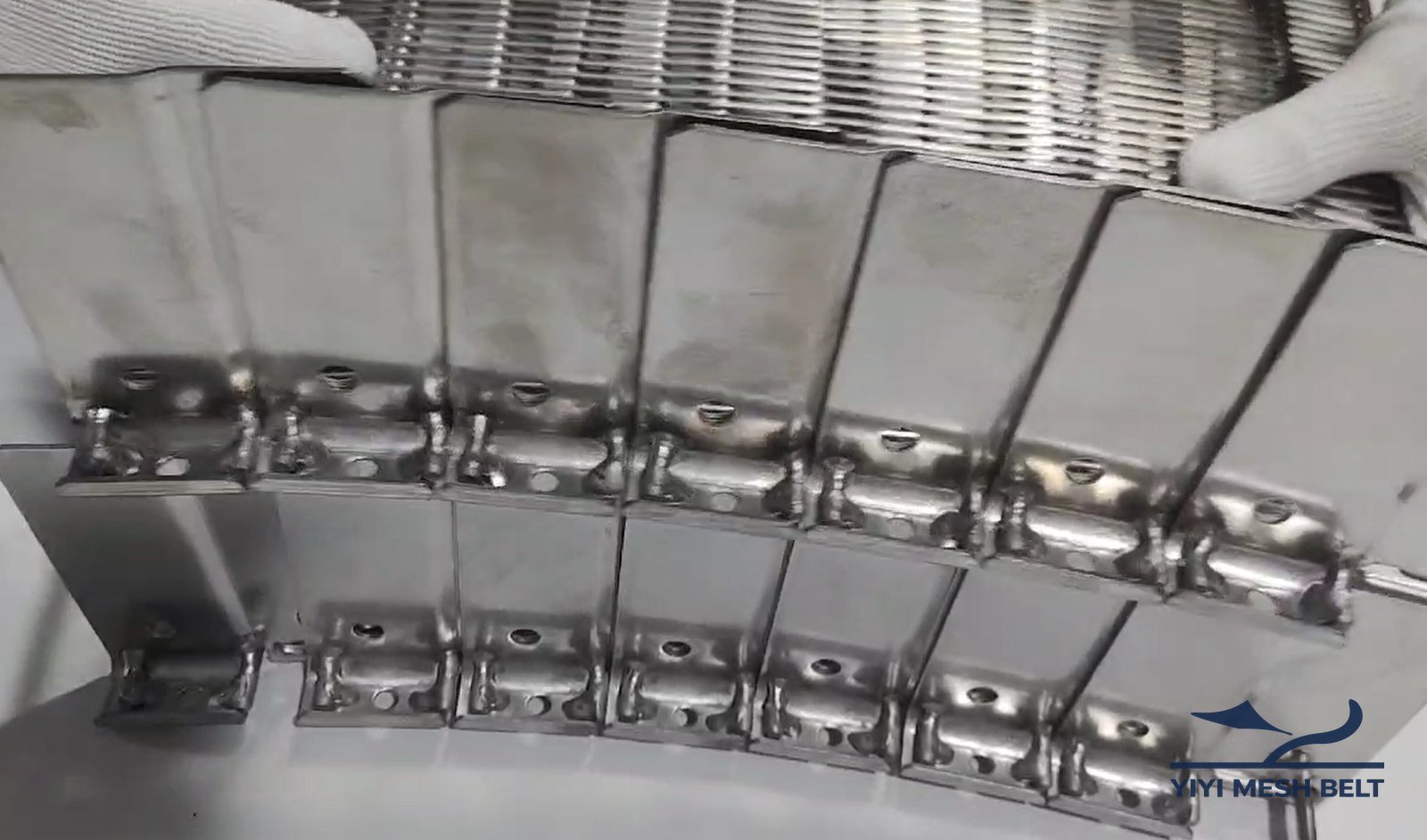

Stacking engagement check: an upper and a lower tier are fitted together to confirm the side plates seat evenly.
Signs that the stacking fit is wrong:
- Uneven layer spacing
- Side plate rubbing
- Higher running resistance
- Belt vibration
- Unstable product transfer
- More frequent adjustment
For a replacement, do not copy the old belt blindly. If it ran with heavy side wear or deformation, review the guides and the freezer structure together with the new belt.
How should belt pitch be reviewed?
Pitch is often copied from another freezer because "it is the same width". Two freezers with the same width can need different pitches.
Pitch affects product support, airflow, belt weight, flexibility, how the belt stacks and how it engages the sprockets. Choose it from the real product, load, stacking height and drive layout, and measure it carefully on the old belt for a replacement.
| Tighter pitch | Wider pitch |
|---|---|
| Better support for small products | Better airflow |
| Heavier belt | Lighter belt |
| Less open area | Less support for small pieces |
The right pitch depends on product size and load, freezing time, airflow design, stacking height, belt speed, drive engagement and cleaning access. A small pitch difference against the existing sprockets is enough to cause noise, wear and unstable stacking.
What should you check on the side plates and edges?
When a Self-Stacking Belt fails early, the side structure is usually where it shows first.
Check side plate height, link thickness, edge clearance, weld position and turning direction. These details decide how the belt stacks, turns and clears the freezer structure. Wear marks on the old belt show how these parts actually ran.

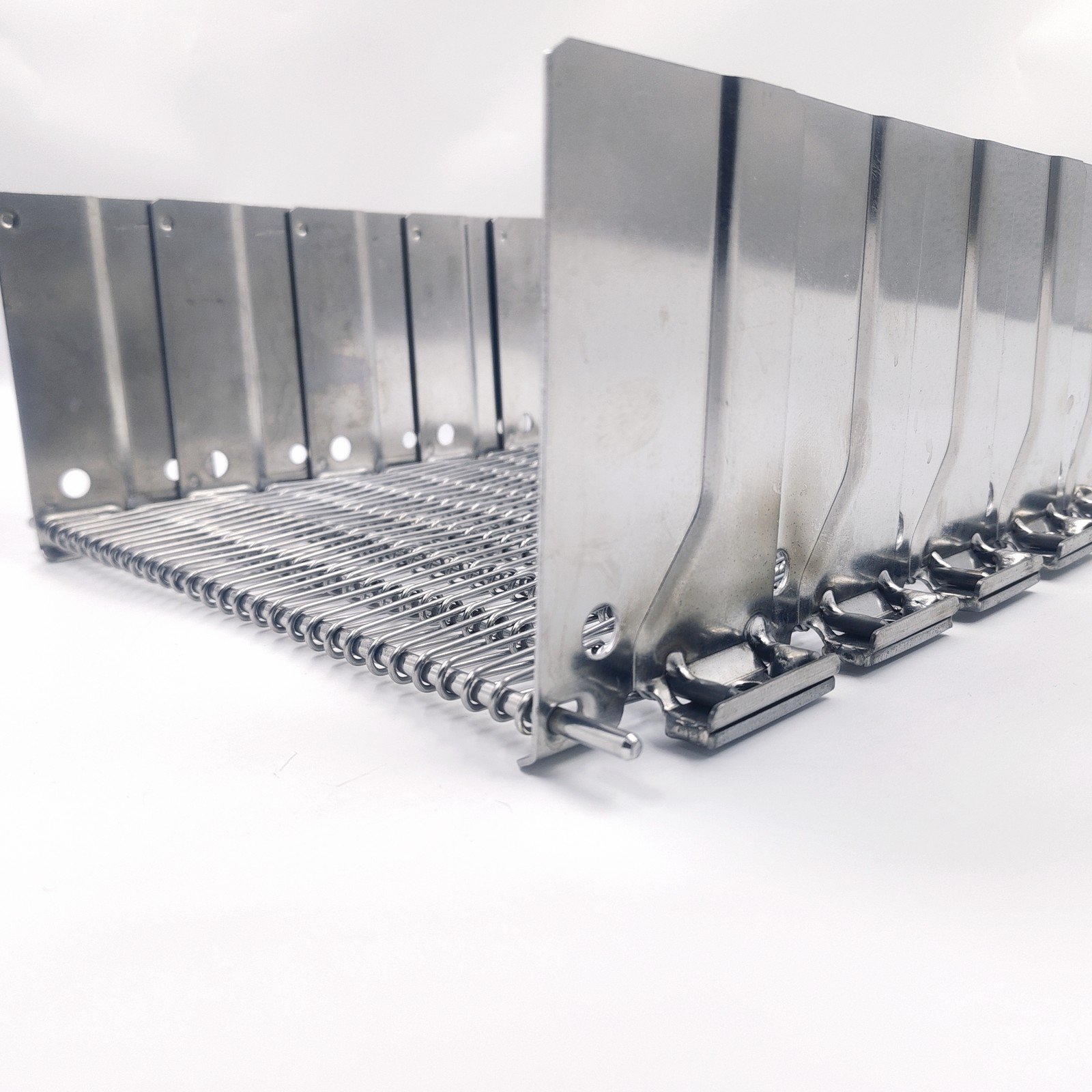

Side plate and rod end detail. Plate height, link thickness and weld position are checked against the approved drawing.
| Detail | Why it matters |
|---|---|
| Side plate height | Sets stacking support and layer spacing |
| Link thickness | Affects fit, strength and movement |
| Edge clearance | Prevents rubbing against the freezer structure |
| Weld position | Affects strength and interference risk |
| Old wear marks | Show how the belt actually ran |
| Turning direction | Affects how the belt moves through the spiral |
If one side of the old belt is worn more than the other, the cause may be guide alignment, stacking pressure, drive engagement or installation, not only the belt. A good review asks both "Can we copy the old belt?" and "Why did it wear this way?"
Is total belt width the same as carrying width?
Width is the first number in almost every inquiry, and it is the number most often misunderstood.
No. On a Self-Stacking Belt the side plates take up part of the total width. Confirm total width, effective carrying width, side plate width and guide clearance separately, or the belt may fit the freezer while carrying less product than planned.
Before confirming width, review:
- Total belt width
- Effective carrying width
- Side plate width
- Guide clearance
- Product loading density and product height
- Transfer area
For a replacement, measure both the outside width of the old belt and the usable product area between the side plates.
Why must sprockets be reviewed with the belt?
A new belt on worn sprockets often wears out faster than the old belt did.
The belt and the drive work as one system. If sprocket pitch, tooth profile or engagement position does not match the belt, you will see vibration, noise, abnormal wear and unstable stacking. Send sprocket photos, and drawings if you have them, with every replacement inquiry.
The supplier should review:
- Sprocket pitch and tooth profile
- Drive position and engagement area
- Existing sprocket wear
- Belt entry angle and running direction
If the sprockets are badly worn, replacing only the belt may not solve the running problem.
How do material and cleaning method change the choice?
"SUS304" on a quotation does not tell you whether the belt suits your washdown routine.
Choose the material from the real environment: salt, moisture, cleaning chemicals, temperature and the documentation your customer needs. Treat the cleaning method as a working condition, because side plates, rods and links all need to be cleaned without trapping residue.
| Line | What to review |
|---|---|
| Seafood | Salt, water and frequent washing; consider SUS316 |
| Meat and poultry | Strong cleaning routines and chemical exposure |
| Prepared food | Hygiene documentation and residue control |
| Bakery | Product appearance and smooth release |
Tell the supplier whether the line uses water washing, chemical or foam cleaning, high-pressure cleaning, manual cleaning or scheduled defrost and wash cycles. Material documentation supports traceability, but it cannot correct a wrong side structure, pitch or drive match. For how to check the grade itself, see why a SUS304 belt can be magnetic and how to verify it.
What can the old belt tell you in a replacement project?
A new belt that copies only the old dimensions can fail in exactly the same place.
The old belt is your best technical evidence. Its wear, cracks, deformation and corrosion show whether the problem came from belt structure, alignment, stacking load, cleaning or drive engagement. Photograph it before it is scrapped.

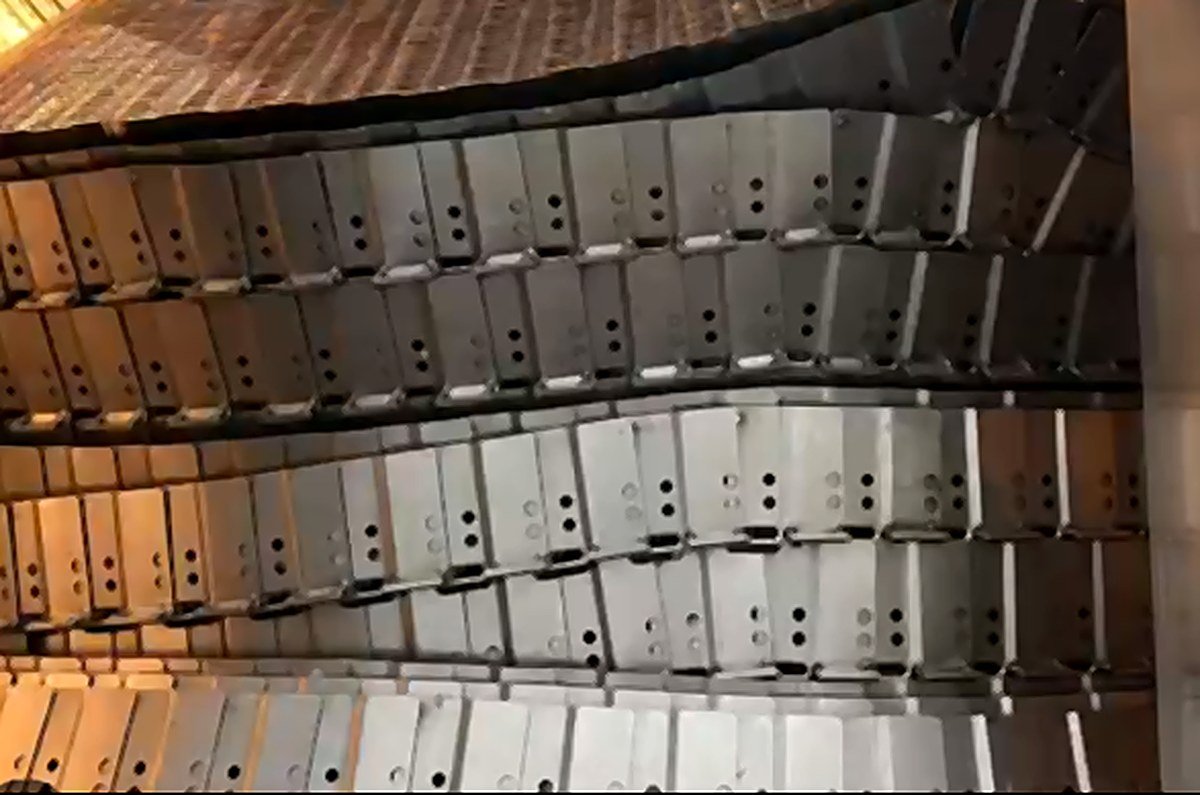

Deformed side plates found during a replacement review. Uneven plates disturb the whole stack above them.

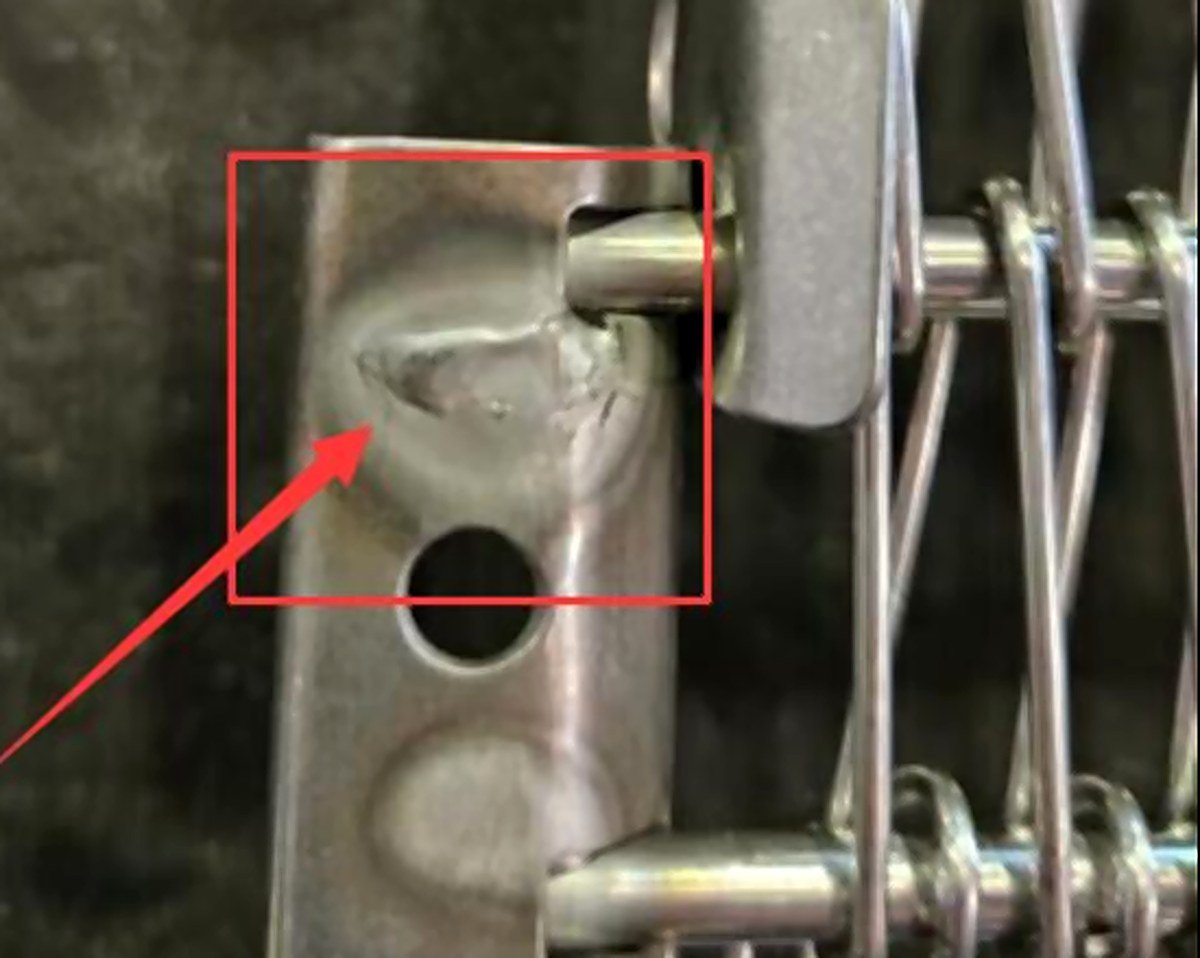

A weld crack on a link. Cracks at welds point to weld quality, load or fatigue, and need checking before the new belt is built.
| What you see on the old belt | What it may point to |
|---|---|
| Side plate wear or rubbing on one side | Guide alignment, edge clearance or stacking pressure |
| Deformed side plates | Overload, uneven stacking or plate height mismatch |
| Weld cracks or burn-through | Weld quality, fatigue or load |
| Rod deformation | Product load or tension imbalance |
| Corrosion at welds | Material, cleaning chemicals or residue trapped at joints |
| Sprocket wear marks | Pitch or engagement mismatch |
A proper replacement review answers two questions: what belt specification is needed, and why the previous belt failed. If you are deciding where to buy the replacement, see OEM or direct supplier for a self-stacker belt replacement.
How do you check manufacturing consistency?
One good sample does not prove that the full belt, or the next order, will be the same.
Ask how the supplier controls raw material, wire forming, side structure accuracy and welding, and how the finished belt is tested against the approved drawing. "We inspect before shipment" is not enough for a belt that also carries the stack.

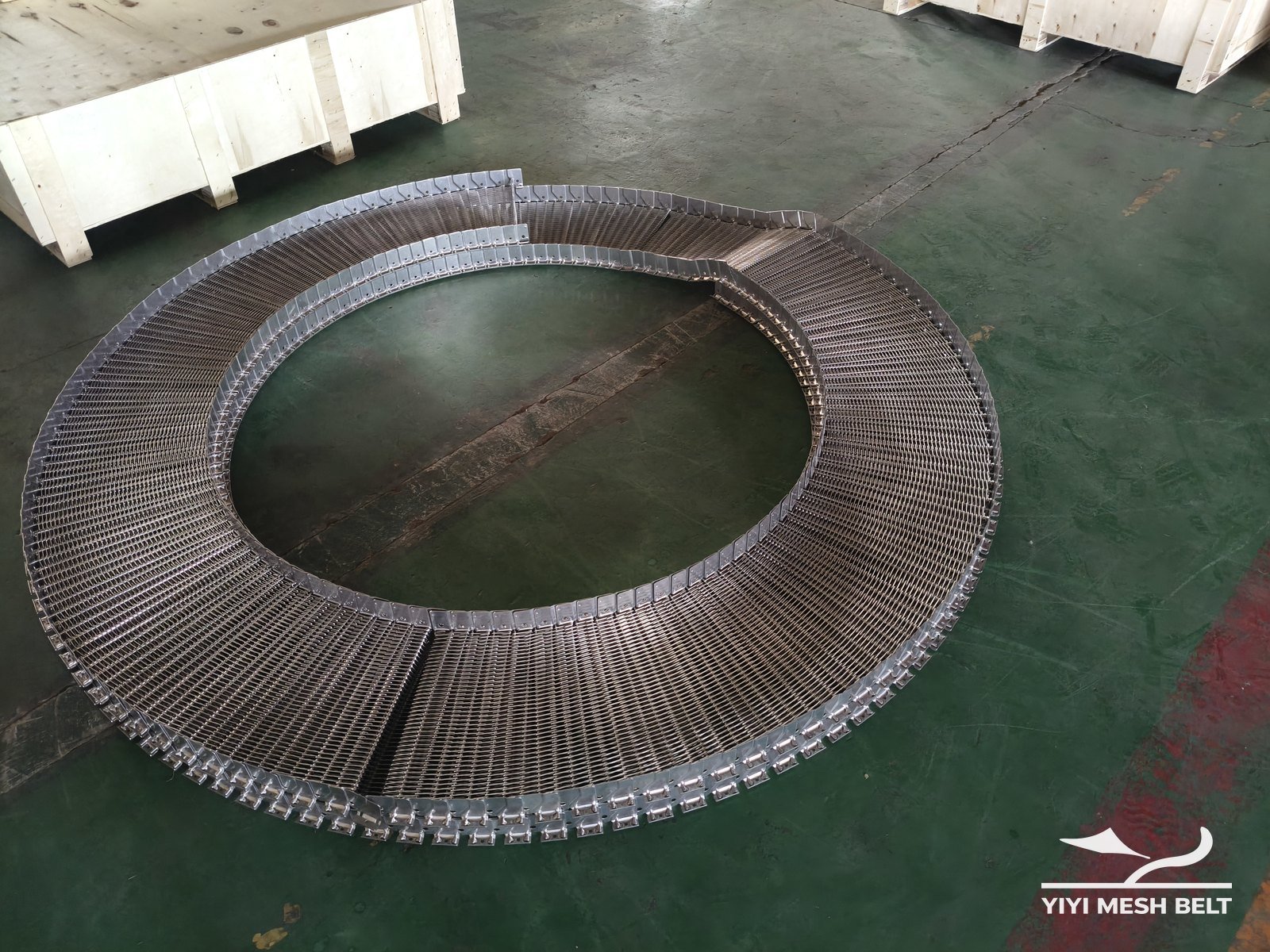

Turn radius check in the factory before packing.
Look for:
- Incoming material control and material traceability
- Wire forming and side structure accuracy
- Welding control
- In-process inspection
- Drum Test against the customer-approved drawing
- 100% final inspection and retained samples
- Packing inspection
At YIYI MESH BELT, custom belts follow drawing approval, trial production, first-article inspection, customer confirmation and then batch production. For OEM builders and distributors, batch-to-batch consistency matters more than the first sample.
What should a Self-Stacking Belt RFQ include?
"Please quote self-stacking belt" leads to a quote that cannot be compared and a belt that may not fit.
A useful RFQ describes the product, the freezer and the existing belt: stacking height, width, pitch, side plate structure, sprockets, material and cleaning method, plus old belt photos for replacements. Missing items can follow, but photos let the review start.
| Information | Why it helps |
|---|---|
| Product type and load | Reviews support, airflow and stacking pressure |
| Machine type | Shows the working system |
| Stacking height | Confirms the layer support requirement |
| Old belt photos | Identify structure and wear |
| Drawing or sketch | Reduces measurement error |
| Belt width | Confirms installation and product area |
| Pitch details | Confirm support, movement and drive match |
| Side plate structure | Confirms stacking and edge fit |
| Turning direction (clockwise or counter-clockwise) | Decides how the belt is built |
| Sprocket photos | Check drive engagement |
| Material requirement | Supports food-contact and corrosion review |
| Cleaning method | Helps select structure and material |
| Quantity and destination | Supports production and delivery planning |
For urgent replacements, send what you have first: old belt photos, side structure photos, sprocket photos and photos of the damaged area.
When This Is Not the Right Choice
A Self-Stacking Belt is not the answer for every spiral:
- Drum-driven spirals with support rails. If your freezer uses a rotating drum and a rail system to support each tier, the belt does not need to carry the stack. A Spiral Freezer Belt is the usual choice.
- Very tight layouts. Where the footprint forces a small turning radius, a Small Radius Spiral Freezer Belt may fit better. The freezer design decides.
- Products taller than the stack spacing. If product height exceeds the space between tiers, changing the belt alone will not solve it. The freezer design has to be reviewed.
- When only a price per metre is wanted. If there is no way to confirm stacking height, side plates or sprockets, the risk of a mismatch is high. Send photos first.
From Our Engineering Experience
These are the points I explain most often when a customer asks us to replace a Self-Stacking Belt.
We ask for the original sample first. For a replacement project, we ask the customer to send us a section of the old belt. Photos help us start, but the sample lets us measure and test what the freezer actually ran with.
The stack plate engagement matters most. In a Self-Stacking Belt, the stack plates carry the tiers above, so we test the sample completely: the total width over the stack plates, the plate height, the plate strength and the material. The new belt has to reach the strength the stack needs, not just match the dimensions.
For a new belt, we always ask which way it turns. Clockwise or counter-clockwise changes how the belt is built. It is one question, and it has to be answered before production.
— Sunny, Sales Director, YIYI MESH BELT
Evidence From Our Work
Case 1: Replacing an OEM-supplied belt for a distributor in South Korea
| Step | Detail |
|---|---|
| Situation | A distributor in South Korea needed a replacement Self-Stacking Belt. The original belt had been bought from the freezer's equipment manufacturer. |
| What we checked | The distributor sent us a sample of the original belt. We tested it and matched the new belt to it, then reviewed the results with the distributor. |
| Why it matters | Without the OEM drawing, the original sample is the most reliable reference for stack plate engagement, width and strength. |
| What was verified | The distributor also checked our factory through an online video tour before ordering. After installation, the distributor reported no running problems. |
| Buyer lesson | An OEM belt can be replaced without the OEM drawing if a sample is tested properly. |
Case 2: A 700 m replacement for meat processing in Pakistan
| Step | Detail |
|---|---|
| Situation | A meat processing customer in Pakistan needed about 700 m of replacement Self-Stacking Belt. |
| What we checked | The customer sent a sample of the original belt. We analysed it and reverse-engineered the belt from the sample. |
| Why it matters | On a long belt, a small mismatch in stack plate height or engagement repeats on every tier. |
| What was verified | After installation, the customer's running feedback showed no problems. |
| Buyer lesson | For large replacements, send a sample of the original belt before ordering, not only dimensions. |
FAQ
What is the first thing to check when selecting a Self-Stacking Belt?
Start with the freezer and the stacking requirement. Product load, stacking height, pitch, side plate structure, sprocket engagement and cleaning method should all be reviewed before production.
Can a Self-Stacking Belt be replaced without drawings?
Yes, with a careful review. Old belt photos, measurements, side plate photos, sprocket photos and a short section of the old belt are enough to start.
Is the stainless steel grade enough to select a Self-Stacking Belt?
No. The grade matters, but it does not confirm system fit. The belt must also match stacking height, pitch, side plates, product load, cleaning and drive engagement.
Why does a Self-Stacking Belt wear on one side?
Common causes are guide mismatch, uneven stacking pressure, wrong edge clearance, sprocket engagement problems, installation issues or tension imbalance. The wear marks on the old belt help find the cause.
Should the sprockets be checked when replacing a Self-Stacking Belt?
Yes. If sprocket pitch, tooth profile or wear does not match the new belt, replacing only the belt may not solve the running problem.
What is the difference between a Self-Stacking Belt and a Spiral Freezer Belt?
A Self-Stacking Belt supports the tiers above it through its side plates. A Spiral Freezer Belt runs on a drum and rail system that supports each tier. The freezer design decides which one you need.
Conclusion
Do not select a Self-Stacking Belt by price, width or stainless steel grade alone. Select it by system fit: product, stacking height, pitch, side plates, sprockets, cleaning method and operating conditions, made with stable production control. Before your next order, put these items in the RFQ and send photos of the old belt.

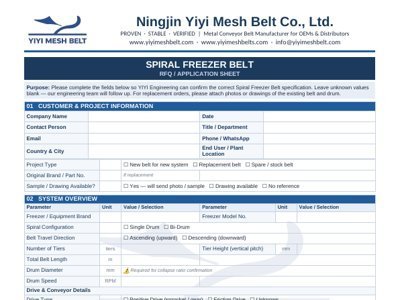

Download the Self-Stacking Belt RFQ Application Sheet
Get the application sheet we use with OEM customers: which parameters to measure, which photos to take, and what to send for a replacement review.
Download from the YIYI Download Center
Prefer to talk to an engineer? Send your drawing, old belt photos or sample:
- RFQ form: www.yiyimeshbelt.com/contact/
- Email: info@yiyimeshbelt.com
- Phone / WhatsApp: +86 134 5177 3742
Related pages: Self-Stacking Belt · Spiral Freezer Belt · How to choose a Spiral Freezer Belt for IQF systems · Spiral Freezer Belt replacement: 9 checks · Self-stacker belt replacement: OEM or direct supplier?
Technical reviewer: Sunny, Sales Director, YIYI MESH BELT
Last updated: 2026-10-05
YIYI MESH BELT · Ningjin Yiyi Mesh Belt Co., Ltd. · www.yiyimeshbelt.com · www.yiyimeshbelts.com · info@yiyimeshbelt.com
