When products are small, soft or need a smooth surface, an ordinary woven belt can be too open. A compound weave closes the gaps.
Use a Compound Weave Belt when the product needs a dense, smooth woven surface: small pieces that would fall through or mark on a more open belt, or processes that need close, even support. Confirm spiral pitch, spiral wire, rod pitch, width and edge on a drawing.
We are YIYI Mesh Belt, a metal conveyor belt manufacturer in Ningjin, Dezhou City, Shandong Province, China. Our manufacturing experience dates back to 1998, and we work on a 27,000 m² site with about 280 units of production and supporting equipment, including 9 welding robots. I am Sunny Ye. The Compound Weave Belt is our densest woven belt family. This article explains when it is worth choosing and what we confirm before making one.
At a Glance
| Product | Compound Weave Belt |
|---|---|
| When to use | Small, soft or delicate products; close, even support; smooth surface |
| YIYI references | Spiral pitch 6–20 mm; spiral wire 1.2–3 mm; rod pitch 6–20 mm; width 200–3,000 mm |
| Materials and edge | SUS304, SUS316 or mild steel; welded edge |
| What to send | Product size, old belt photos and measurements, width, drive, process and temperature |
What Makes a Compound Weave Different?

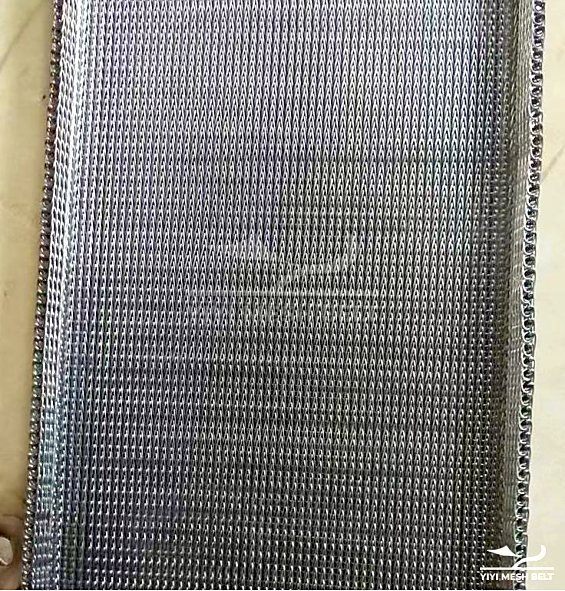

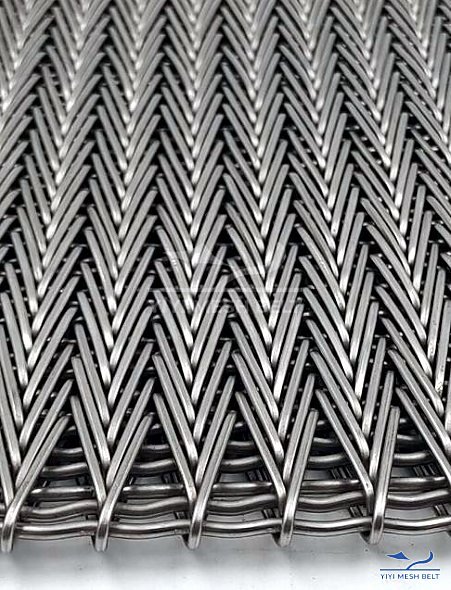

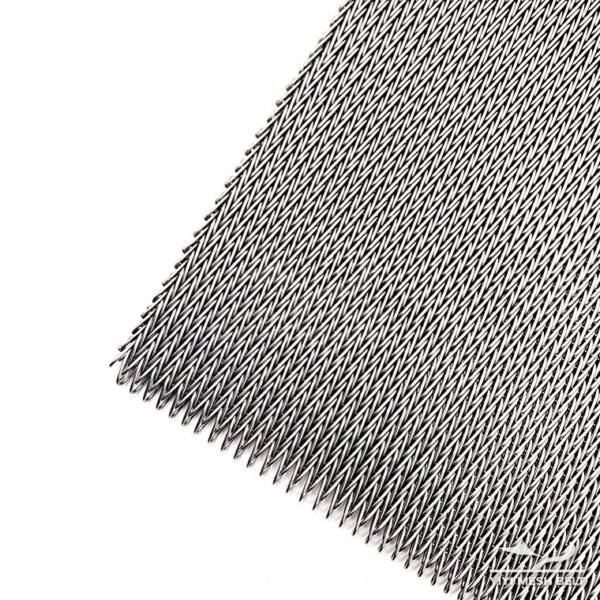

In a compound weave, more than one spiral is woven together for each connecting rod, so the spirals interlock more closely than in a balanced weave. The result is a denser, smoother surface with smaller openings. It supports small and delicate products better, at the cost of more weight and less open area.
| Balanced Weave | Compound Weave | |
|---|---|---|
| Surface | Open to medium | Dense and smooth |
| Small product support | Depends on pitch | Strong |
| Airflow and drainage | Higher | Lower |
| Weight | Lighter | Heavier |
Because each rod carries more than one spiral, the belt is stiffer and heavier than a balanced weave of similar pitch. That stiffness helps keep the surface flat under small products, but it also means rollers and supports must suit a heavier belt.
Different compound weave structures exist. The structure for your belt is identified from the old belt or drawing and confirmed on our drawing; we do not assume it from a trade name.
Sunny's view: If your product is smaller than a fingernail, start the conversation with compound weave and work outwards.
Which Applications Suit a Compound Weave Belt?
A compound weave suits applications where products are small, soft, sticky or easily marked, and where an even, smooth support matters more than maximum airflow: small pieces in cooling or drying, delicate products on transfer conveyors, and some frying, coating or snack lines. The process and product decide; applications are confirmed per project.
| Need | Compound weave | Alternative |
|---|---|---|
| Small pieces must not fall through | Strong fit | Closer balanced weave |
| Delicate surface, avoid marks | Strong fit | Smooth flat wire with close pitch |
| Maximum airflow | Limited | Flat Wire / Honeycomb, open balanced weave |
| Spiral freezing | Not used | Spiral Freezer Belt, Self-Stacking Belt |
For frying lines, read which metal belt fits a fryer.
Sunny's view: Tell me the smallest product and how it must look at the end. Marks on the product are often the reason to go denser.
Which Parameters Must Be Confirmed?

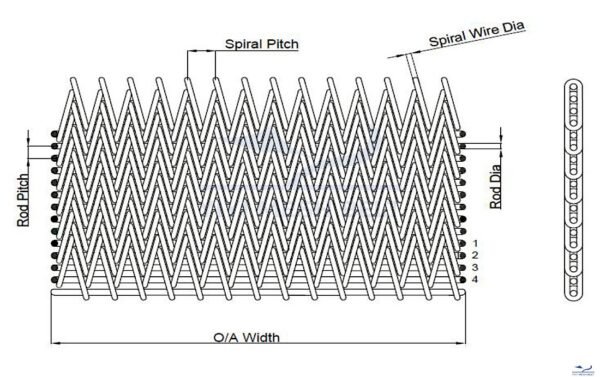

Confirm spiral pitch, spiral wire diameter, rod pitch, belt width, edge and material. Our references cover spiral pitch 6 to 20 mm, spiral wire 1.2 to 3 mm, rod pitch 6 to 20 mm, widths of 200 to 3,000 mm and a welded edge. Rod diameter and structure details are confirmed for each project.
| Parameter | YIYI reference |
|---|---|
| Material | SUS304 / SUS316 / mild steel |
| Spiral pitch | 6–20 mm |
| Spiral wire | 1.2–3 mm |
| Rod pitch | 6–20 mm |
| Width | 200–3,000 mm |
| Edge | Welded |

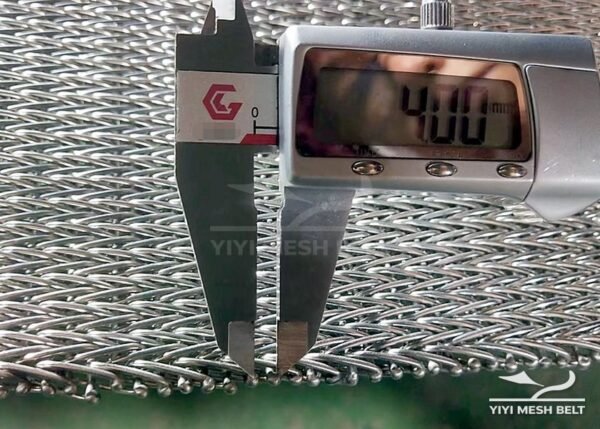

Measure on an unworn part of the old belt. Dense weaves hide wear well, and a stretched section can make the pitch look larger than the original. Several measurements along the length show whether the belt has stretched evenly.
We do not publish a general rod diameter range or a standard structure list for this family: both are confirmed from your belt or drawing. That keeps the quote tied to your machine rather than a catalogue.
Sunny's view: For compound weave, a physical sample is worth more than any description. The structure is easiest to read in your hand.
What Are the Trade-Offs?
The dense surface that supports small products also reduces open area, adds weight and holds more residue between wires. That means more drive load, slower drainage and more attention to cleaning. These are reasons to choose a compound weave for the right product, and to plan cleaning and drive from the start.
- Weight: heavier per square metre; review drive and supports.
- Airflow: less air through the belt; review with the equipment builder for cooling or drying.
- Cleaning: residue can sit between closely woven wires; plan wash method and access.
- Stretch: heavier load and temperature increase stretch; measure pitch over time.
Read how to maintain and repair a metal conveyor belt.
Sunny's view: If cleaning is hard on your line today, tell me before choosing compound weave. We can review a more open option too.
Which Material and Process Conditions Matter?
Compound weave belts are made in SUS304, SUS316 or mild steel in our references. Stainless suits food and wet processes; SUS316 is reviewed for salt or chlorinated cleaning; mild steel suits some dry or heated industrial uses. Temperature suitability is confirmed per project with the equipment data.
| Process | Material to review |
|---|---|
| Food transfer, cooling, drying | SUS304 |
| Salt, brine, chlorinated cleaning | SUS316 |
| Heated industrial processes | Specific review with temperature data |
Each incoming material batch is checked against Material Documentation, with spectral and hardness testing. Read what material documentation should come with a belt.
Sunny's view: The tighter the weave, the more cleaning chemicals matter. Rinse thoroughly, especially between the spirals.
How Should a Compound Weave Belt Be Cleaned?
Because the weave is dense, residue can settle between spirals. Clean before residue dries, use the cleaning method approved for the line, rinse thoroughly so chemicals do not stay in the weave, and dry the belt before long stops. Inspect the weave for blocked areas, which slow drainage and can mark products.
- Clean at product changes and at the end of runs
- Use spray from both sides of the belt where the conveyor allows
- Rinse chlorinated or caustic cleaners off completely
- Dry or run the belt dry before long stops
- Check for blocked areas and remove build-up
Read why stainless steel belts rust and how to maintain a metal conveyor belt.
Sunny's view: If your crew struggles to clean the current belt, tell me before we choose the weave. Cleaning time is part of the cost of a dense belt.
How Is a Compound Weave Belt Driven?
Compound weave belts are usually friction driven by rollers or driven by sprockets that engage the rods, depending on the machine. With a heavier, denser belt, drive and take-up must be sized for the weight, and rollers must stay square so the belt tracks straight. Review the drive with every replacement.
- Friction drive: roller diameter and lagging; tension within the builder's range
- Sprocket drive: sprocket pitch matched to rod pitch
- Take-up: enough range for stretch over time
- Supports: even support under a heavier belt
A heavier belt also stores more energy when it stops and starts, so check that the drive and take-up handle start-up without slipping or jerking the belt.
Read how to replace a conveyor sprocket from a drawing.
Sunny's view: Send me a photo of the drive end. Roller or sprocket changes what I need to check.
What Should You Send for a Compound Weave Belt?
Send the product and its smallest size, the process and temperature, width and length, photos of the surface and both edges, measurements of spiral pitch, spiral wire and rod pitch over several repeats, the drive and sprocket details, and ideally a short sample. The structure is then confirmed on a drawing before production.
Checklist
- Product, smallest size, process and temperature
- Width and length
- Spiral pitch, spiral wire and rod pitch, each over several repeats
- Photos of the surface and both edges
- Drive: roller or sprocket; sprocket details
- Material; a short sample if possible
For formal orders we prepare a drawing for your approval, run trial production and a first article, and inspect every belt before packing.
Read how to choose pitch and wire for a balanced weave belt.
Sunny's view: A 20 cm square of the old belt lets me read the weave structure directly. It saves the most time.
When This Is Not the Right Approach
A Compound Weave Belt is not the right choice where maximum airflow or drainage matters more than support; an open balanced weave or a Flat Wire / Honeycomb Belt fits better there. It is not used in spiral freezers.
It is also more than most general transfer conveyors need.
From Our Engineering Experience
Compound weave inquiries are usually replacements where the product is small or delicate. We identify the structure from a sample, then confirm pitch, wire and rod on a drawing.
We do not have a compound weave case we can publish here, so this article explains our review.
FAQ
What is a compound weave belt?
A woven belt where several spirals are woven together for each rod, giving a dense, smooth surface.
When should I choose it over a balanced weave?
When products are small, soft or easily marked and need close, even support.
What are the main trade-offs?
More weight, less open area and more attention to cleaning.
What sizes do you make?
Our references cover spiral pitch 6 to 20 mm, spiral wire 1.2 to 3 mm, rod pitch 6 to 20 mm and widths of 200 to 3,000 mm.
What should I send?
Product size, process, width, photos, pitch and wire measurements, drive details and ideally a sample.
Conclusion
Choose a compound weave when small or delicate products need a dense, smooth surface. Plan drive and cleaning, and confirm the structure on a drawing.
